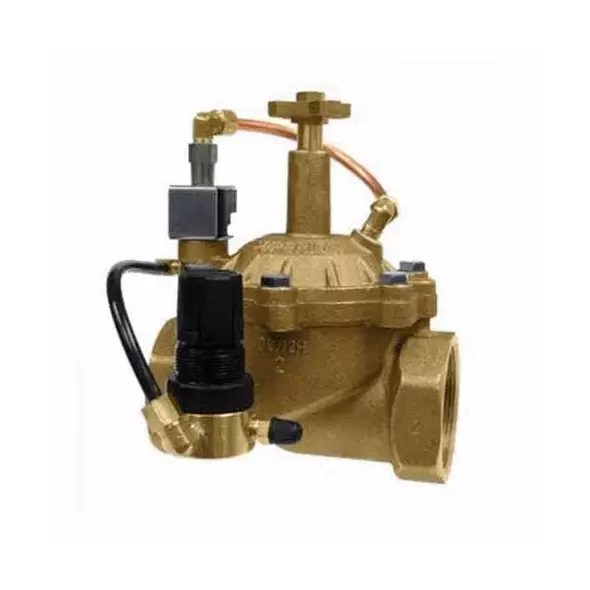

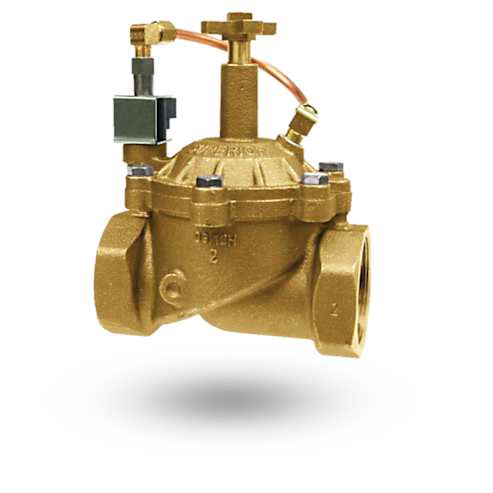

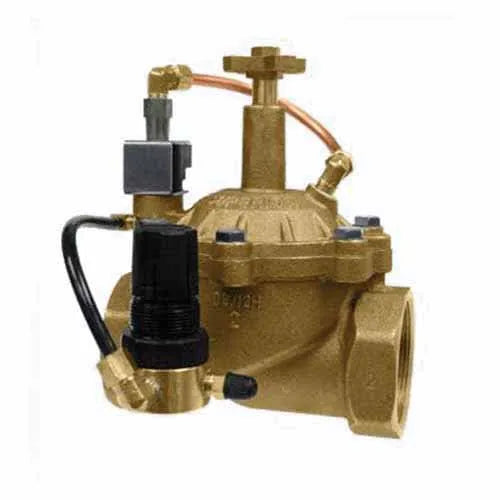

Storm 3100200 2 inches Brass 20 - 200 psi 3100 Series Pressure Regulating 24 VAC Master Valve SUP3100200

Product Description

The STORM 3100200 is a normally open master valve that provides dirty and recycled water protection along with pressure regulation. It features a two-piece upper diaphragm and lower seat assembly that maximizes flow through the valve and protects the diaphragm from harmful debris. Includes pressure regulation feature that allows valve to maintain a constant outlet pressure to be set anywhere between 10 and 125 psi.

• Normally open design allows for constant system pressurization and on-demand access to manual irrigation and quick coupler use
• Self-cleaning inlet orifice with metering rod allows only "clean water" to enter upper diaphragm chamber offering consistent, trouble-free operation
• All EPDM rubber parts outlast commonly used Buna-N parts when exposed to reclaimed water

Product Highlights

This master valve is designed for durability and consistent performance in demanding irrigation systems, especially those using recycled water.

Product Information

Standard Information

• Brand: STORM
• Manufacturer Part Number: 3100200

Technical Specifications

• Brand: Storm Manufacturing Group
• Body Material: Brass
• Connection Size: 2 in.
• Electrical Rating: 24 VAC, 0.45 A Inrush, 0.3 mA Holding
• Master Valve Status (Normally Open/Normally Closed): Normally Open
• Valve Type: Master Valve
• MFG Number: 3100200
• Flow Rate: 5 to 320 gpm
• Pressure Rating: 20 to 200 psi
• Series/Model: 3100
