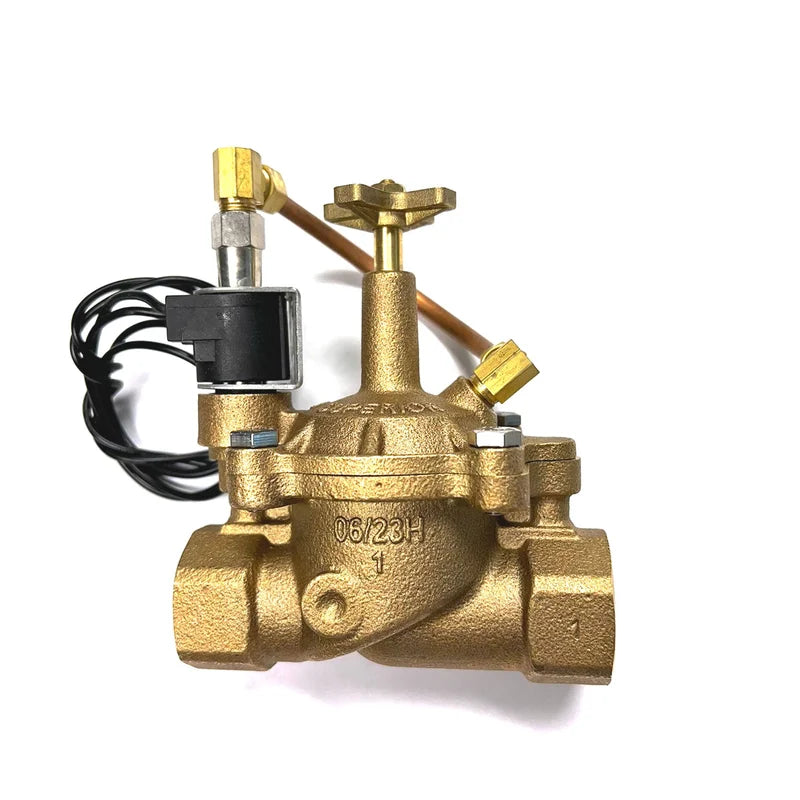

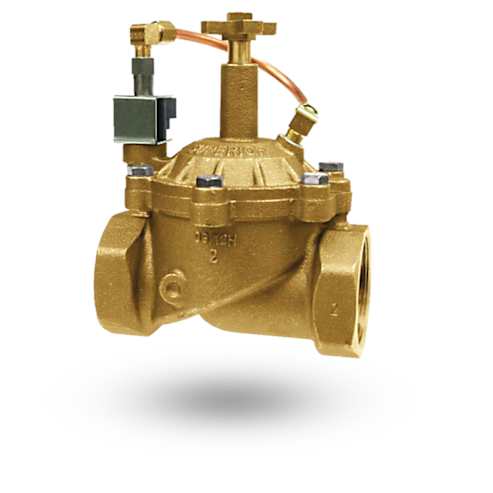

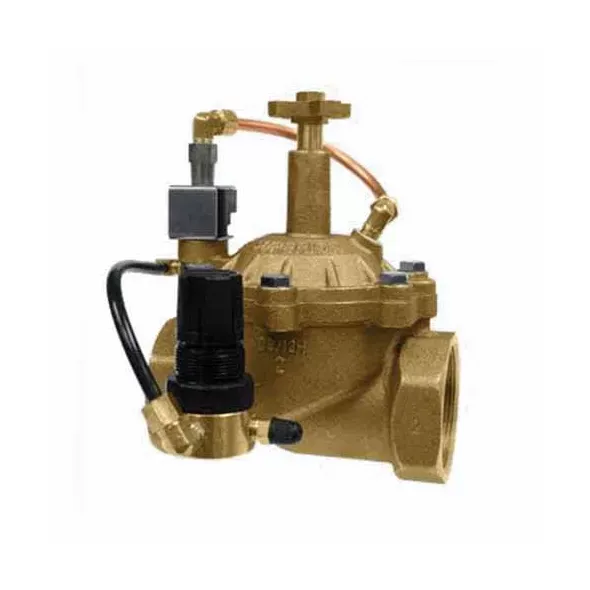

Storm 3100150 1-1/2 inches Brass Pressure Regulating 24 VAC Master Valve

Product Description

The STORM 3100150 is a normally open master valve that provides dirty and recycled water protection along with pressure regulation. It features a two-piece upper diaphragm and lower seat assembly that maximizes flow through the valve and protects the diaphragm from harmful debris. The valve maintains a constant outlet pressure between 10 and 125 psi.

• Normally Open design allows for constant system pressurization
• On-demand access for manual irrigation and quick coupler use
• Low seat design decreases pressure loss and improves flow

Product Highlights

This master valve is ideal for dirty and recycled water applications, ensuring consistent and trouble-free operation.

Product Information

Standard Information

• Brand: STORM
• Manufacturer Part Number: 3100150

Technical Specifications

• Brand: Storm Manufacturing Group
• Body Material: Brass
• Connection Size: 1-1/2 in.
• Electrical Rating: 24 VAC, 0.45 A Inrush, 0.3 mA Holding
• Master Valve Status (Normally Open/Normally Closed): Normally Open
• Operator Type: Purple Cross Handle
• Valve Type: Master Valve
• Operating Range: 20 to100 GPM
• Flow Rate: 5 to 320 gpm
• Pressure Rating: 20 to 200 psi
• Series/Model: 3100
