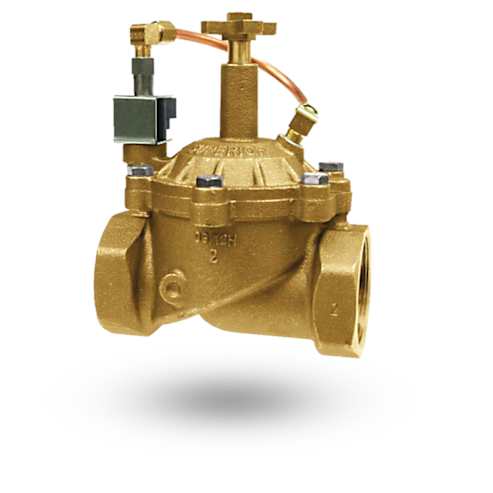

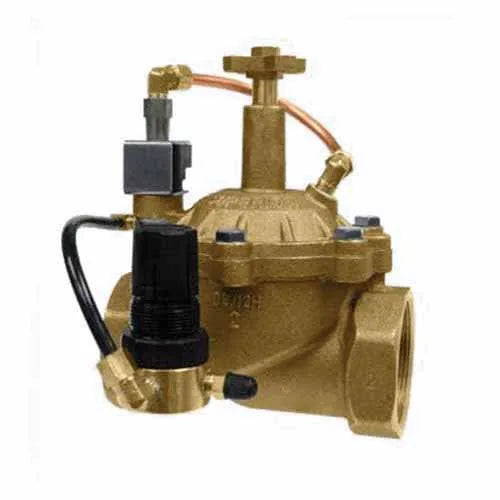

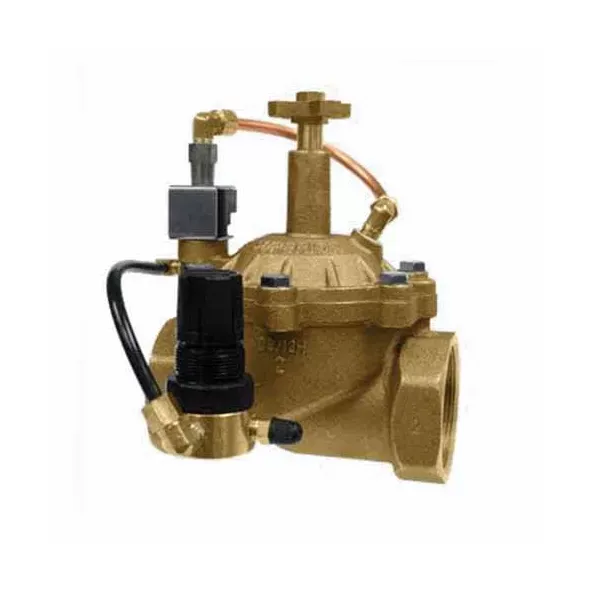

Storm 3100100 1 inches Brass 20 - 200 psi 3100 Series Pressure Regulating 24 VAC Master Valve

Product Description

The STORM 3100100 is a normally open master valve that provides dirty and recycled water protection along with pressure regulation. It features a two-piece upper diaphragm and lower seat assembly that maximizes flow through the valve and protects the diaphragm from harmful debris. Includes pressure regulation feature that allows valve to maintain a constant outlet pressure to be set anywhere between 10 and 125 psi.

• Normally open design allows for constant system pressurization and on-demand access to manual irrigation and quick coupler use
• Self-cleaning inlet orifice with metering rod allows only "clean water" to enter upper diaphragm chamber offering consistent, trouble-free operation
• All EPDM rubber parts outlast commonly used Buna-N parts when exposed to reclaimed water

Product Highlights

The 3100100 master valve is designed for constant system pressurization and on-demand access to manual irrigation. Its self-cleaning inlet ensures consistent operation, while EPDM rubber parts provide durability when exposed to reclaimed water.

Product Information

Standard Information

• Brand: STORM
• Manufacturer Part Number: 3100100

Technical Specifications

• Brand: Storm Manufacturing Group
• Body Material: Brass
• Connection Size: 1 in.
• Electrical Rating: 24 VAC, 0.45 A Inrush, 0.3 mA Holding
• Master Valve Status (Normally Open/Normally Closed): Normally Open
• Operator Type: Purple Cross Handle
• Valve Type: Master Valve
• MFG Number: 3100100
• Flow Rate: 5 to 320 gpm
• Pressure Rating: 20 to 200 psi
• Series/Model: 3100
