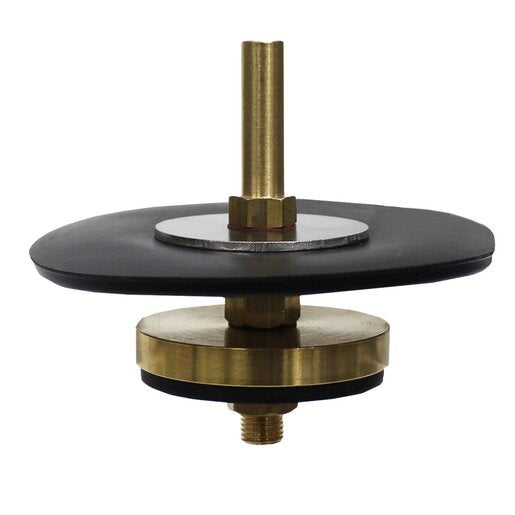

Storm 16213 Diaphragm Assembly 1-1/4 in 950 Series

Product Description

The STORM 16213 is a diaphragm assembly designed as a replacement component for 950 Series valves. Diaphragm assemblies serve as the primary pressure-regulating or flow-control element inside a valve body, flexing in response to system pressure changes to modulate flow. This assembly fits a 1-1/4 inch valve configuration. Licensed plumbers and gas technicians typically install or service this component during scheduled valve maintenance or when a failed diaphragm causes pressure irregularities, leakage, or loss of valve function. It is a direct-replacement, field-serviceable part intended to restore valve performance to original operating condition.

This diaphragm assembly is suited for use in systems that incorporate 950 Series valves at the 1-1/4 inch size. Common applications include commercial and residential gas distribution, pressure regulation, and fluid control systems where 950 Series valve bodies are already installed. Replacement of the diaphragm assembly is the preferred repair approach when the valve body itself remains serviceable and in good condition.

Key Features

• Direct-replacement diaphragm assembly for 950 Series valve bodies
• 1-1/4 inch valve size configuration
• Field-serviceable design supports in-place valve repair without full valve replacement
• Restores proper pressure response and sealing function to the valve

Compatibility

Designed as an OEM-style replacement diaphragm assembly for 950 Series valves in the 1-1/4 inch size.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas technician. Shut off the gas or fluid supply and relieve all system pressure before disassembling the valve body. Follow applicable codes such as the IFGC or IPC for gas and plumbing valve service. Inspect the valve body seating surfaces for wear or damage before installing the new diaphragm assembly.

Technical Specifications

• Valve Size: 1-1/4 inches
• Series: 950 Series
• Order Increment: 1

Standard Information

• Brand: STORM
• Manufacturer Part Number: 16213
