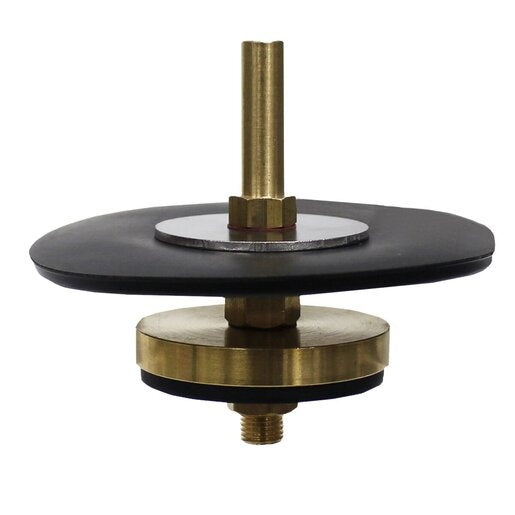

Storm 16212 Diaphragm Assembly 1 Inch 950 Series

Product Description

The STORM 16212 is a diaphragm assembly designed for use in the 950 Series gas pressure regulators. The diaphragm is the primary pressure-sensing and flow-control element inside a regulator body, flexing in response to downstream pressure changes to modulate gas flow. This assembly provides a direct service replacement for worn or failed diaphragms, restoring proper regulator function without replacing the entire valve body. Installation is typically performed by a licensed gas fitter or plumber during routine regulator service or in response to leak or pressure-drift diagnostics. The 1-inch size corresponds to the regulator inlet/outlet port diameter.

The 16212 diaphragm assembly is sized for 1-inch regulators within the 950 Series product line. This series is commonly found in residential and light commercial gas distribution applications, including natural gas and LP systems at the meter set, appliance connection, or intermediate pressure stage. Replacement of the diaphragm assembly is a standard field-service procedure performed when a regulator fails a lockup or droop test, shows signs of diaphragm fatigue, or has logged extended service hours.

Key Features

• Direct-replacement diaphragm assembly for 950 Series regulators
• 1-inch size matches standard 950 Series regulator port diameter
• Restores regulator pressure-sensing and flow-control function
• Designed for field serviceability without full regulator replacement

Compatibility

Designed as a replacement diaphragm assembly for 1-inch 950 Series gas pressure regulators.

Installation Notes

Diaphragm assembly replacement on gas regulators must be performed by a licensed gas fitter, plumber, or HVAC technician in accordance with local codes and the applicable edition of the IFGC or your jurisdiction's adopted gas code. Shut off the upstream gas supply and verify zero pressure in the regulator body before disassembly. Inspect the regulator body seating surfaces for damage before installing the new diaphragm assembly. After reassembly, leak-test all joints with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Series: 950 Series
• Port Size: 1 inch
• Order Increment: 1

Standard Information

• Brand: STORM
• Manufacturer Part Number: 16212
