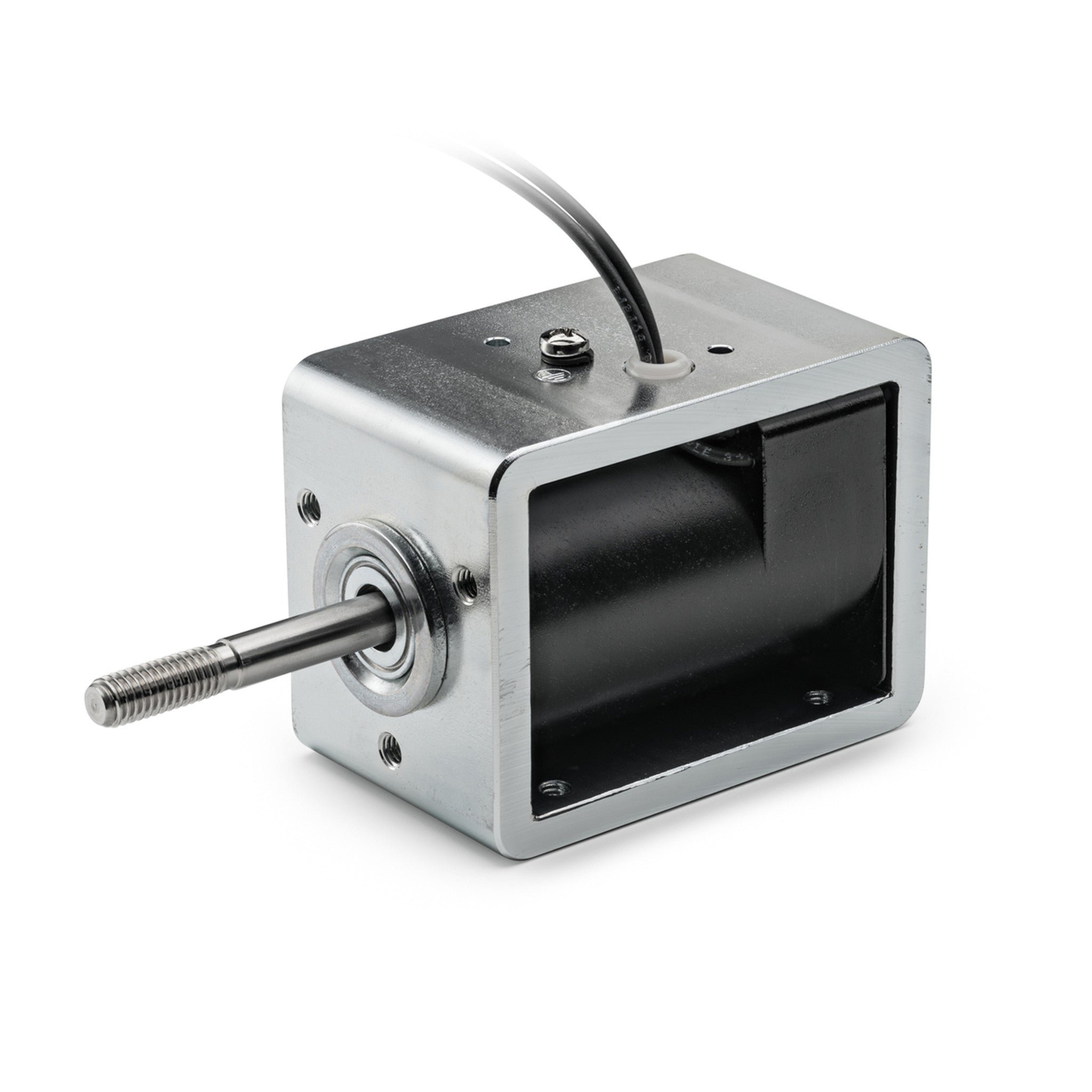

Storm 16009 Solenoid Frame

Product Description

The STORM 16009 is a solenoid frame designed as a structural component within solenoid valve assemblies. The solenoid frame houses and supports the electromagnetic coil and core, maintaining alignment and mechanical integrity during valve operation. This type of component is found in HVAC, plumbing, and fluid-control systems where solenoid valves regulate flow. Licensed technicians and experienced tradespeople performing valve service or coil replacement typically handle this part.

The STORM 16009 solenoid frame is suited for use in residential and light commercial applications where solenoid valve assemblies require a replacement frame. It is used in systems where the existing frame has suffered mechanical damage or dimensional wear that compromises coil seating or valve performance. Install scenarios typically involve field repair of an existing solenoid valve body rather than full valve replacement.

Key Features

• Provides structural support and alignment for solenoid coil and core components
• Designed as a direct replacement frame for solenoid valve service
• Compact form factor suited for field repair applications
• Compatible with solenoid valve assemblies requiring a standardized frame component

Compatibility

Designed as an OEM-style replacement solenoid frame for solenoid valve assemblies in HVAC, plumbing, and fluid-control applications. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified plumber familiar with solenoid valve service procedures. De-energize and isolate the system, shutting off all electrical power and closing upstream isolation valves before disassembling the solenoid valve. Verify that the replacement frame dimensions match the original before reassembly to ensure proper coil seating and valve function. Follow applicable local codes and manufacturer service documentation when servicing solenoid valve assemblies.

Technical Specifications

• Order Increment: 1

Standard Information

• Brand: STORM
• Manufacturer Part Number: 16009
