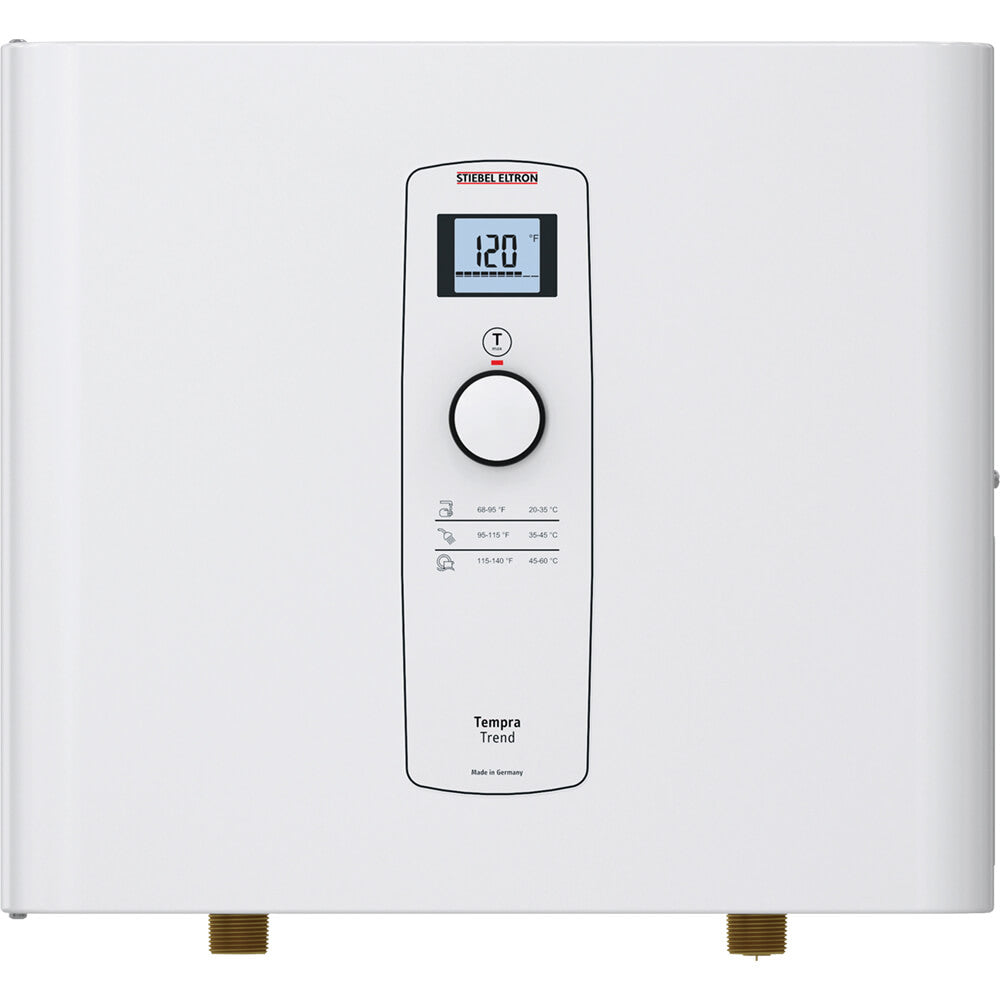

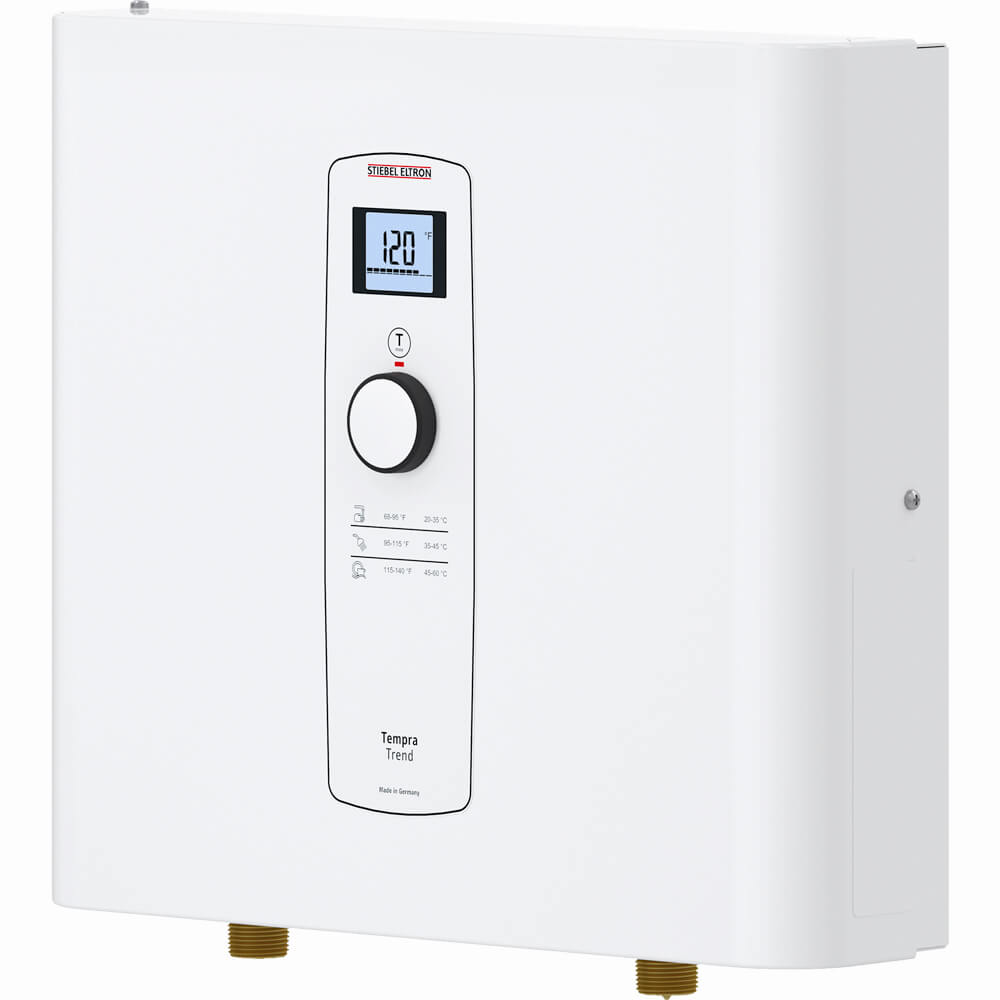

Stiebel Eltron 239215 Tempra 20 Trend 19,200 W Tankless Electric Water Heater

Product Description

The Stiebel Eltron 239215 Tempra 20 Trend is a tankless electric water heater for whole house use. This unit is designed to provide reliable hot water with energy efficiency. It features intelligent self-modulating technology that helps minimize energy consumption.

• Constant temperature hot water for multiple bathrooms.
• Digital display for precise temperature control.
• Requires dedicated electrical service for installation.

Product Highlights

The Tempra 20 Trend is ideal for residential applications, providing hot water on demand without the use of a storage tank.

Product Information

Standard Information

• Brand: Stiebel Eltron
• MPN: 239215

Technical Specifications

• Phase: 1
• Voltage: 208v, 240v
• Warranty: 7 Year Limited/3 Year Parts
• Fuel Type: Electric
• KW (208V): 14.4
• KW (240V): 19.2
• Wire Size: 8/2 AWG
• Amps (208V): 70
• Amps (240V): 80
• Application: Residential, 1 Shower
• Breaker (208V): 2 x 35
• Breaker (240V): 2 x 40
• Depth (Inches): 4-5/8
• Max Flow (GPM): 8
• Min Flow (GPM): 0.5
• Width (Inches): 16-5/8
• Connection Type: Threaded
• Height (Inches): 14.5
• Water Connection: 3/4
• Power Consumption: 19,200 W
• Operating Voltage: 208/240V AC
• Minimum Flow Activation: 0.5 gpm
• Environment: Indoor
• Market: Commercial, Residential
• Adjustable Thermostat: Yes
• Temperature Range: 70 Degrees F to 140 Degrees F
• Maximum Delivered Temperature: 140 Degrees F
• Minimum Delivered Temperature: 70 Degrees F
• Mounting Type: Wall Mounting
• Water Heater Design: Whole House
• Mounting Orientation: Horizontal, Vertical
• Temperature Rise @ Flow: 20 Degrees F @ 6.3 gpm, 30 Degrees F @ 4.3 gpm, 40 Degrees F @ 3.3 gpm, 50 Degrees F @ 2.6 gpm, 60 Degrees F @ 2.3 gpm, 70 Degrees F @ 1.8 gpm, 80 Degrees F @ 1.7 gpm, 90 Degrees F @ 1.4 gpm
