Sterling Hydronics SUS-2 700-A1 baseboard radiator 560 BTU/hour per linear foot (2 ft)

Product Description

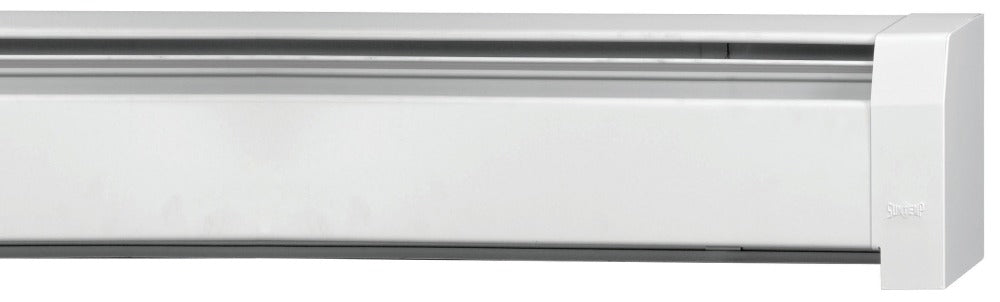

Sterling Hydronics SUS-2 is a Suntemp imperial hydronic baseboard radiator (model 700-A1) designed for hot water heating. It provides 560 BTU/hour per linear foot at 180°F, using a copper tube element with aluminum fins in a steel enclosure. The unit is 2 foot long, 7-7/8 inch high and 2-13/16 inch deep, with a 3/4-inch element connection, 1 GPM flow rate and 120–180°F temperature rating.

• Heating capacity: 560 BTU/hour per linear foot at 180°F; model 700-A1.
• Construction: copper tube element, aluminum fins, steel enclosure; 3/4-inch element connection.
• Dimensions and performance: 2 ft length; 7-7/8 in height; 2-13/16 in depth; 1 GPM flow rate; 120–180°F temperature rating; differential pressure 0.047 in per linear foot. Includes damper louver, return tube hanger, sliding support bracket, expanded copper tube end, back panel extended bottom, locking front panel, expansion cradle.

Product Highlights

Imperial hydronic baseboard radiator, 2 ft, 560 BTU/ft at 180°F; copper tube element with aluminum fins in a steel enclosure.

Product Information

Standard Information

• Brand: STERLING HYDRONICS
• Manufacturer Part Number: SUS-2
• Country of Origin: United States
