Sterling Hvac 71141126-0 Alcove Bathtub 60x30 Right Drain White

Product Description

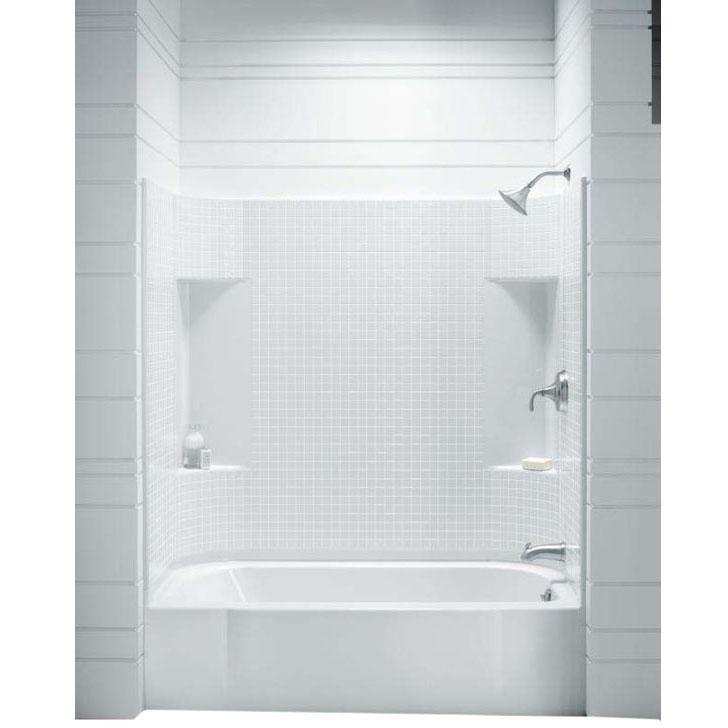

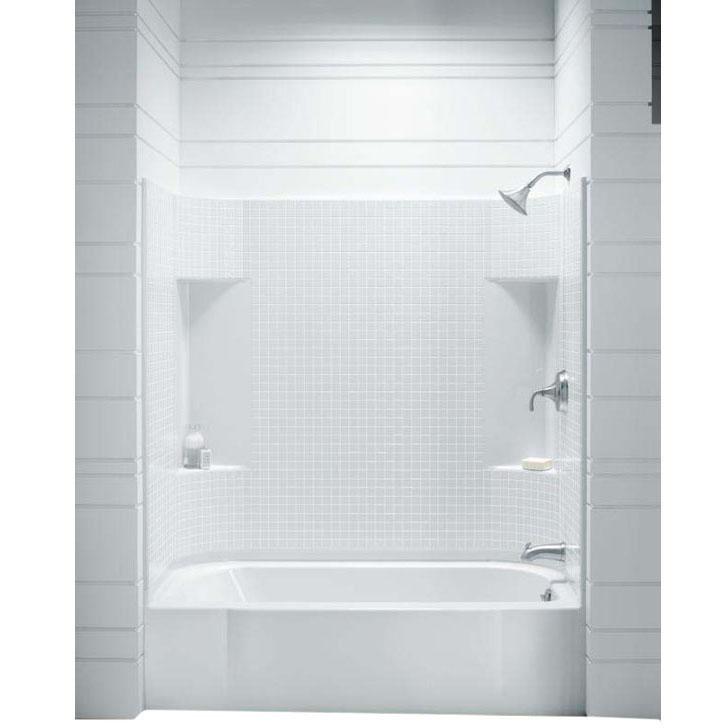

The STERLING HVAC 71141126-0 is a rectangular alcove bathtub built from solid Vikrell material, a fiberglass-reinforced composite known for strength, impact resistance, and dimensional stability. The unit measures 60 inches long by 30 inches wide by 17 inches tall and features a right-hand drain location. A high-gloss white finish delivers a smooth, cleanable surface that resists staining and maintains appearance over time. The integrated apron, flange, and backer board construction simplifies rough-in and finish work. This tub is intended for licensed plumbers and finish contractors performing new construction or full bathroom remodels.

The 71141126-0 is designed for alcove installations in both residential and light commercial settings. The 15-inch apron provides a finished face panel for three-wall alcove surrounds. No caulking is required at the seams when installed as specified. This tub is not rated for bath-only installation and must be installed with a matching wall set to meet manufacturer requirements and applicable standards. The door opening width of 56.75 inches should be confirmed against the rough opening before ordering.

Key Features

• Solid Vikrell construction for long-term structural integrity and surface durability
• High-gloss white finish resists staining and simplifies routine cleaning
• 15-inch apron included, eliminating the need for a separate face panel
• Integrated flange and backer board for direct wall-set attachment
• No caulking required at seams when properly installed with a wall set
• Meets ASTM E162/E662, CSA B45.5/IAPMO Z124, and UL 2818 standards

Compatibility

Designed for three-wall alcove installations requiring a 60-inch by 30-inch rectangular bathtub with right-hand drain. Must be installed with a compatible wall set per manufacturer specifications. Door opening width is 56.75 inches.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify rough-in drain location before setting the tub. This unit requires a wall set and is not approved for standalone bath-only installation. Confirm the rough opening dimensions and door width clearance before securing the unit to the alcove framing.

Technical Specifications

• Type: Alcove
• Shape: Rectangle
• Length: 60 inches
• Width: 30 inches
• Height: 17 inches
• Apron Height: 15 inches
• Door Width: 56.75 inches
• Material: Solid Vikrell
• Color/Finish: White High-Gloss
• Drain Location: Right
• Tub Details: Apron, Flange, Backer Board
• Applicable Standards: ASTM E162/E662, CSA B45.5/IAPMO Z124, UL 2818
• Warranty: 10 Year Limited (Residential), 3 Year Limited (Commercial)

Standard Information

• Brand: STERLING HVAC
• Manufacturer Part Number: 71141126-0
