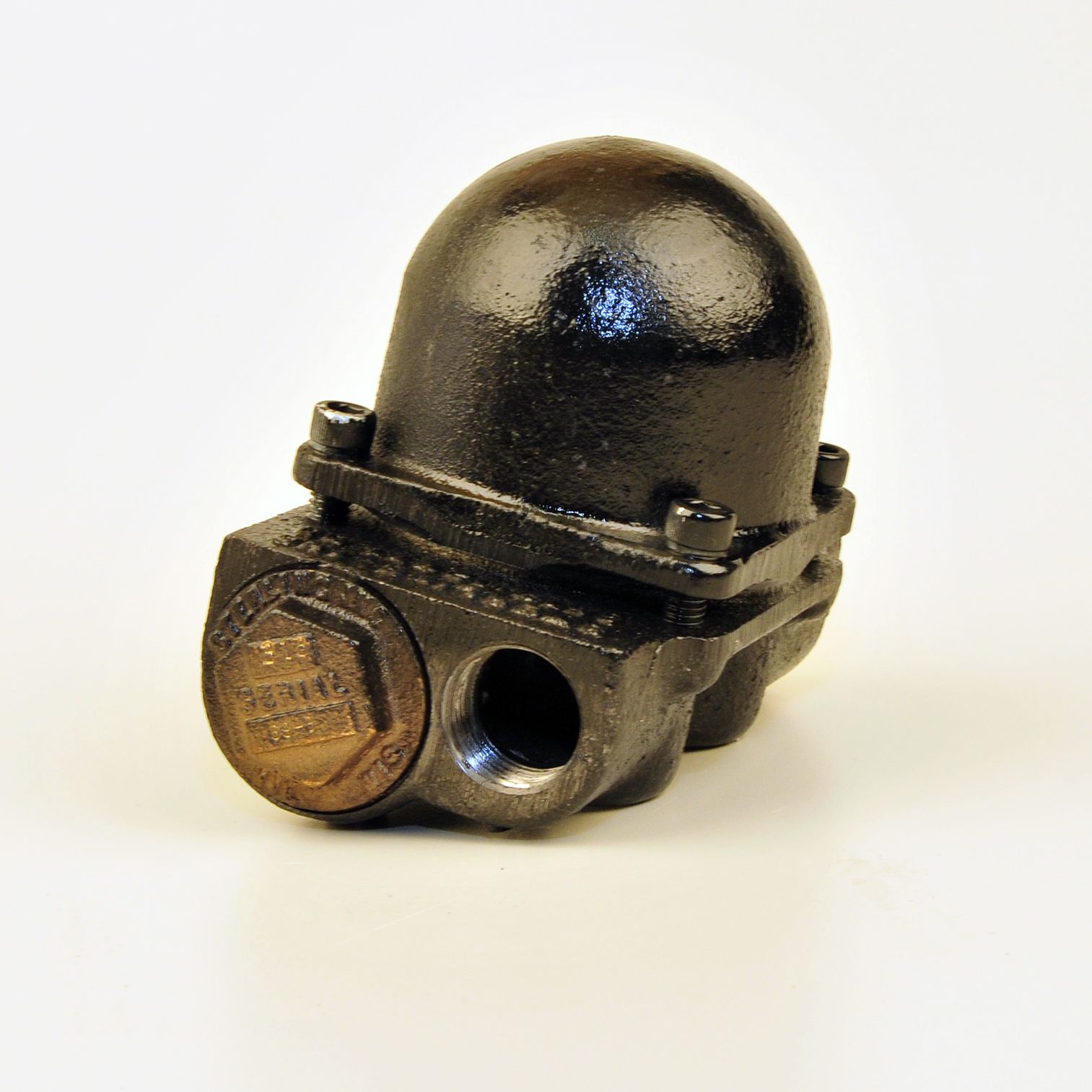

STERLING HVAC 603.07569.00 Sterling FT69-15 Cast Iron Float & Thermostatic Trap 3/4 inch

Product Description

The Sterling HVAC model FT69-15 is a float and thermostatic steam trap made from cast iron, designed for continuous drainage in steam mains. It features a 3/4 inch trap connection in a same side configuration which permits steam entry and condensate discharge either from opposite or the same side, enhancing piping flexibility.

• Maximum operating pressure of 15 psi.
• Steam trap capacity up to 920 pounds per hour.
• Exceptional for venting air and non-condensible gases.

Product Highlights

This unit is engineered to handle widely varying loads, making it suitable for modulating pressures. Its robust design includes stainless steel internal components which ensure durability and efficient operation under different conditions. Ideal for heat exchange equipment requiring quick air venting.

Technical Specifications

• Brand: Sterling HVAC
• Model: FT69-15
• Type: Float & Thermostatic
• Material: Cast Iron
• Connection Size: 3/4 inch
• Mounting: Same Side
• Max Pressure: 15 psi
• Weight: 6.00 pounds
