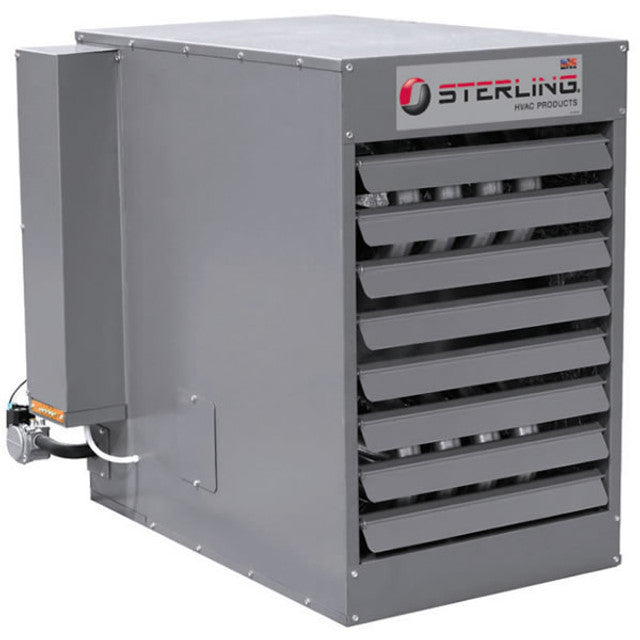

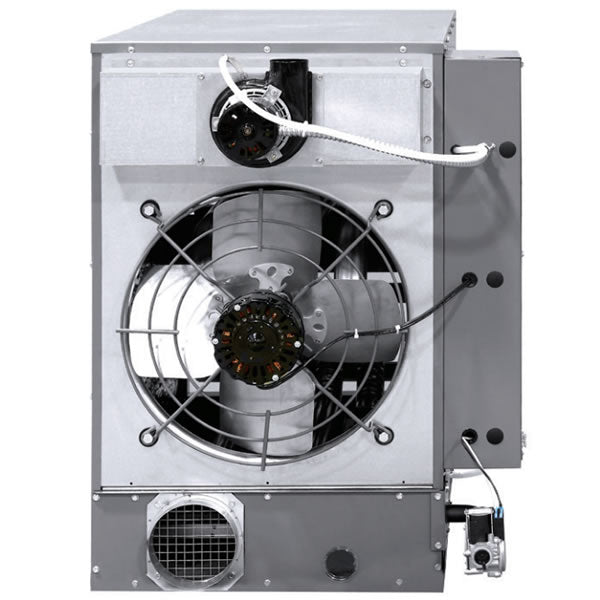

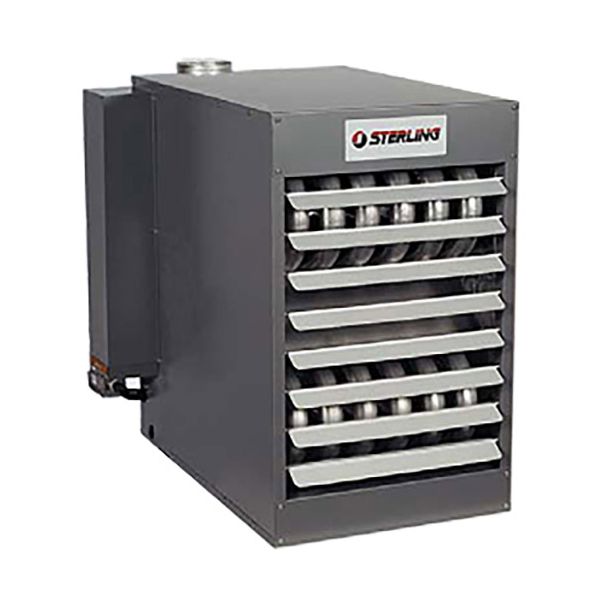

Sterling HVAC 11XF150N Tubular Unit Heater 150,000 BTU Gas Fired

Product Description

The STERLING HVAC 11XF150N is a gas-fired tubular unit heater designed for commercial indoor settings. With a heating input of 150,000 BTUs and a thermal efficiency of 83%, this unit effectively warms up large spaces. The heat exchanger is made of 20-gauge aluminized steel, ensuring durability and uniform heat transfer. This unit supports both vertical and horizontal venting due to its ETL certification for Categories I and III venting requirements.

• Gas-fired heater with 150,000 BTU input
• Direct spark ignition for fast start-up
• Compatible with open and separated combustion

Product Highlights

Efficient and reliable, the 11XF150N is ideal for heating large commercial environments.

Product Information

Standard Information

• Brand: STERLING HVAC
• MPN: 11XF150N

Technical Specifications

• Fuel Type: Natural Gas
• Heating BTU: 150,000 BTU
• Heating BTUs (Output): 124,500 BTU
• Thermal Efficiency: 83%
• Input Voltage: 110-120V
• Amps: 8.1
• Circuit Breaker Size (Amps): 15
• Venting Type: Power Vent
• Ignition Type: Direct Spark Ignition
• Installation Type: Ceiling Mount
• Certified Usage: Commercial (Indoor Only)
• Separated Combustion Chamber: Yes, Field Convertible
• Gas Connection Size: 3/4 inches
• Vent Connection Size (in.): 5 inches
• Air Inlet Tube (in.): 5 inches
• Flue Outlet Tube (in.): 5 inches
• Top to Ceiling (in.): 6 inches
• Bottom to Floor (ft.): 1 foot
• To Side Wall (in.): 6 inches
• To Rear Wall (in.): 18 inches
• Access Panel (in.): 18 inches
• Flue / Vent Connector (in.): 6 inches
• Overall Width (in.): 25.25 inches
• Jacket Width (in.): 20.75 inches
• Depth (in.): 11 inches
• Height (in.): 33.75 inches
• Net Weight (lbs.): 157
• Maximum Inlet Pressure: 14wc
• CFMs: 2400
• Discharge Air Temperature Rise (°F): 47
