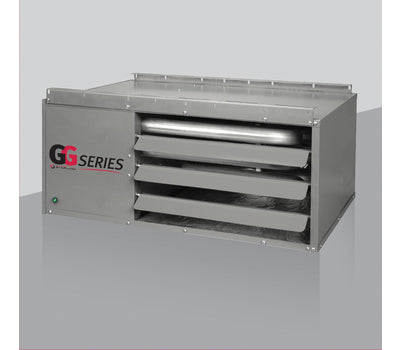

STERLING GG105N 105000 BTU Input/86100 BTU Output Natural Gas Low Profile Unit Heater

Product Description

The STERLING GG105N is a low profile natural gas unit heater with a heating capacity of 105000 BTU input and 86100 BTU output. This heater features advanced tubular heat exchanger technologies combined with a single-orifice burner system to maximize efficiency and reliability. The compact design makes it ideal for applications where space is limited.

• 82% thermal efficiency
• Redundant single-stage gas valve
• OSHA fan guard for safety

Product Highlights

This heater is suitable for residential applications and includes a gas conversion kit and flue collar. It provides industry-leading operating efficiencies, ensuring lower energy costs.

Product Information

Standard Information

• Brand: STERLING
• MPN: GG105N

Technical Specifications

• Width: 30 inches
• Height: 23.5625 inches
• Length: 26.375 inches
• Weight: 115 lb.
• Wattage: 30.8 kW Input/25.2 kW Output
• Fuel Type: Natural Gas
• Flow Rate: 1300 CFM
• Heating Capacity: 105000 BTUs input, 86100 BTUs output
• Vent Size: 4 inches
• Current Rating: 6.4 amps
• Voltage Rating: 115 V AC
• Frequency Rating: 60 Hz
• Specifications Met: ETL Listed, CSA 10.96, ANSI Z83.8
• Horsepower Rating: 1/10 HP
• Configuration: Gas
• Mounting Type: Horizontal/Vertical
