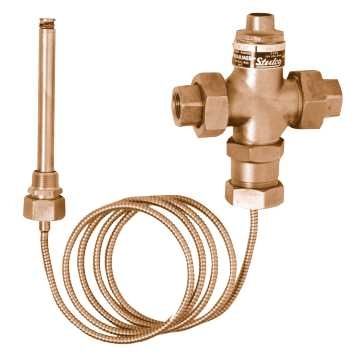

Sterling D-151-G Sterling D151G34105145F 3/4 NPT Brass Temp Control Valve for Heating

Product Description

The Sterling D-151-G is a temperature control valve designed for heating applications. It features a three-fourths inch NPT connection and operates within a temperature range of one hundred five to one hundred forty-five degrees Fahrenheit. The valve withstands a maximum pressure of one hundred twenty-five psi and incorporates a brass body with stainless steel trim.

• Temperature range: 105-145°F
• Brass body and double union design
• Self-contained and requires no external power

Product Highlights

This temperature control valve is automatic and can be installed in various positions. It has a control screw for precise adjustments of the temperature setting, which is managed by a stainless steel bellows system.

Product Information

Standard Information

• Brand: Sterling
• MPN: D-151-G
• Model: D151G

Technical Specifications

• Valve Size: 3/4
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Steam
• Max Pressure: 125 psi WSP
• Weight: 8.00 lbs
