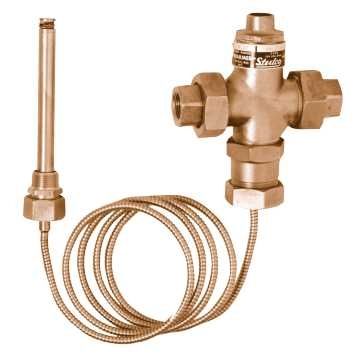

Sterling D-150-G - 1/2 NPT Brass Temp Control Valve for Heating

Product Description

Sterling D-150-G is a temperature control valve designed for heating applications. This valve features a half-inch NPT connection and operates within a temperature range of fifty-five to ninety-five degrees Fahrenheit. Rated for a maximum pressure of one hundred twenty-five psi, it includes a brass body and stainless steel trim.

• Temperature range: 55-95°F
• Brass body and stainless steel trim
• Compatible with steam heating systems

Product Highlights

The D-150-G valve adjusts automatically and requires no external power. It can be mounted in any position, making it versatile for various installations. The adjustment screw allows for easy temperature control by regulating the tension on the seat valve actuated by the bellows and capillary system.

Product Information

Standard Information

• Brand: Sterling
• Model: D150G

Technical Specifications

• MPN: D-150-G
• Valve Size: 1/2 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Steam
• Max Pressure: 125 psi WSP
• Weight: 8.00 lbs
