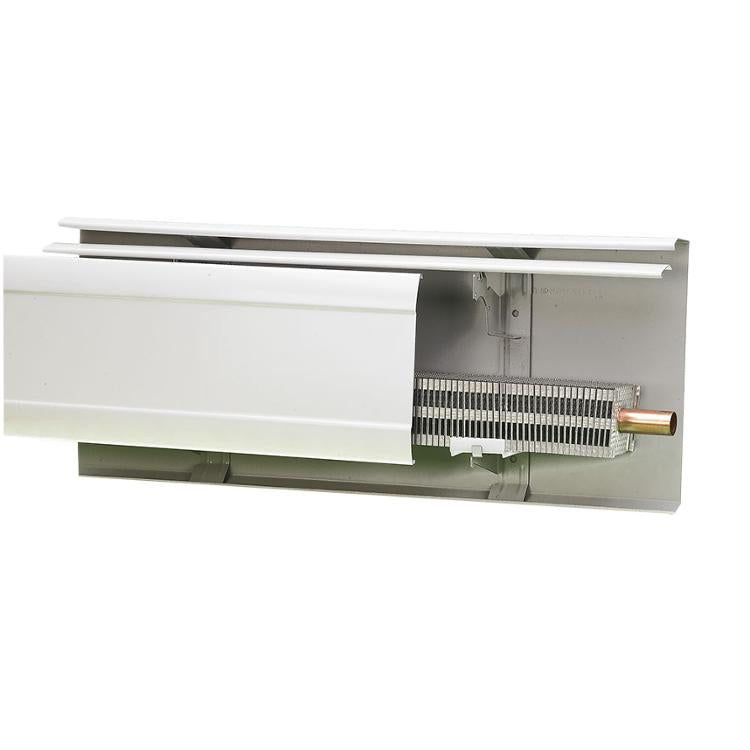

Sterling 55WSR-4A-3 Hydronic Baseboard 4 Foot White

Product Description

The STERLING 55WSR-4A-3 is a Senior series hydronic baseboard heater designed for residential and light commercial heating applications. This 4-foot unit accepts 3/4 inch tube and ships in a complete white finish, making it ready for straightforward installation against perimeter walls. The Senior line is the hi-output variant in the Sterling lineup, delivering higher heat output from a low-profile enclosure suited for spaces where wall height is limited. Boxed and serrated aluminum fins increase the radiating surface area and direct convection airflow for efficient heat transfer. The unit is installed by plumbers and HVAC technicians as part of a hot water hydronic heating system.

The 55WSR-4A-3 is appropriate for large residential spaces and light commercial environments where standard-output baseboard cannot meet the heating load. The low-height enclosure fits along perimeter walls without interfering with furniture placement or window trim. The classic white painted finish is intended to blend with standard interior trim. Finger-tip temperature control is managed through a damper integrated into the enclosure, allowing occupants to adjust output without tools. This unit is packaged as a complete assembly in the 4-foot length.

Key Features

• Senior Hi-Output design suited for large residential and light commercial hydronic systems
• Exclusive Silent Glide Shoe allows the heating element to expand and contract without noise
• Boxed and serrated aluminum fins increase radiating surface and promote convection airflow
• Heavy gauge brackets snap into place without sheet metal screws
• Flared tube at one end eliminates the need for couplings at that connection point
• Telescoping fill-in sections remove the need for field cutting and reduce waste
• Classic white painted finish complements standard interior wall and trim colors

Compatibility

Designed as an OEM-style replacement or new-installation component for 3/4 inch tube hydronic baseboard heating systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician familiar with hydronic heating systems. Shut down the boiler and relieve system pressure before making any pipe connections. Verify that the supply water temperature and flow rate are within the system design parameters before startup. Local plumbing codes and the IFGC should be consulted to confirm compliant installation practices.

Technical Specifications

• Series: Senior Hi-Output
• Tube Size: 3/4 inches
• Length: 4 feet
• Finish: White painted
• Fin Material: Aluminum (boxed and serrated)
• Mounting: Heavy gauge snap-in brackets, no sheet metal screws required
• Assembly: Complete unit with end covers

Standard Information

• Brand: STERLING
• Manufacturer Part Number: 55WSR-4A-3
