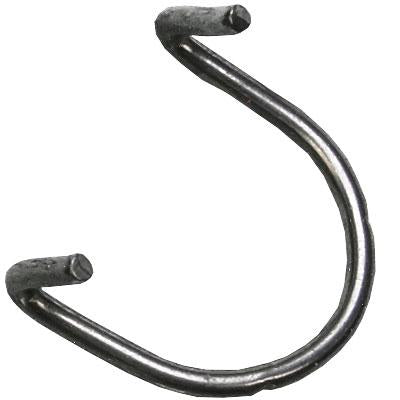

Sterling 55j-11 Baseboard Return Tubing Pipe Hanger

Product Description

The STERLING 55j-11 is a return tubing pipe hanger designed for use with Sterling Kompak and Senior hydronic baseboard heating systems. This component secures return tubing within the baseboard enclosure, maintaining proper tube positioning during thermal expansion and contraction cycles. It is installed by licensed plumbers and HVAC technicians during hydronic system installations or service calls. The hanger supports the structural integrity of the baseboard assembly and works in conjunction with the Silent Glide Shoe design to allow heating elements to move freely without noise during operation.

The 55j-11 is suited for residential hydronic baseboard installations where Sterling Kompak or Senior Hi-Output baseboards are used. Kompak units are designed for standard residential applications where wall space is limited. Senior Hi-Output units serve larger residential spaces and light commercial applications. This hanger fits within the baseboard enclosure system and is typically required during new installation or replacement of damaged hardware in existing hydronic perimeter heating systems.

Key Features

• Supports return tubing within Sterling Kompak and Senior hydronic baseboard enclosures
• Compatible with baseboard systems that use the Silent Glide Shoe for expansion and contraction
• Works with heavy gauge bracket systems that snap into place without sheet metal screws
• Designed for systems using flared tube ends that eliminate the need for couplings
• Fits within enclosures available in lengths from 2 feet through 8 feet

Compatibility

Designed for use with Sterling Kompak and Senior Hi-Output hydronic baseboard heating systems in residential and light commercial installations.

Installation Notes

Installation should be performed by a licensed plumber or hydronic HVAC technician. Shut down the hydronic system and allow it to cool before servicing any baseboard components. Follow local mechanical codes and manufacturer assembly sequences when securing tubing hangers within the enclosure. Do not force or over-stress tubing during positioning, as the system relies on controlled movement to prevent noise during heating cycles.

Technical Specifications

• Application: Hydronic baseboard return tubing support
• Compatible System Types: Sterling Kompak, Sterling Senior Hi-Output hydronic baseboards
• Enclosure Length Range: 2 feet to 8 feet baseboard lengths

Standard Information

• Brand: STERLING
• Manufacturer Part Number: 55j-11
