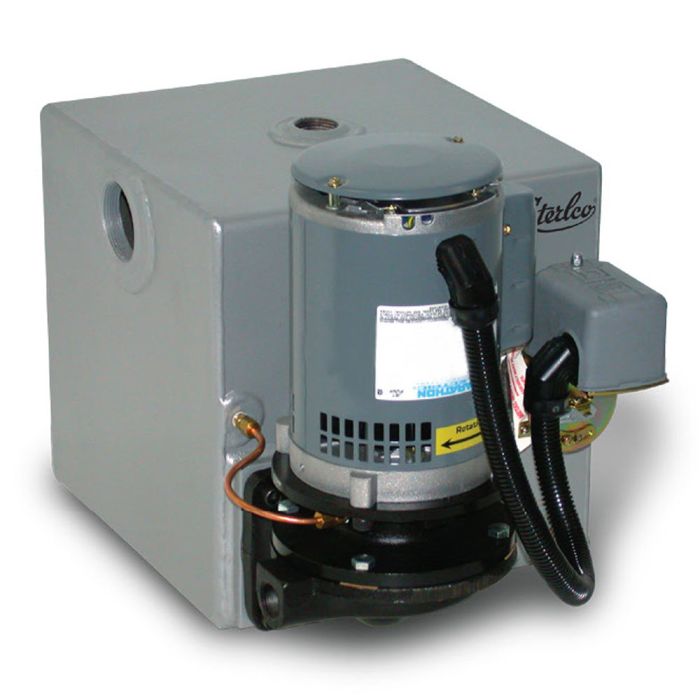

Sterling 4028G - 1/3HP 8 GAL 1PH Steel Simplex Condensate Pump

Product Description

The Sterling condensate pump model 4028G is designed for effective condensate removal in low-pressure steam boiler systems. This pump features a three-quarter inch connection and operates at one-third horsepower with a motor speed of three thousand four hundred fifty RPM. With an eight-gallon tank, the 4028G can deliver a pumping capacity of twelve gallons per minute at a discharge pressure of twenty PSI and is suitable for systems requiring up to eight thousand equivalent direct radiation.

• Simplex unit with eight-gallon capacity
• Threaded pump connection of three-quarters inch
• Steel construction ensures durability

Product Highlights

Reliable operation due to a heavy-duty float switch and mechanical valve.

Product Information

Standard Information

• Brand: Sterling
• Model: 4028G

Technical Specifications

• MPN: 4028G
• Unit Design: Simplex
• Pump Connection: Threaded
• Pump Connection Size: 3/4
• Pump Class: Condensate
• Discharge Pressure: 20 PSI
• Minimum GPM: 12 GPM
• Equivalent Direct Radiation: 8,000 EDR
• Motor HP: 1/3 HP
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor RPM: 3450 RPM
• Motor Voltage: 115V
• Max Temp: 250°F
• Tank Size: 8 Gallon
• Construction: Steel
• Weight: 150.00
