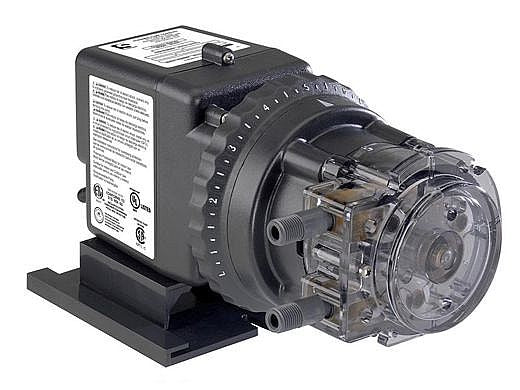

Stenner Pumps 45MJL5A3STAA Stenner Classic Series 45M5 Pump Single Head Adjustable Output 50GPD 120V 60Hz USA 375 White 25PSI 45MJL5A3STAA

Product Description

The Stenner Classic Series 45M5 pump, MPN 45MJL5A3STAA from Stenner Pumps, features a single head adjustable output design. It provides an adjustable output range of 0.2 to 50.0 gallons per day at 25 PSI. This metering pump utilizes a unique three-component system including the motor, feed rate control, and pump head, which work together to ensure reliable operation.

• Self-priming feature capable of lifting up to 25 feet.
• 3-point roller design prevents back flow and simplifies maintenance.
• Adjustable output from 5% to 100% in 2.5% increments.

Product Highlights

This pump is ideal for many applications, including water treatment and chemical processing, where precise chemical delivery is necessary.

Product Information

Standard Information

• Brand: Stenner Pumps
• MPN: 45MJL5A3STAA

Technical Specifications

• Maximum Operating Temperature: 125 degrees Fahrenheit (52 degrees Celsius)
• Maximum Suction Lift: 25 feet (7.6 meters)
• Motor Type: 1/30 HP, shaded pole
• Duty Cycle: Continuous
• Voltage: 120V 60Hz 1PH (1.7 Amps)
• Power Cord Type: SJTOW
• Materials of Construction: Polycarbonate housing, FDA approved tubing
• Agency Listings: Tested by Water Quality Association to conform to ANSI/NSF STD 61
