Stenner Pumps 45MJL2A3STAA Stenner Classic Series 45M2 Pump | Single Head Adjustable Output | 10GPD 120V 60Hz USA .375 White 25PSI | 45MJL2A3STAA

Product Description

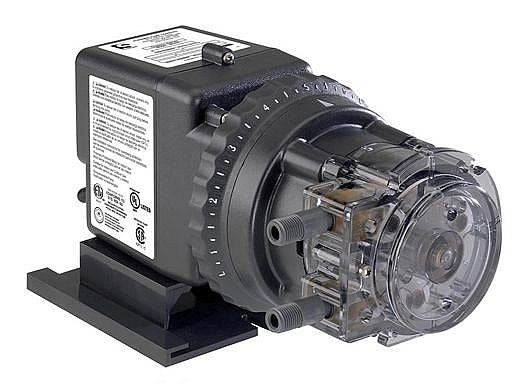

The Stenner Classic Series 45M2 Pump with MPN 45MJL2A3STAA is designed for efficient chemical dosing with adjustable output. This metering pump features a simple yet effective design consisting of three main components: the motor, feed rate control, and pump head. The output rate is determined by the motor's RPM, the percentage set on the feed rate control, and the peristaltic pump tube size.

The pump utilizes a three-point roller design to function as a check valve, preventing issues like backflow and overdosing. This self-priming pump ensures a consistent flow even under varying outlet pressures.

• Adjustable output from 0.2 to 50 GPD
• Self-priming feature simplifies operation
• Easy maintenance with no need for valves

Product Highlights

This pump is suitable for handling various chemical solutions and offers a reliable performance for pool and other chemical applications.

Product Information

Standard Information

• Brand: Stenner Pumps
• Warning: Proposition 65 Warning

Technical Specifications

• Maximum Operating Temperature: 125°F (52°C)
• Maximum Suction Lift: 25 feet (7.6 m)
• Motor Type: 1/30 HP, shaded pole, class B
• Duty Cycle: Continuous
• Motor Voltage: 120V 60Hz 1PH (1.7 A)
• Power Cord Type: SJTOW
• Construction Materials: Polycarbonate housing, FDA approved components
• Agency Listings: ANSI/NSF Standard 61 compliant
