Stenner Pumps 45MFL5A1SUAA Stenner Classic Series 45MP5 Pump | Single Head Fixed Output | 50GPD 120V 60Hz USA .25 White 25PSI

Product Description

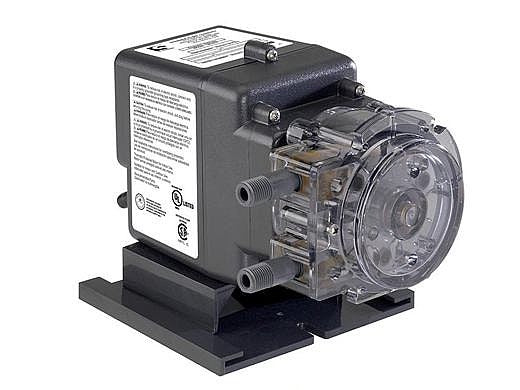

The Stenner Pumps 45MFL5A1SUAA is a single head fixed output metering pump designed for continuous operation. This pump uses a 3-point roller design in its pump head, which functions as a check valve. This design prevents backflow and ensures precise dosing. The operational mechanics depend on the rpm of the motor and the size of the peristaltic pump tube. This model does not have adjustable output, making it ideal for consistent flow delivery.

• Fixed output design for reliable delivery.
• Self-priming feature up to twenty-five feet.
• Easy maintenance with no need for foot valves.

Product Highlights

Suitable for applications requiring reliable metering and flow consistency, the Stenner Pumps 45MFL5A1SUAA is designed to operate without losing prime, even under maximum working conditions.

Product Information

Standard Information

• Brand: Stenner Pumps
• MPN: 45MFL5A1SUAA

Technical Specifications

• Maximum Operating Temperature: 125 degrees Fahrenheit (52 degrees Celsius)
• Maximum Suction Lift: 25 feet (7.6 meters)
• Motor Type: 1/30 HP, shaded pole, class B
• Duty Cycle: Continuous
• Voltage: 120V 60Hz, 1PH
• Output Range: 0.2 to 50.0 gallons per day (gpd)
• Construction Material: Polycarbonate housing, FDA approved pump tubes
• Weight: Not specified
