Steinen q.85-80-2f Oil Burner Nozzle 0.85 Gph 80 Degree

Product Description

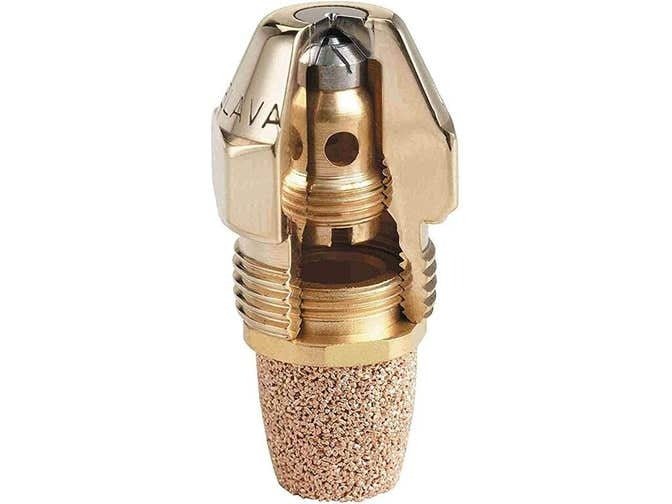

The STEINEN q.85-80-2f is a solid cone oil burner nozzle rated at 0.85 gallons per hour (GPH) with an 80-degree spray angle. It meters and atomizes fuel oil into the combustion chamber of a residential or light-commercial oil-fired burner, producing a uniform solid cone spray pattern that promotes efficient ignition and stable flame. This nozzle is a precision-machined component installed by licensed oil burner technicians during routine service, nozzle replacement, or seasonal tune-up procedures. The 80-degree angle suits burners requiring a wide spray pattern in compact combustion chambers.

This nozzle is suited for residential oil-fired heating systems including forced-air furnaces and boilers equipped with pressure-atomizing gun-type burners. It is a common replacement component during annual oil burner service. The solid cone spray pattern is specified for applications where uniform fuel distribution across the full cone area is required, distinguishing it from hollow cone and semi-solid variants used in other combustion configurations.

Key Features

• 0.85 GPH flow rate for precise fuel metering at rated pump pressure
• 80-degree spray angle suits wide combustion chamber geometries
• Solid cone spray pattern provides uniform fuel distribution throughout the cone
• Designed as a direct-replacement nozzle for oil-fired burner service
• Compact form factor compatible with standard nozzle adapters on gun-type burners

Compatibility

Designed as an OEM-style replacement nozzle for residential and light-commercial pressure-atomizing oil burners requiring a 0.85 GPH, 80-degree solid cone nozzle.

Installation Notes

Oil burner nozzle replacement is performed by licensed oil burner or HVAC technicians. Shut down the burner and allow the system to cool before service. Use a proper nozzle wrench to remove and install the nozzle without damaging the nozzle adapter or electrodes. Verify pump pressure at the manufacturer-specified setting before firing after nozzle replacement.
