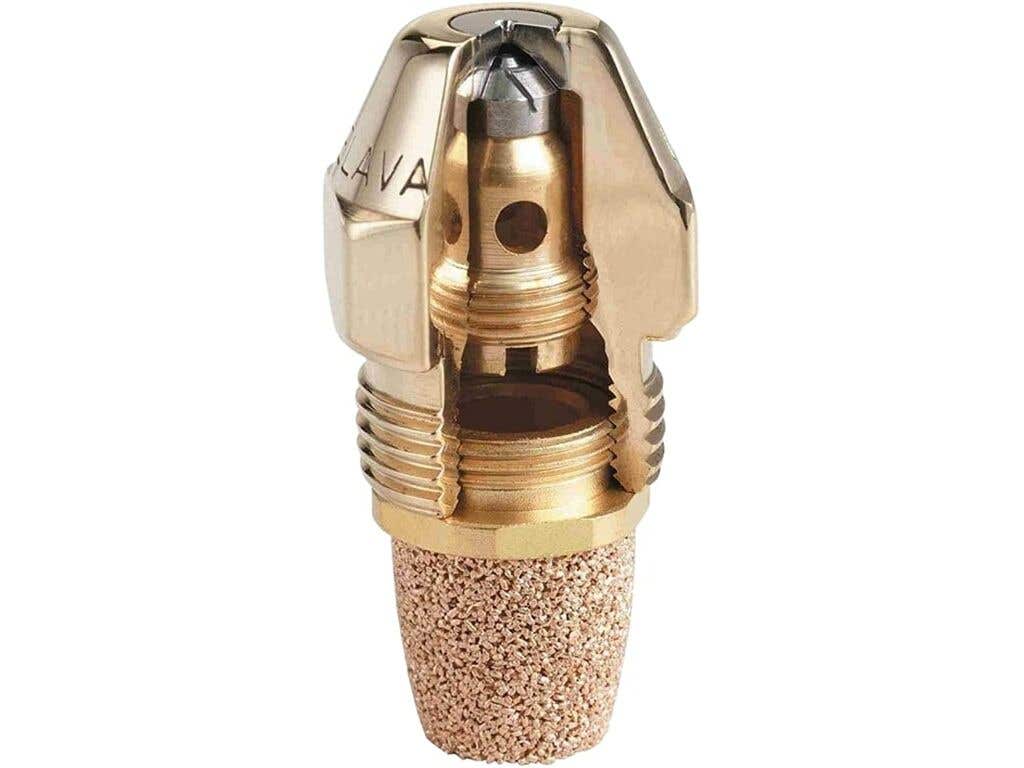

Steinen H.65-60-2F Oil Burner Nozzle 0.65 GPH 60 Degree

Product Description

The STEINEN H.65-60-2F Oil Nozzle is a precision-engineered burner component designed for use in high-performance oil-fired heating systems. Featuring a 60° hollow cone spray pattern and a flow rate of 0.65 GPH at 100 PSI, this nozzle ensures consistent atomization and efficient combustion. Constructed from brass with 316 stainless steel internal components, it provides durability and corrosion resistance.

• Precision-engineered burner component
• 60° hollow cone spray pattern
• 0.65 GPH flow rate at 100 PSI

Product Highlights

The STEINEN H.65-60-2F Oil Nozzle delivers precise fuel delivery for residential, commercial, and industrial burner applications.

Product Information

Standard Information

• Brand: STEINEN
• Manufacturer Part Number: H.65-60-2F
• Country of Origin: United States

Technical Specifications

• Manufacturer: Steinen
• Model Number: H.65-60-2F
• Description: Hollow Cone Oil Burner Nozzle – 60° Spray Angle, 0.65 GPH
• Flow Rate: 0.65 gallons per hour (GPH) at 100 PSI
• Spray Angle: 60 deg
• Spray Pattern: Hollow cone – fine atomization suitable for specific burner head geometries
• Operating Pressure: 100 PSI nominal (adjustable based on burner design)
• Material Construction: Body: Brass Internal Components: 316 stainless steel for corrosion resistance
• Fuel Type: No. 1 and No. 2 fuel oil, kerosene, and compatible light fuel blends
• Filter Type: Integral sintered stainless steel filter for particle filtration and flow stability
• Spray Distribution: Uniform hollow cone providing fine droplet atomization and controlled flame geometry
• Temperature Range: Standard fuel oil burner operating temperatures
• Color Code: Blue vial identification per manufacturer spray pattern system
• Mounting Configuration: Threaded connection for standard burner nozzle adapters
• Application: Oil-fired heating boilers and furnaces Commercial burner assemblies Industrial heating and process equipment
• Performance Characteristics: Precision-machined orifice for accurate flow rate and spray pattern consistency Optimized atomization for improved combustion efficiency and reduced emissions Durable internal filter prevents clogging and maintains stable spray over service life
• Quality Standards: Manufactured to ISO 9001 quality control standards Meets applicable fuel oil combustion performance requirements Factory-calibrated and flow-tested for rated output
• Maintenance: Replace as part of routine burner service; verify correct spray angle and pattern during system tuning
• Packaging: Individually packaged in protective blue vial for contamination prevention
• Item Type: Oil Burner Nozzles
• Brand: Steinen
• Sub Type: Oil Burner Nozzle
• Material: Brass
