Product Description

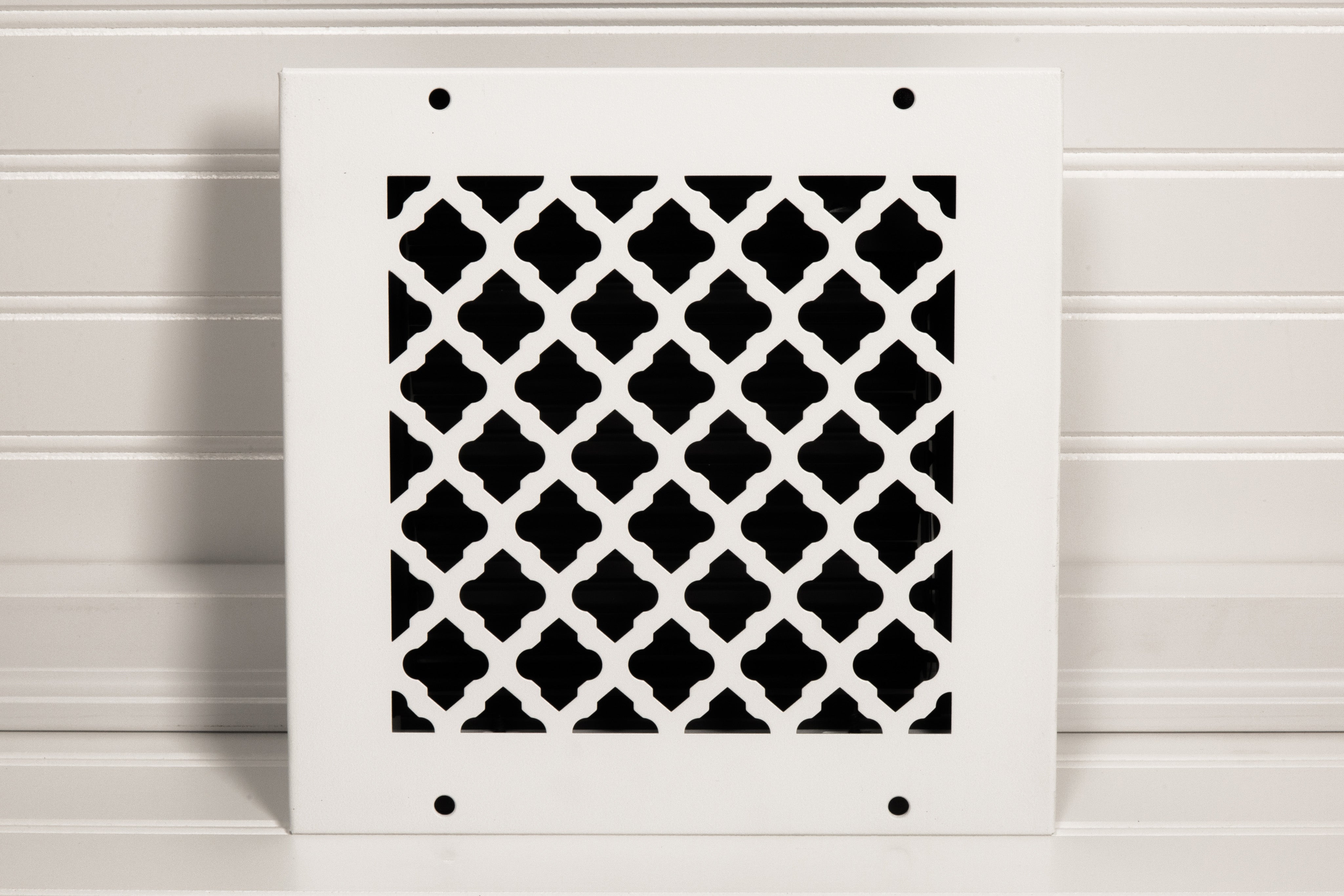

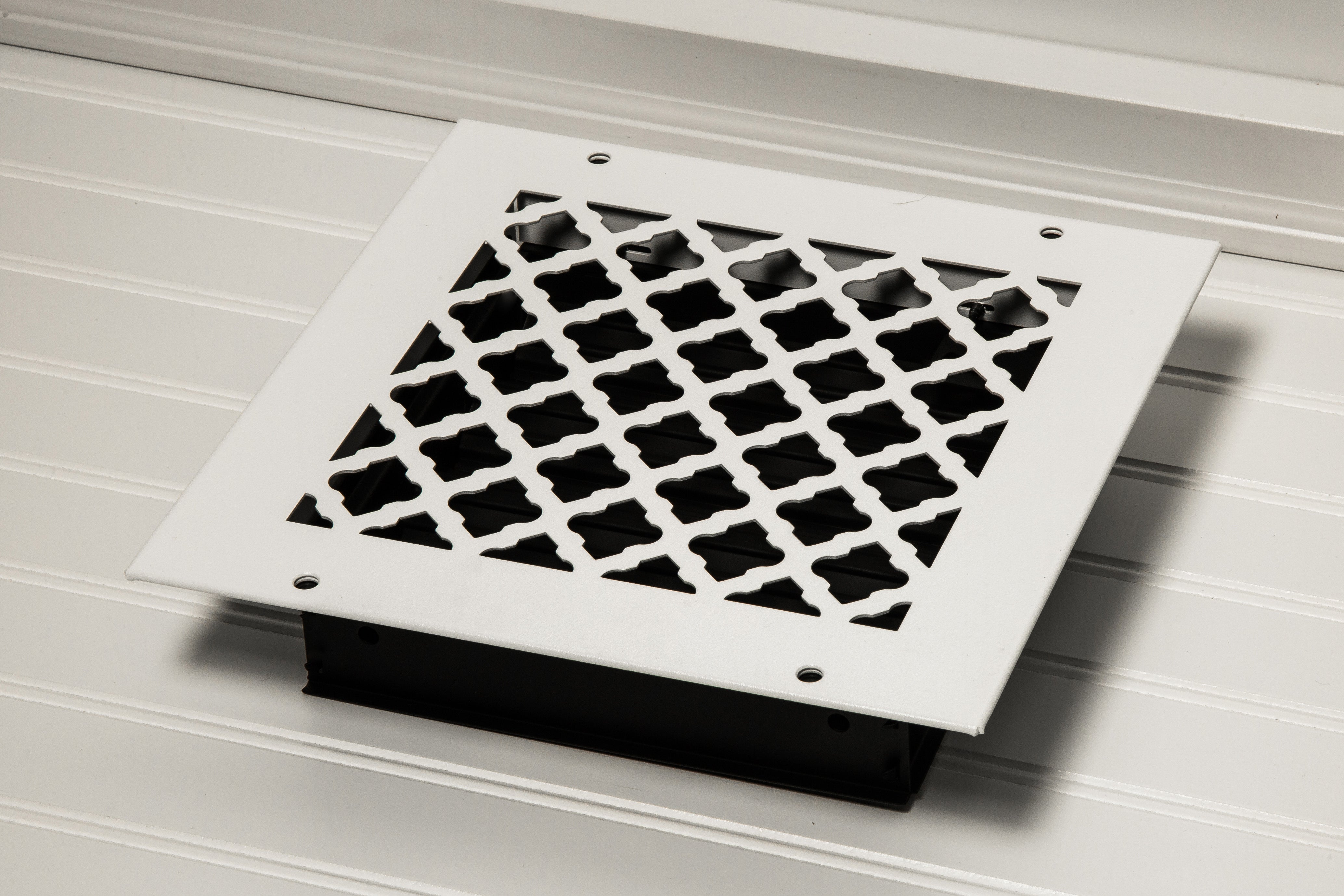

The SteelCrest BTU8X8SWHH is a slotted-design supply vent with an integrated damper, built for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, this vent cover is engineered for long-term durability in finished interior spaces. It fits an 8-inch by 8-inch duct opening and installs to an overall finished face size of 10 inches by 10 inches. The built-in damper allows the installer to adjust or restrict airflow at the register without additional hardware. Licensed HVAC technicians and qualified installers handle this component during new construction rough-in or remodel duct termination work.
This supply vent is suited for forced-air HVAC systems in residential new construction and renovation projects. The 8-inch by 8-inch duct opening size is common in trunk-and-branch and plenum distribution layouts serving bedrooms, hallways, and common areas. The white powder-coat finish integrates cleanly with standard drywall and painted surfaces on walls and ceilings. The 10-inch by 10-inch face plate provides clean overlap coverage around the duct opening, eliminating the need for additional trim work during installation.
Key Features
- Solid steel construction with white powder-coat finish for long-term corrosion resistance in conditioned interior spaces

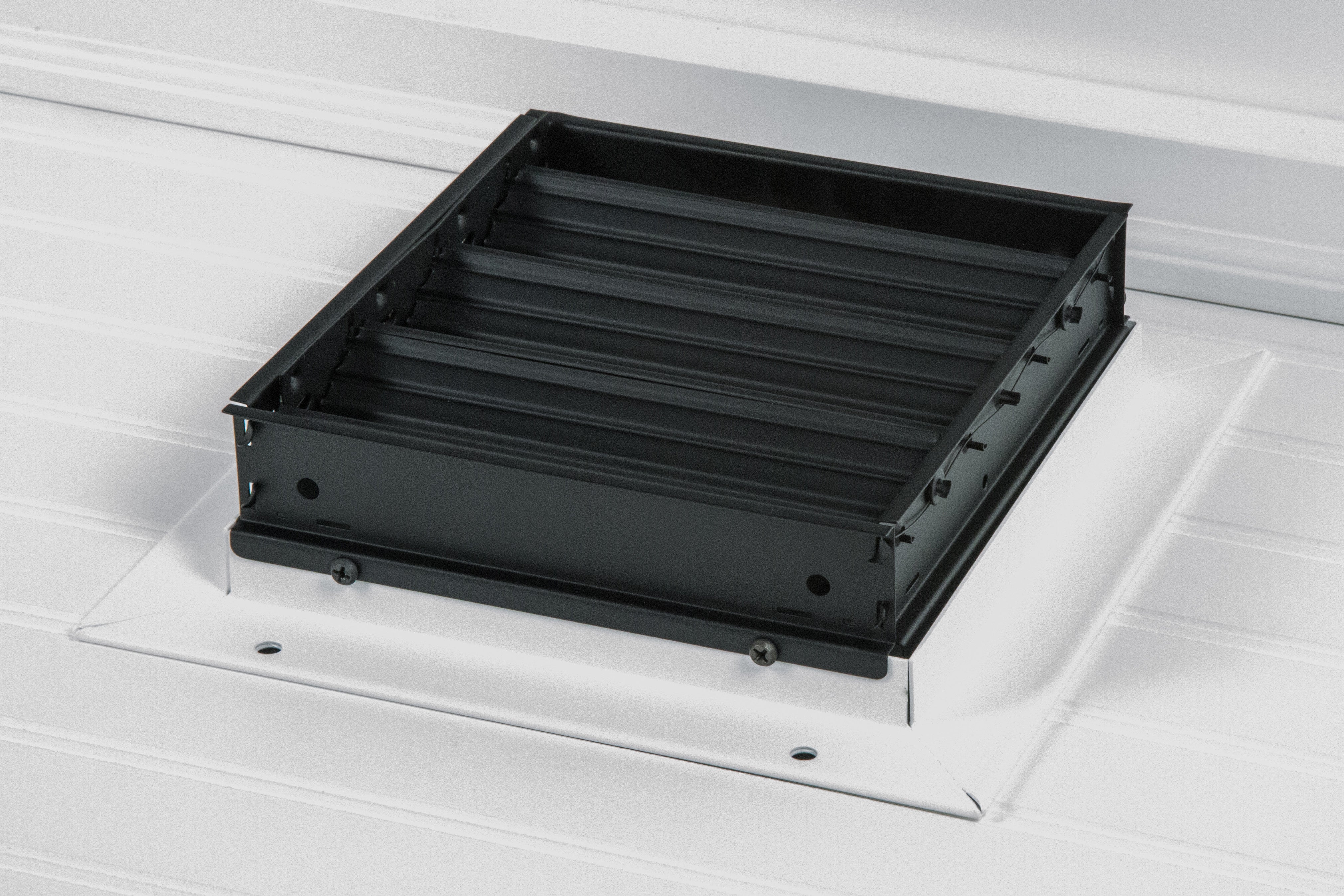

- Integrated damper for on-site airflow adjustment without separate hardware
- Fits 8-inch by 8-inch duct openings with a 10-inch by 10-inch finished face size
- Slotted decorative face design compatible with modern and traditional interior aesthetics

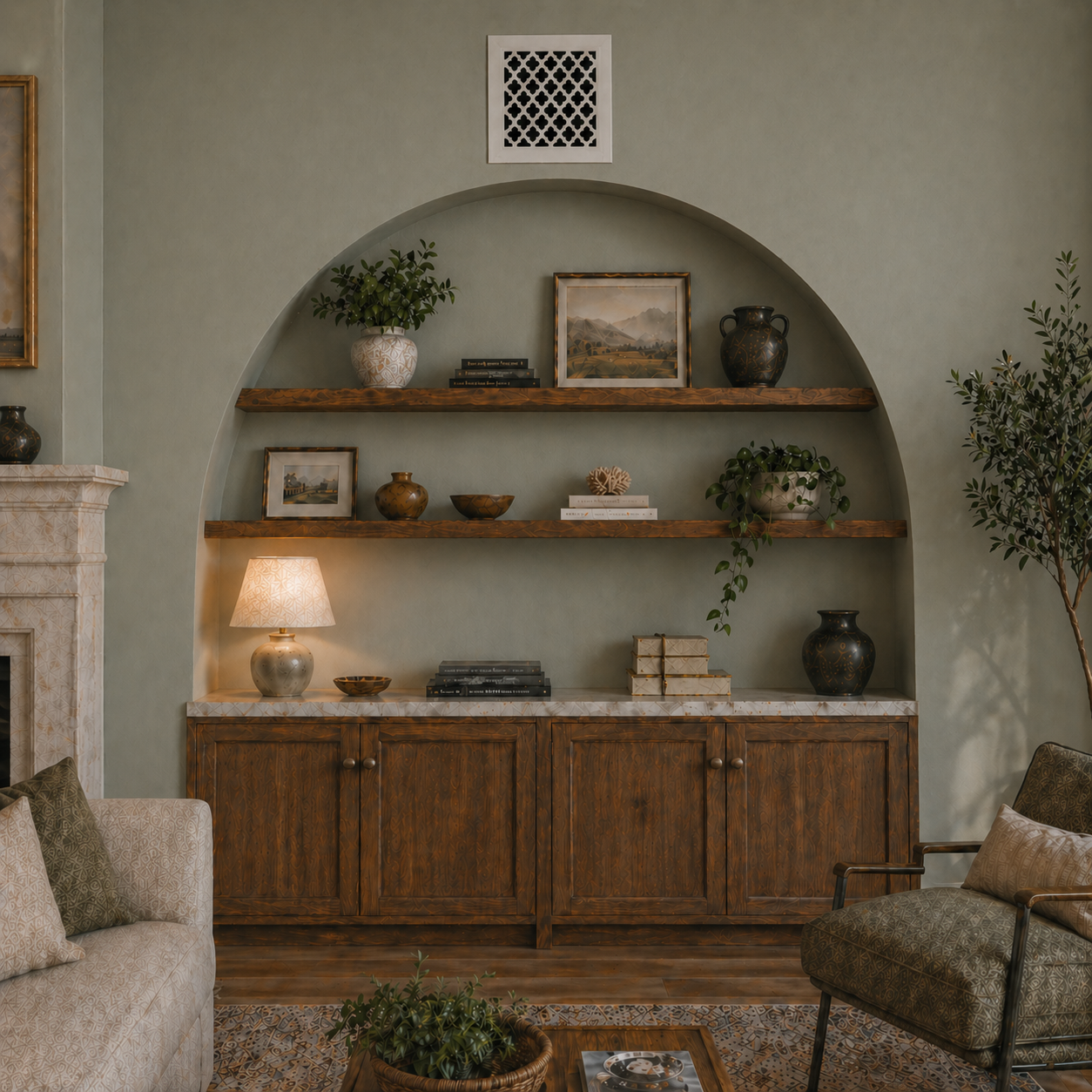

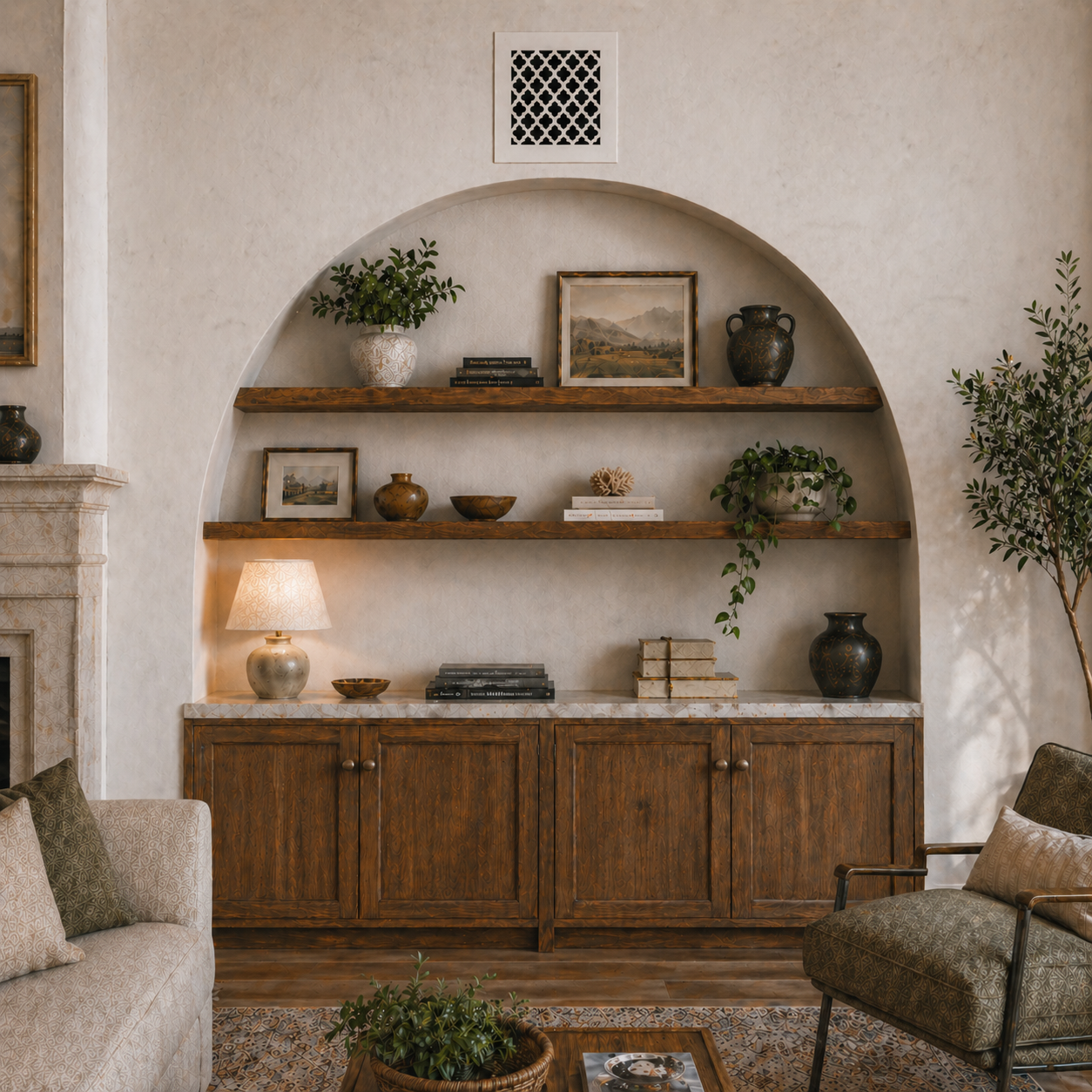

- Suitable for both wall and ceiling mount applications
Compatibility
Designed as a direct-replacement or new-installation supply vent for residential and light commercial forced-air HVAC systems with 8-inch by 8-inch duct termination openings on walls or ceilings.
Installation Notes
Installation is typically performed by a licensed HVAC technician or qualified tradesperson. Power down the air handling unit at the disconnect or breaker before accessing duct openings. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Verify the damper operates freely before finalizing installation and returning the system to service.
Technical Specifications
-
Duct Opening Size: 8 inches x 8 inches
-
Finished Face Size: 10 inches x 10 inches
-
Material: Solid steel with white powder-coat finish
-
Mount Type: Wall or ceiling
-
Damper: Integrated
-
Package Weight: 5 pounds
-
Package Dimensions: 12 inches x 12 inches x 4 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU8X8SWHH
