Product Description

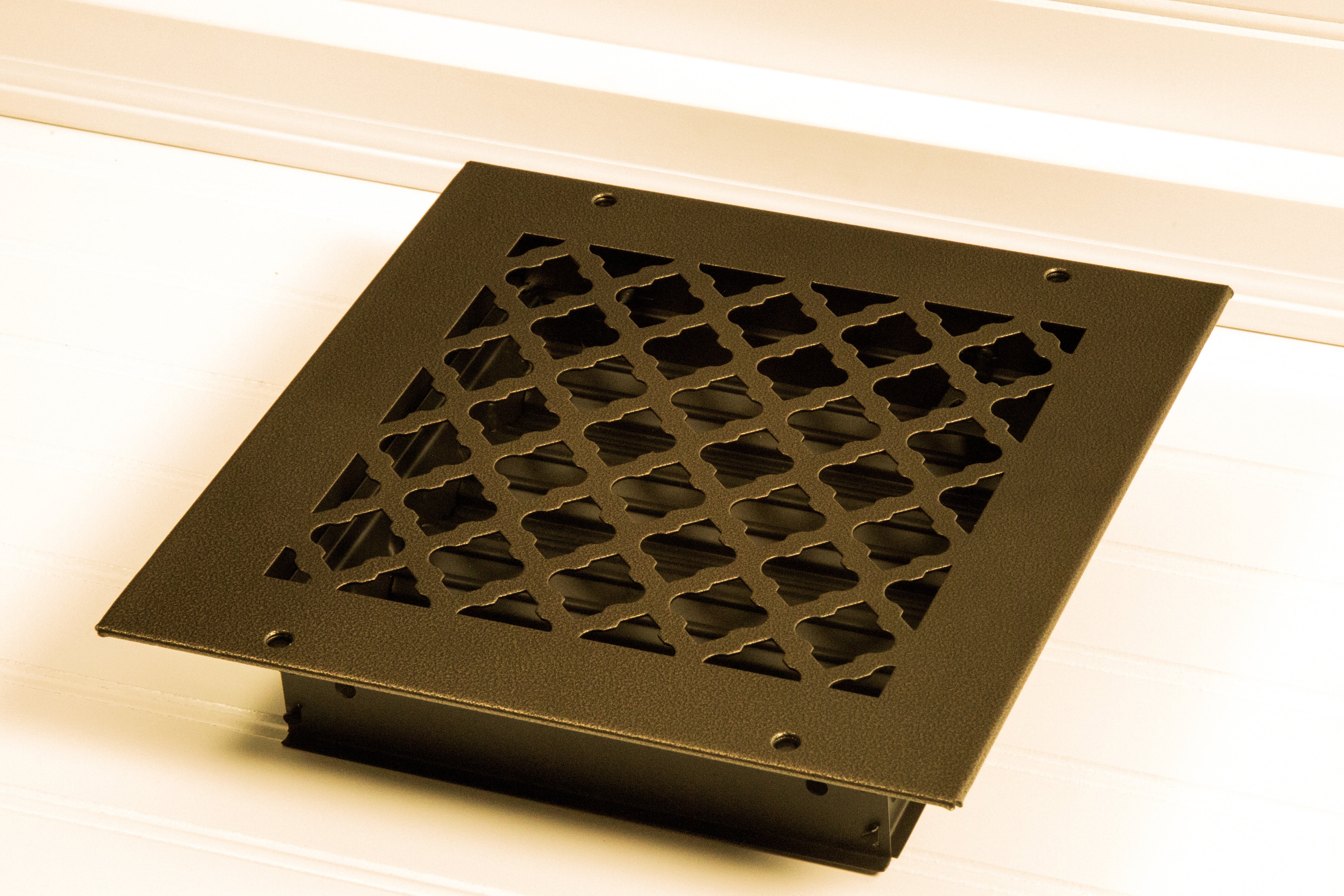

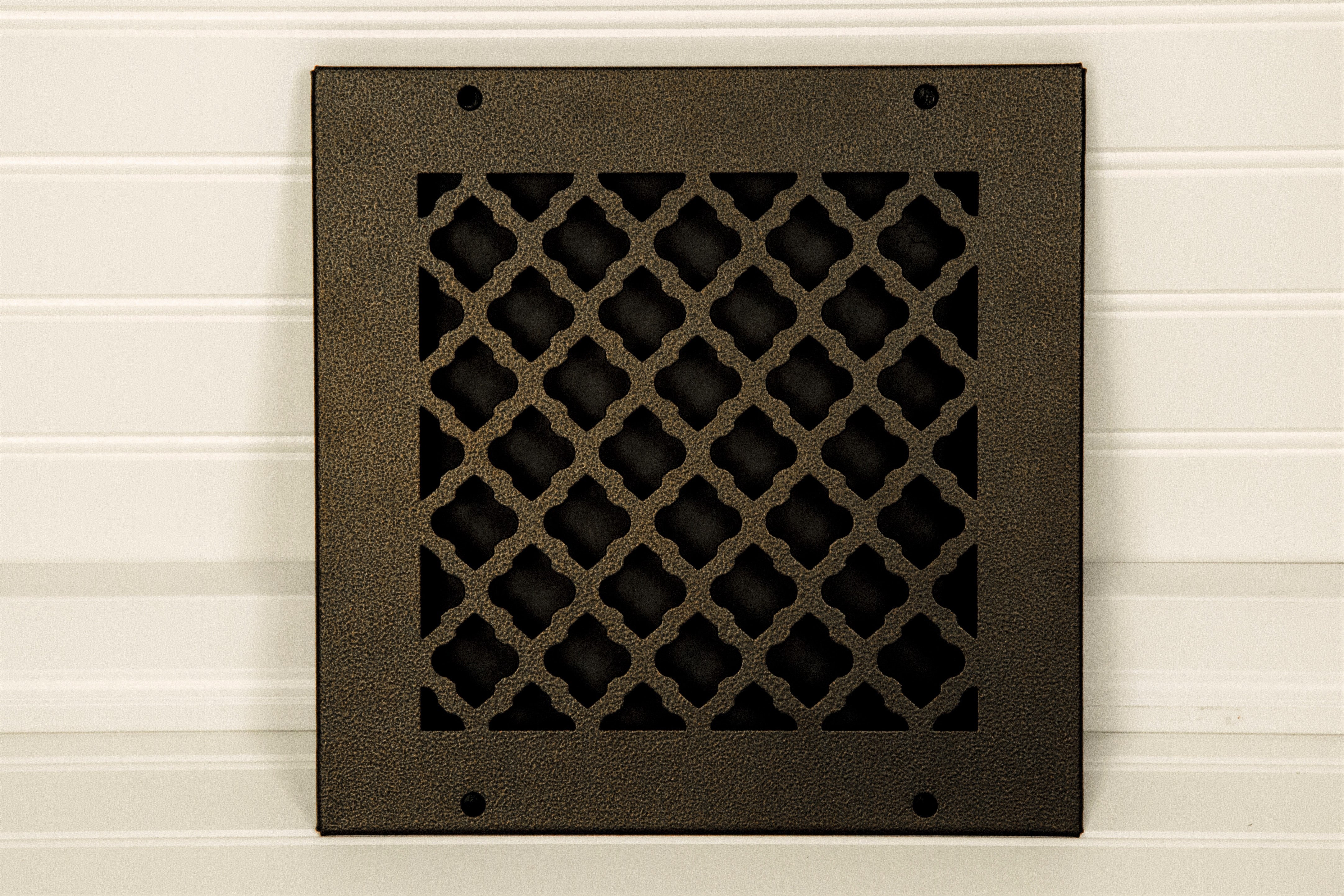

The SteelCrest BTU8X8SORBH is a slotted decorative supply vent with an integrated damper, designed for use on walls and ceilings in forced-air HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, this grille is built for long-term durability in both new construction and remodel applications. It fits an 8-inch by 8-inch duct opening and installs with an overall finished face size of 10 inches by 10 inches. The included damper allows airflow adjustment at the register level, giving technicians and installers a simple means of balancing air distribution room by room.
This supply vent is suited for residential and light commercial forced-air applications where a traditional or transitional aesthetic is required. The slotted face design supports directed airflow while the oil-rubbed bronze finish coordinates with period-appropriate trim and hardware. Intended for wall or ceiling mounting over standard rectangular duct collars, it is a practical choice for HVAC contractors handling system upgrades, room additions, or finish-out work where the existing grille stock is being replaced.
Key Features
- Solid steel construction with oil-rubbed bronze powder-coat finish for corrosion resistance and durability

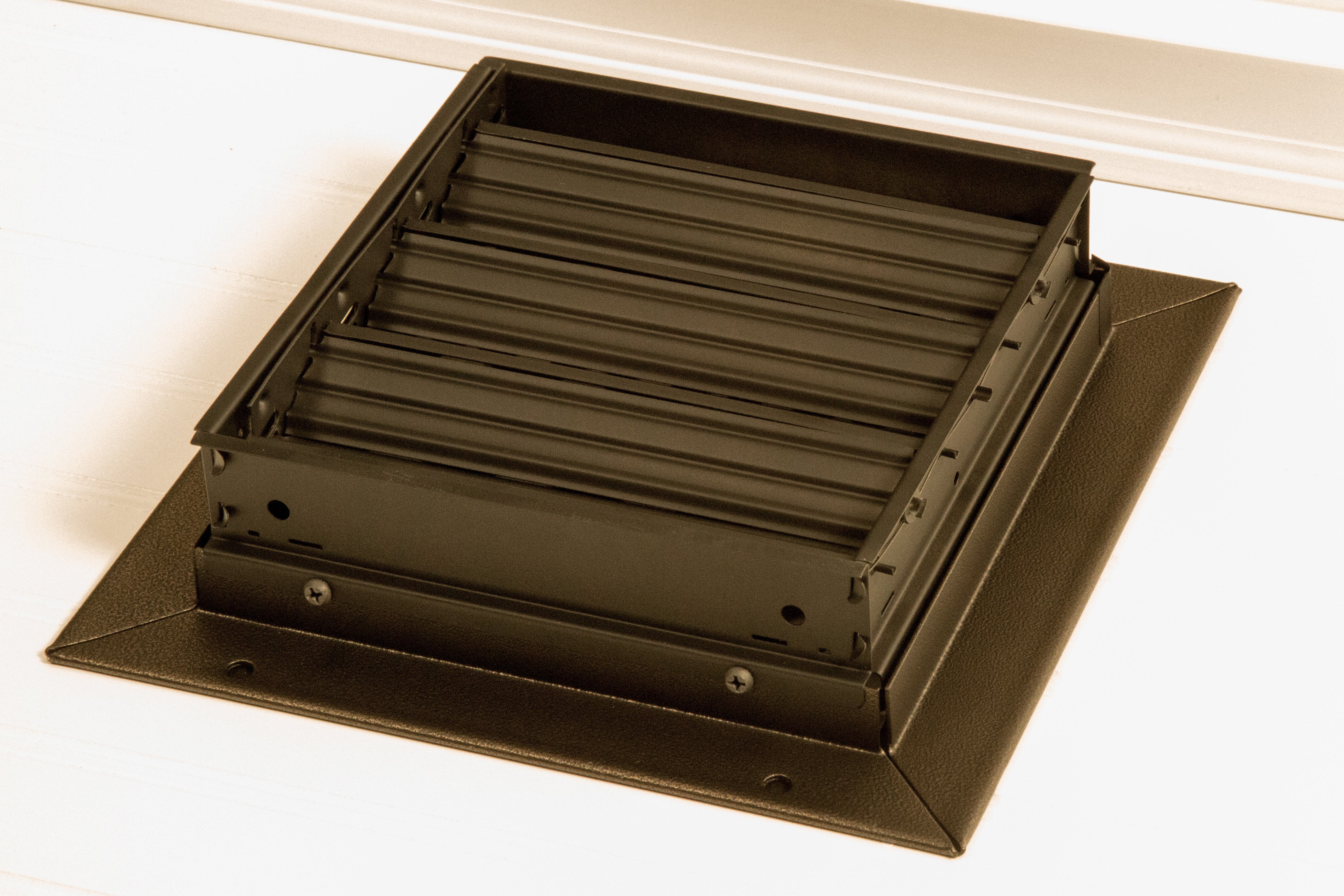

- Integrated damper for room-level airflow adjustment and system balancing
- Fits 8 inch by 8 inch duct openings with a 10 inch by 10 inch finished face size
- Slotted face design promotes directed air distribution
- Suitable for wall or ceiling installation in new construction and remodel projects
- Direct-replacement sizing simplifies retrofit installations
Compatibility
Designed as a direct-replacement supply vent for residential and light commercial forced-air HVAC systems using standard 8 inch by 8 inch rectangular duct openings on walls or ceilings.
Installation Notes

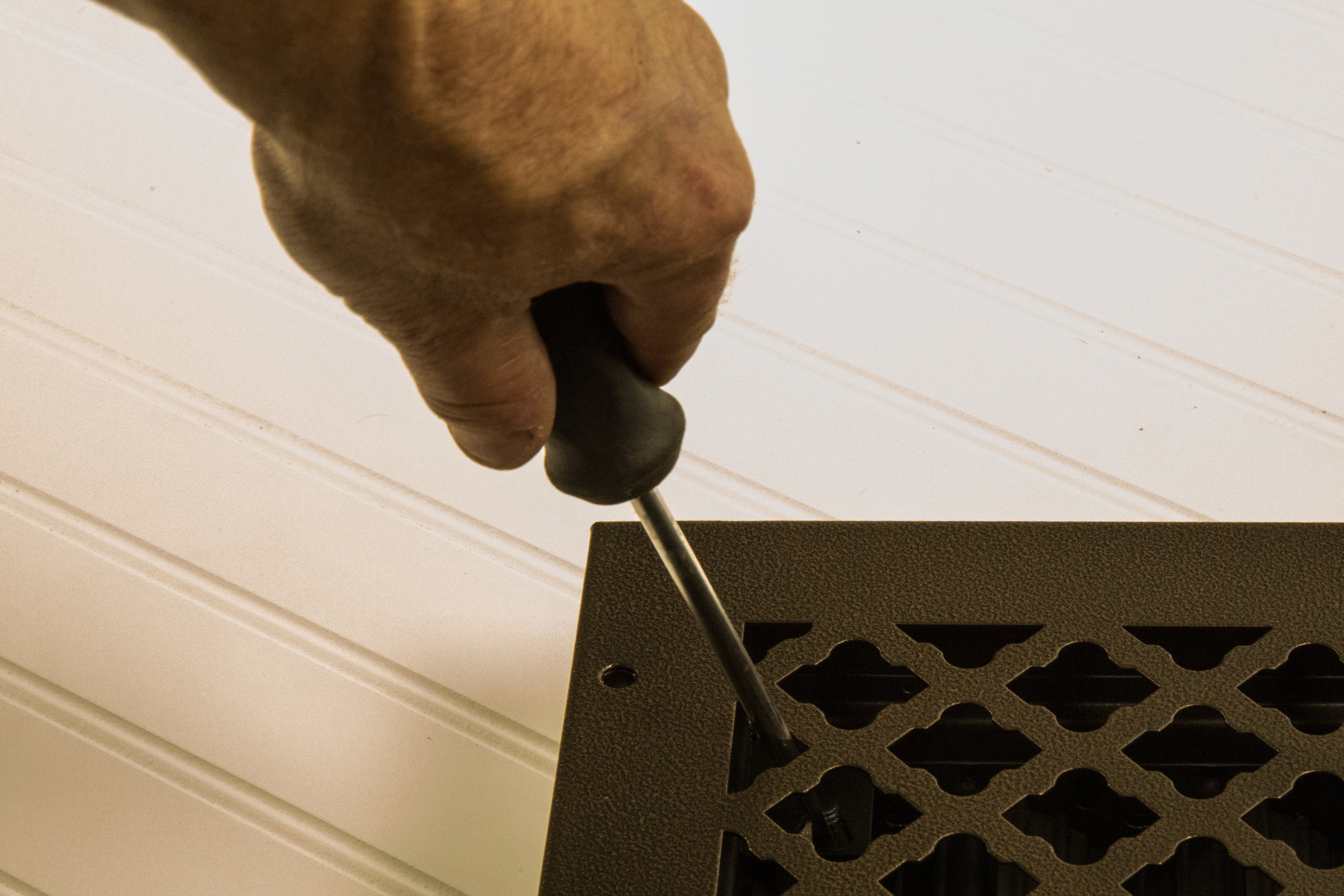

Installation is typically performed by an HVAC technician or qualified installer. Shut down the air handler or furnace at the disconnect or thermostat before removing the existing grille and accessing the duct collar. Secure the grille flush to the wall or ceiling surface using fasteners appropriate for the substrate. Verify the damper blade moves freely and holds position before returning the system to service.
Technical Specifications
-
Duct Opening Size: 8 inches x 8 inches
-
Finished Face Size: 10 inches x 10 inches
-
Material: Solid Steel
-
Finish: Oil-Rubbed Bronze Powder Coat
-
Damper: Included
-
Mounting Location: Wall or Ceiling
-
Package Weight: 5 pounds
-
Package Dimensions: 12 inches x 12 inches x 4 inches
-
Minimum Order Quantity: 1
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU8X8SORBH
