SteelCrest BTU8X6RWHH Fixed Return Grille 8x6 Duct

Product Description

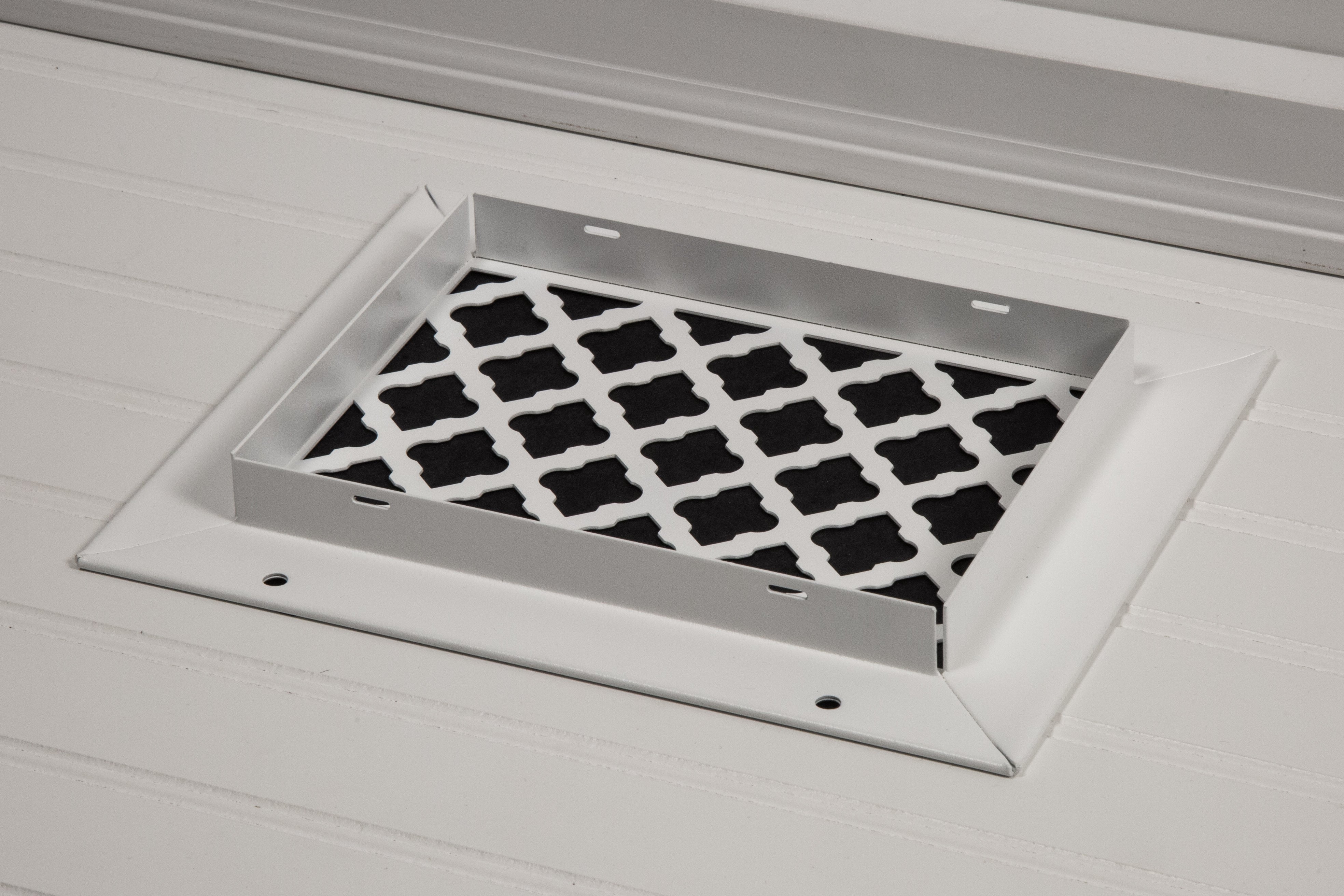

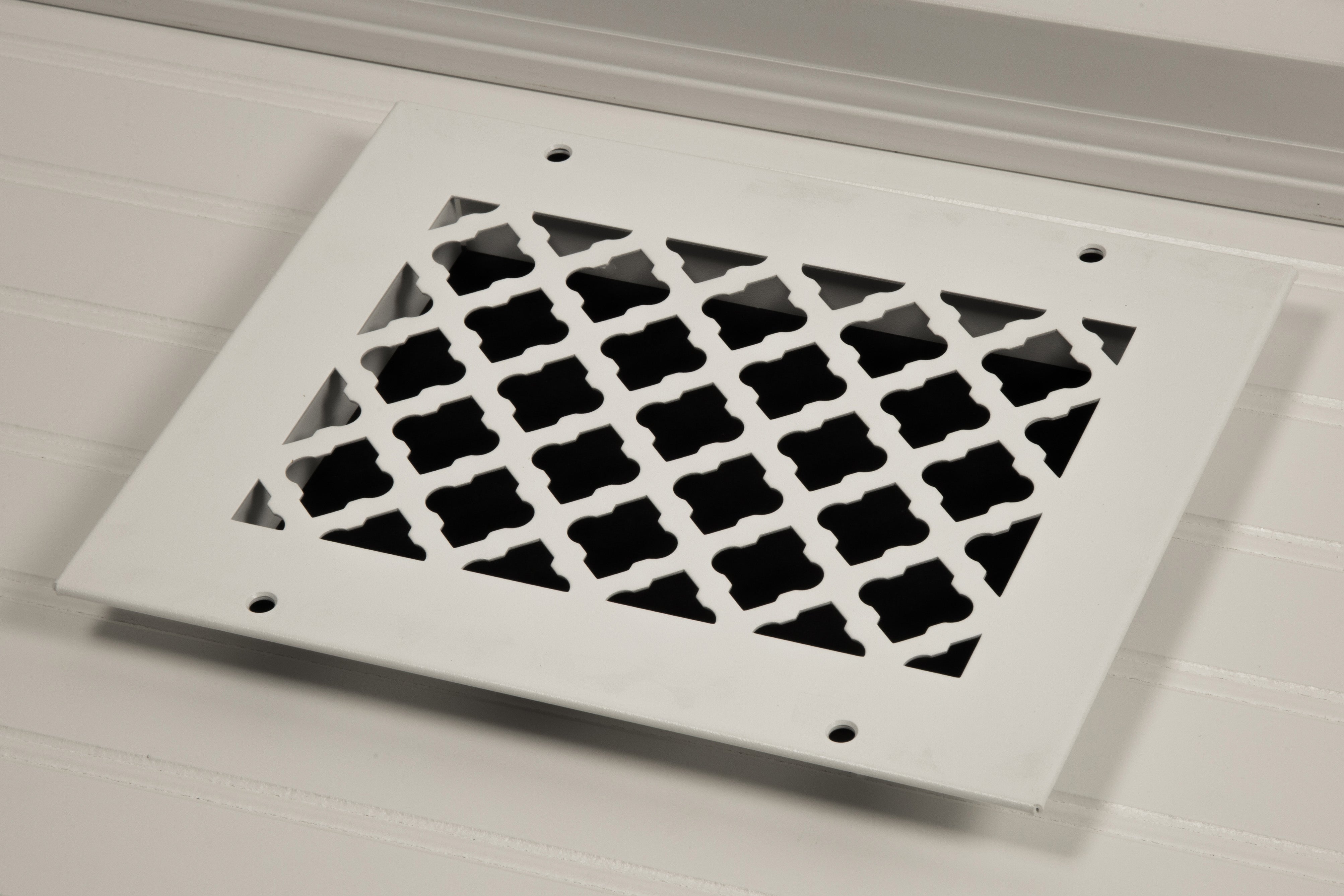

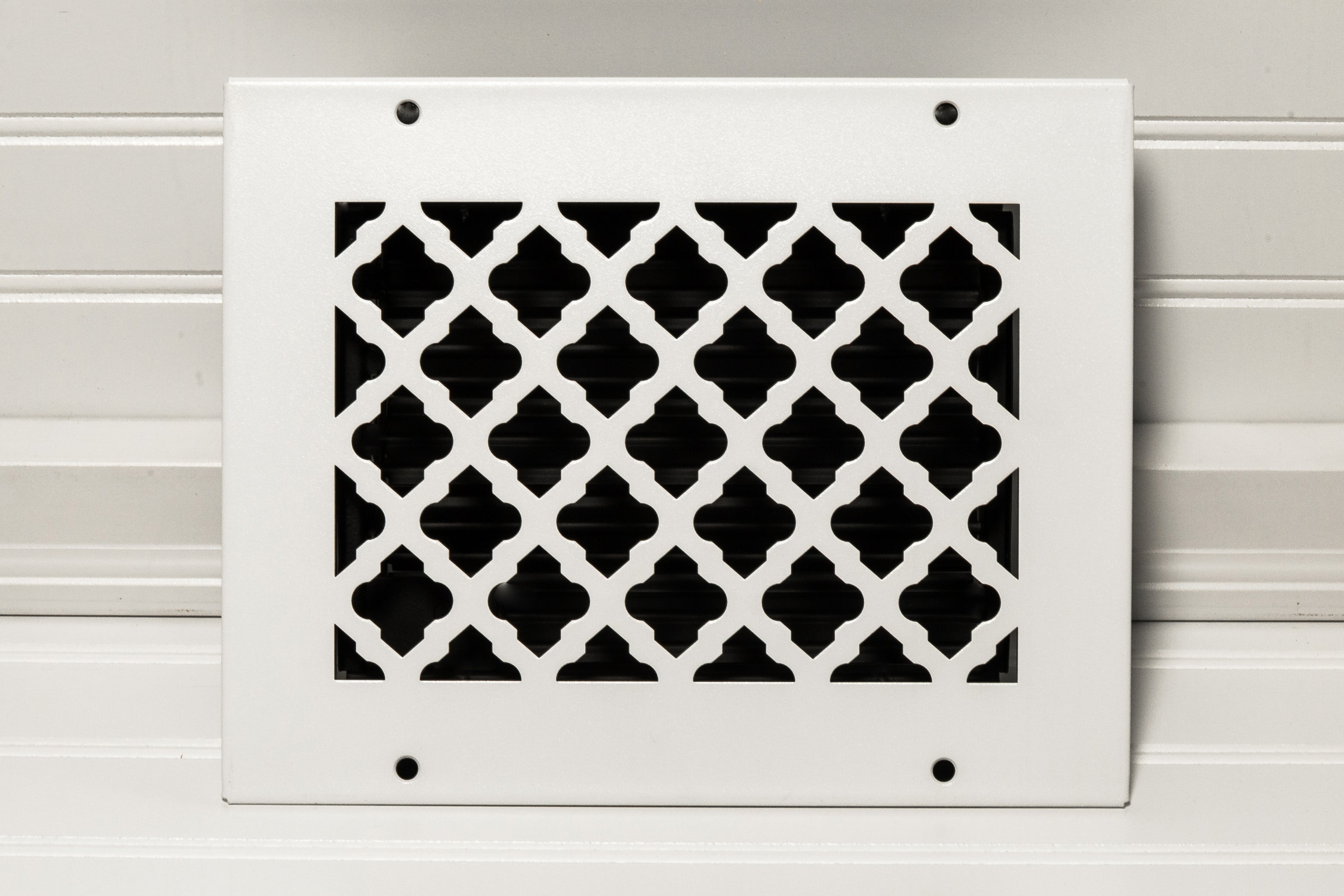

The SteelCrest BTU8X6RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it features a slotted face pattern that supports consistent return airflow while maintaining a clean, finished appearance. The grille fits an 8-inch by 6-inch duct opening and installs with an overall face size of 10 inches by 8 inches. HVAC technicians and installers will find this a direct-replacement option suited to new construction and remodel projects where a durable, finished look is required.

This return grille is appropriate for residential and light commercial applications where a fixed-blade, non-adjustable return is specified. The 8-inch by 6-inch duct opening size fits standard trunk-line or branch return drops common in forced-air systems. The 10-inch by 8-inch finished face overlaps the duct collar opening to cover the rough wall or ceiling cutout cleanly, making it a practical fit for both retrofit and new-install scenarios on drywall, plaster, or ceiling tile surfaces.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed slotted face design supports steady return airflow
• Fits 8-inch by 6-inch duct opening with 10-inch by 8-inch overall face size
• Suitable for wall or ceiling mount installations
• Direct-replacement fit speeds installation on new construction and remodel projects

Compatibility

Designed as a direct-replacement fixed return grille for standard 8-inch by 6-inch duct openings in residential and light commercial forced-air HVAC systems installed on walls or ceilings.

Installation Notes

Installation is typically performed by an HVAC technician or installer. Turn off the HVAC system at the thermostat and disconnect power at the air handler or furnace before removing an existing grille or accessing the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate. Verify the duct collar is clean and free of obstructions before final mounting to ensure unimpeded return airflow.

Technical Specifications

• Duct Opening Size: 8 inches x 6 inches
• Overall Face Size: 10 inches x 8 inches
• Material: Solid Steel
• Finish: White Powder Coat
• Mount Type: Wall or Ceiling
• Blade Style: Fixed Slotted
• Package Weight: 4 pounds
• Package Dimensions: 12 inches x 11 inches x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU8X6RWHH
