SteelCrest BTU8X4SWHH Supply Vent with Damper 8x4 Inch

Product Description

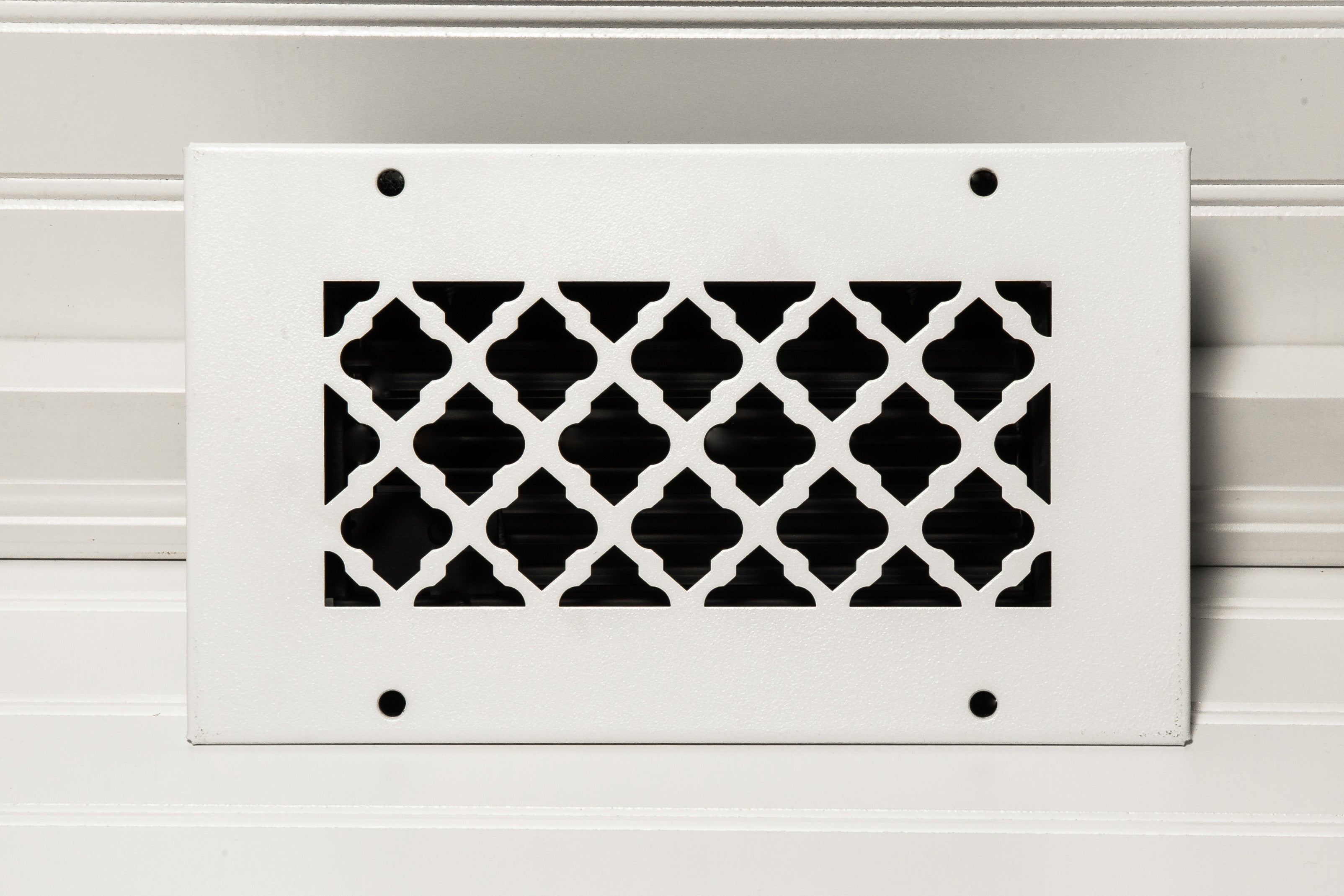

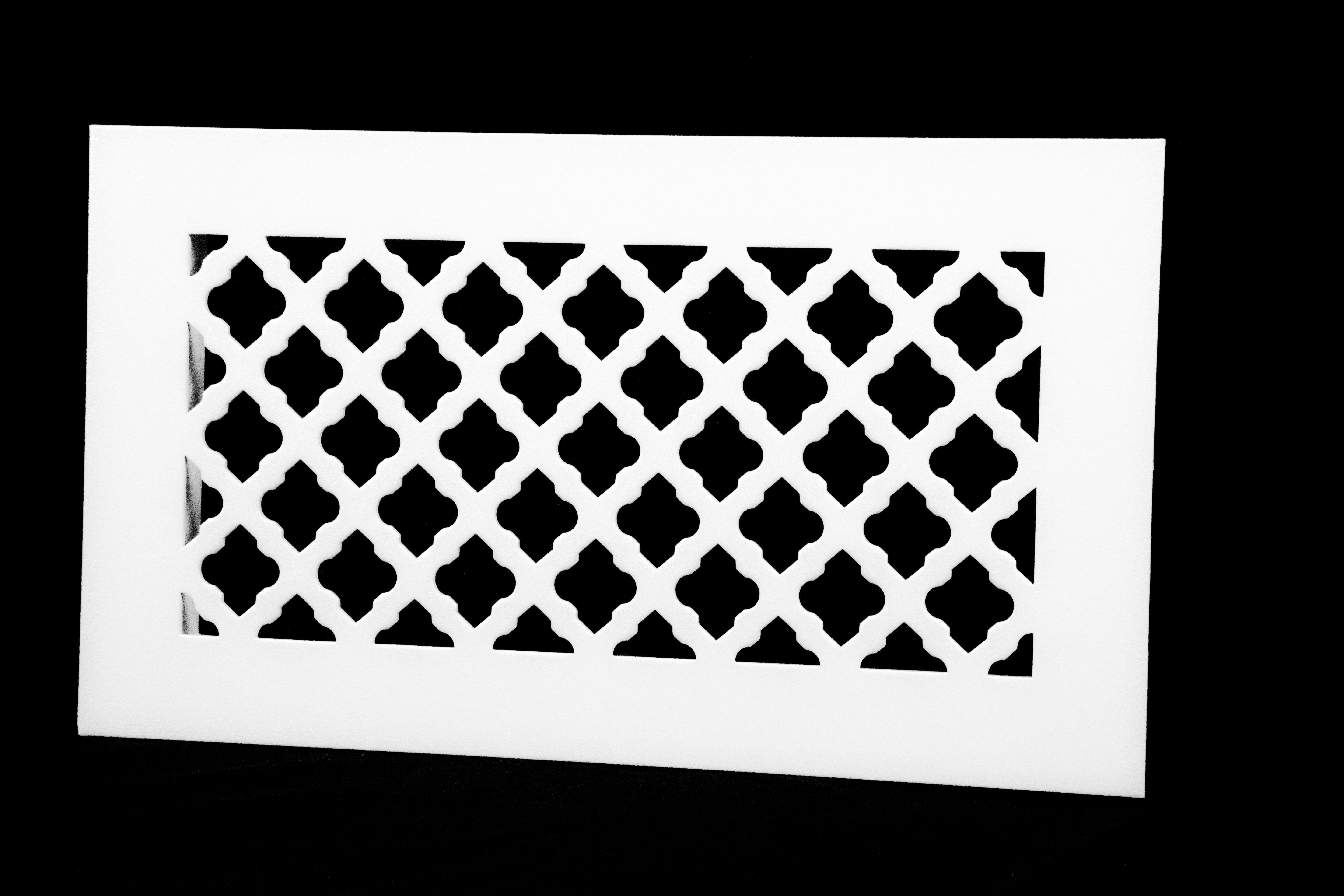

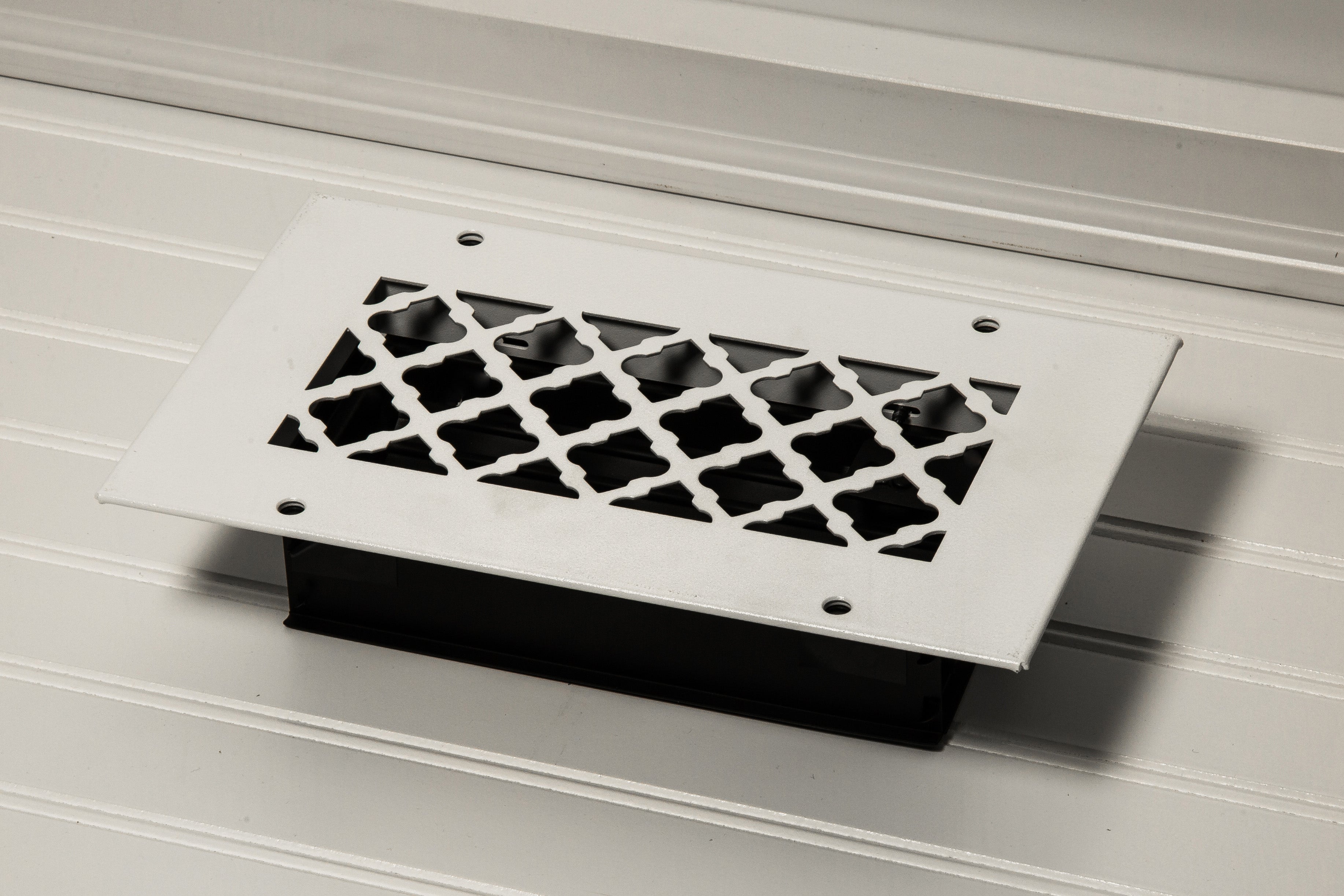

The SteelCrest BTU8X4SWHH is a slotted supply vent with an adjustable damper, designed for wall and ceiling installation in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it provides long-term durability and a clean, refined appearance. The vent fits an 8x4 inch duct opening and installs with an overall finished face size of 10x6 inches. The built-in damper allows airflow adjustment without additional tools. HVAC technicians and contractors install this grille during new construction and remodel projects where a direct-fit, finished appearance is required.

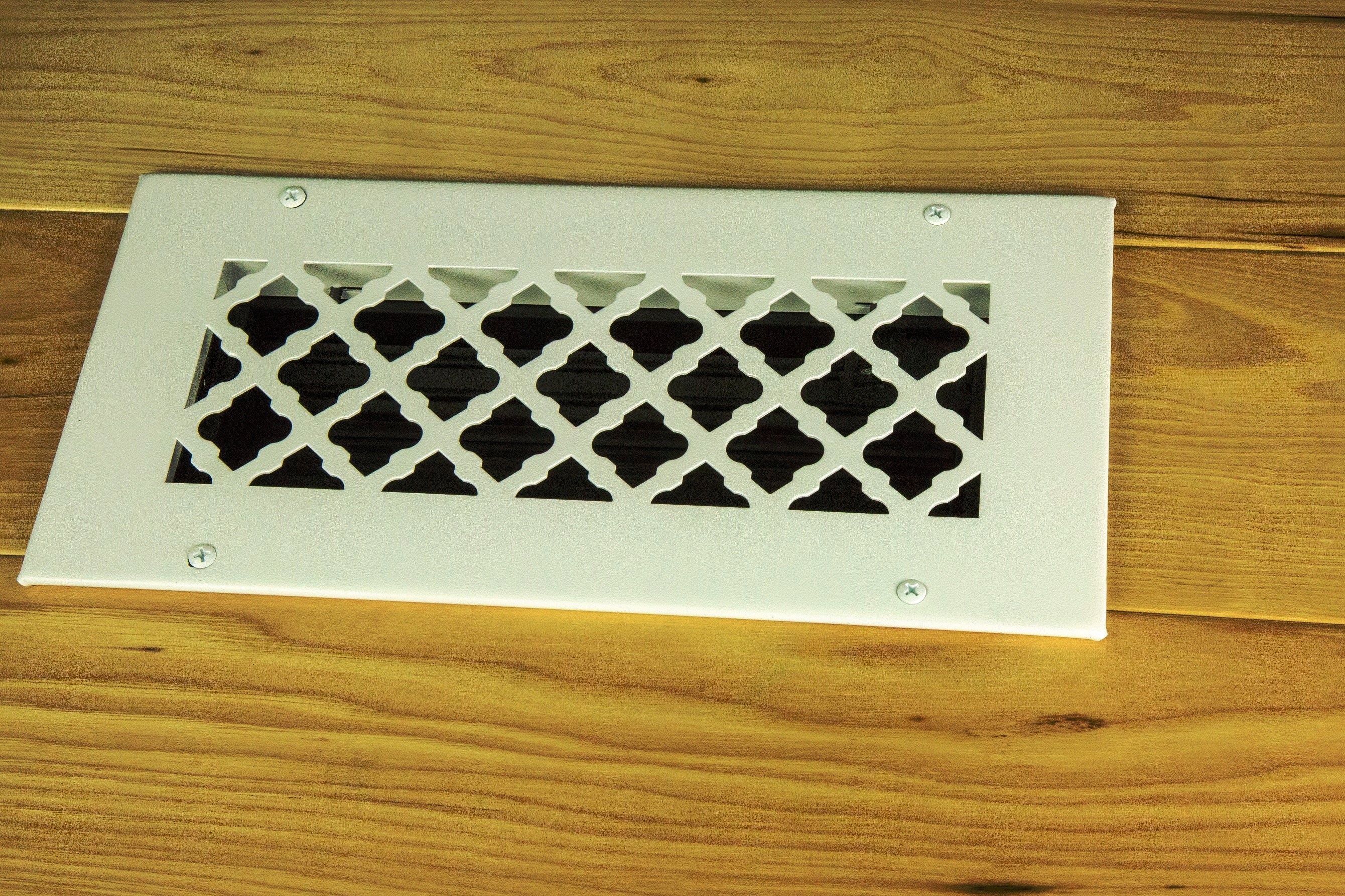

This supply vent is suited for forced-air distribution systems in residential homes and light commercial spaces. It mounts to standard wall or ceiling surfaces over an 8x4 inch duct collar. The 10x6 inch face plate overlaps the rough opening for a clean finished look without additional trim work. It is a direct-replacement option for existing 8x4 openings in renovation or upgrade scenarios.

Key Features

• Solid steel construction with white powder-coat finish for corrosion resistance and durability
• Slotted grille design supports efficient airflow distribution

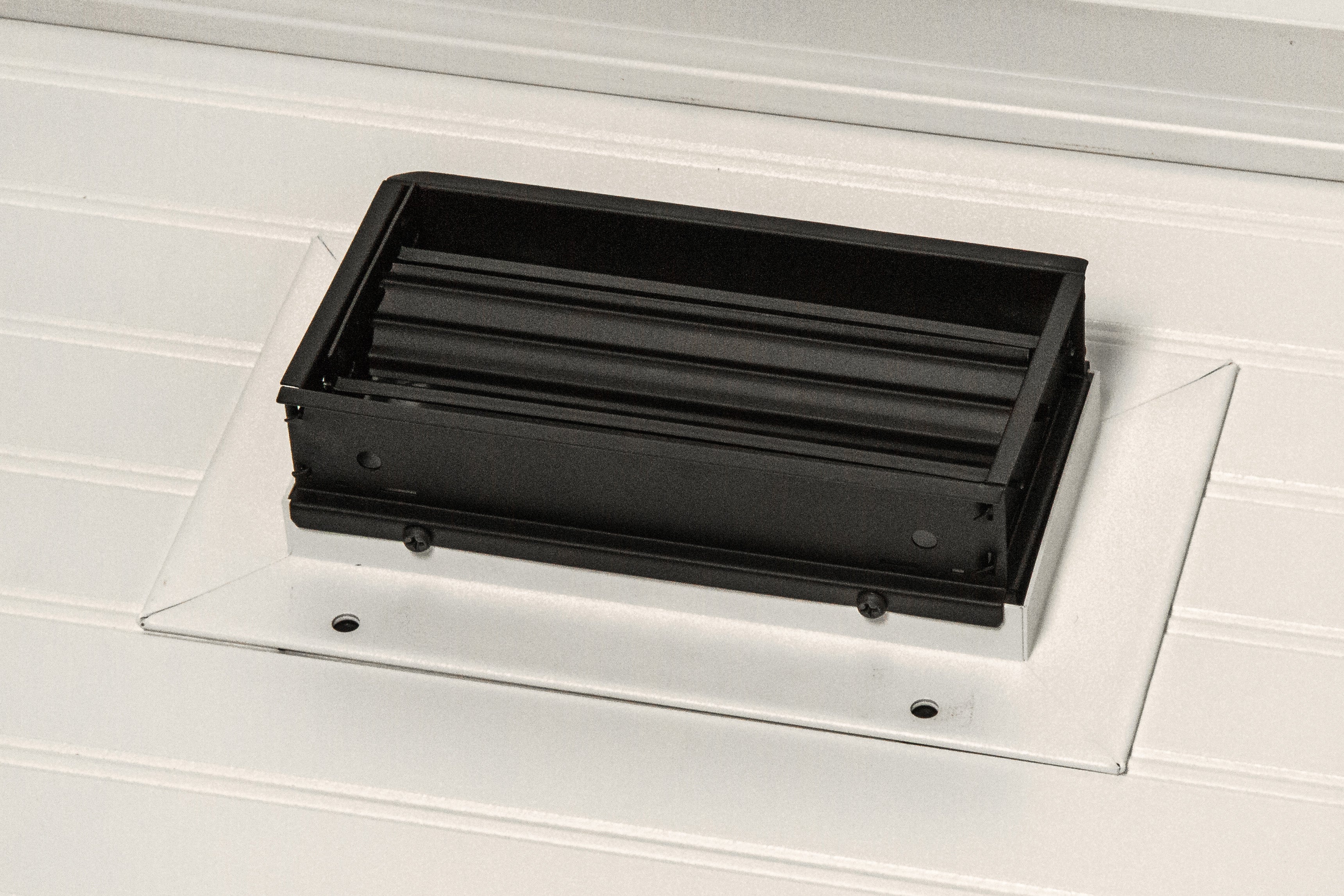

• Integrated damper allows on-site airflow adjustment
• Fits 8x4 inch duct opening with a 10x6 inch finished face size
• Suitable for both wall and ceiling mounting
• Direct-replacement fit simplifies new construction and remodel installs

Compatibility

Designed as a direct-replacement supply vent for residential and light commercial forced-air systems with a standard 8x4 inch duct opening.

Installation Notes

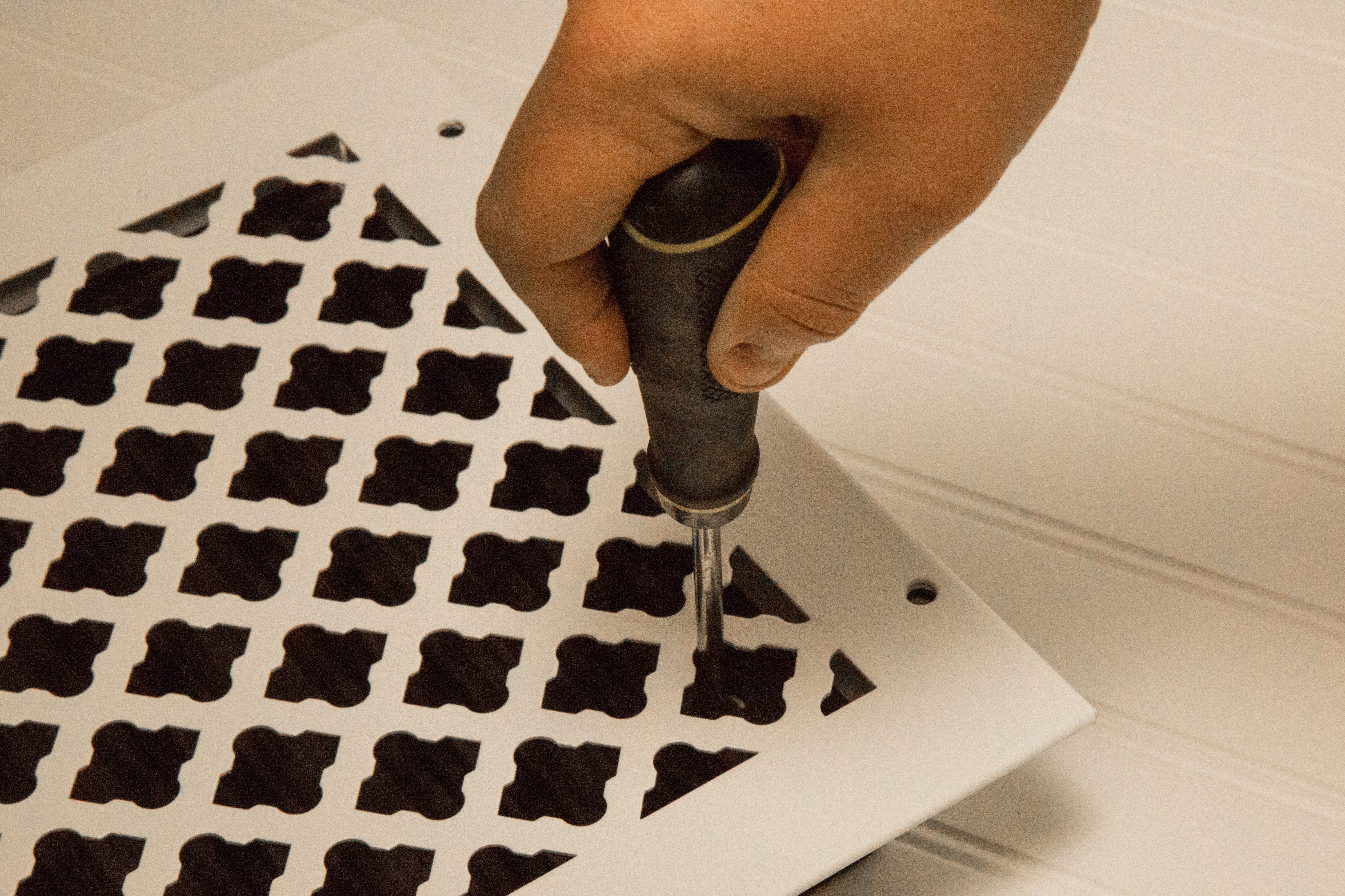

Installation is typically performed by a licensed HVAC technician or qualified contractor. Power down the air handling system before removing an existing grille or making adjustments to the duct opening. Secure the grille to the wall or ceiling surface using appropriate fasteners for the substrate. Verify the duct collar dimensions match the 8x4 inch opening before installation.

Technical Specifications

• Duct Opening Size: 8x4 inches
• Finished Face Size: 10x6 inches
• Material: Solid steel with white powder-coat finish
• Damper: Included
• Mount Type: Wall or ceiling
• Package Weight: 4 pounds
• Package Dimensions: 12 x 8 x 4 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU8X4SWHH
