SteelCrest BTU30X6RORBH Fixed Return Air Grille 30x6 Oil-rubbed Bronze

Product Description

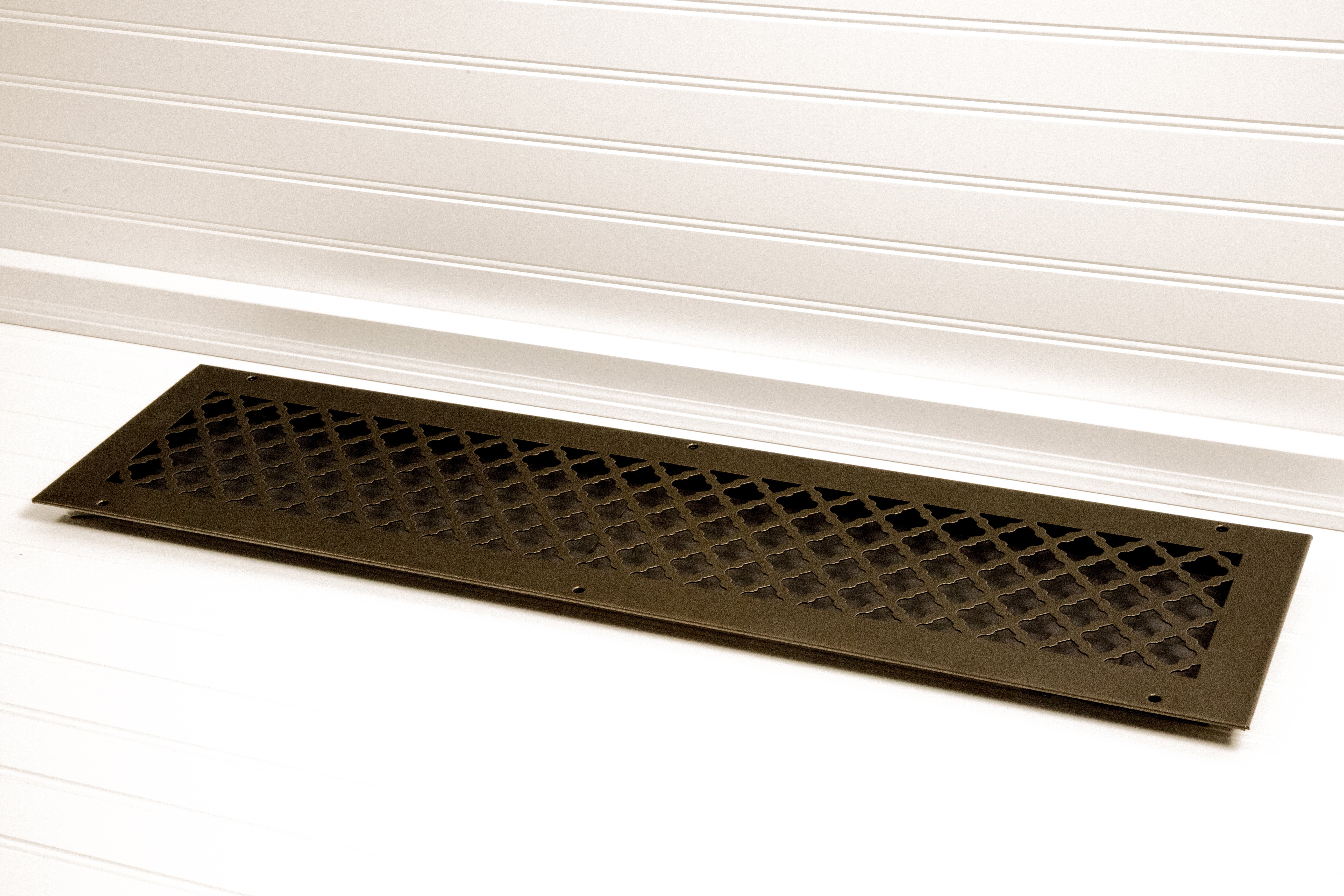

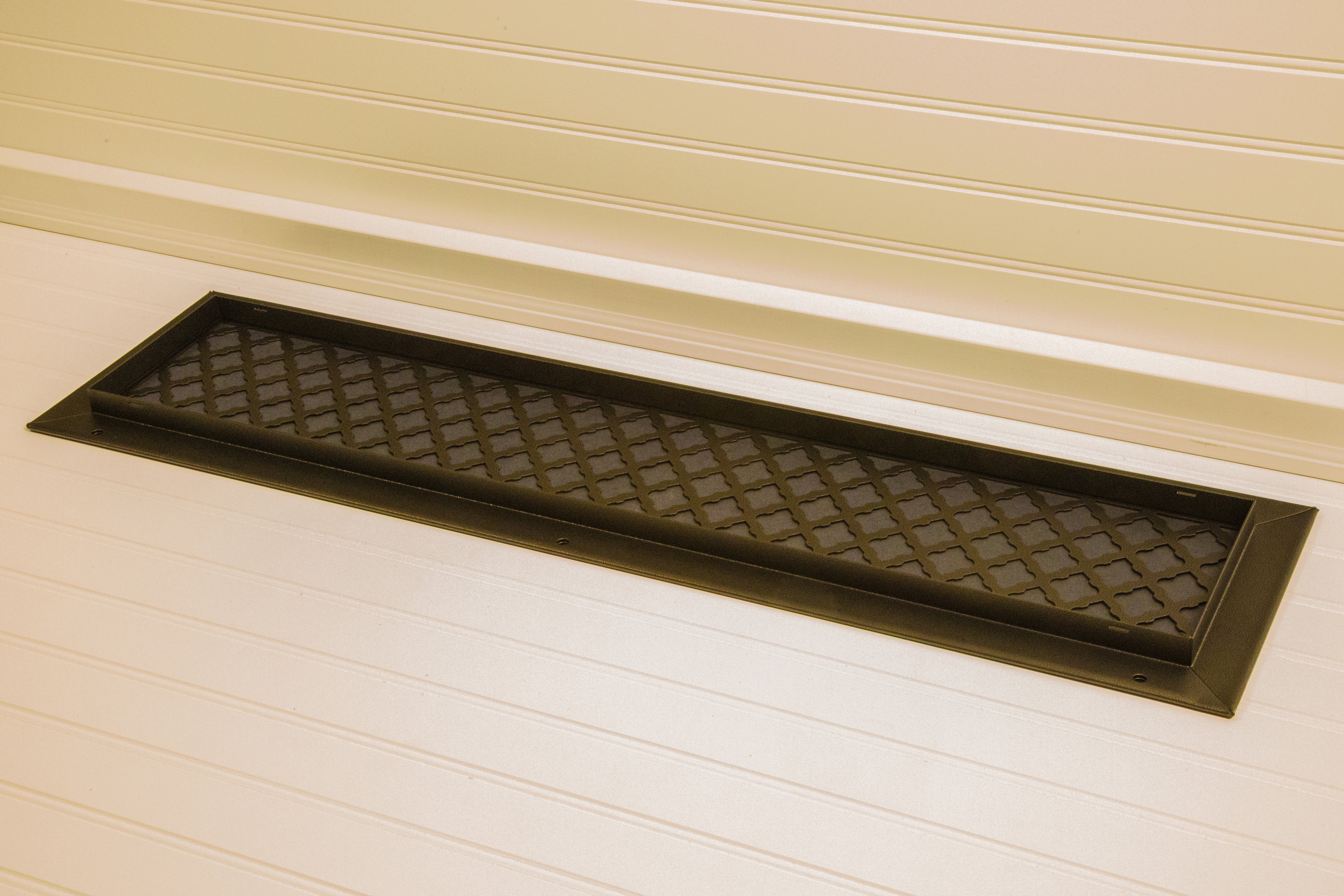

The SteelCrest BTU30X6RORBH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Built from solid steel with an oil-rubbed bronze powder-coat finish, it fits a 30 x 6 inch duct opening and installs to a finished face size of 32 x 8 inches. The slotted face pattern supports steady return airflow while the fixed louver design keeps installation simple. HVAC technicians and contractors reach for this grille on new construction jobs and remodel projects where both durability and finished appearance matter.

This grille is suited for return air applications in forced-air heating and cooling systems. The 30 x 6 inch rough opening size is common in residential trunk-and-branch duct layouts, making it a practical direct-replacement option when upgrading builder-grade grilles or refreshing an existing system. It mounts flush to drywall or ceiling surfaces and works in horizontal or vertical duct terminations depending on orientation at install.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fits 30 x 6 inch duct opening with a finished face size of 32 x 8 inches
• Fixed slotted louver pattern supports consistent return airflow
• Suitable for wall or ceiling mount installations
• Direct-replacement fit speeds up new construction and remodel installs

Compatibility

Designed as a direct-replacement return air grille for residential and light commercial forced-air HVAC systems with a 30 x 6 inch return duct opening.

Installation Notes

Installation is typically performed by an HVAC technician or a qualified contractor. Power down the air handler or furnace before removing the existing grille and inspect the duct opening for obstructions or damage prior to mounting. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate. Follow local mechanical codes for return air grille placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 30 x 6 inches
• Finished Face Size: 32 x 8 inches
• Material: Solid Steel
• Finish: Oil-Rubbed Bronze Powder Coat
• Louver Type: Fixed Slotted
• Mount Type: Wall or Ceiling
• Package Weight: 12 pounds
• Package Dimensions: 34 x 11 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU30X6RORBH
