SteelCrest BTU24X14RWHH Fixed Return Grille 24x14

Product Description

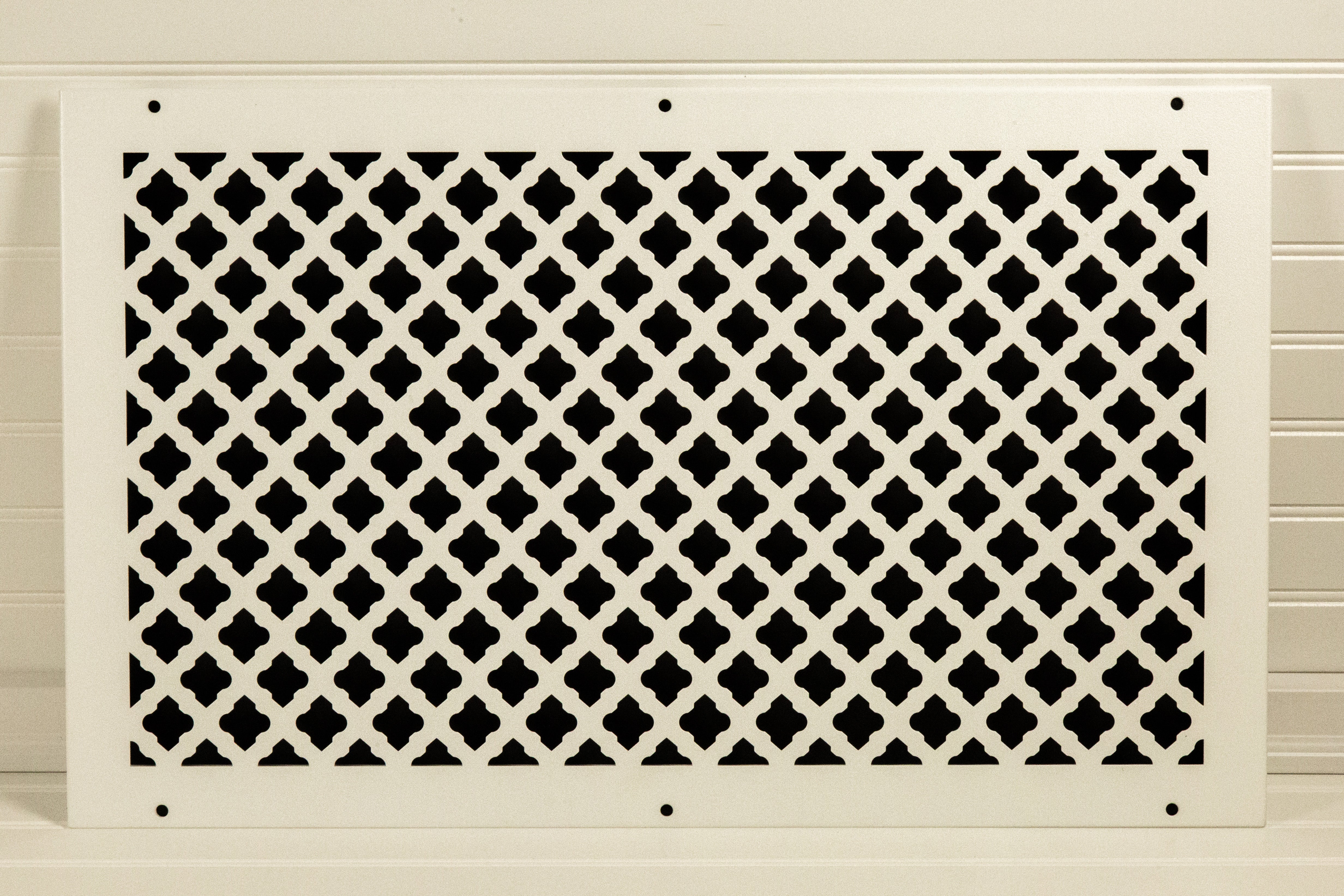

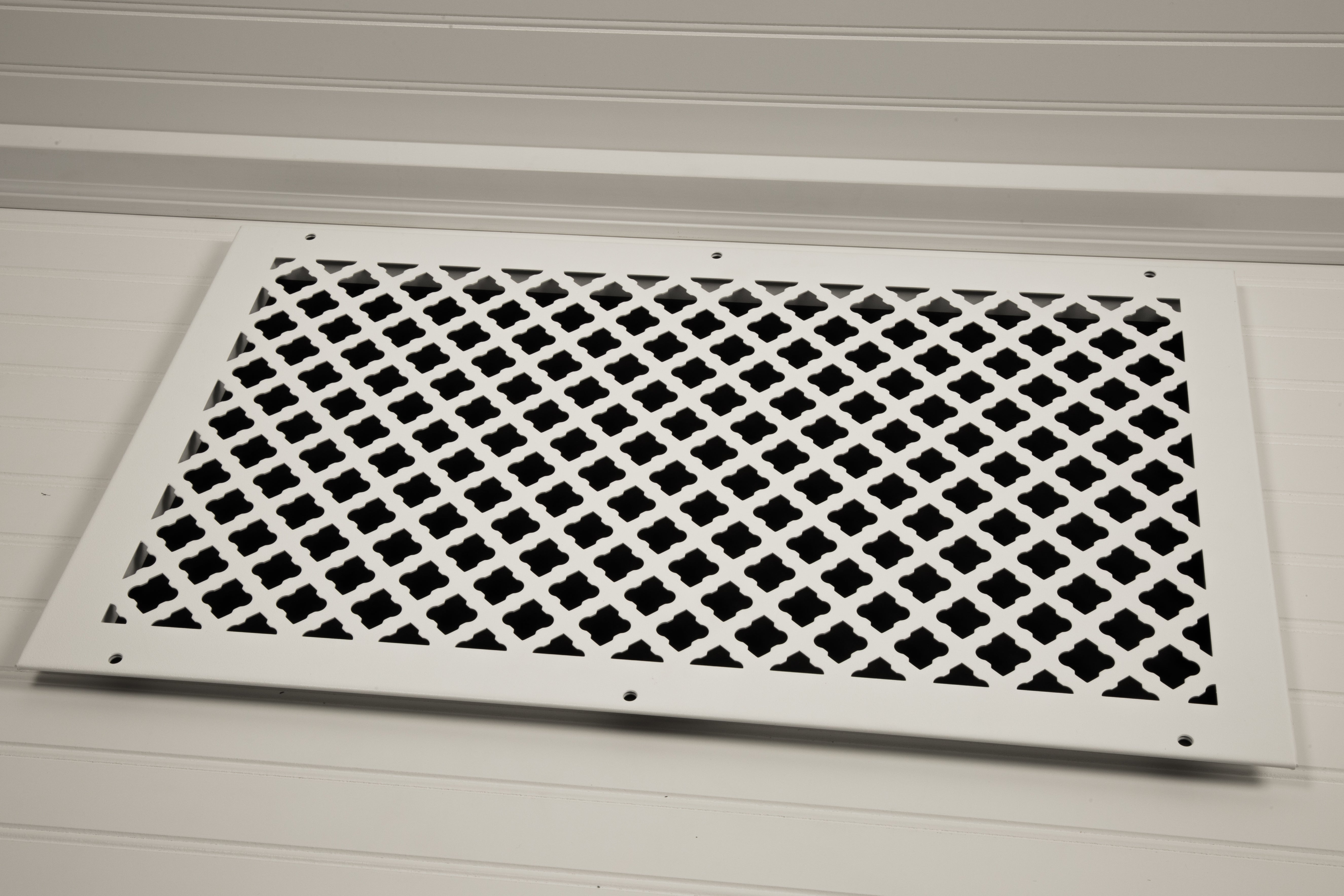

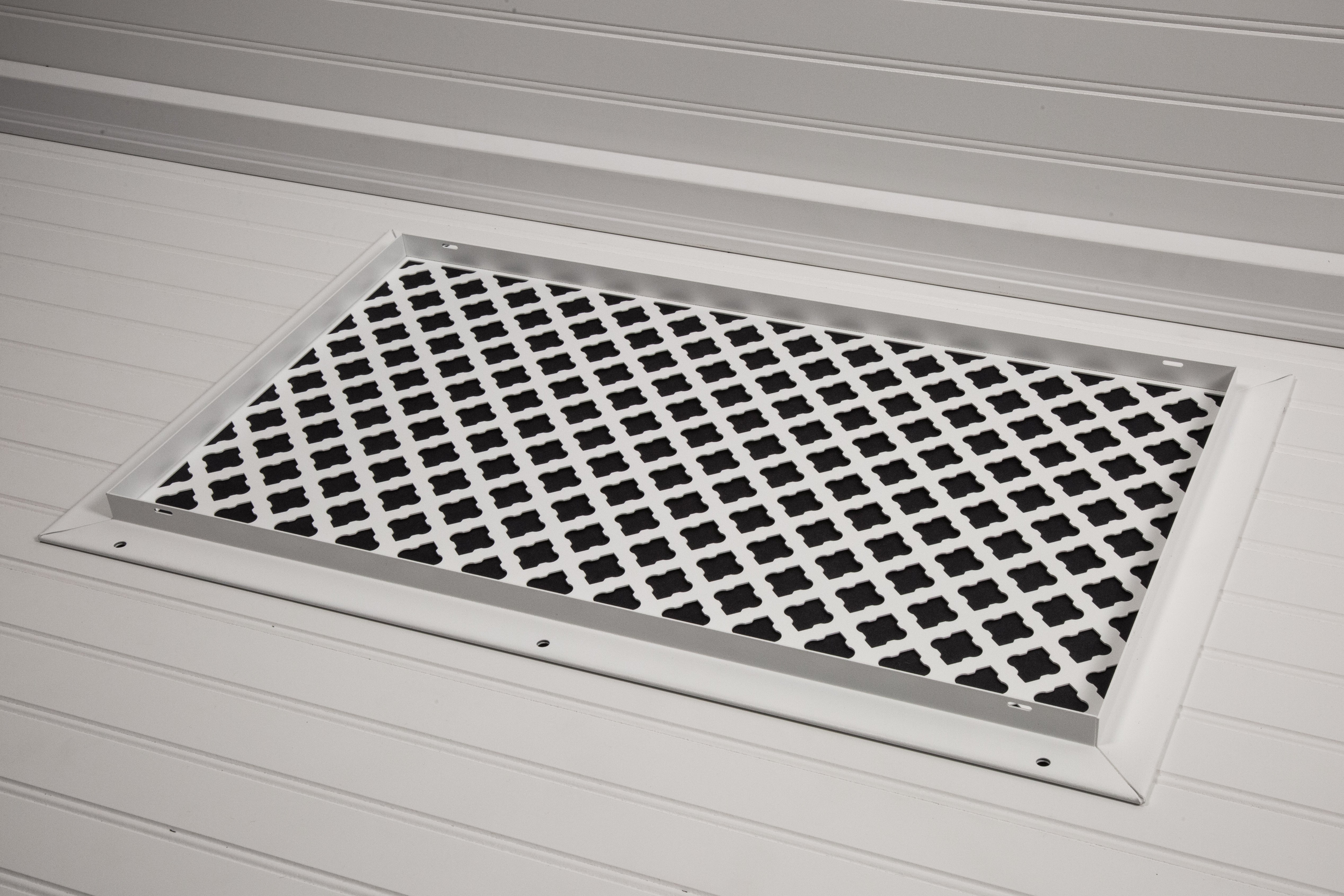

The SteelCrest BTU24X14RWHH is a fixed return air grille constructed from solid steel with a white powder-coat finish. It is designed to cover a 24 x 14 inch duct opening and installs on walls or ceilings in residential and light commercial HVAC systems. The overall finished face size is 26 x 16 inches, providing a clean border around the rough duct opening. The slotted face design supports consistent return airflow back to the air handler or furnace. HVAC technicians and installers specify this grille as a direct-replacement unit in new construction and remodel applications where a durable, factory-finished cover is required.

This grille fits return air duct openings measuring 24 x 14 inches and mounts flush to drywall, plaster, or ceiling surfaces. It is suited for residential forced-air systems and light commercial applications where a fixed, non-adjustable return grille is appropriate. The white powder-coat finish coordinates with standard interior wall and ceiling finishes. Because the face plate extends to 26 x 16 inches overall, it conceals rough edges around standard framed duct openings without additional trim work, making it practical for both new-build projects and retrofit installations.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed slotted face design supports consistent return airflow
• Fits 24 x 14 inch duct opening with 26 x 16 inch finished face size
• Installs on walls or ceilings without additional trim
• Direct-replacement fit for new construction and remodel projects

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial forced-air HVAC systems with a 24 x 14 inch return duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified contractor. Power down the HVAC system at the thermostat and disconnect power at the air handler before working near the duct opening. The grille face plate should be secured to the wall or ceiling surface per the manufacturer fastener pattern, ensuring the duct collar is properly aligned before fastening. Follow local mechanical codes for return air grille placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 24 x 14 inches
• Overall Finished Face Size: 26 x 16 inches
• Material: Solid steel
• Finish: White powder coat
• Grille Type: Fixed return
• Mount Location: Wall or ceiling
• Package Weight: 18 pounds
• Package Dimensions: 28 x 18 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU24X14RWHH
