SteelCrest BTU24X12RWHH Fixed Return Grille 26x14 in

Product Description

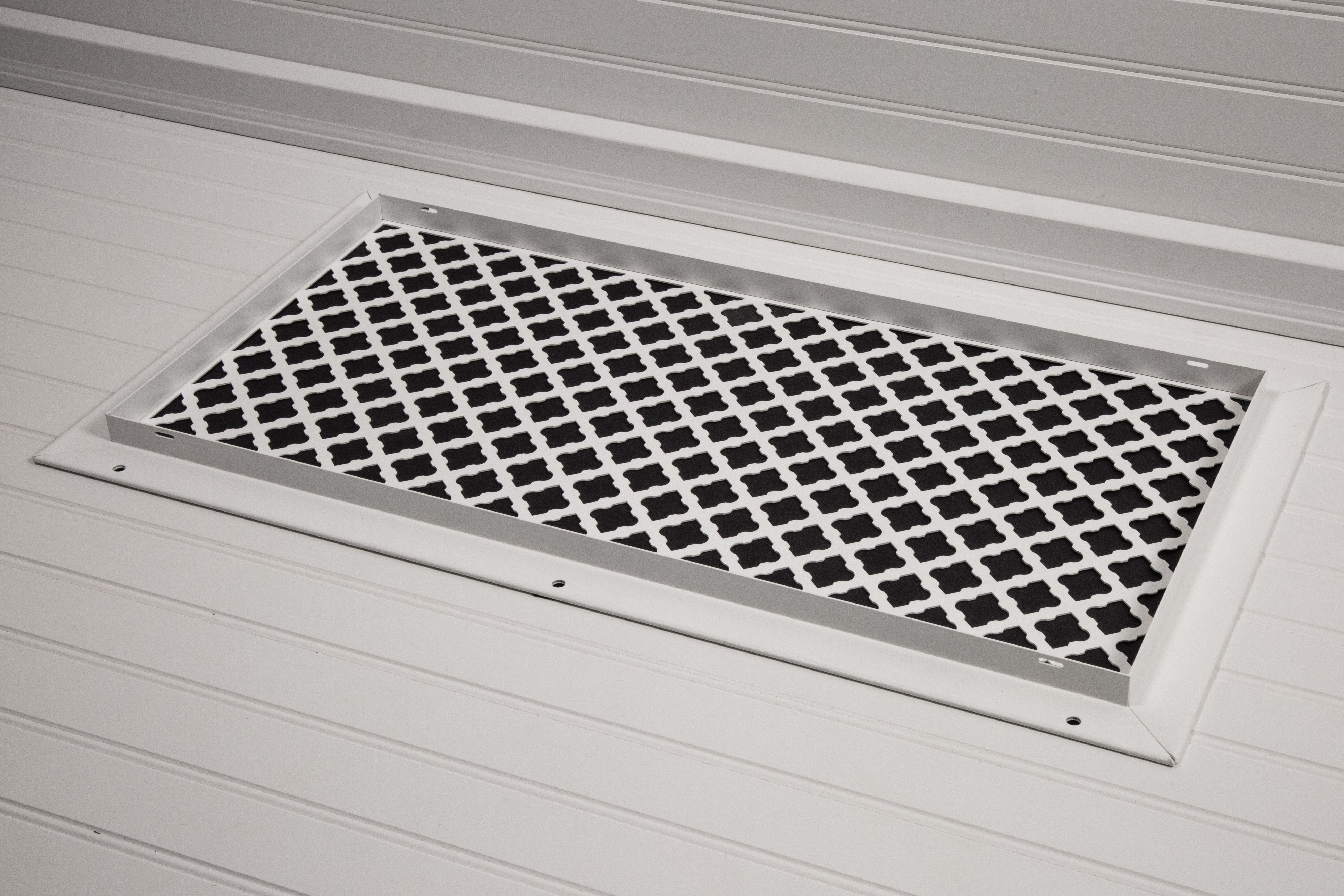

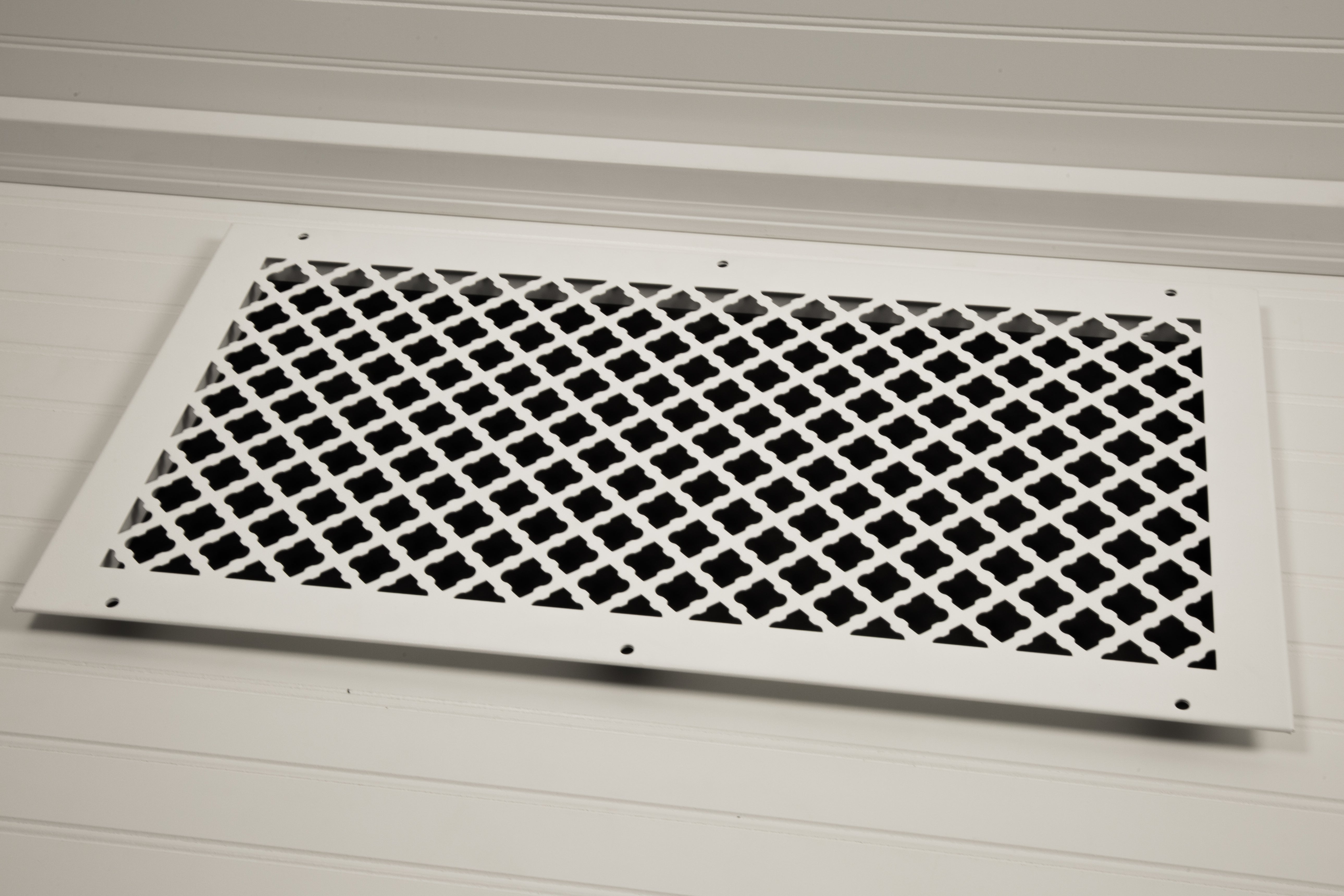

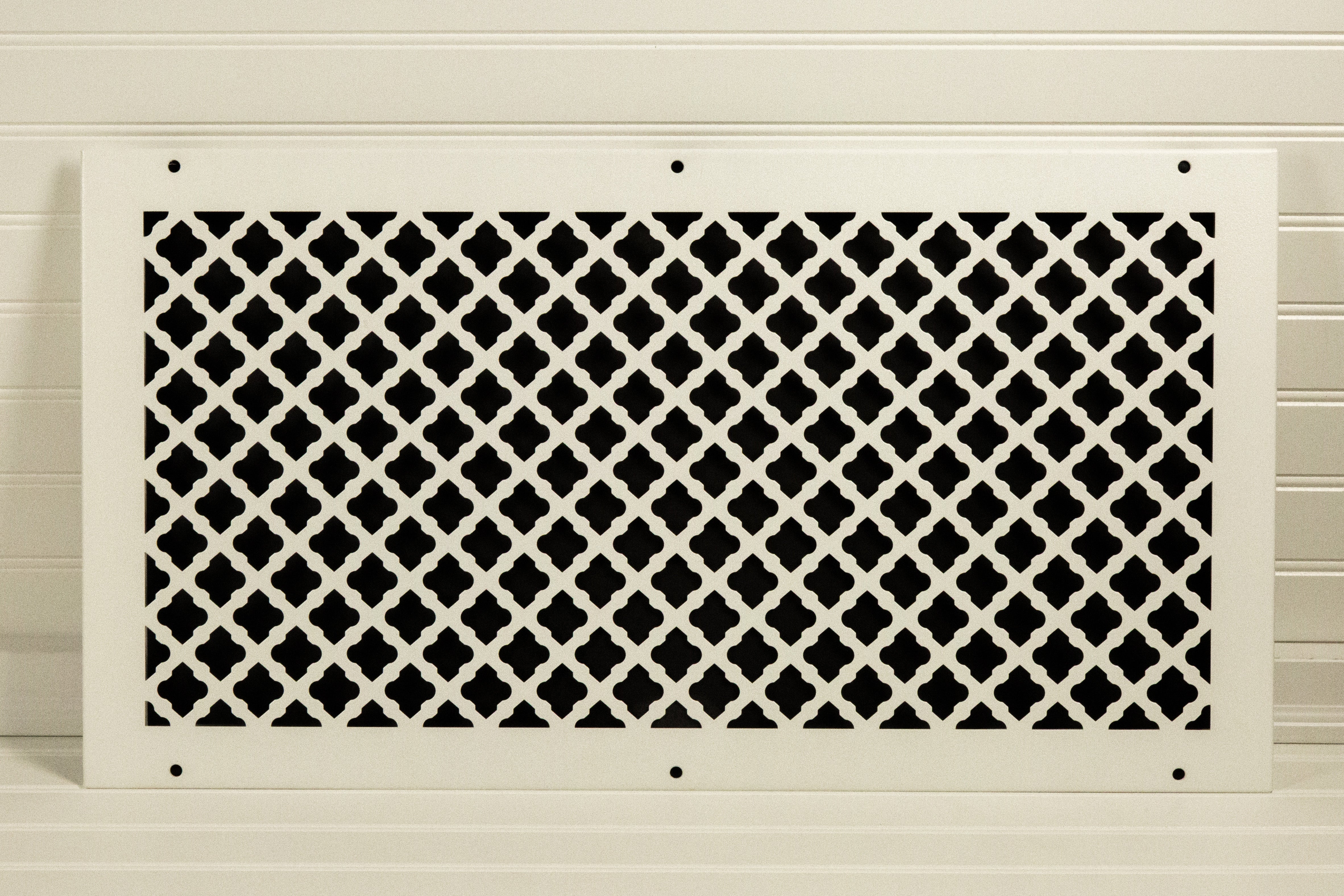

The SteelCrest BTU24X12RWHH is a fixed return air grille built from solid steel with a white powder-coat finish. It is designed to cover a 24 x 12 inch duct opening and delivers an overall finished face size of 26 x 14 inches. The slotted face pattern supports consistent return airflow while maintaining a clean, finished appearance on walls or ceilings. Licensed HVAC technicians and finish contractors install this grille as a direct replacement or new-construction fitting. The powder-coat finish resists chipping and corrosion under normal interior conditions.

This grille is suited for residential and light-commercial HVAC return-air applications on walls or ceilings. The 26 x 14 inch face plate overlaps the duct opening to conceal rough framing edges, making it appropriate for both new construction and remodel projects where a clean finish is required. No duct modification is needed when replacing a standard 24 x 12 inch return-air opening.

Key Features

• Solid steel construction with white powder-coat finish for long-term interior durability
• Fixed slotted face design promotes steady return airflow
• Fits a 24 x 12 inch duct opening with a finished face size of 26 x 14 inches
• Face plate overlap conceals rough framing edges on walls and ceilings
• Direct-replacement sizing minimizes installation time in remodel or new-construction work

Compatibility

Designed as a direct-replacement return air grille for standard residential and light-commercial HVAC duct openings measuring 24 x 12 inches on walls or ceilings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or finish contractor. Switch the air handler or furnace to the off position before removing an existing grille or working near an open return-air duct. Fasten the grille to the surrounding wall or ceiling surface using appropriate fasteners for the substrate material. Verify the duct opening measures 24 x 12 inches before installation to confirm fit.

Technical Specifications

• Duct Opening Size: 24 x 12 inches
• Finished Face Size: 26 x 14 inches
• Material: Solid steel
• Finish: White powder coat
• Mount Location: Wall or ceiling
• Grille Type: Fixed return
• Package Weight: 16 pounds
• Package Dimensions: 28 x 16 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU24X12RWHH
