SteelCrest BTU24X12RORBH Fixed Return Air Grille 24x12

Product Description

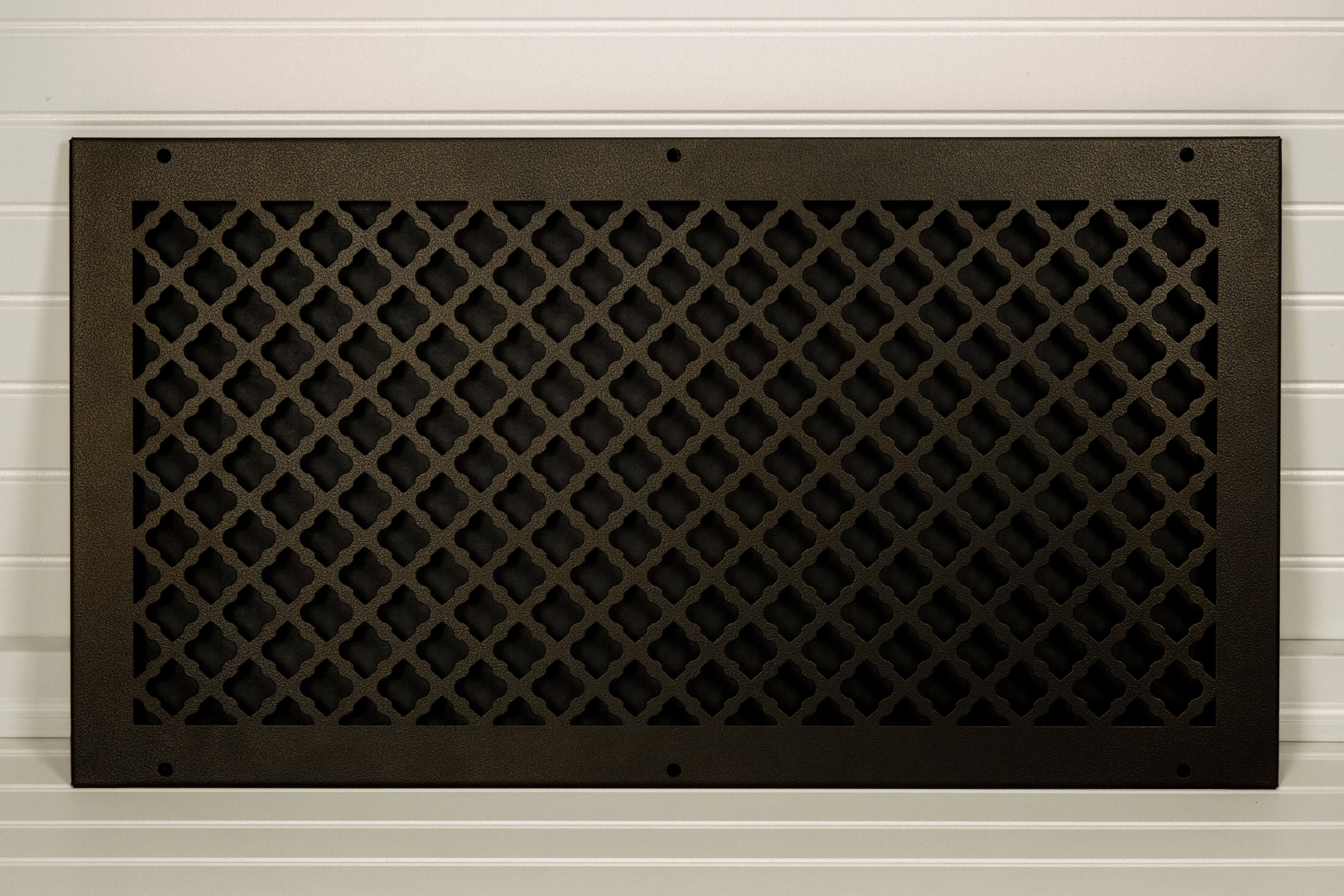

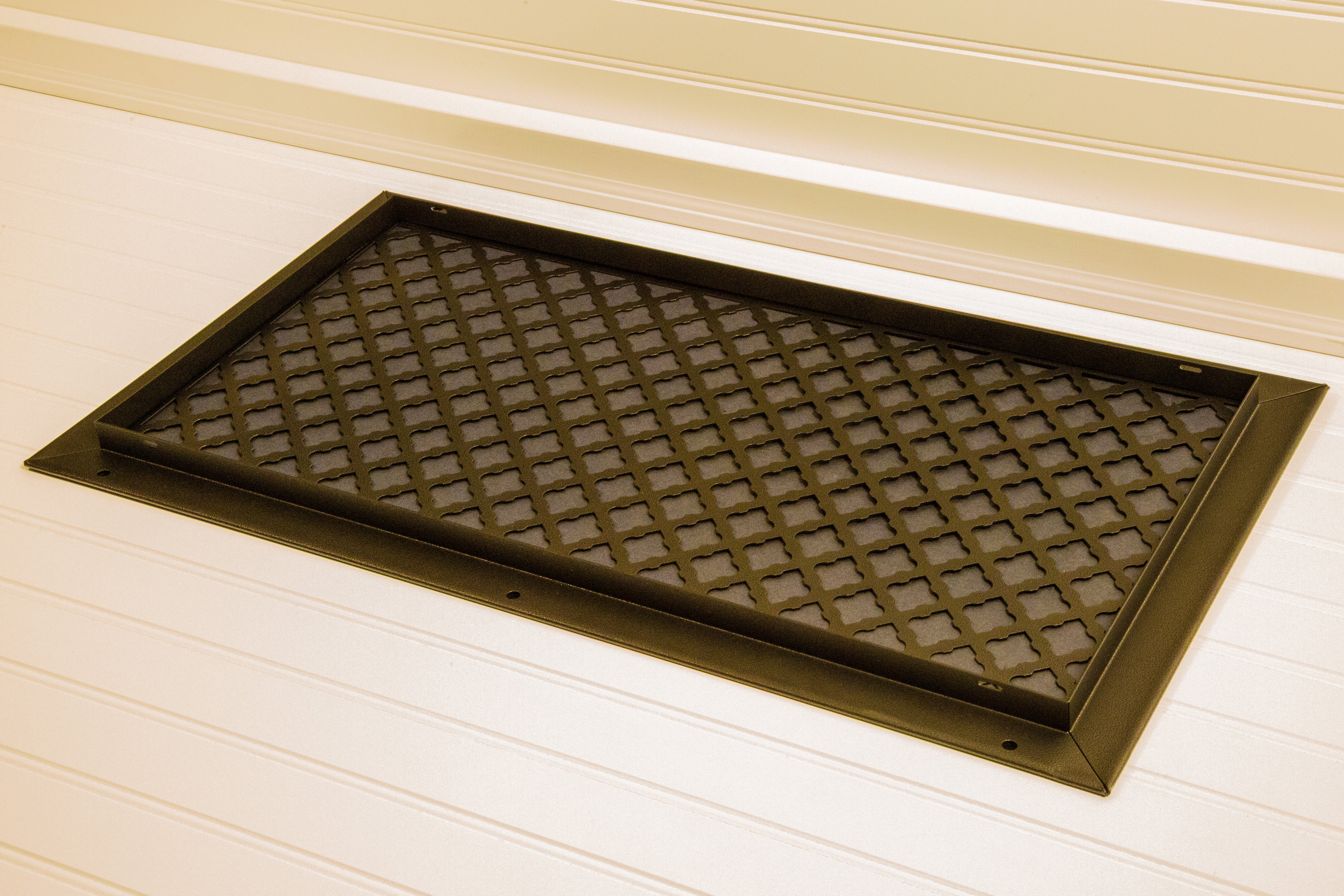

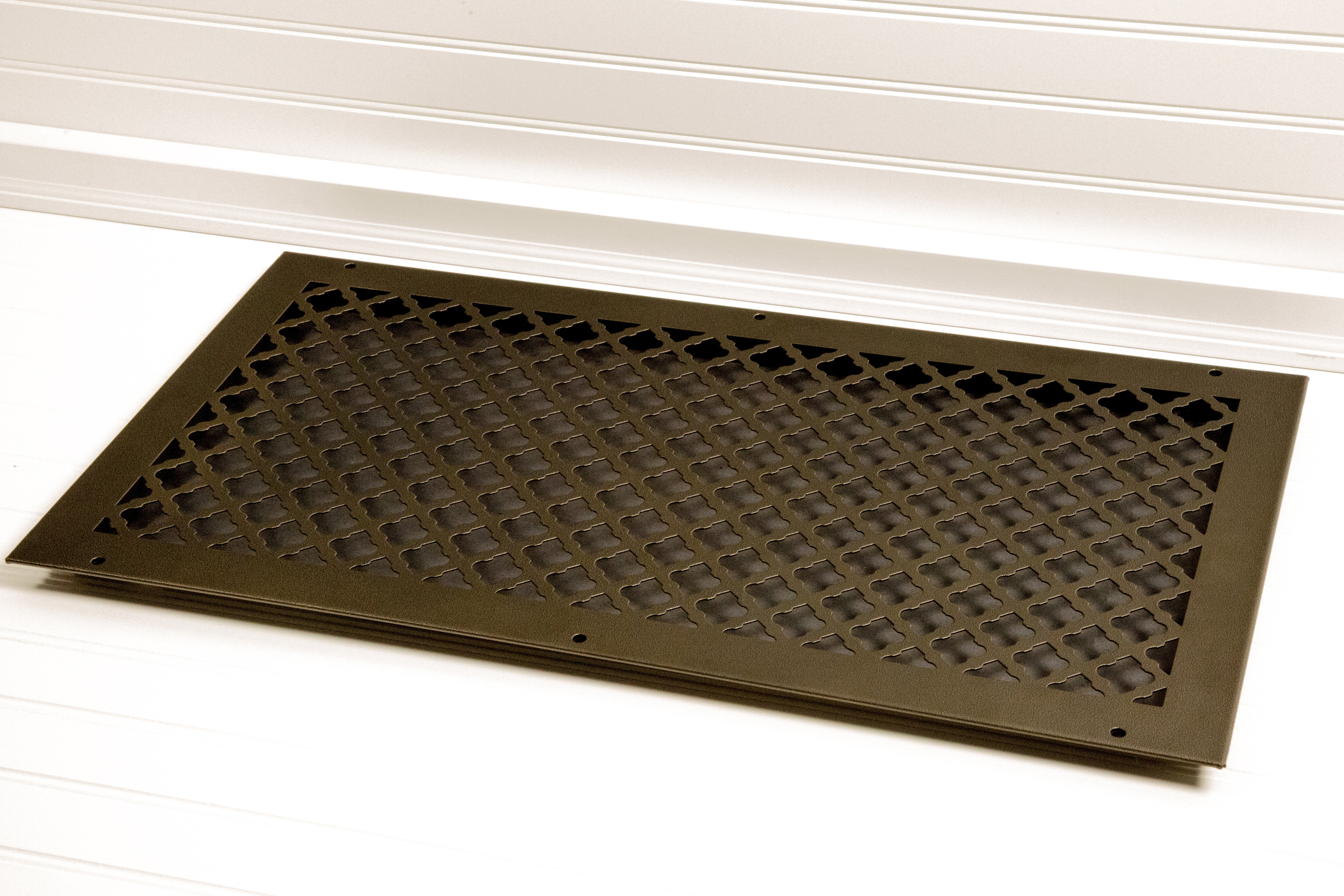

The SteelCrest BTU24X12RORBH is a fixed-blade return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, this slotted decorative grille fits a 24 x 12 inch duct opening and installs with an overall face size of 26 x 14 inches. The fixed-blade design supports consistent return airflow without adjustable parts, reducing long-term maintenance concerns. Licensed HVAC technicians and skilled remodelers install this grille as a direct replacement or new-construction component where a refined finish is specified alongside functional return-air performance.

This grille is suited for residential new construction, remodel projects, and light commercial applications where a 24 x 12 inch return air duct is present. The 26 x 14 inch overall finished size overlaps the duct rough opening cleanly, eliminating the need for additional trim work. Wall and ceiling mounting configurations are both supported, making this grille versatile across common return-air layouts found in forced-air systems served by gas furnaces, heat pumps, and air handlers.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fixed slotted blade design promotes consistent return airflow
• Fits 24 x 12 inch duct opening with a 26 x 14 inch overall face size for clean overlap
• Suitable for both wall and ceiling mounting
• Direct-replacement sizing simplifies installation in remodel and new construction applications

Compatibility

Designed as a direct-replacement fixed return air grille for residential and light commercial forced-air systems with a 24 x 12 inch return duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified contractor. Shut down the air handling system before removing the existing grille or working near the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate. Verify the duct opening measures 24 x 12 inches before installation to confirm proper fit.

Technical Specifications

• Duct Opening Size: 24 x 12 inches
• Overall Face Size: 26 x 14 inches
• Blade Type: Fixed slotted
• Material: Solid steel
• Finish: Oil-rubbed bronze powder coat
• Mounting Location: Wall or ceiling
• Package Weight: 16 pounds
• Package Height: 28 inches
• Package Length: 16 inches
• Package Width: 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU24X12RORBH
