Product Description
The SteelCrest BTU20X6SWHH is a slotted decorative supply vent with a built-in damper, designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it fits a 20 x 6 inch duct opening and carries an overall finished face size of 22 x 8 inches. The integrated damper allows airflow adjustment directly at the register face, giving technicians and occupants control over room-level air distribution without additional hardware. Licensed HVAC technicians and finish carpenters typically install this grille as part of forced-air system commissioning or renovation work.
This vent is suited for residential new construction and remodel projects where a clean, timeless slot-pattern aesthetic is specified. It mounts to standard rectangular duct boots at wall or ceiling planes in forced-air heating and cooling systems. The direct-replacement sizing means the 22 x 8 inch face plate covers the rough opening cleanly with no additional trim work required. It is appropriate for supply-air applications in single-family homes, condominiums, and light commercial spaces where a white finished grille is specified.
Key Features
- Solid steel construction with white powder-coat finish for long-term durability in occupied spaces
- Integrated damper allows airflow adjustment at the register without separate volume control hardware
- Fits 20 x 6 inch duct opening with a 22 x 8 inch finished face size for clean installation
- Slotted decorative face pattern suits wall and ceiling mounting in residential and light commercial applications
- Direct-replacement sizing reduces install time in both new construction and remodel scenarios
Compatibility
Designed as a direct-replacement supply register for standard 20 x 6 inch rectangular duct boot openings in residential and light commercial forced-air HVAC systems installed in walls or ceilings.
Installation Notes

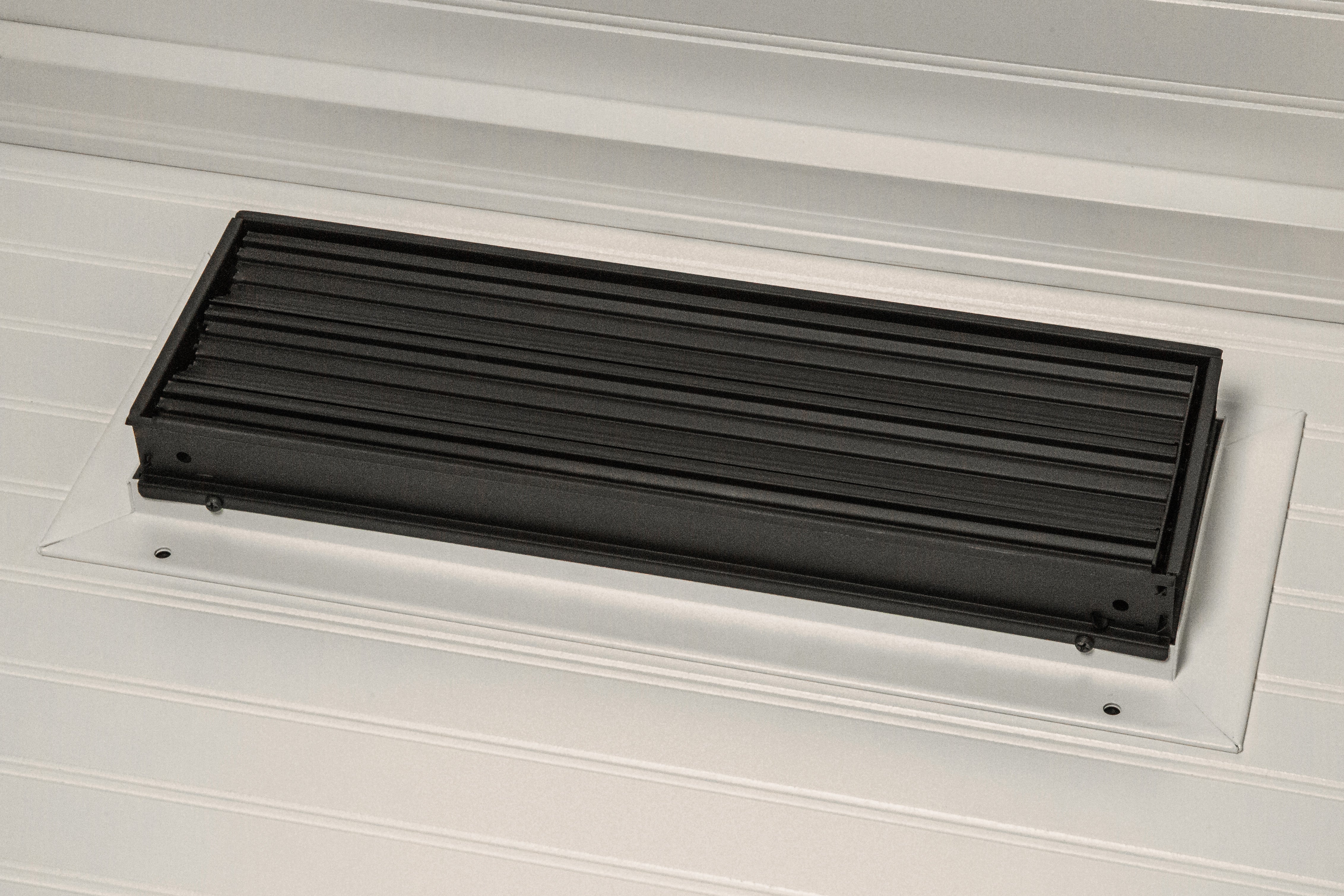

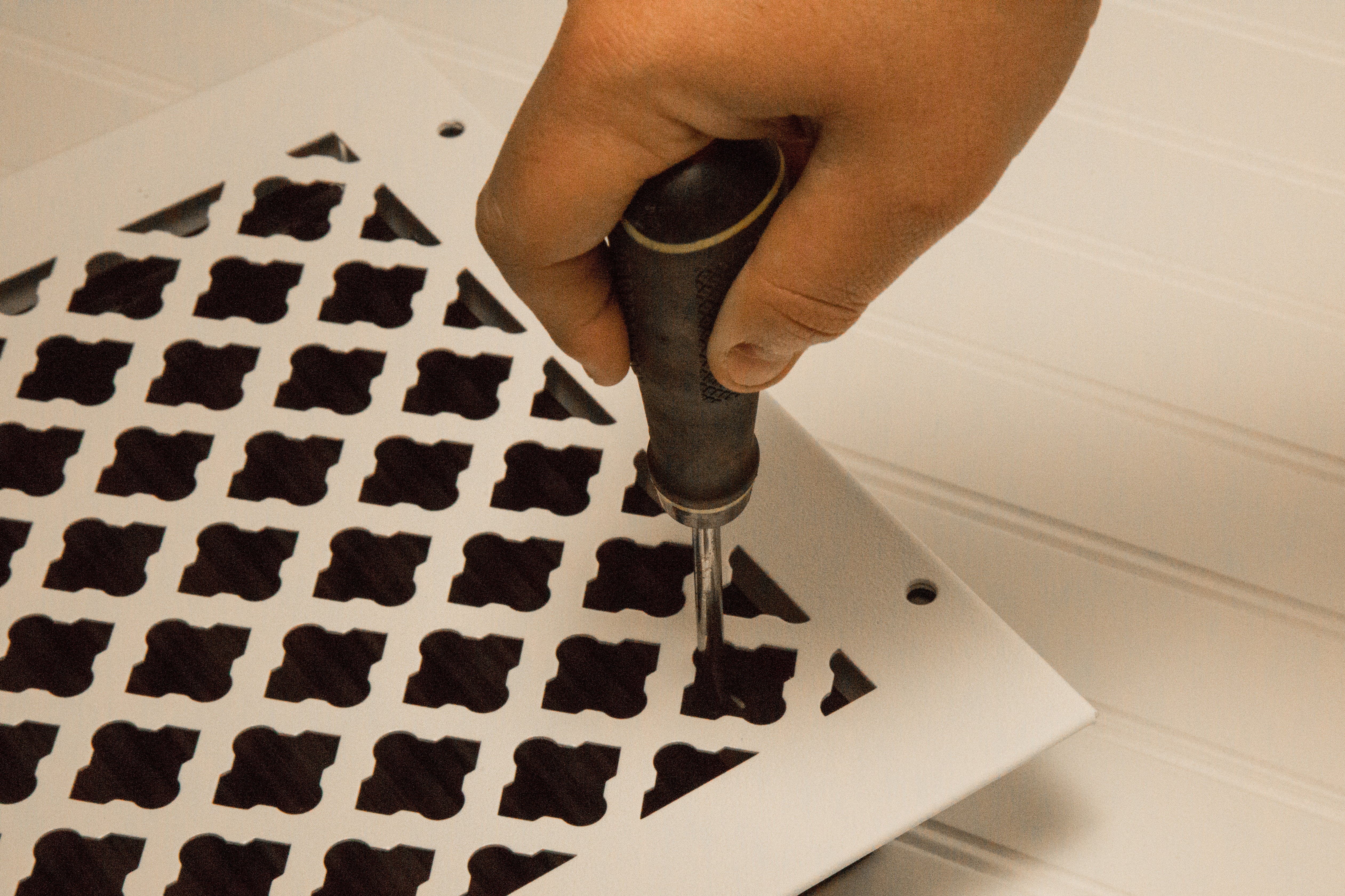

Installation is typically performed by a licensed HVAC technician or finish installer. Power down the air handler or furnace at the disconnect before working inside the duct boot. Secure the grille to the finished surface using the manufacturer-provided or field-supplied fasteners at the face frame — do not rely solely on friction fit in ceiling applications. Verify the damper blade moves freely and seats fully closed before commissioning the system.
Technical Specifications
-
Duct Opening Size: 20 x 6 inches
-
Finished Face Size: 22 x 8 inches
-
Material: Solid steel
-
Finish: White powder coat
-
Damper: Included
-
Mounting Location: Wall or ceiling
-
Package Weight: 11 pounds
-
Package Dimensions: 24 x 10 x 4 inches
-
Minimum Order Quantity: 1
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU20X6SWHH
