SteelCrest BTU20X6RORBH Fixed Return Grille 20x6 in

Product Description

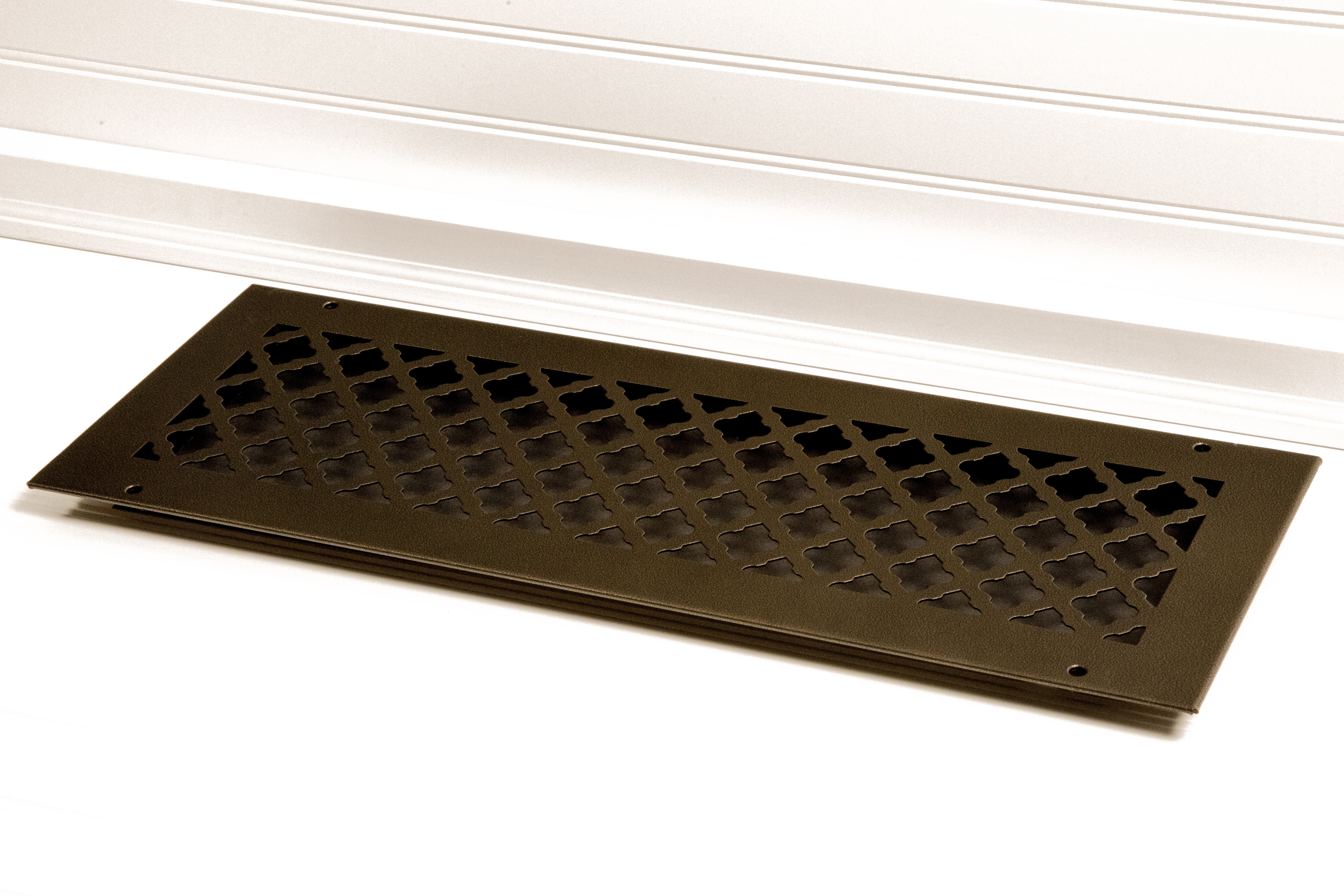

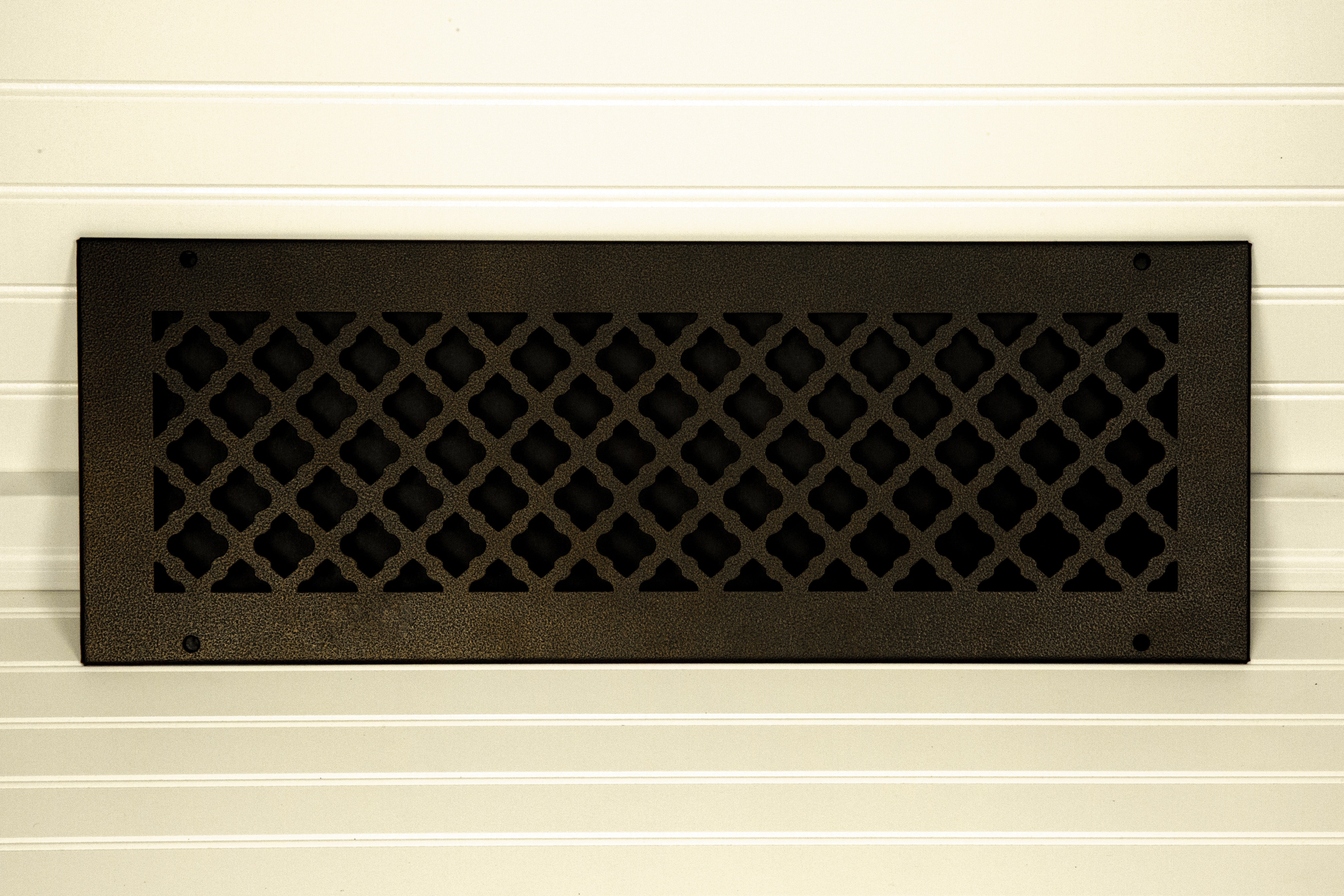

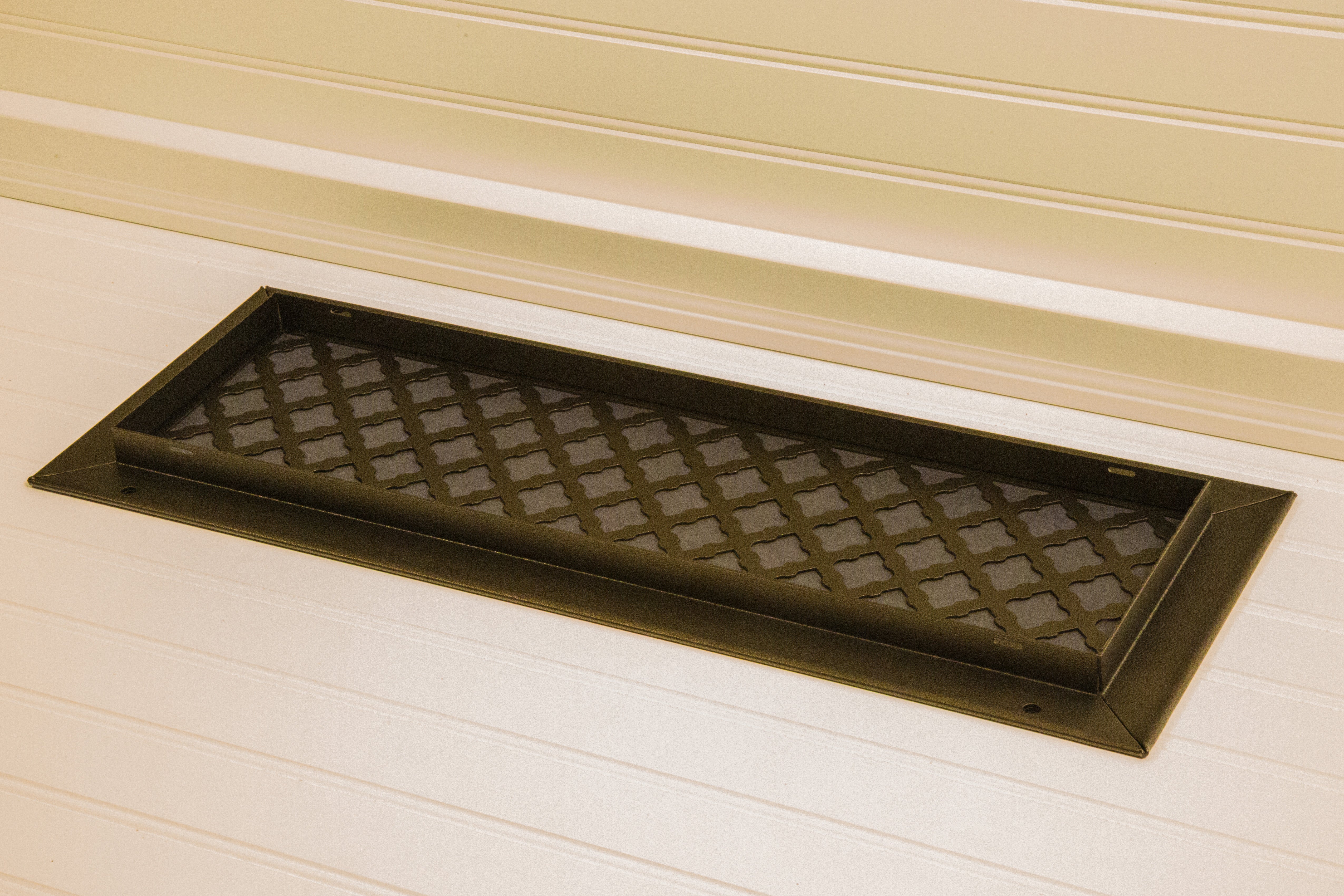

The SteelCrest BTU20X6RORBH is a fixed-blade return air grille constructed from solid steel with an oil-rubbed bronze powder-coat finish. It is designed to cover a 20 x 6 inch duct opening with an overall finished face size of 22 x 8 inches, making it a direct drop-in replacement without additional trimwork. The slotted fixed-blade pattern supports steady return airflow back to the air handler while delivering a consistent, refined look. HVAC technicians and contractors install this grille during new construction builds, remodels, or routine grille replacements on forced-air systems.

This grille is suited for residential and light commercial forced-air HVAC applications. It mounts to walls or ceilings where a 20 x 6 inch return duct opening is present. The finished face size of 22 x 8 inches provides a clean border around the duct opening, covering rough framing edges. Its fixed-blade design makes it appropriate for return-air applications where airflow direction control is not required.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fits 20 x 6 inch duct opening with a 22 x 8 inch overall finished face size
• Fixed slotted blade pattern optimized for return air applications
• Suitable for wall or ceiling mounting in new construction or remodel installs
• Direct-replacement design for fast, straightforward installation

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial forced-air systems with a 20 x 6 inch return duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified contractor. Power down the air handler or furnace at the disconnect or breaker before removing the existing grille or working near the duct opening. The grille fastens to the wall or ceiling surface around the duct collar — confirm the rough opening and surrounding surface are clean and structurally sound before mounting. Do not use the grille on supply-air applications where blade-direction control or a damper is required.

Technical Specifications

• Duct Opening Size: 20 x 6 inches
• Overall Finished Face Size: 22 x 8 inches
• Material: Solid steel with oil-rubbed bronze powder-coat finish
• Blade Type: Fixed slotted
• Mounting Location: Wall or ceiling
• Package Weight: 8 pounds
• Package Dimensions: 24 x 11 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU20X6RORBH
