Product Description

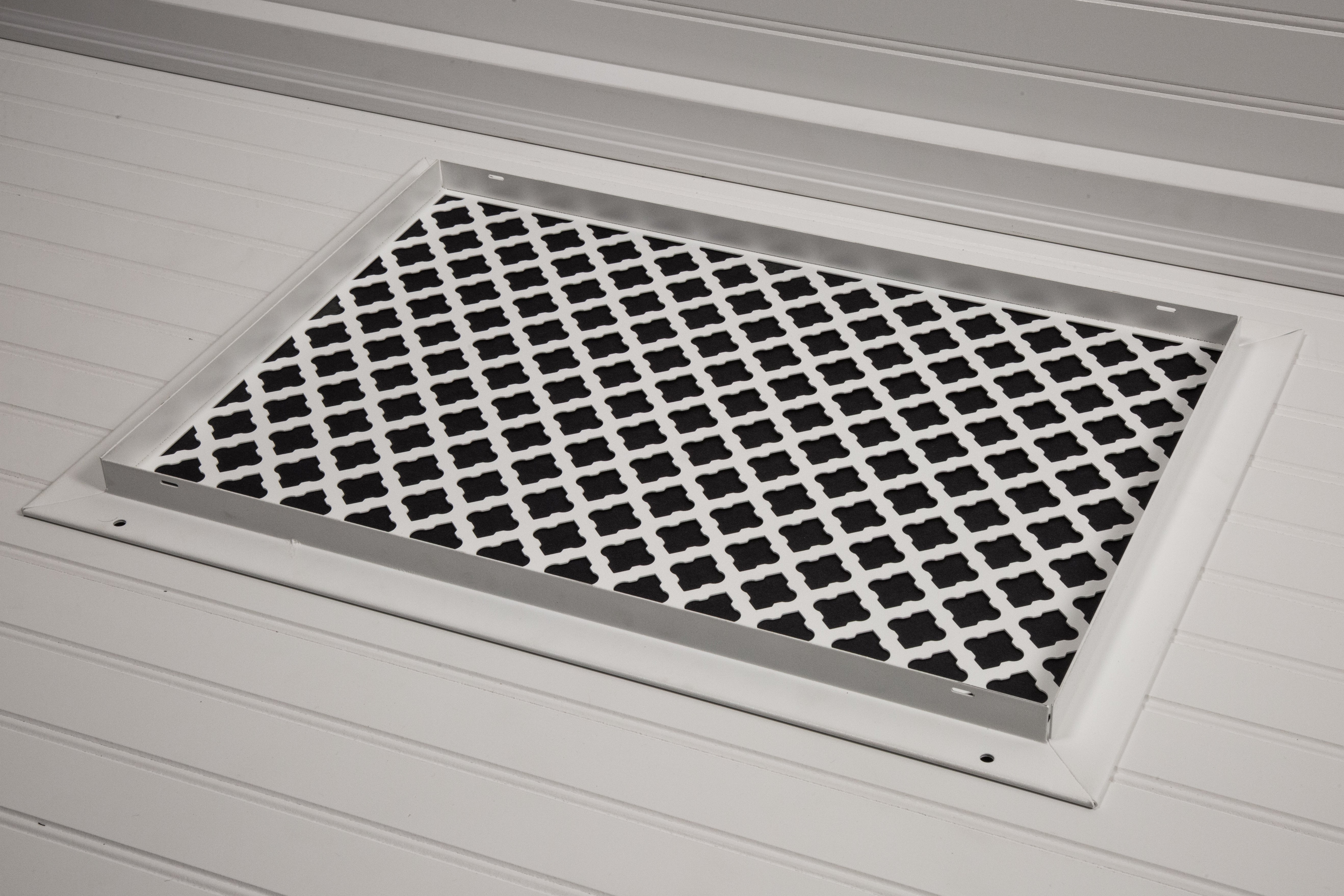

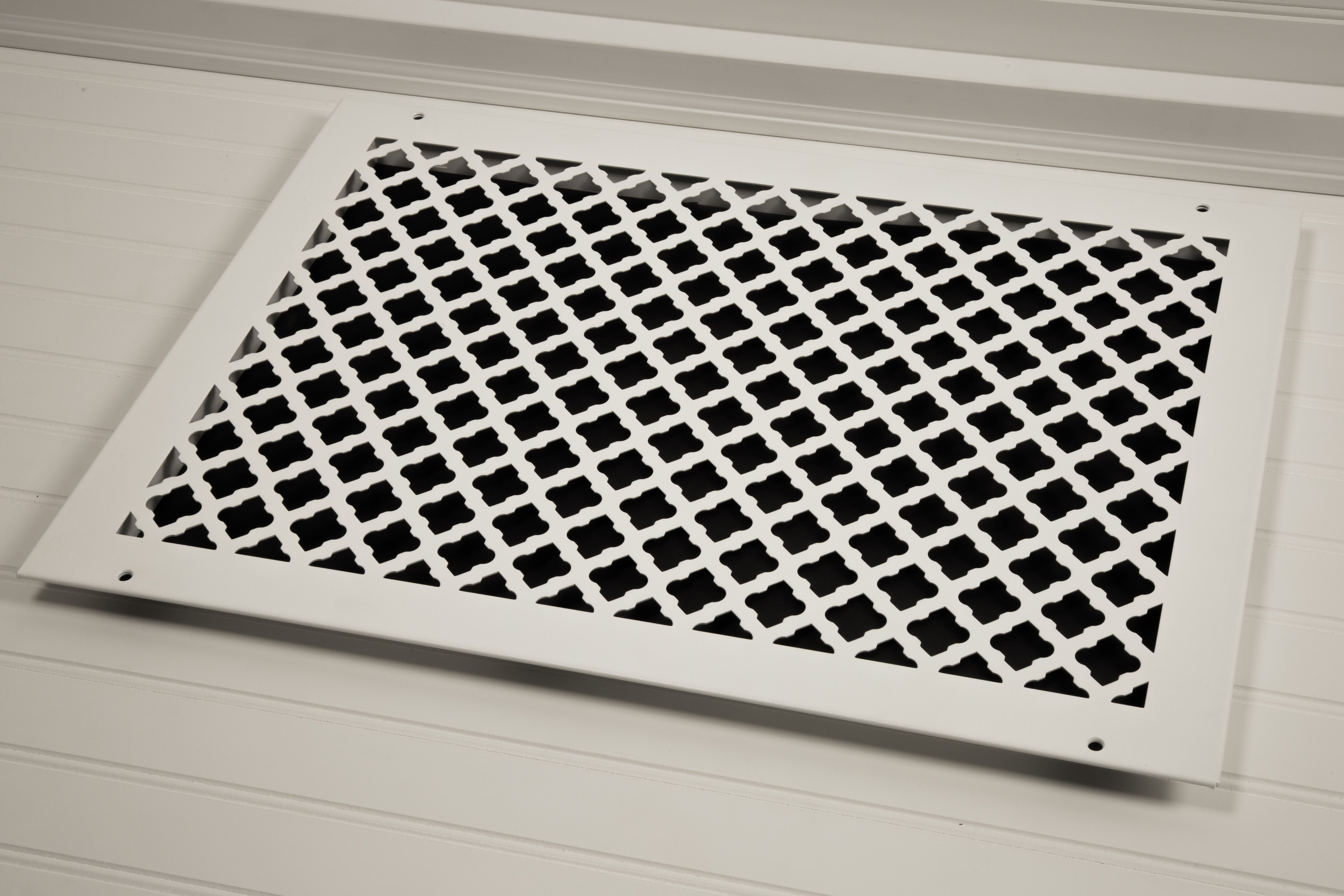

The SteelCrest BTU20X14RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, this slotted decorative grille is built to handle the demands of continuous return airflow while maintaining a clean, finished appearance. It fits a 20x14 inch duct opening and installs with an overall face size of 22x16 inches. Licensed HVAC technicians and skilled tradespeople install this grille as a direct-replacement component or as part of new construction and remodel projects.
This grille is suited for return air applications in ducted forced-air systems where a fixed, non-adjustable face is acceptable. The 20x14 inch rough opening size makes it a common fit for trunk-line return drops and wall-cavity return plenums in residential construction. The finished face dimensions of 22x16 inches overlap the duct opening to provide a clean border against drywall or ceiling substrate with no visible gaps.
Key Features
- Solid steel construction with white powder-coat finish for long-term durability
- Fixed slotted face design supports unobstructed return airflow

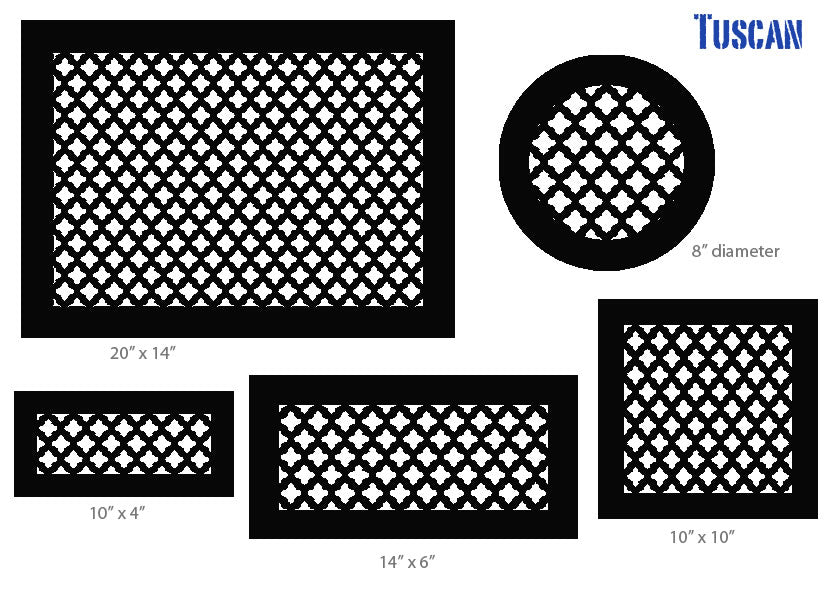

- Fits 20x14 inch duct opening with 22x16 inch overall finished face size
- Overlap border conceals rough opening edges for a clean installation
- Suitable for wall or ceiling mounting
- Direct-replacement design for fast installation in new construction or remodel applications
Compatibility
Designed as an OEM-style direct replacement for fixed return grilles serving 20x14 inch duct openings in residential and light commercial ducted HVAC systems.
Installation Notes
Installation is typically performed by a licensed HVAC technician or qualified contractor. Shut down the air handling system before removing an existing grille or accessing the return duct opening. Secure the grille to the wall or ceiling substrate using appropriate fasteners for the surface material. Verify duct opening dimensions before installation to confirm proper fit.
Technical Specifications
-
Duct Opening Size: 20x14 inches
-
Overall Face Size: 22x16 inches
-
Face Style: Fixed slotted
-
Material: Solid steel
-
Finish: White powder coat
-
Mount Type: Wall or ceiling
-
Package Weight: 16 pounds
-
Package Dimensions: 18 x 24 x 3 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU20X14RWHH
