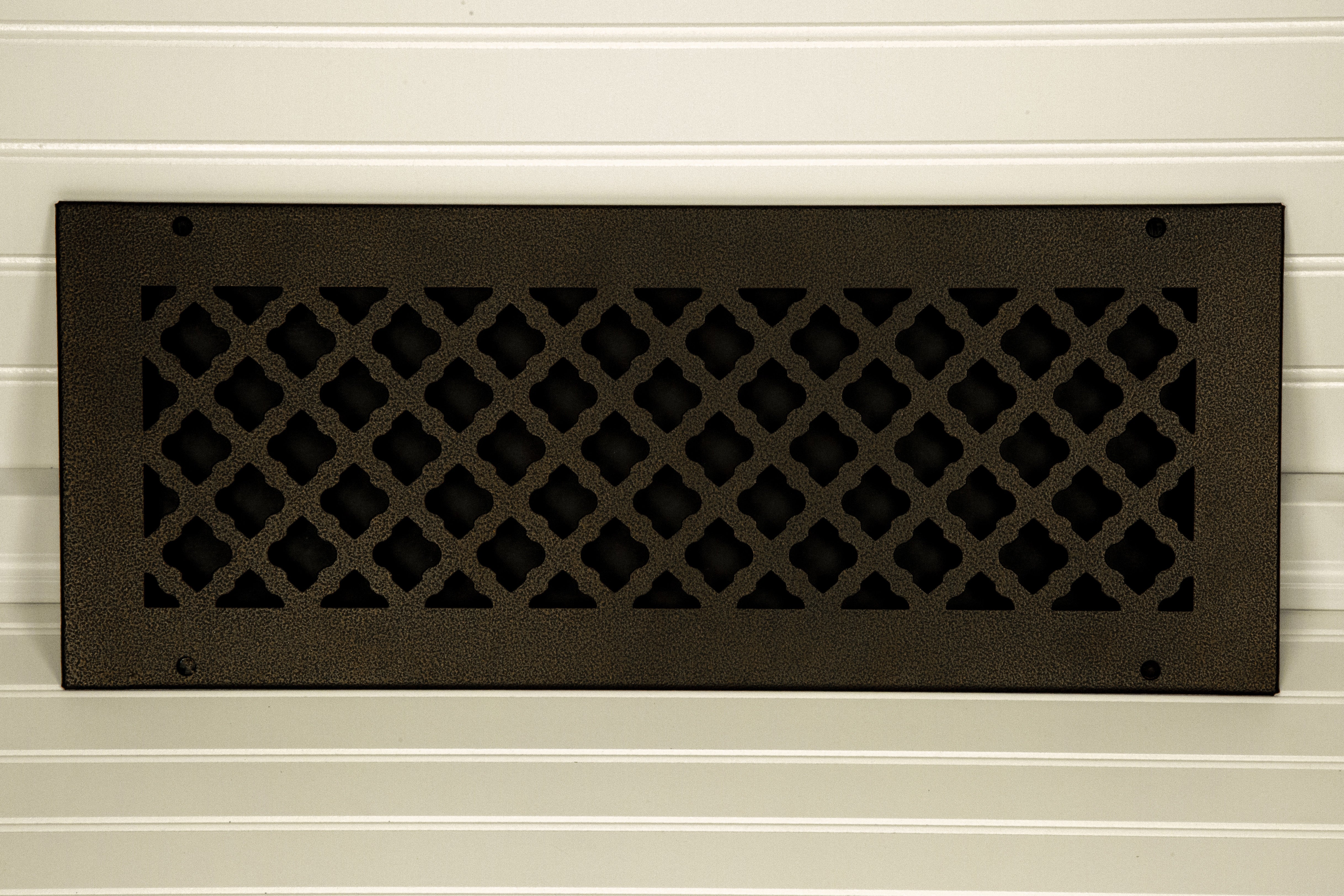

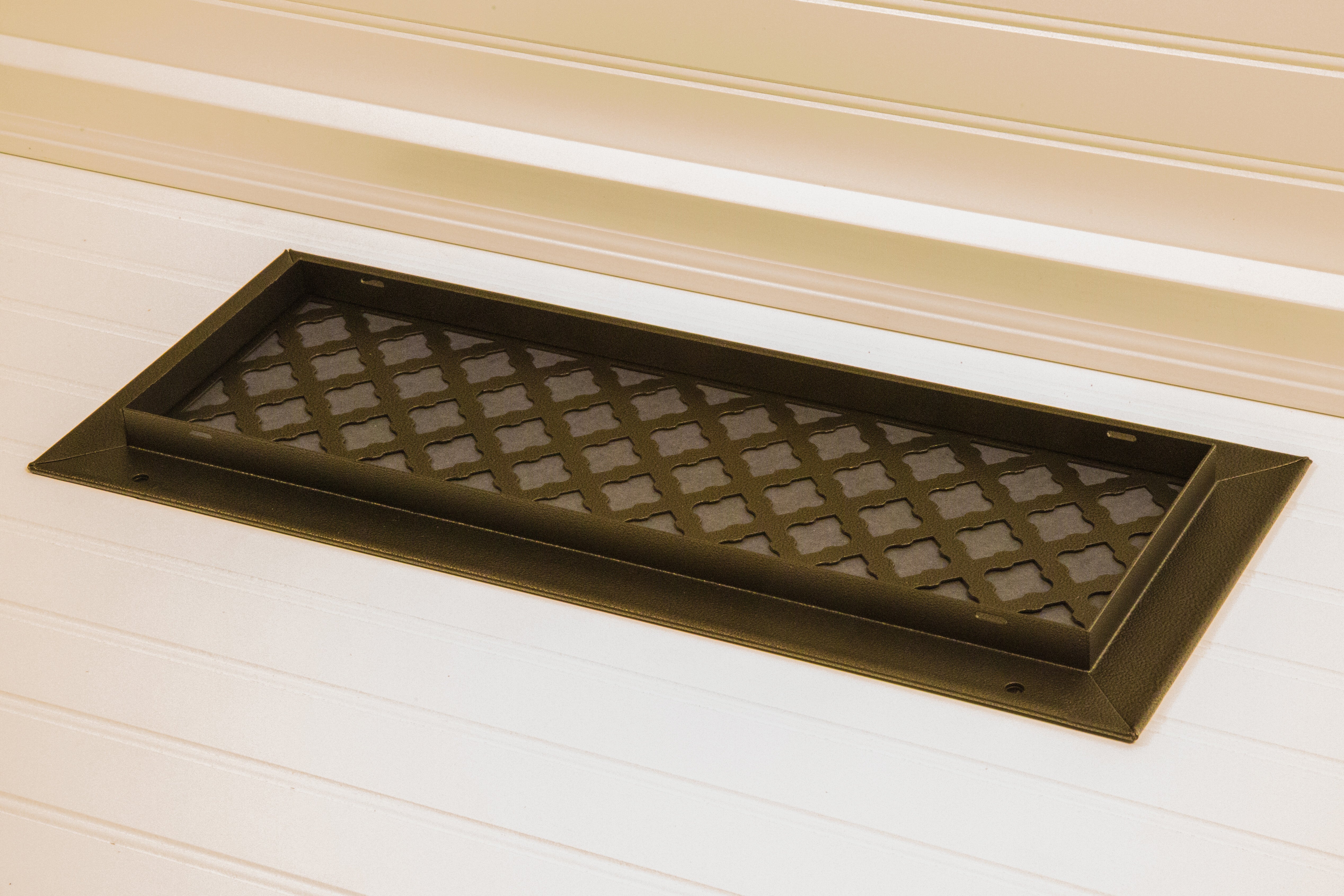

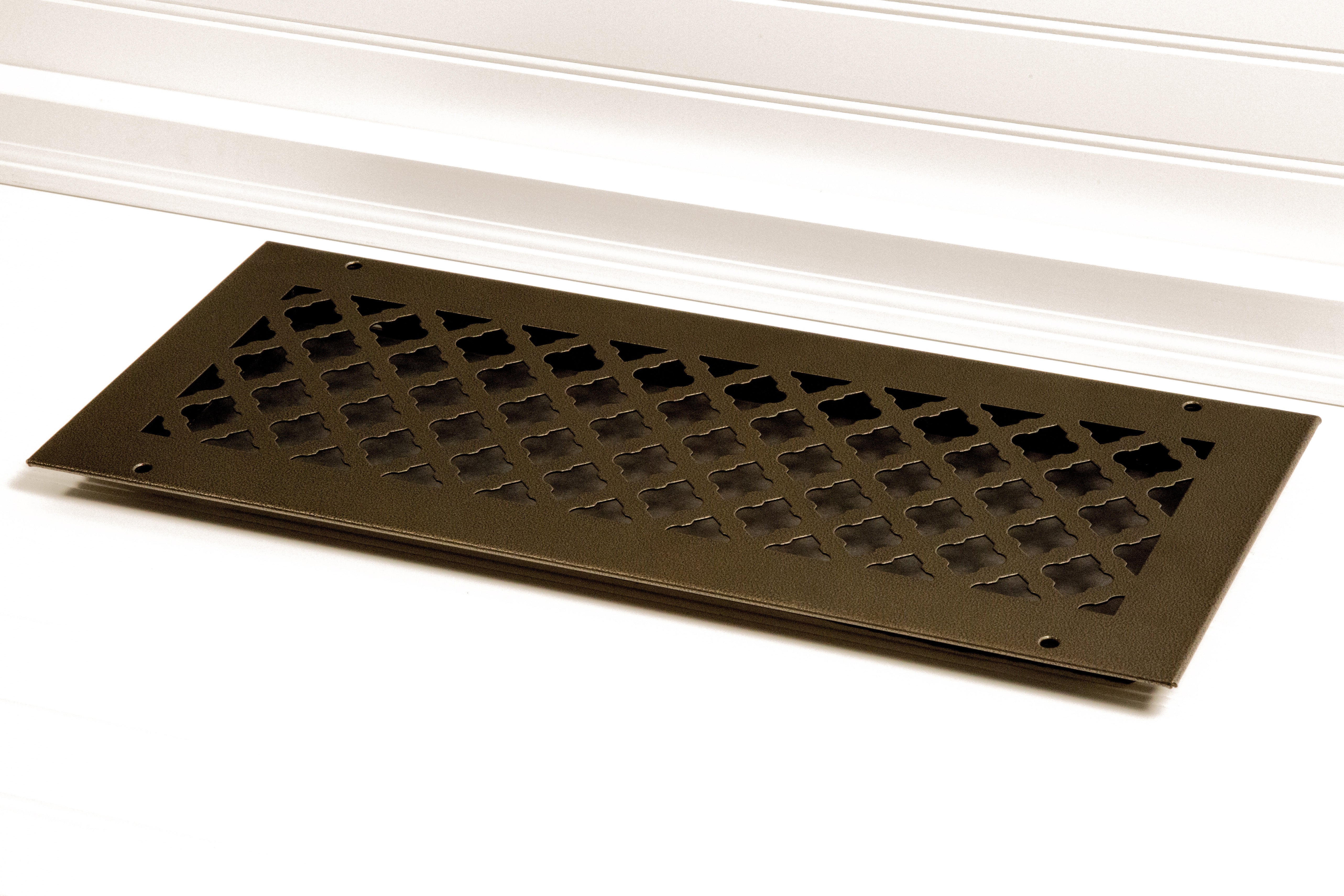

SteelCrest BTU18X6RORBH Fixed Return Air Grille 18x6 Oil-rubbed Bronze

Product Description

The SteelCrest BTU18X6RORBH is a fixed-blade return air grille constructed from solid steel with an oil-rubbed bronze powder-coat finish. It fits a standard 18 x 6 inch duct opening and installs flush against walls or ceilings with an overall finished face size of 20 x 8 inches. The slotted face design supports consistent return airflow back to the air handler or furnace without restricting duct static pressure. HVAC technicians and installers use this grille as a direct replacement or new-construction finishing piece in residential and light-commercial forced-air systems.

This grille is suited for wall or ceiling return air applications in residential new construction and remodel projects. The oil-rubbed bronze finish coordinates with period and transitional interior hardware. The fixed-blade configuration means no damper adjustment, which is standard for return air service where airflow control happens upstream at the air handler or zoning dampers. The 18 x 6 inch duct-opening size is a common residential return register size used in trunk-and-branch and central-return duct layouts.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fits 18 x 6 inch duct opening with a 20 x 8 inch overall face size for clean finished appearance
• Fixed-blade slotted face design optimized for return air service on walls and ceilings
• Powder-coat finish resists chipping and corrosion better than painted steel alternatives
• Direct-replacement fit speeds installation in both new construction and remodel scenarios

Compatibility

Designed as a direct-replacement or new-installation return air grille for standard 18 x 6 inch duct openings in residential forced-air HVAC systems on walls or ceilings.

Installation Notes

Return air grilles of this type are installed by HVAC technicians or qualified contractors as part of forced-air duct finishing. Power down the air handler or furnace at the disconnect or breaker before working inside or near the duct system. The grille mounts to the surrounding wall or ceiling surface, not inside the duct, so confirm the rough opening matches the 18 x 6 inch duct dimension before ordering. No tools beyond a screwdriver are typically required for final mounting.

Technical Specifications

• Duct Opening Size: 18 x 6 inches
• Overall Face Size: 20 x 8 inches
• Material: Solid steel
• Finish: Oil-rubbed bronze powder coat
• Blade Type: Fixed slotted
• Mount Location: Wall or ceiling
• Application: Return air
• Package Weight: 7 pounds
• Package Dimensions: 22 x 11 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU18X6RORBH
