SteelCrest BTU16X6RWHH Fixed Return Grille 16x6 Inch

Product Description

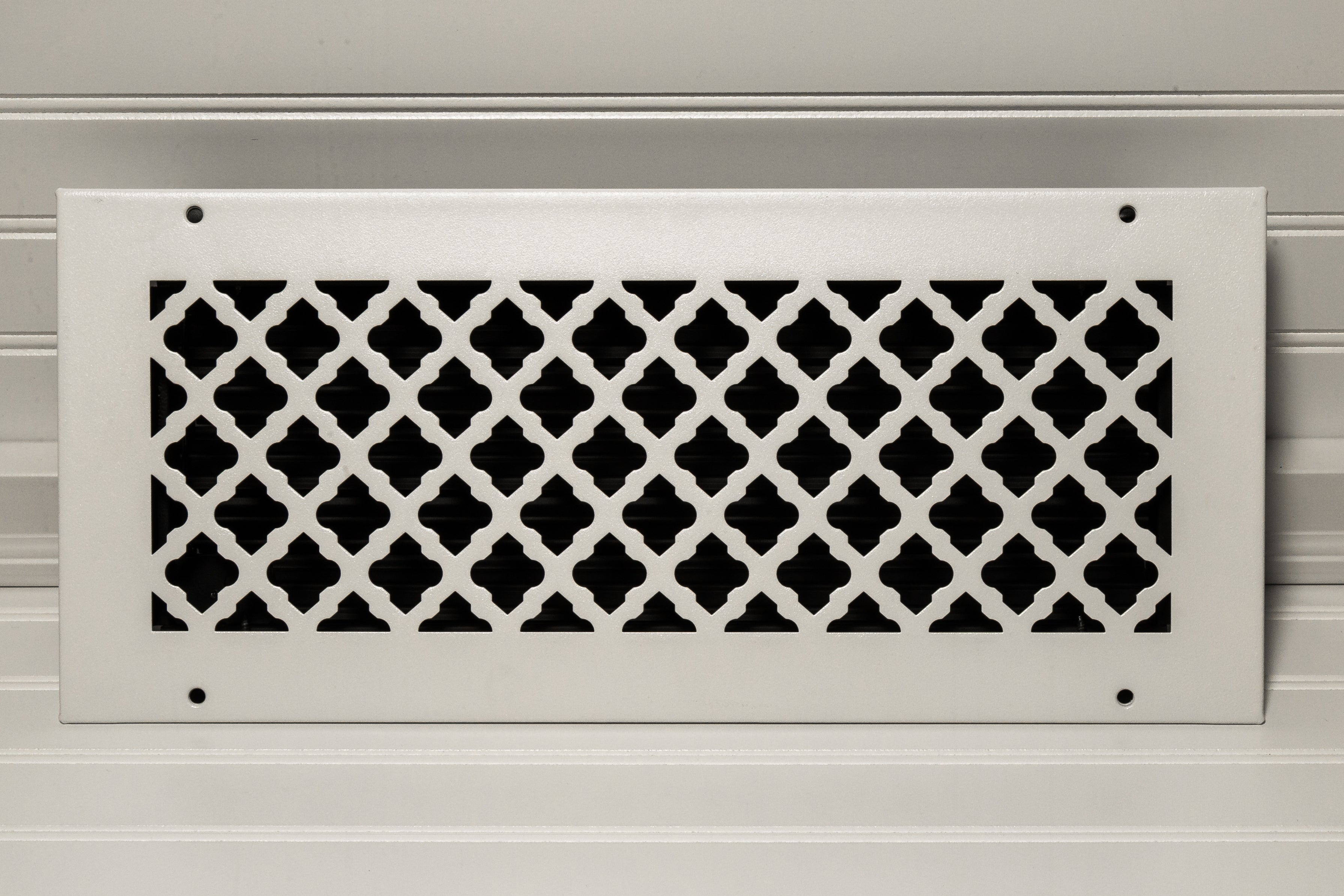

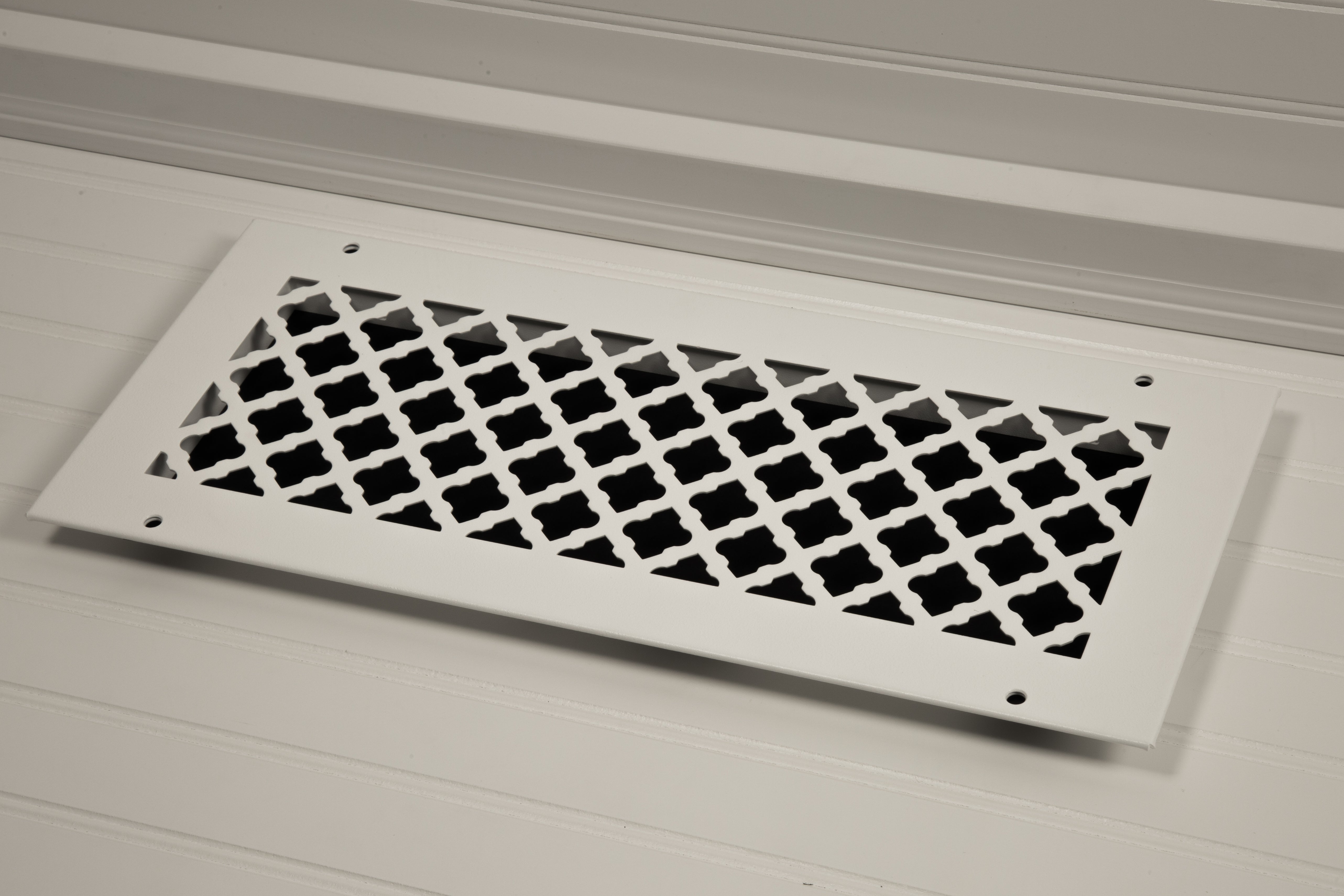

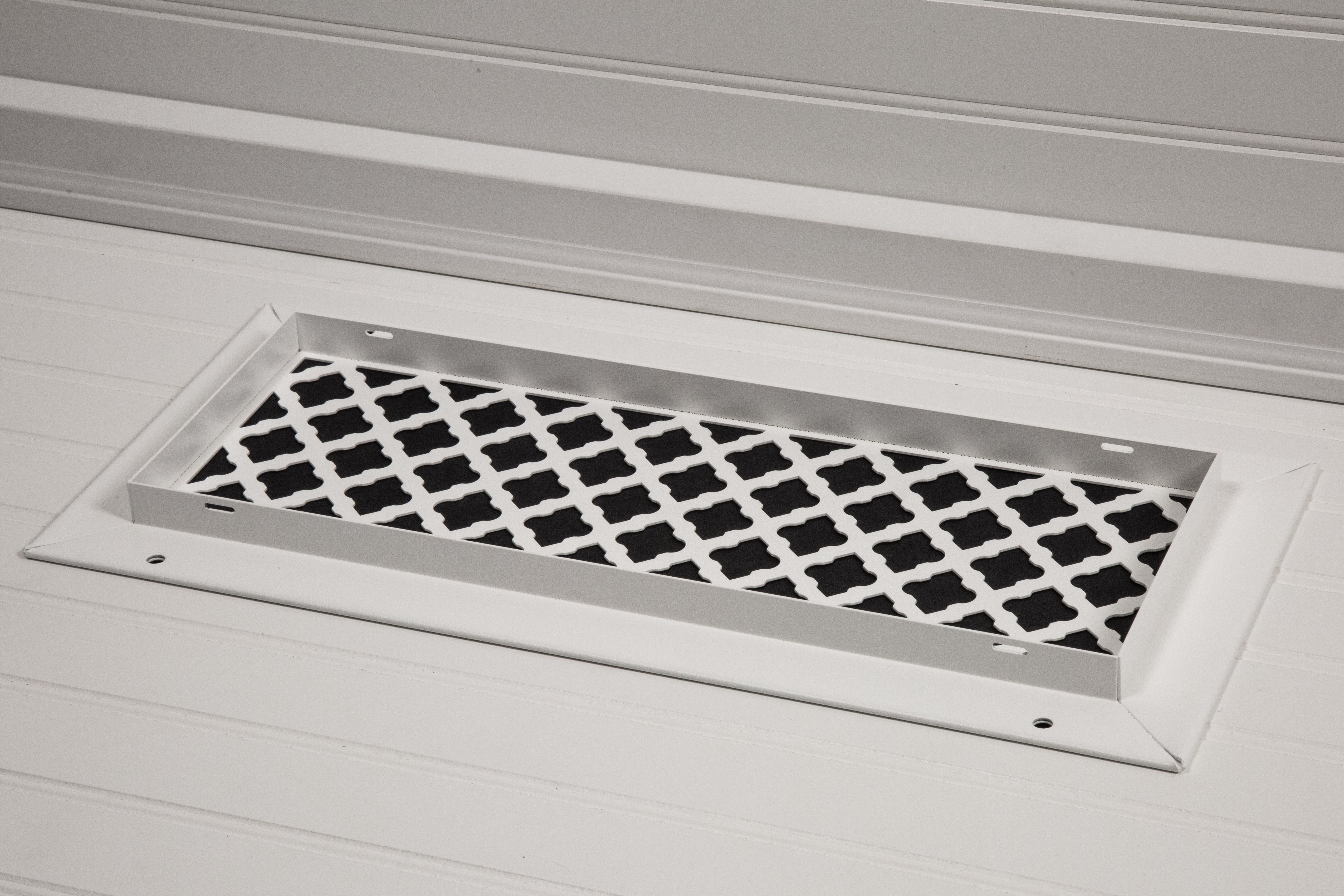

The SteelCrest BTU16X6RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it features a slotted face design that supports consistent return airflow back to the air handler or furnace. The grille fits a 16x6 inch duct opening and installs over a finished frame with an overall face size of 18x8 inches. Licensed HVAC technicians and skilled tradespeople install this grille as a direct replacement or new-construction component where a clean, durable return air termination is required.

This grille is suited for residential new construction, remodel projects, and direct-replacement applications on standard 16x6 inch return air duct openings. The fixed-blade slotted profile makes it appropriate for wall or ceiling mounting where a low-profile, finished appearance is needed. The white powder-coat finish blends with standard interior trim in residential settings. No field painting or additional finishing is required at installation.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed slotted face design supports consistent return airflow distribution
• Fits standard 16x6 inch duct opening with an 18x8 inch overall finished face size
• Suitable for both wall and ceiling mounting configurations
• Direct-replacement fit speeds up new construction and remodel installs

Compatibility

Designed as a direct-replacement return air grille for standard residential and light commercial HVAC duct systems with a 16x6 inch return air opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified contractor. Power down the air handling system before removing an existing grille or accessing the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Verify the duct opening dimensions measure 16x6 inches before installation to confirm proper fit.

Technical Specifications

• Duct Opening Size: 16x6 inches
• Overall Face Size: 18x8 inches
• Material: Solid Steel
• Finish: White Powder Coat
• Blade Style: Fixed Slotted
• Mounting Location: Wall or Ceiling
• Package Weight: 6 pounds
• Package Dimensions: 20 x 11 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU16X6RWHH
