SteelCrest BTU14X8RORBH Fixed Return Grille 14x8 Oil-rubbed Bronze

Product Description

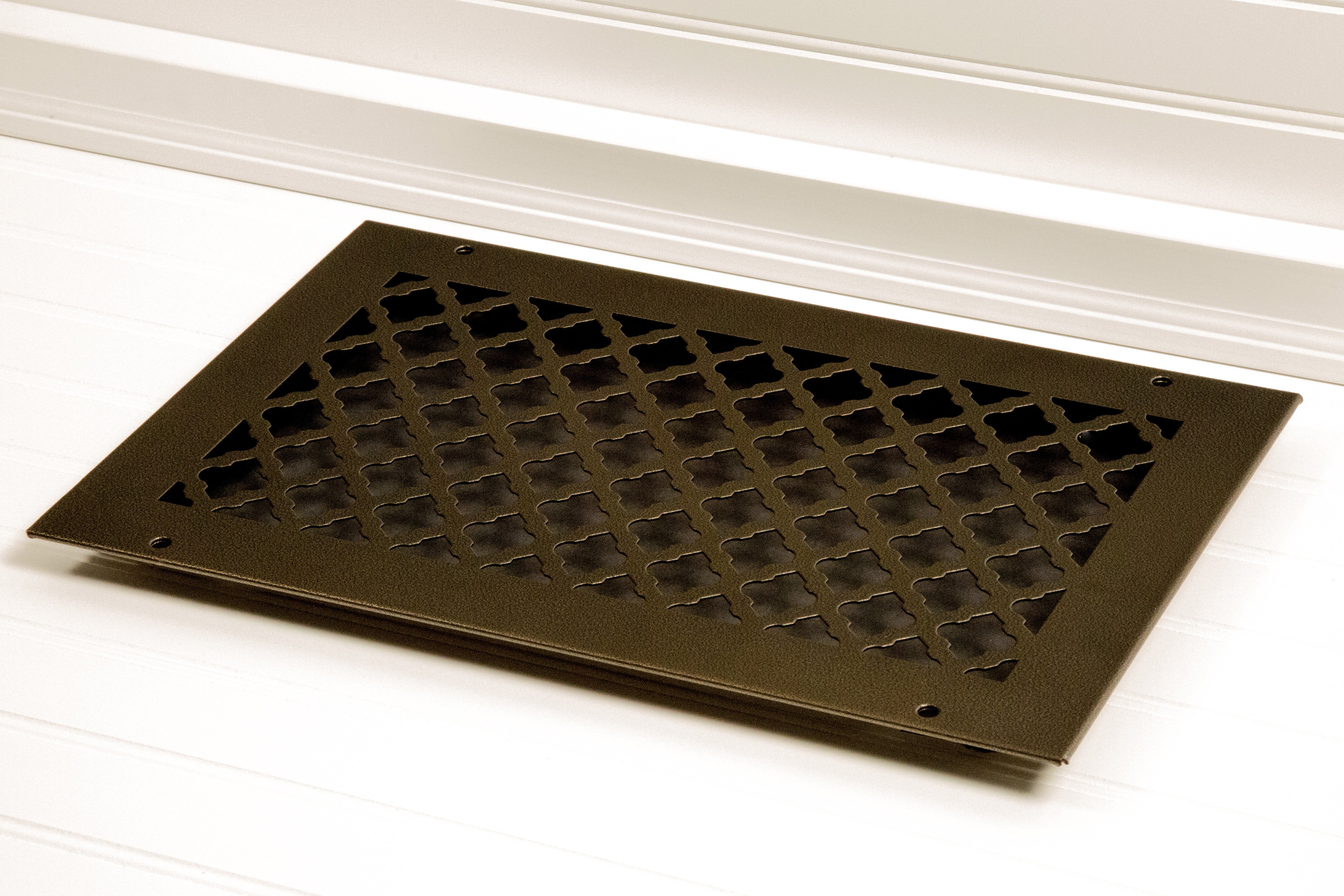

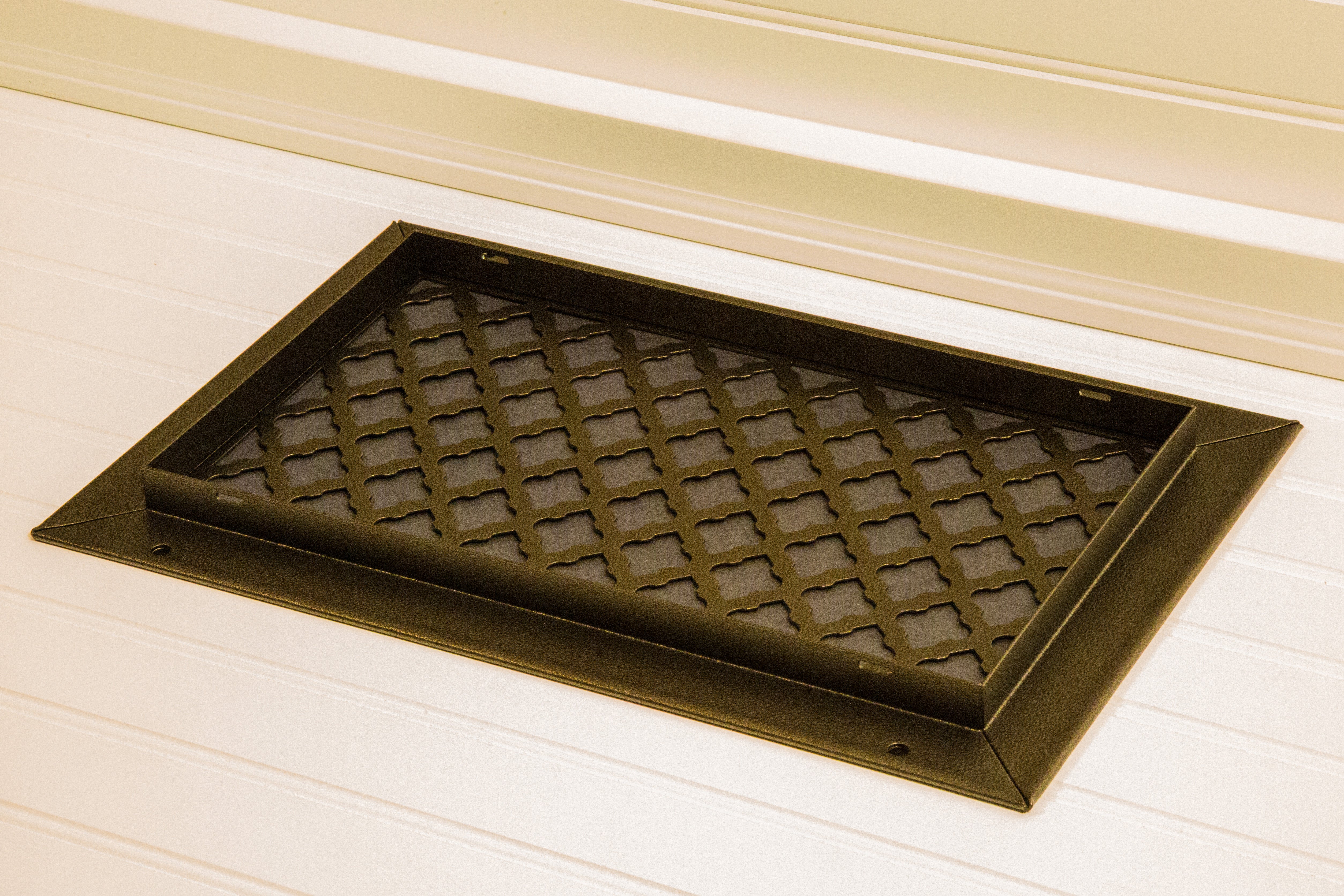

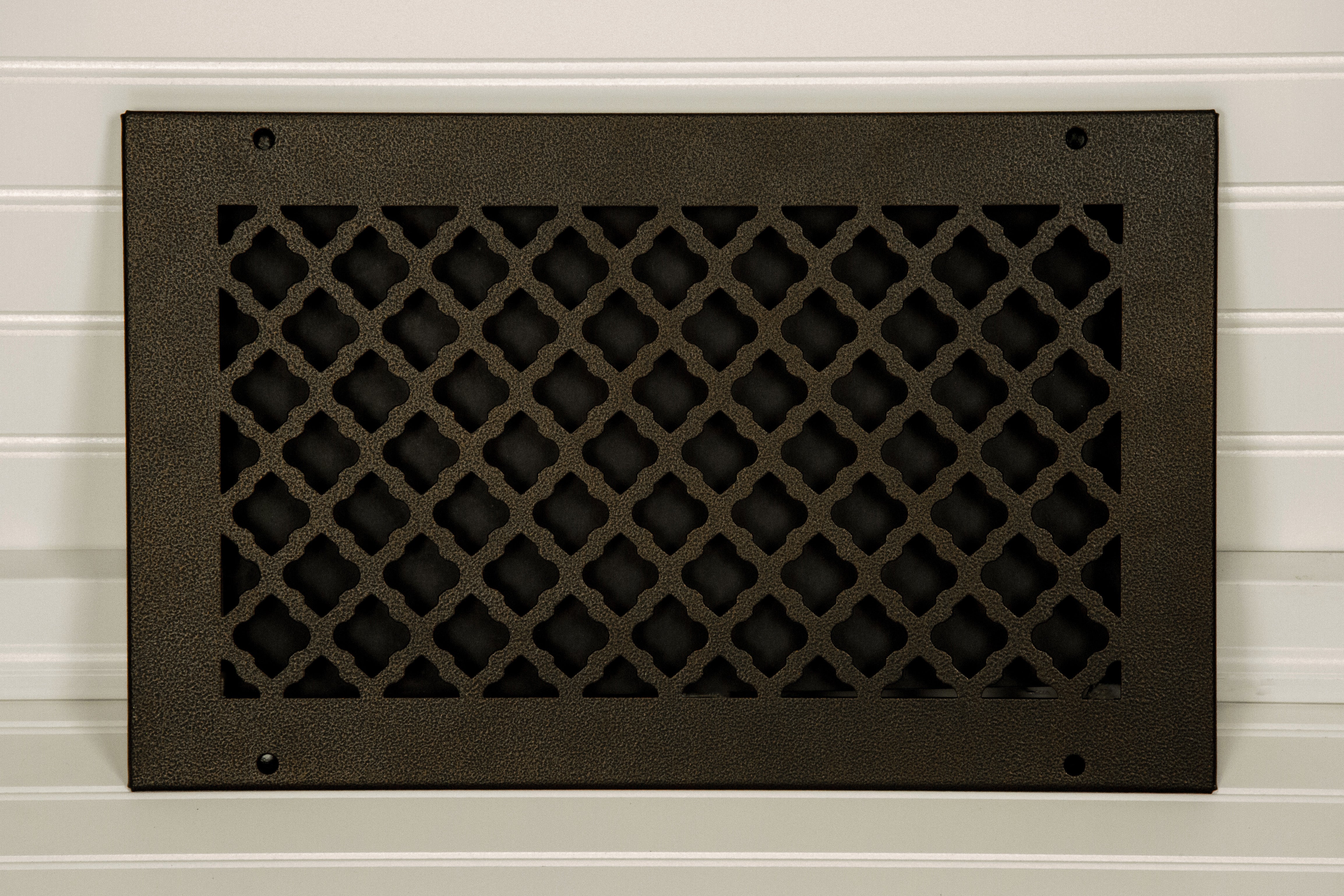

The SteelCrest BTU14X8RORBH is a fixed return air grille constructed from solid steel with an Oil-Rubbed Bronze powder-coat finish. It fits a 14-inch by 8-inch duct opening and installs on walls or ceilings with an overall finished face size of 16 inches by 10 inches. The slotted fixed-blade design supports consistent return airflow back to the air handler or furnace without the complexity of adjustable components. This grille is suited for residential and light commercial HVAC systems and is typically installed by HVAC technicians or skilled tradespeople during new construction, remodel, or system upgrade projects.

This grille is designed for return air applications in forced-air HVAC systems. The 14-inch by 8-inch duct collar fit makes it a direct replacement for standard residential return openings in walls or ceilings. The 16-inch by 10-inch face plate overlaps the duct opening for a clean finished appearance without additional trim work. Its fixed-blade configuration is appropriate for return grilles where directional airflow control is not required.

Key Features

• Solid steel construction with Oil-Rubbed Bronze powder-coat finish for long-term durability
• Fixed slotted blade design promotes consistent return airflow
• Fits 14-inch by 8-inch duct openings with a 16-inch by 10-inch finished face size
• Suitable for wall or ceiling installation in residential and light commercial applications
• Direct-replacement sizing simplifies installation in new construction and remodel projects

Compatibility

Designed as a direct-replacement fixed return grille for standard forced-air HVAC systems with a 14-inch by 8-inch duct opening on walls or ceilings.

Installation Notes

Installation is typically performed by an HVAC technician. Power down the air handler or furnace at the disconnect or breaker before beginning work. Secure the grille to the wall or ceiling surface using appropriate fasteners for the substrate material. Confirm the duct opening is clean and free of obstructions before mounting.

Technical Specifications

• Duct Opening Size: 14 inches x 8 inches
• Overall Face Size: 16 inches x 10 inches
• Material: Solid Steel
• Finish: Oil-Rubbed Bronze Powder Coat
• Blade Type: Fixed Slotted
• Package Weight: 6 pounds
• Package Dimensions: 18 inches x 12 inches x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU14X8RORBH
