Product Description

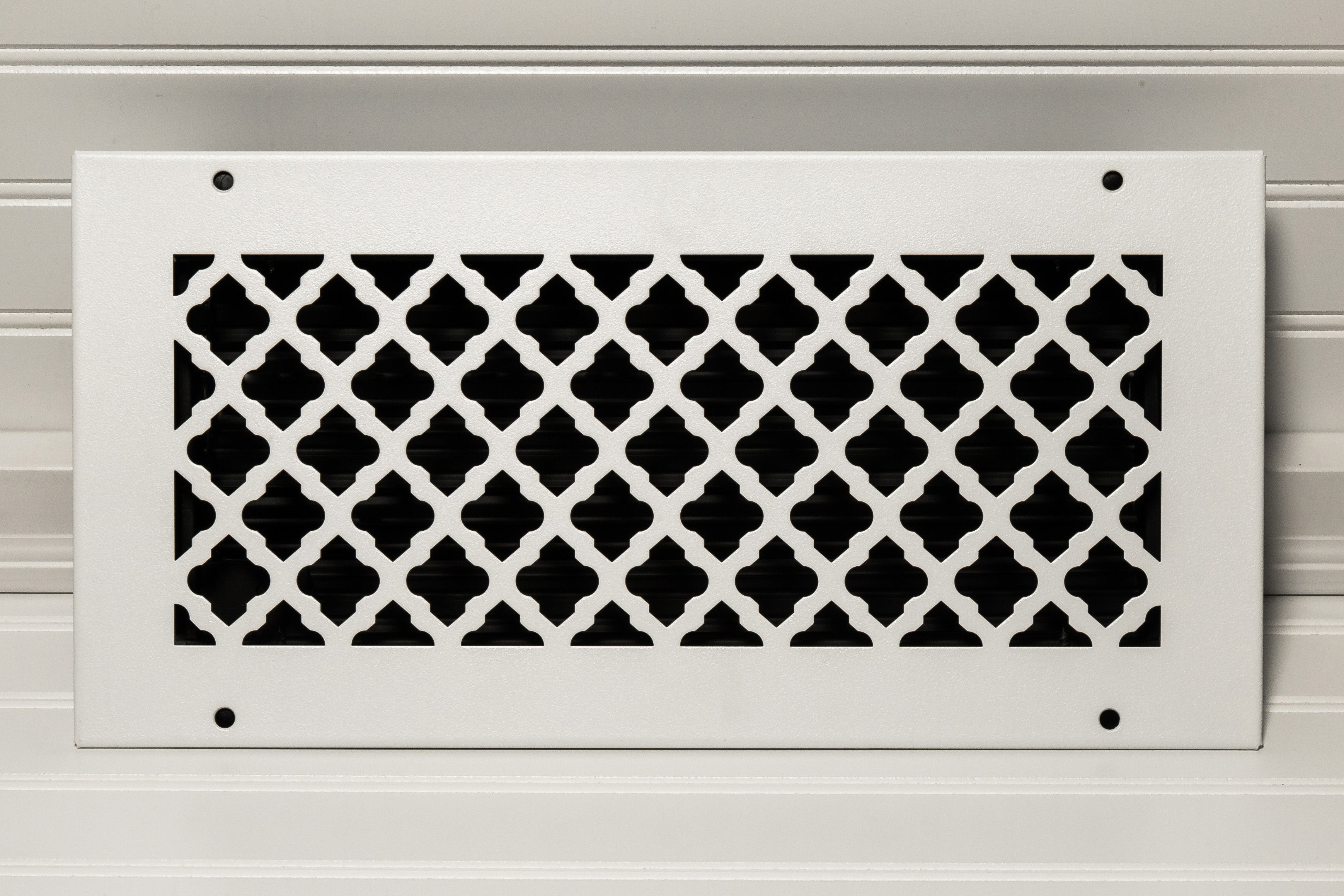

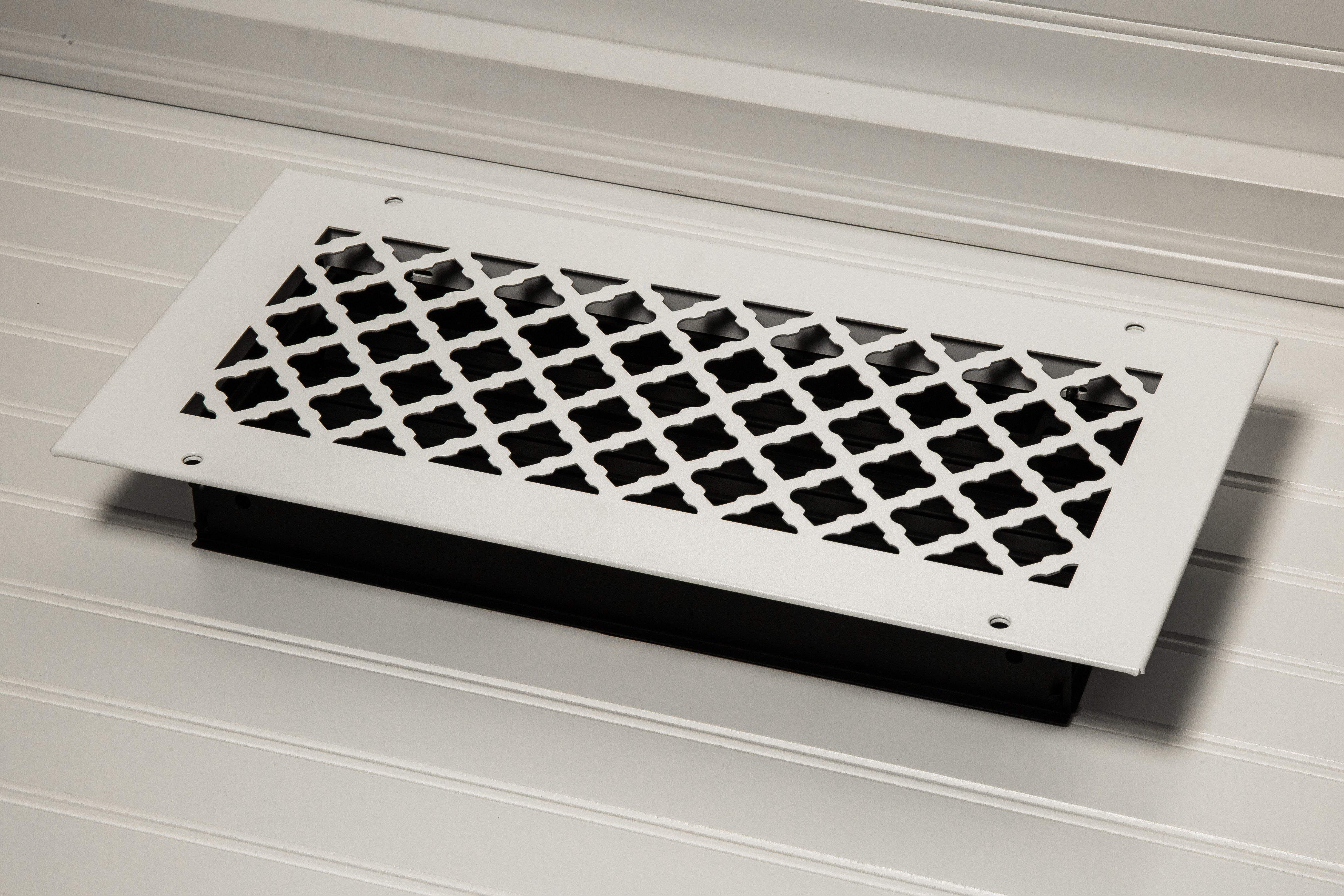

The SteelCrest BTU14X6SWHH is a slotted decorative supply vent with an integrated damper, designed for wall and ceiling installations in forced-air HVAC systems. Built from solid steel with a white powder-coat finish, it fits a 14 x 6 inch duct opening and installs with an overall finished face size of 16 x 8 inches. The damper allows the installer to regulate or shut off airflow to a zone without returning to the air handler. Licensed HVAC technicians and skilled remodeling contractors are the typical installers for this type of register.
This supply vent is suited for residential new construction and remodel projects where a clean, timeless slotted face profile is specified. The direct-replacement sizing fits standard 14 x 6 inch duct collars commonly found in trunk-and-branch duct systems serving living areas, hallways, and bedrooms. The white powder-coat finish coordinates with standard interior trim in residential settings. The 16 x 8 inch face covers the rough duct opening cleanly without additional trim work.
Key Features
- Solid steel construction with white powder-coat finish for long-term durability

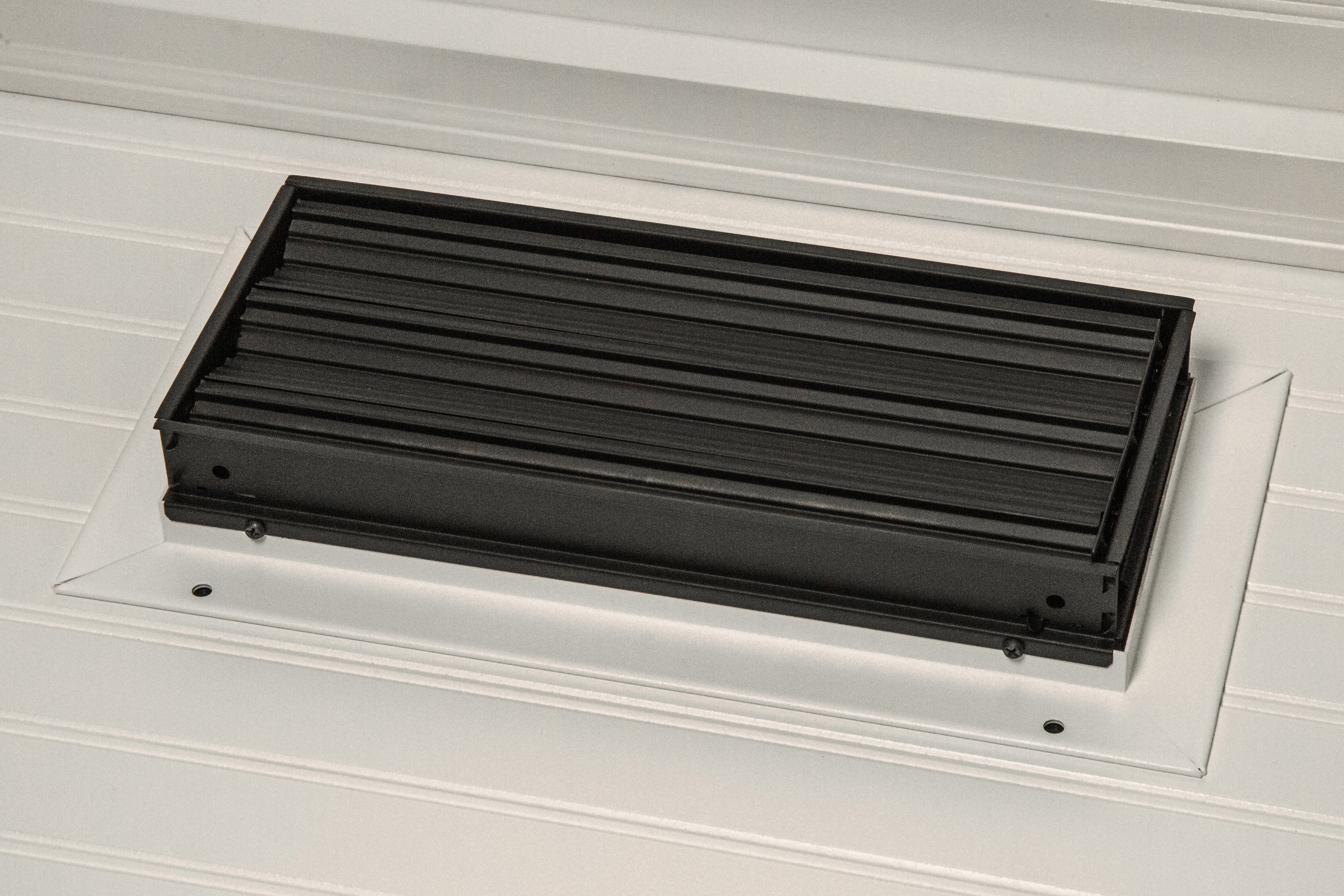

- Integrated damper allows on-location airflow adjustment or shutoff
- Fits standard 14 x 6 inch duct openings with a 16 x 8 inch finished face size
- Slotted decorative face profile suits residential wall and ceiling applications
- Direct-replacement sizing simplifies installation in new construction and remodel projects
Compatibility
Designed as an OEM-style replacement supply vent for residential forced-air systems with a standard 14 x 6 inch duct collar opening.
Installation Notes
Installation is typically performed by a licensed HVAC technician or qualified contractor. Turn off the air handler or furnace at the thermostat and disconnect power at the breaker before removing an existing register. Ensure the duct collar edges are clean and free of obstruction before seating the new vent. Follow local mechanical codes for supply register placement and duct sealing requirements.
Technical Specifications
-
Duct Opening Size: 14 x 6 inches
-
Overall Finished Face Size: 16 x 8 inches
-
Material: Solid steel with white powder-coat finish
-
Mount Location: Wall or ceiling
-
Damper: Included
-
Package Weight: 7 pounds
-
Package Dimensions: 18 x 10 x 4 inches
-
Minimum Order Quantity: 1
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU14X6SWHH
