Product Description

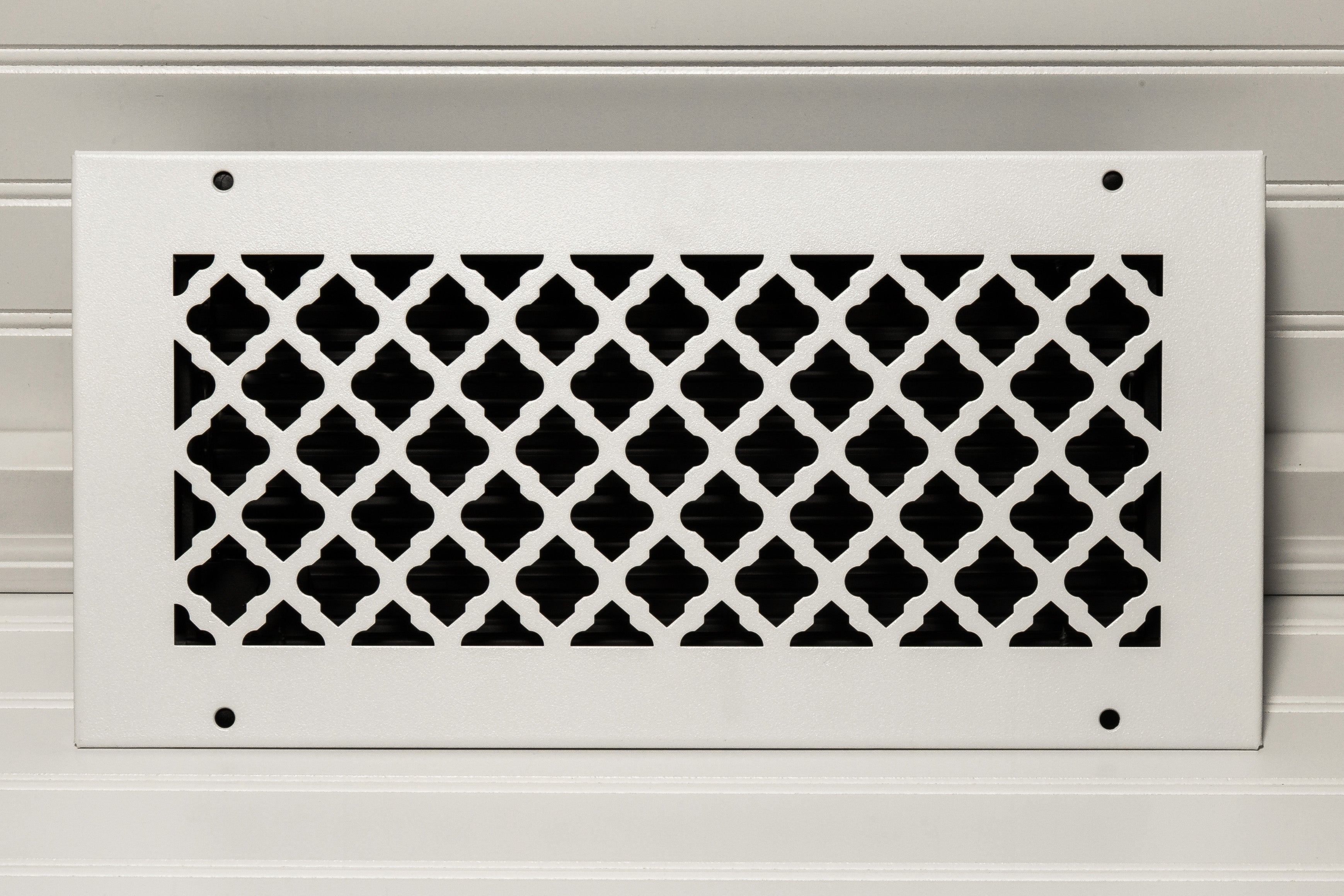

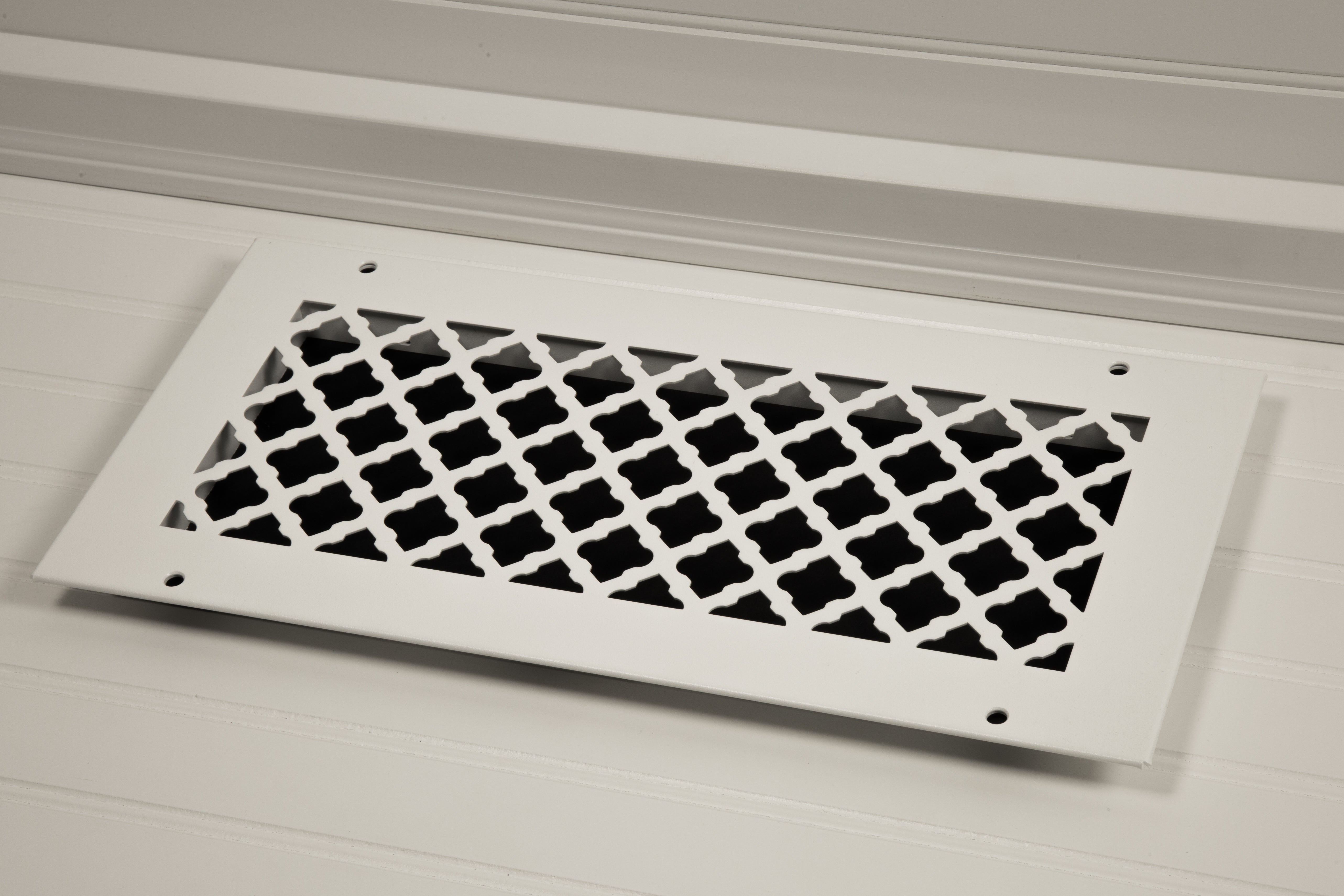

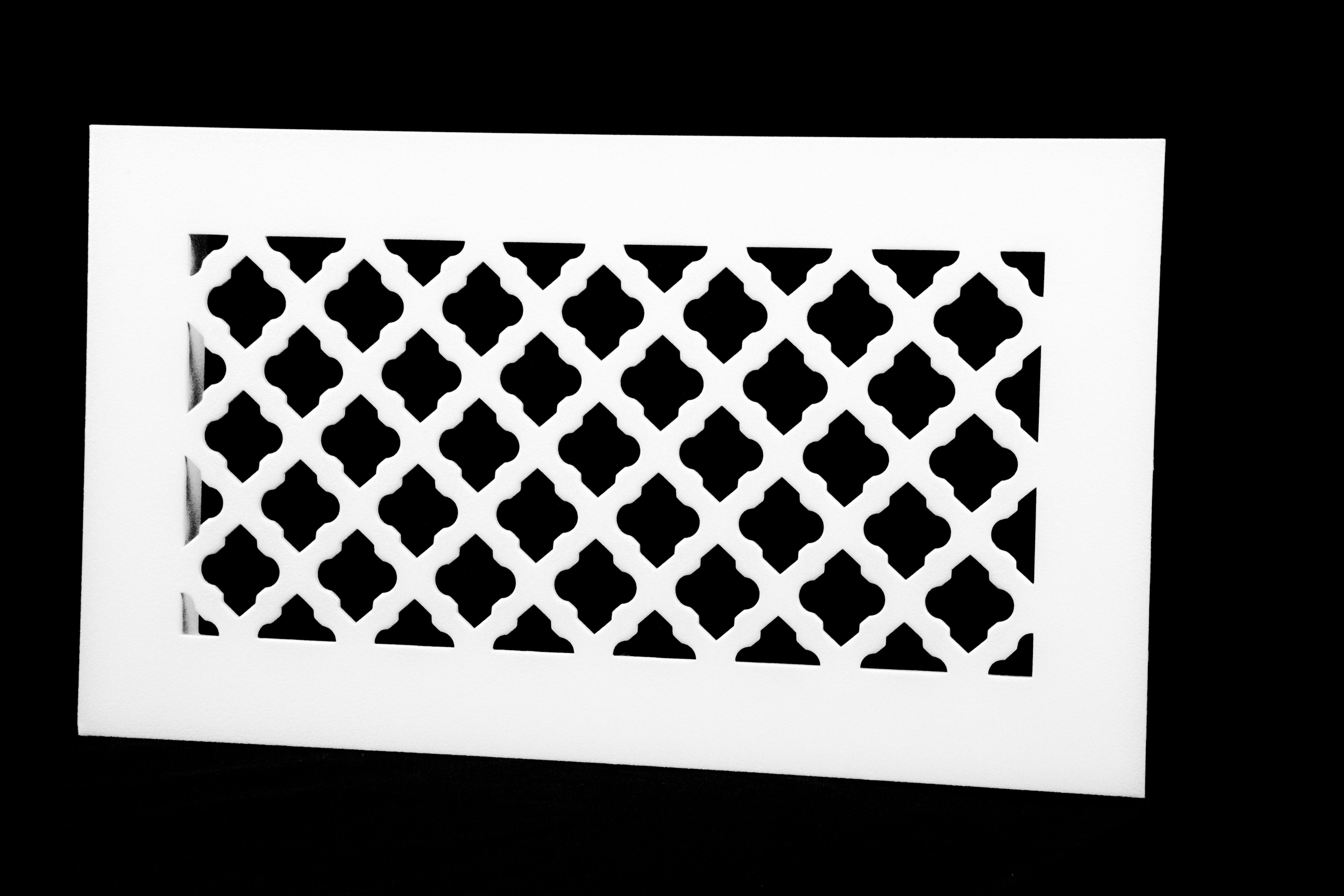

The SteelCrest BTU14X6RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, this slotted-face grille fits a 14 x 6 inch duct opening and installs with an overall finished face size of 16 x 8 inches. The fixed-blade design supports consistent return airflow back to the air handler or furnace. HVAC technicians and finish contractors install this grille during new construction or remodel work where a durable, clean-looking return air termination is required.
This grille is suited for residential and light commercial applications where return air must be routed through a wall or ceiling surface. The 14 x 6 inch duct opening size is a common return air rough-in dimension found in single-zone residential forced-air systems. The 2-inch overlap on each side, producing the 16 x 8 inch face, covers standard drywall cutout edges cleanly without additional trim work. Installers working on remodels will find the finished size accommodates typical rough-in tolerances without modification.
Key Features
- Solid steel construction with white powder-coat finish for long-term durability
- Fits 14 x 6 inch duct opening with 16 x 8 inch overall finished face size
- Fixed slotted-face design supports steady return airflow
- Suitable for wall or ceiling surface installation
- Direct-replacement fit for new construction and remodel applications
Compatibility
Designed as a direct-replacement return air grille for standard 14 x 6 inch duct openings in residential and light commercial forced-air HVAC systems installed in walls or ceilings.
Installation Notes
Installation is typically performed by an HVAC technician or finish contractor. Power down the air handler or furnace at the disconnect or breaker before cutting into ductwork or repositioning the grille. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate. Do not obstruct the duct opening with sealant or framing material that reduces the rated 14 x 6 inch free-air passage.
Technical Specifications
-
Duct Opening Size: 14 x 6 inches
-
Overall Finished Face Size: 16 x 8 inches
-
Material: Solid steel
-
Finish: White powder coat
-
Blade Type: Fixed slotted face
-
Mount Type: Wall or ceiling surface
-
Package Weight: 5 pounds
-
Package Dimensions: 18 x 11 x 3 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU14X6RWHH
