Product Description

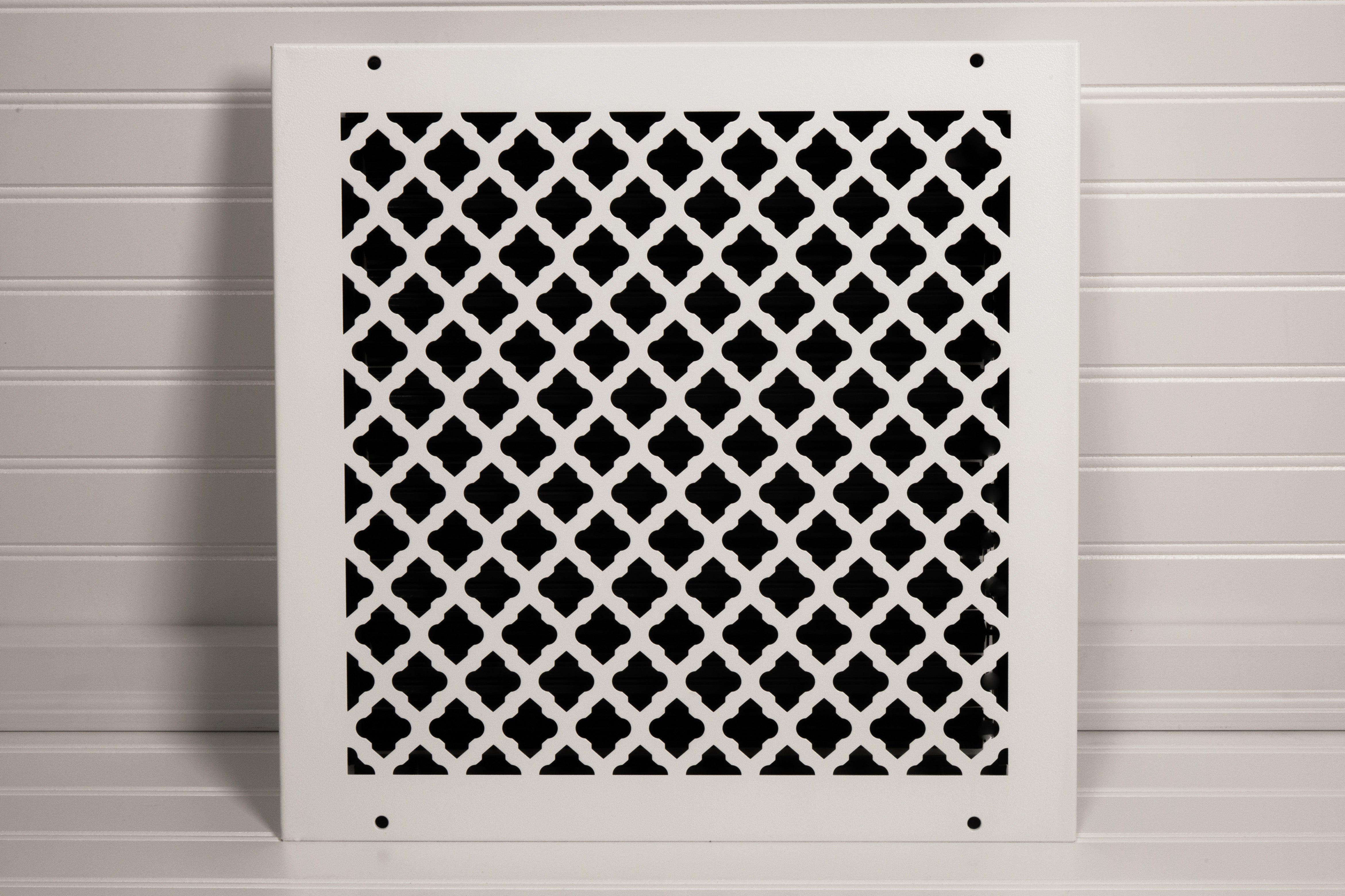

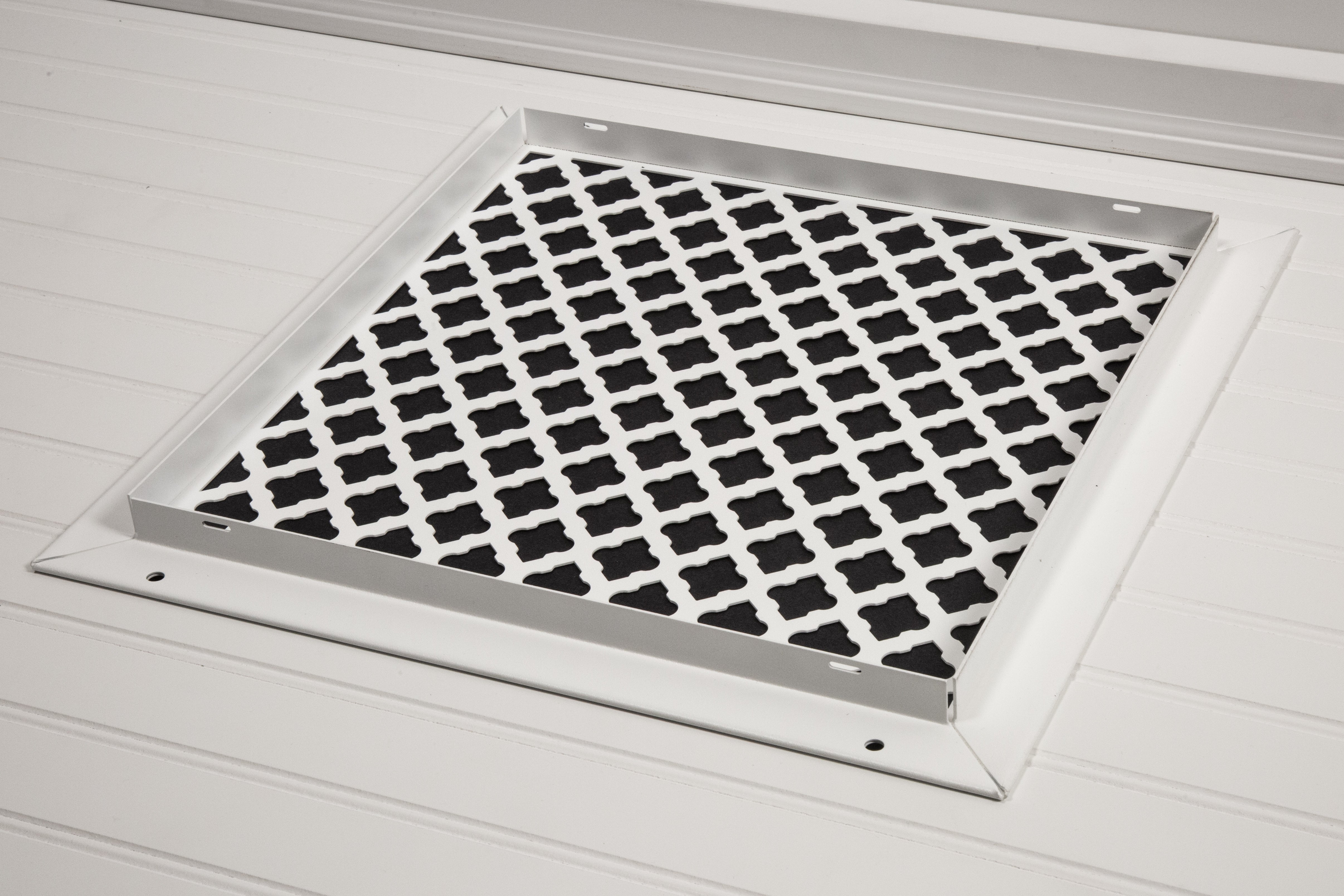

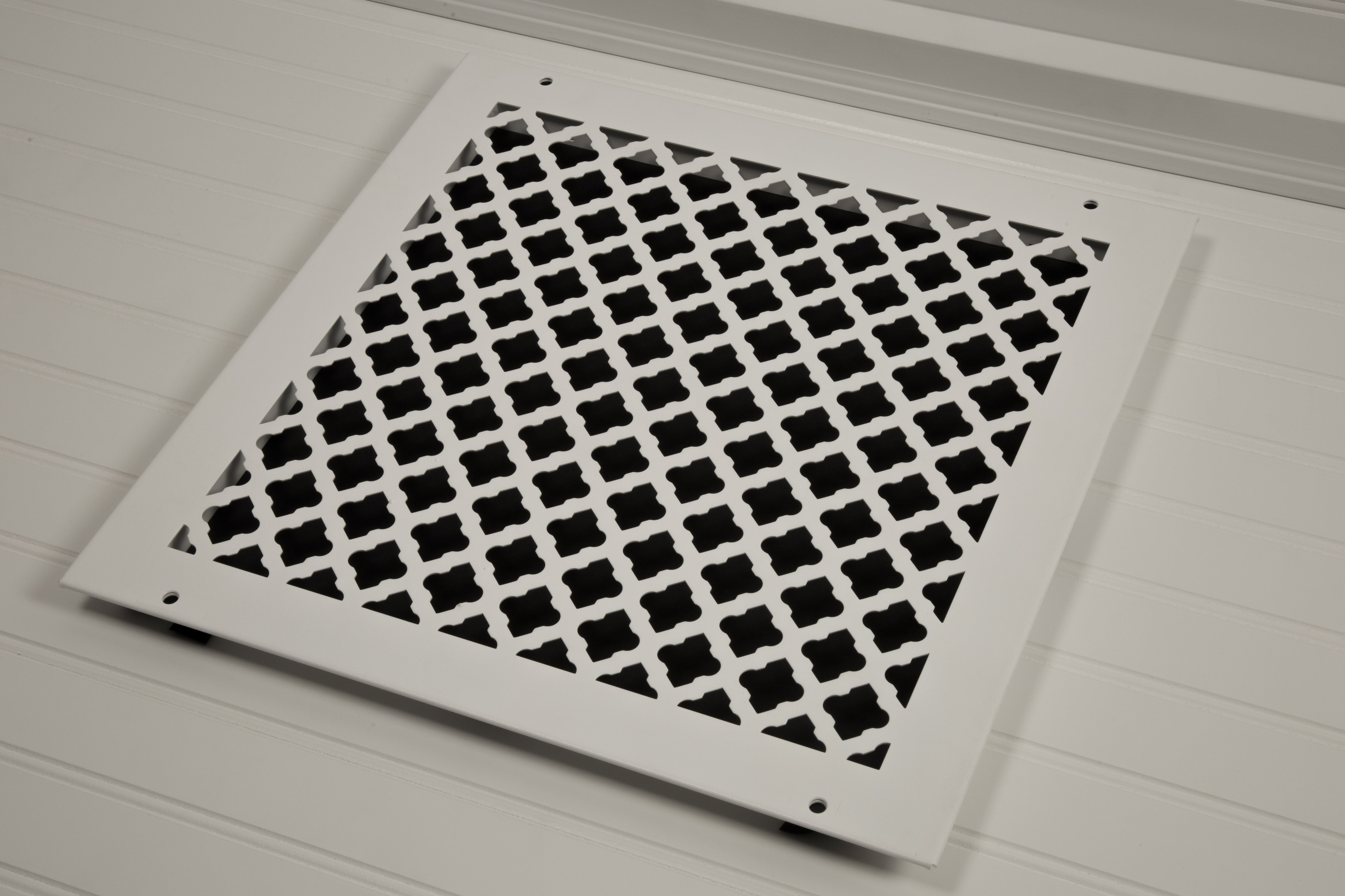

The SteelCrest BTU14X14RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, this slotted decorative grille fits a 14x14 inch duct opening and delivers an overall finished face size of 16x16 inches. The fixed-blade design supports consistent return airflow back to the air handler or furnace. Licensed HVAC technicians and finish contractors install this grille during new construction, system upgrades, or remodels where a clean, durable vent cover is required.
This grille is suited for residential and light commercial applications where return air must be routed through a wall or ceiling surface. The 14x14 inch duct opening size is common in central forced-air systems serving medium to large rooms or multi-room return configurations. The 16x16 inch face covers the rough opening cleanly without additional trim work, making it a direct drop-in for matching duct openings in new builds and renovation projects.
Key Features
- Solid steel construction with white powder-coat finish for long-term durability
- Fits 14x14 inch duct opening with a 16x16 inch finished face size
- Fixed slotted blade design supports consistent return airflow
- Suitable for wall or ceiling mounting
- Direct-replacement fit simplifies installation in new construction and remodel applications
Compatibility
Designed as a direct-replacement fixed return grille for residential and light commercial forced-air HVAC systems with a 14x14 inch return duct opening.
Installation Notes
Installation is typically performed by a licensed HVAC technician or finish contractor. Shut down the HVAC system at the thermostat or disconnect before removing an existing grille or accessing the duct opening. Secure the grille to the wall or ceiling surface using the mounting points provided, ensuring the face sits flush against the finished surface. Follow local mechanical codes for return air grille placement and clearance requirements.
Technical Specifications
-
Duct Opening Size: 14x14 inches
-
Finished Face Size: 16x16 inches
-
Material: Solid steel with white powder-coat finish
-
Blade Type: Fixed slotted
-
Mount Type: Wall or ceiling
-
Package Weight: 14 pounds
-
Package Dimensions: 18x18x4 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU14X14RWHH
