SteelCrest BTU14X14RORBH Fixed Return Air Grille 14x14

Product Description

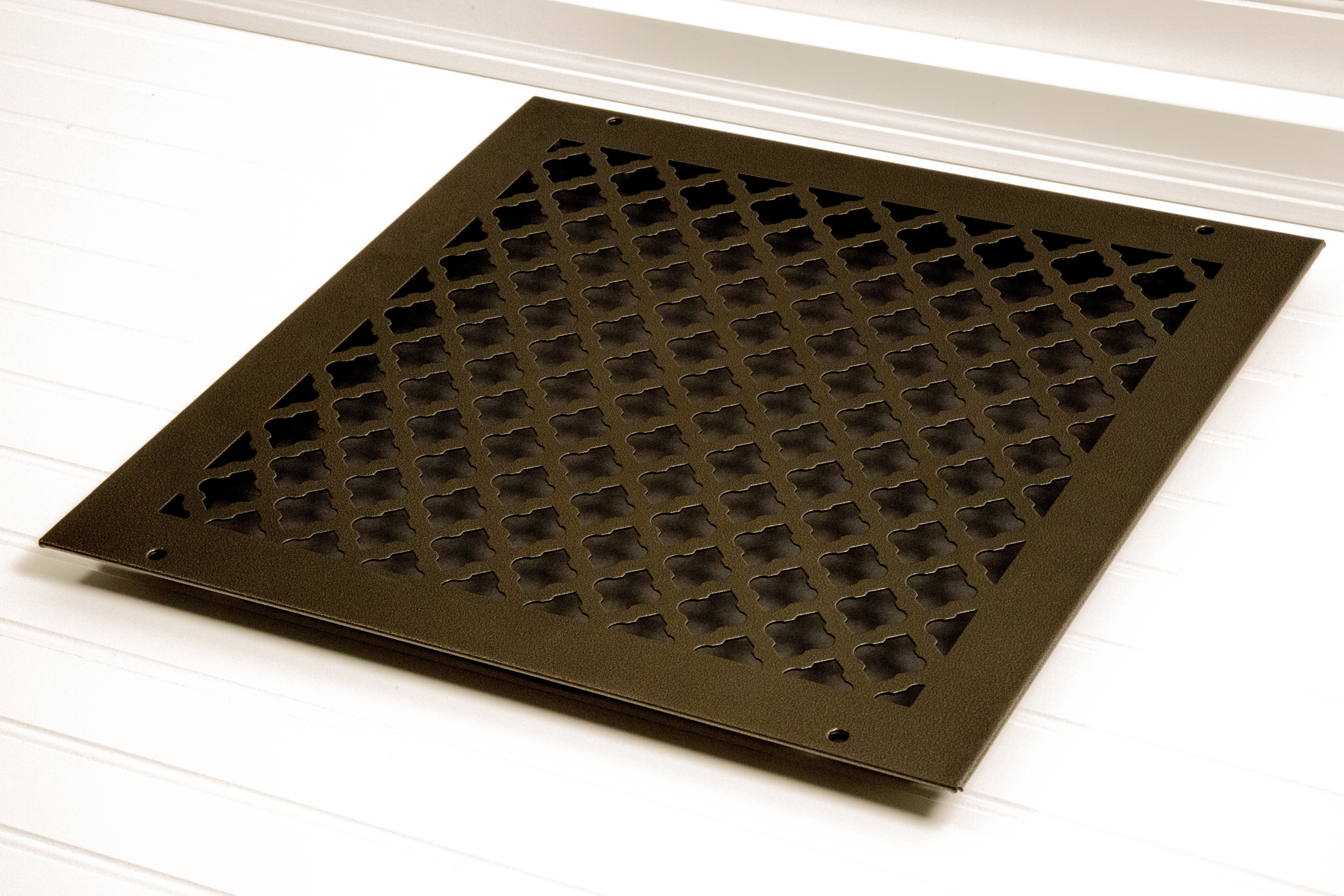

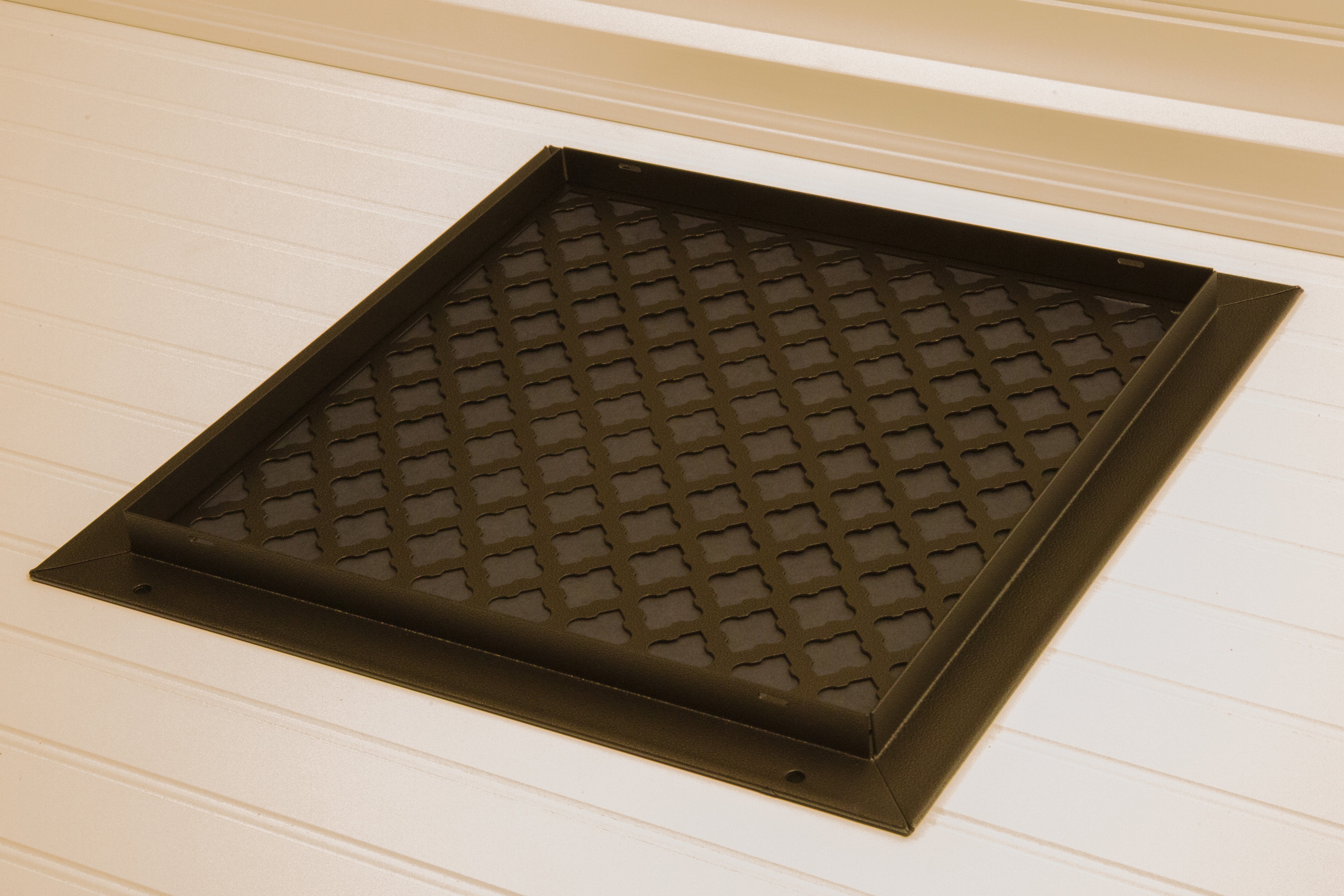

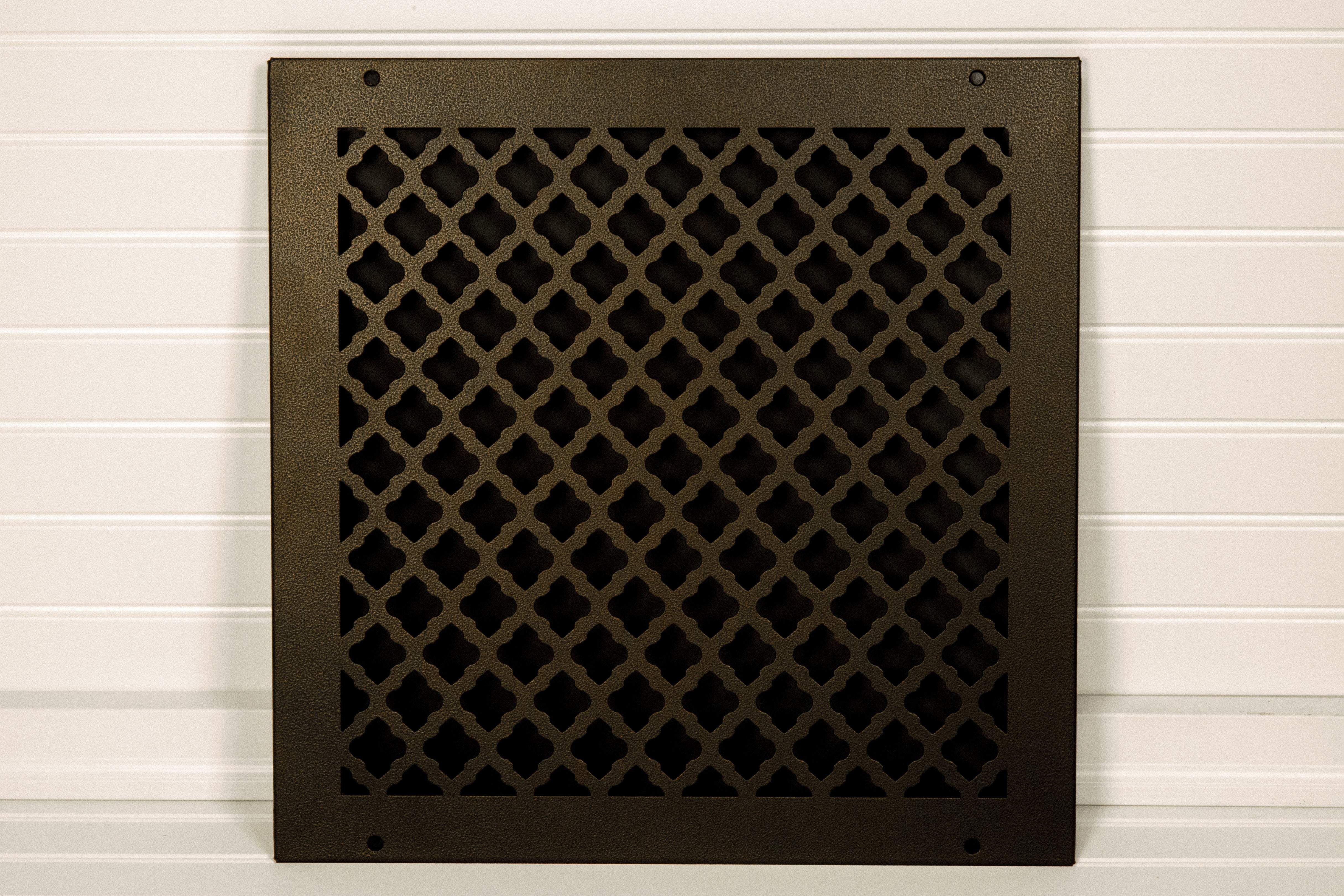

The SteelCrest BTU14X14RORBH is a fixed-blade return air grille designed for wall and ceiling installation in residential and light commercial HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, it fits a 14 x 14 inch duct opening with an overall face size of 16 x 16 inches. The slotted fixed design supports consistent return airflow without the need for field adjustment. HVAC technicians and contractors install this grille during new construction rough-in or as a direct swap during remodel work where the existing duct opening matches the 14 x 14 inch nominal size.

This grille is suited for residential HVAC return air applications on interior walls or ceilings where a 14 x 14 inch duct collar is present. The 16 x 16 inch face plate overlaps the duct opening to provide a clean finished appearance without additional trim work. The oil-rubbed bronze finish makes it appropriate for living spaces, hallways, and common areas where visible HVAC components need to match interior finishes. No damper is included, as this is a fixed return grille intended for systems where airflow volume is controlled elsewhere in the duct system.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fits 14 x 14 inch duct opening with a finished face size of 16 x 16 inches
• Fixed slotted blade design supports stable return airflow
• Suitable for both wall and ceiling mounting configurations
• Direct-replacement sizing simplifies installation in new construction and remodel projects

Compatibility

Designed as a direct-replacement fixed return air grille for residential and light commercial HVAC duct systems with a 14 x 14 inch return air opening.

Installation Notes

Installation is typically performed by an HVAC technician or a qualified contractor. Turn off the air handler or furnace at the disconnect or thermostat before removing the existing grille and working at the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Verify the duct collar edges are clean and free of obstructions before setting the grille in place.

Technical Specifications

• Duct Opening Size: 14 x 14 inches
• Overall Face Size: 16 x 16 inches
• Material: Solid Steel
• Finish: Oil-Rubbed Bronze Powder Coat
• Blade Type: Fixed Slotted
• Mount Type: Wall or Ceiling
• Package Weight: 14 pounds
• Package Dimensions: 18 x 18 x 4 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU14X14RORBH
