Product Description

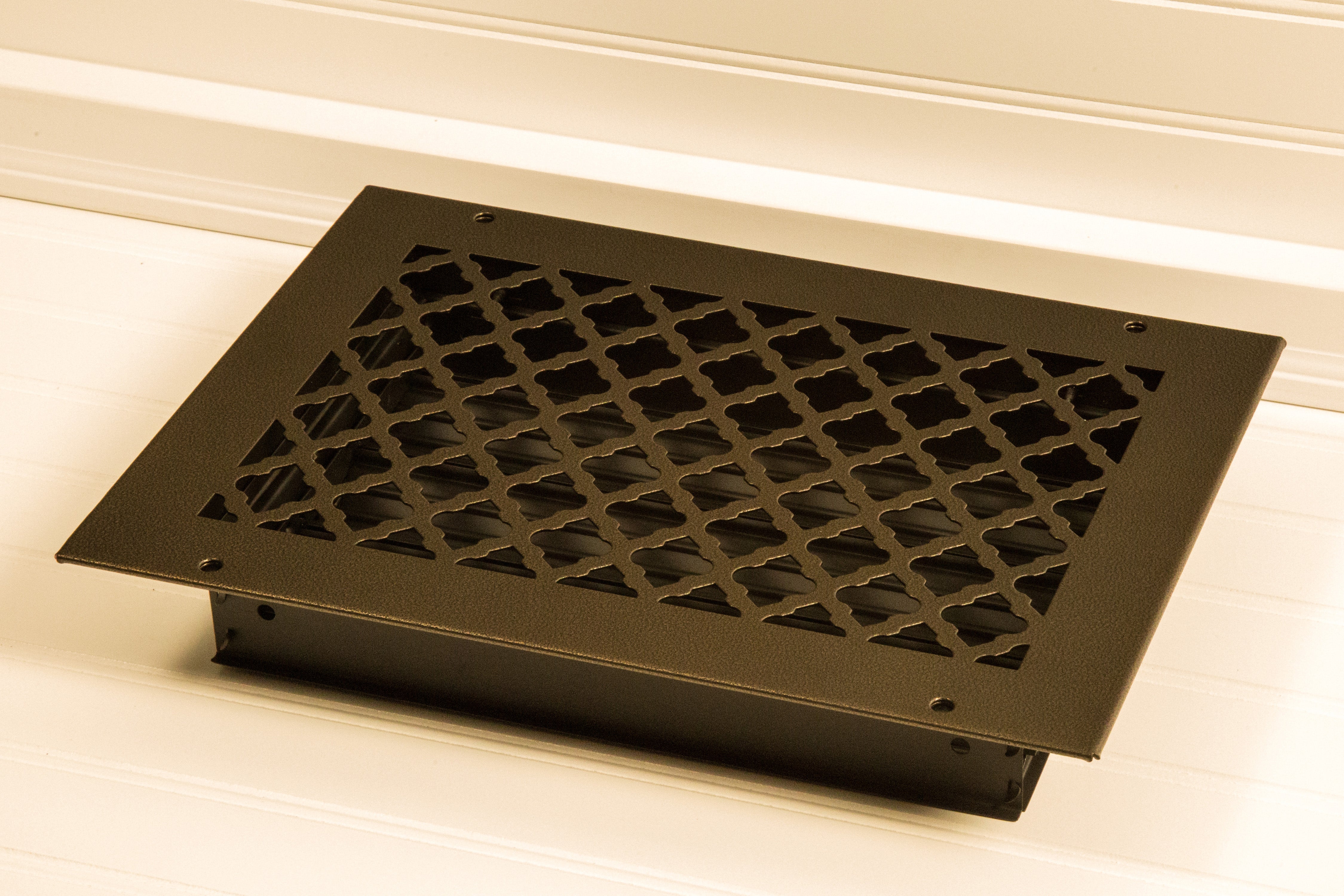

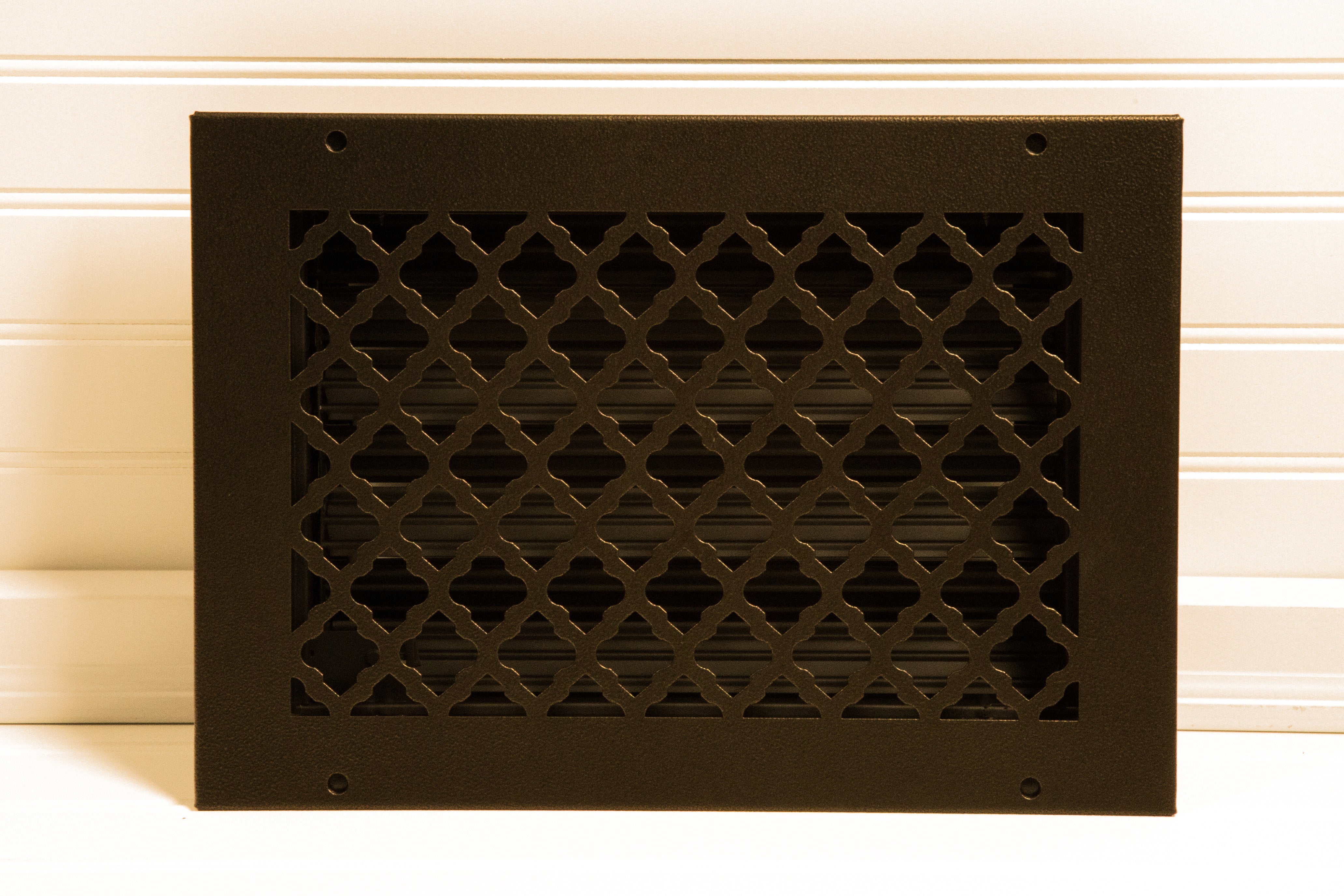

The SteelCrest BTU12X8SORBH is a slotted supply air vent with an integrated damper, designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, it fits a 12 x 8 inch duct opening and installs with an overall face size of 14 x 10 inches. The built-in damper allows the installer to adjust or restrict airflow at the register without returning to the air handler. HVAC technicians and finish contractors typically install this grille during new construction or renovation work where both function and aesthetics are priorities.

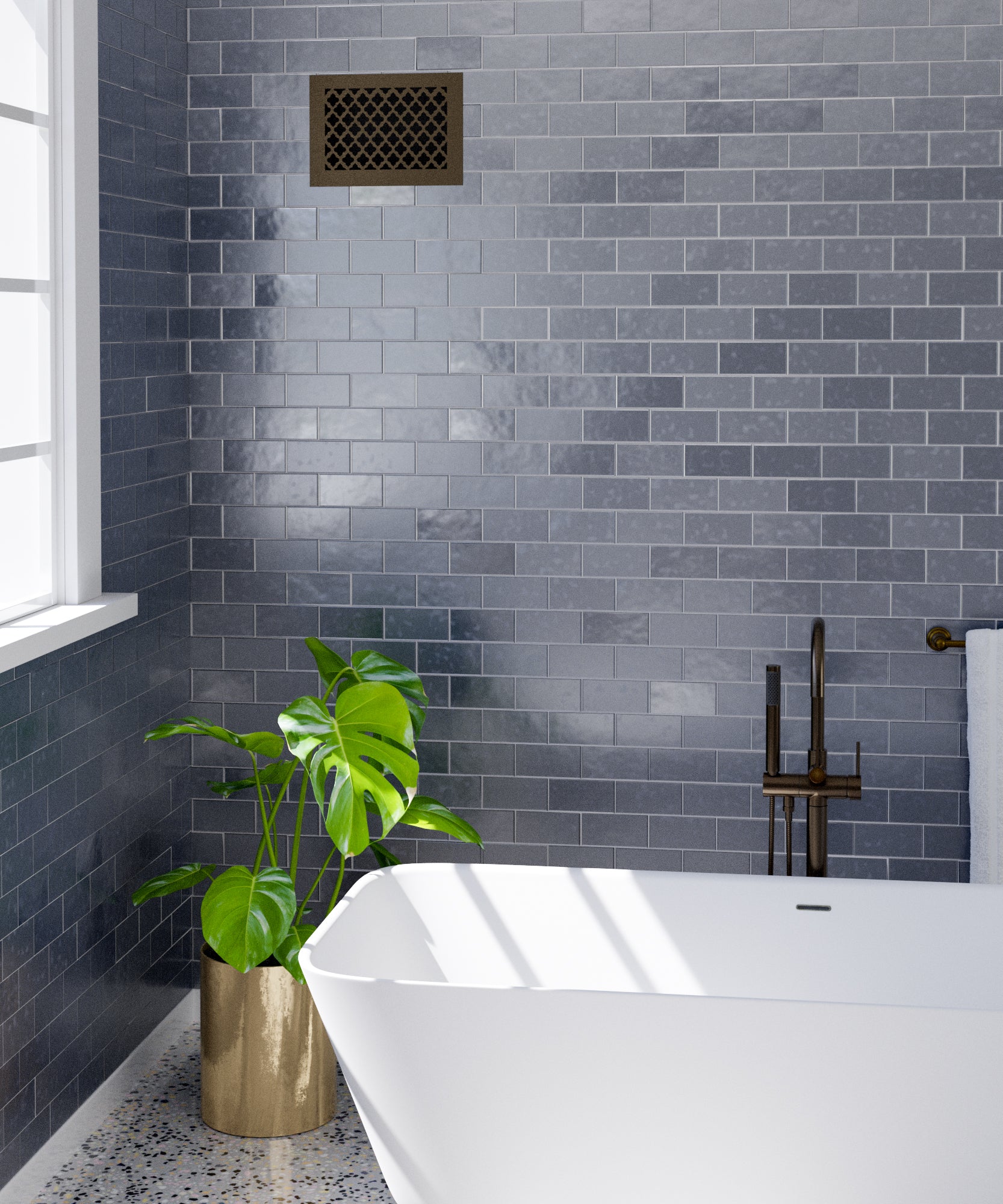

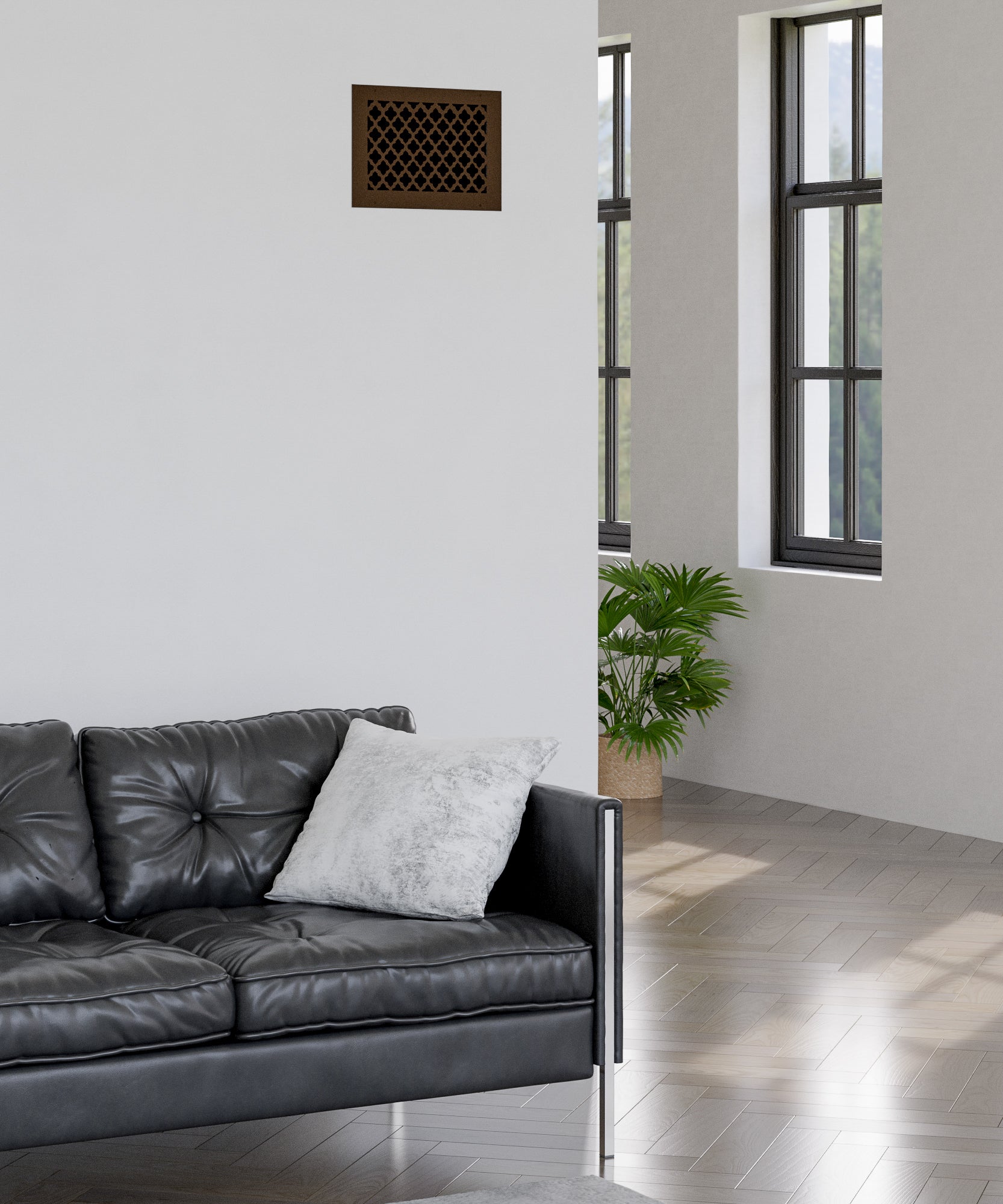

This vent cover is suited for forced-air supply applications in residential homes and light commercial spaces. It mounts to wall or ceiling surfaces over a standard 12 x 8 inch duct collar. The oil-rubbed bronze finish makes it a common choice for remodel projects where standard white or almond grilles do not match the surrounding decor. The direct-replacement sizing means no cutting or framing modifications are required when swapping an existing 12 x 8 opening.
Key Features
- Fits standard 12 x 8 inch duct openings with a finished face size of 14 x 10 inches
- Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability

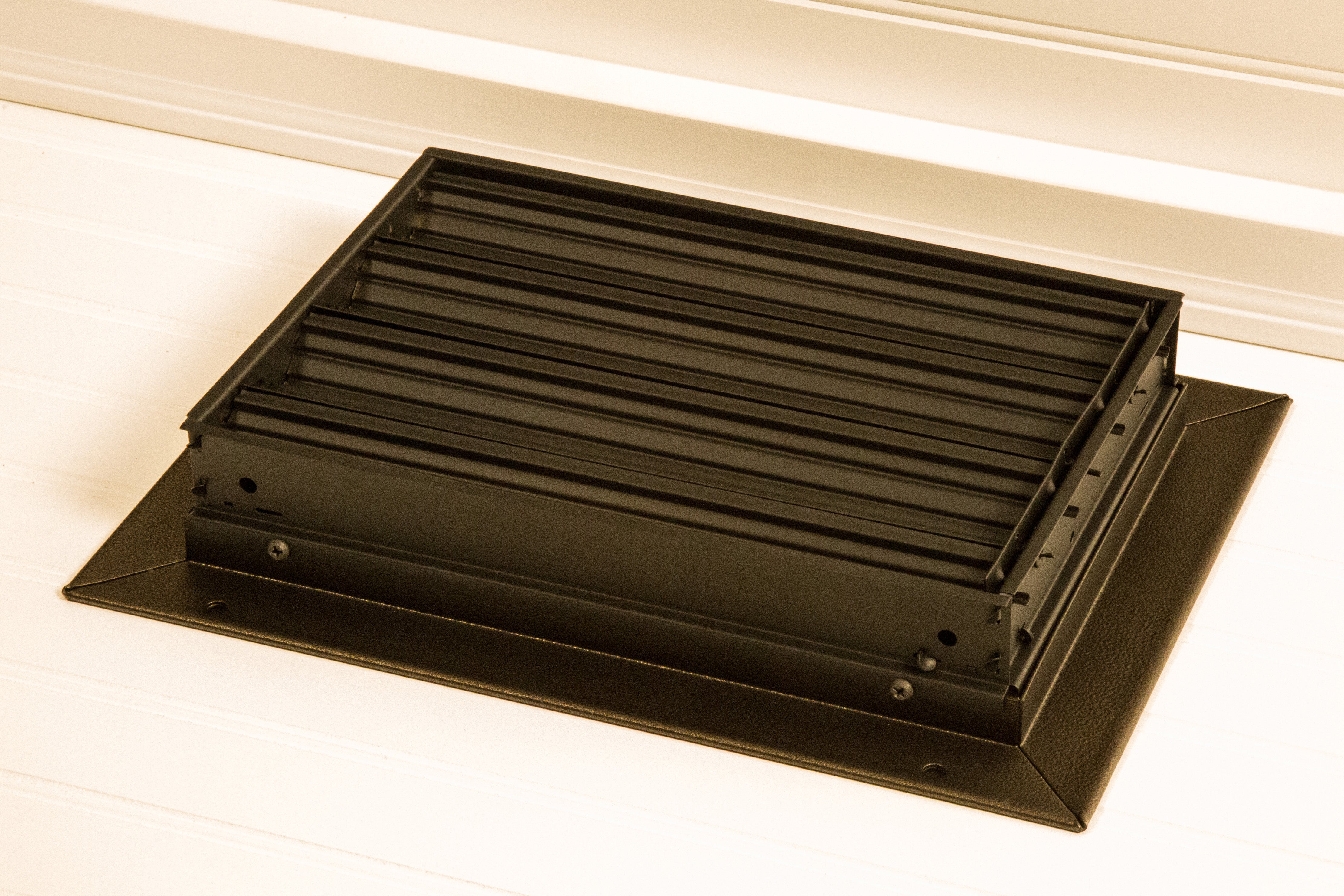

- Integrated damper allows on-site airflow adjustment at the register
- Slotted face design supports even air distribution across the room
- Suitable for wall or ceiling supply air installations
- Direct-replacement sizing reduces install time on new construction and remodel projects
Compatibility
Designed as a direct-replacement supply air grille for residential and light commercial forced-air HVAC systems with a standard 12 x 8 inch duct opening.
Installation Notes
Installation is typically performed by an HVAC technician or finish contractor. Power down the air handler or furnace before removing the existing grille and making any duct-side adjustments. Secure the grille to the wall or ceiling surface using the mounting hardware appropriate for the substrate. Confirm the damper blade moves freely and is set to the desired position before returning the system to service.
Technical Specifications
-
Duct Opening Size: 12 x 8 inches
-
Overall Face Size: 14 x 10 inches
-
Material: Solid Steel
-
Finish: Oil-Rubbed Bronze Powder Coat
-
Damper: Yes, integrated
-
Mounting Location: Wall or Ceiling
-
Package Weight: 8 pounds
-
Package Dimensions: 16 x 12 x 4 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU12X8SORBH
