SteelCrest BTU12X6RWHH Fixed Return Grille 14x8 Inch

Product Description

The SteelCrest BTU12X6RWHH is a fixed-blade return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it delivers a clean, slotted aesthetic alongside long-term corrosion resistance. The grille fits a 12-inch by 6-inch duct opening and installs with an overall face size of 14 inches by 8 inches. Fixed blades maintain consistent airflow direction without adjustment hardware, reducing potential failure points. HVAC technicians and contractors use this grille as a direct-fit replacement or in new construction applications where a durable, finished return-air termination is required.

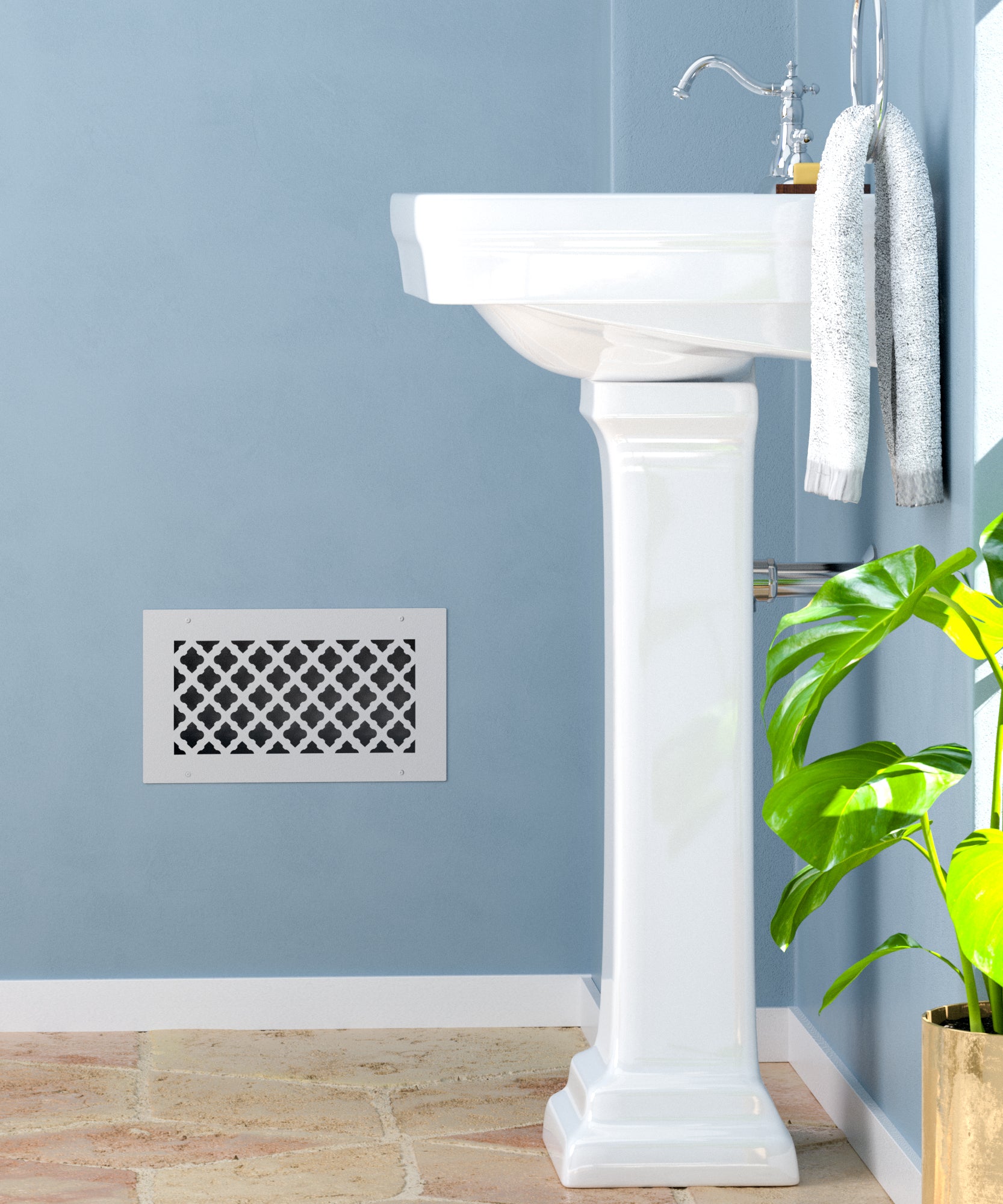

This grille is suited for return-air applications in residential forced-air systems and light commercial spaces. The 12-inch by 6-inch duct opening size is common in both new construction and remodel scenarios where standard rectangular duct runs terminate at a wall or ceiling surface. The fixed-blade slotted design supports unobstructed return airflow back to the air handler or furnace. No damper is included, making this strictly a return-air or passive-vent application rather than a supply register with volume control.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fits 12-inch by 6-inch duct opening with a 14-inch by 8-inch finished face size
• Fixed-blade slotted design promotes consistent, unobstructed return airflow
• Suitable for both wall and ceiling mounting orientations
• Direct-replacement sizing for fast installation in remodel or new construction

Compatibility

Designed as a direct-replacement return grille for residential and light commercial HVAC systems using a standard 12-inch by 6-inch rectangular duct opening.

Installation Notes

Installation is typically performed by an HVAC technician or skilled contractor. Power down the air handler or furnace at the disconnect before accessing the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Verify the duct opening dimensions before installation to confirm the 12-inch by 6-inch fit.

Technical Specifications

• Duct Opening Size: 12 inches x 6 inches
• Overall Face Size: 14 inches x 8 inches
• Material: Solid steel with white powder-coat finish
• Blade Type: Fixed slotted
• Mounting Location: Wall or ceiling
• Package Weight: 5 pounds
• Package Dimensions: 16 inches x 11 inches x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU12X6RWHH
