SteelCrest BTU12X4RWHN Fixed Return Grille 12x4 Floor

Product Description

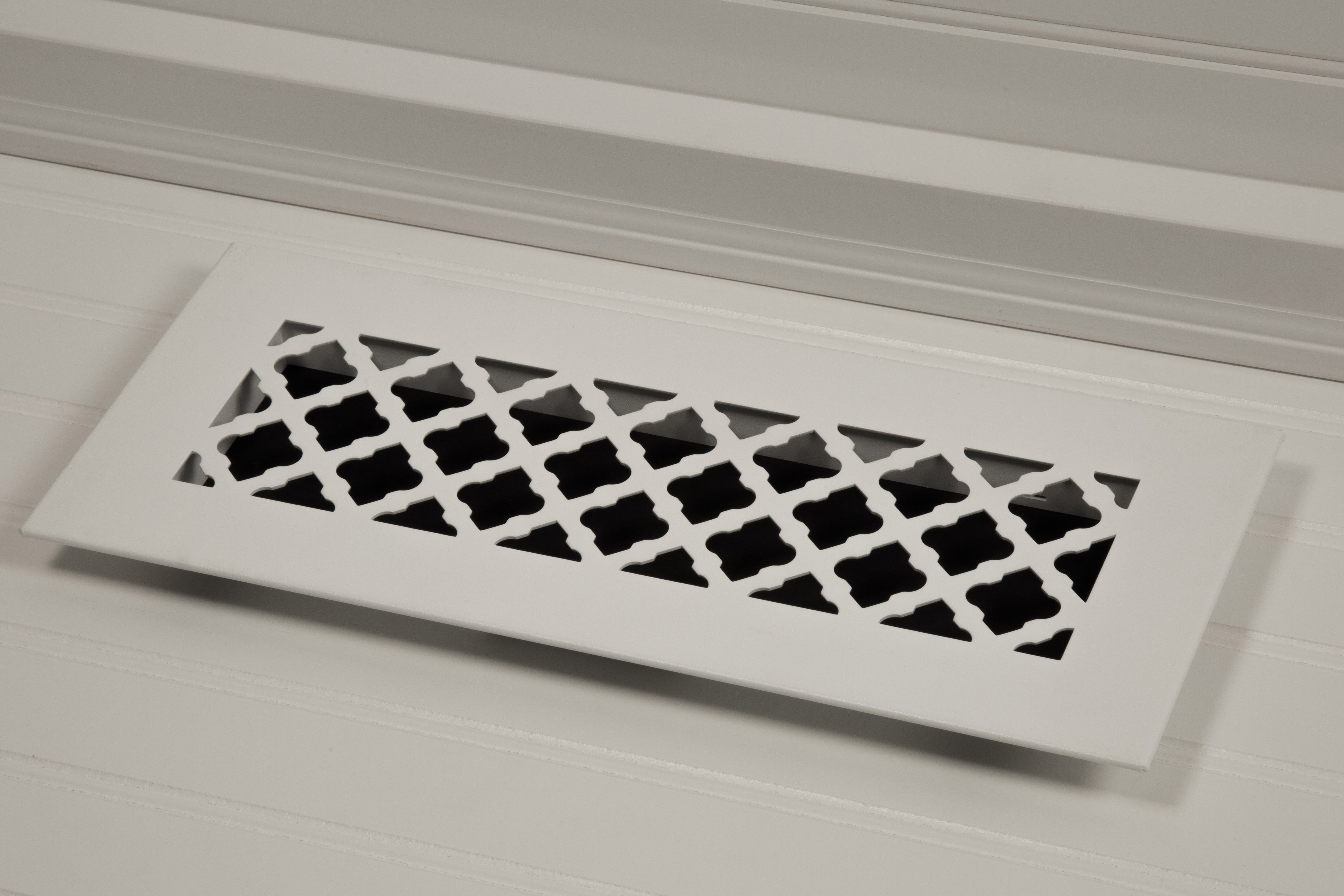

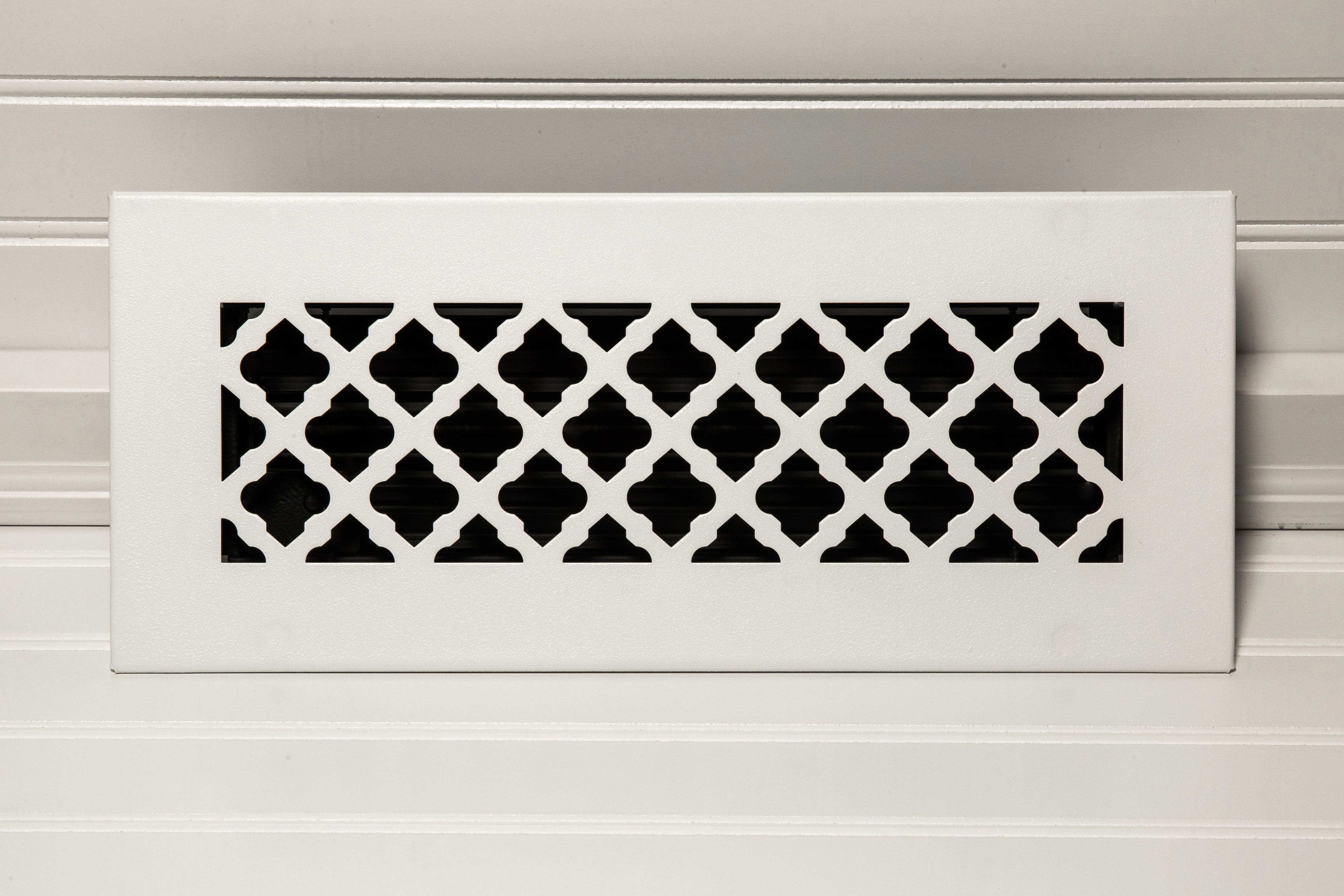

The SteelCrest BTU12X4RWHN is a fixed return air grille designed for floor-mounted installations in residential HVAC systems. Constructed from solid steel with a white powder-coat finish, it provides long-term durability in high-traffic floor applications. The slotted face design supports consistent return airflow back to the air handler or furnace. It fits a 12x4 inch duct opening with an overall finished face size of 14x6 inches, covering the rough opening cleanly without additional trim work. Licensed HVAC technicians and skilled remodelers install this type of grille during new construction and retrofit projects alike.

This grille is suited for residential forced-air systems where floor-mounted return air registers are required. The fixed-blade design means no adjustable damper is included, making it a straight return-side application. The white powder-coat finish coordinates with standard interior trim in new construction and remodel settings. The 14x6 inch face plate overlaps the duct collar opening, providing a finished appearance at floor level with no visible gaps around the duct border.

Key Features

• Solid steel construction with white powder-coat finish for corrosion resistance and durability
• Fixed slotted face design promotes unobstructed return airflow
• Fits 12x4 inch duct opening with a 14x6 inch overall finished face size
• Floor-mount orientation suited for residential return air applications
• Direct-replacement sizing for fast installation in new construction or remodel projects

Compatibility

Designed as a direct-replacement floor return grille for residential forced-air HVAC systems with a standard 12x4 inch duct opening.

Installation Notes

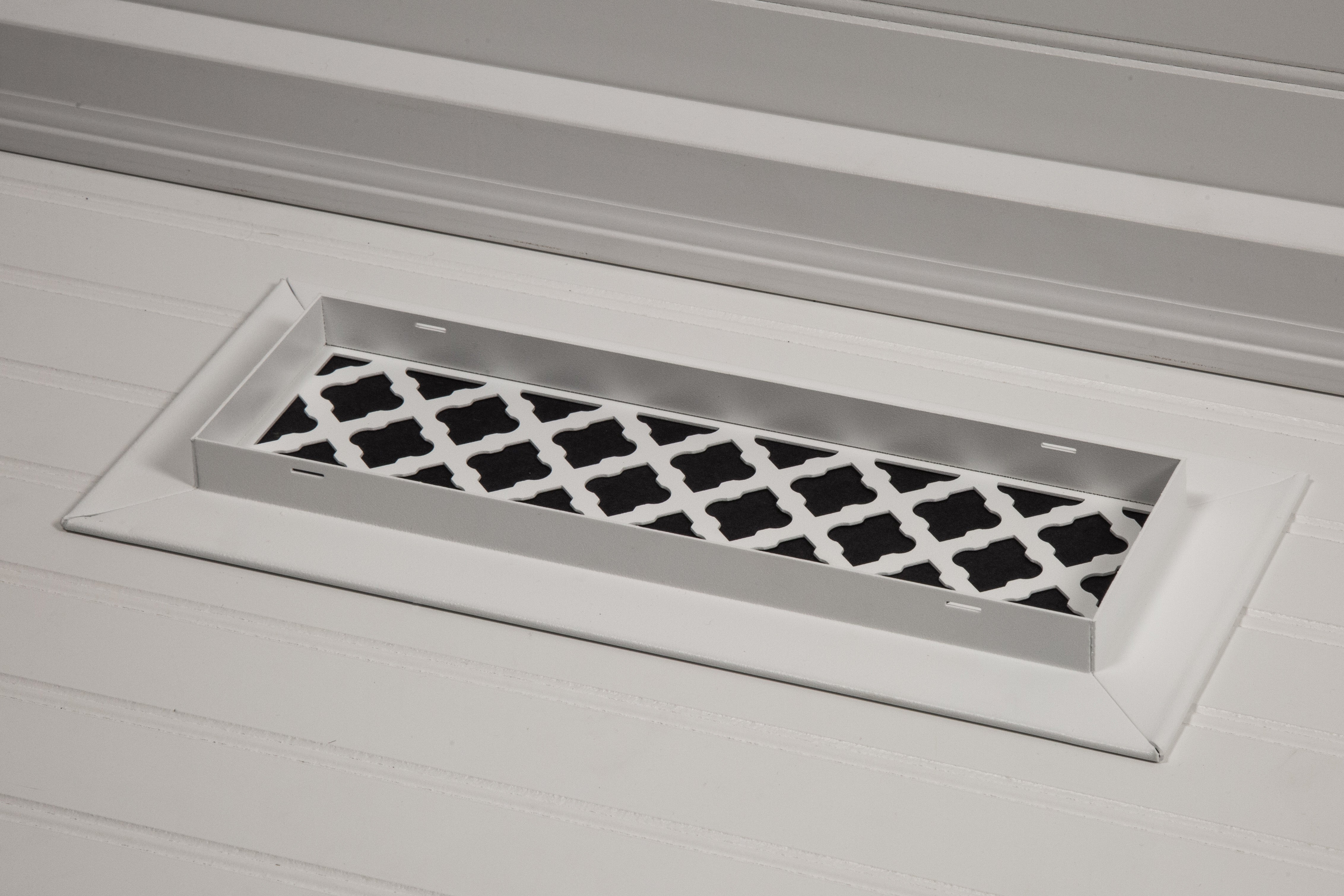

Installation is typically performed by a licensed HVAC technician or qualified contractor. Power the air handling system down before removing the existing grille and inspecting the duct collar. The grille drops into the floor opening and is secured to the subfloor or finished flooring surface using the mounting holes on the face frame. Verify the duct opening is clear of debris and that the 12x4 inch collar dimension matches before securing the grille in place.

Technical Specifications

• Duct Opening Size: 12x4 inches
• Overall Face Size: 14x6 inches
• Material: Solid Steel
• Finish: White Powder-Coat
• Mount Type: Floor
• Blade Type: Fixed Slotted
• Package Weight: 4 pounds
• Package Dimensions: 16x8x3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU12X4RWHN
