SteelCrest BTU12X2.25SORBH Supply Vent Damper 12x2.25

Product Description

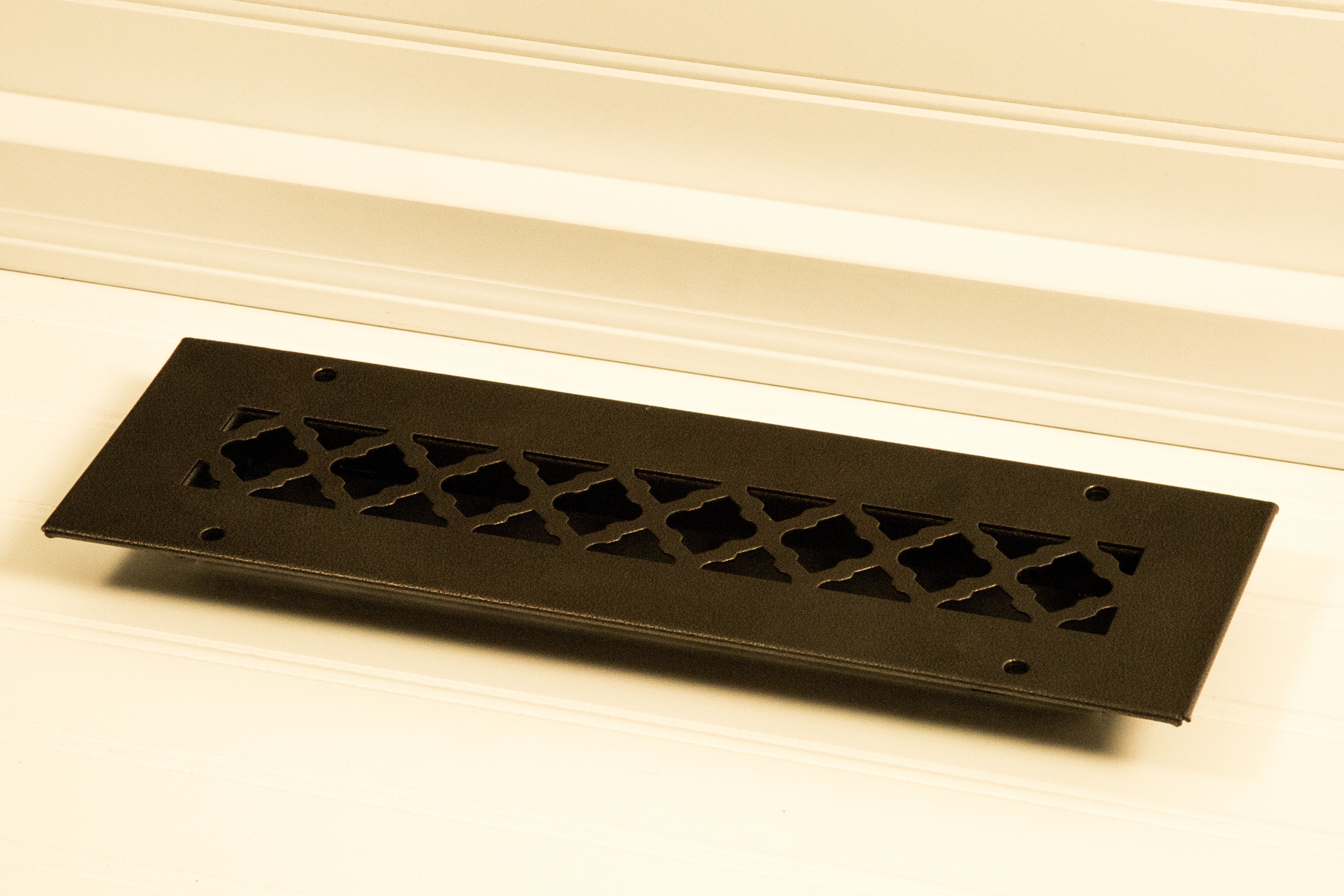

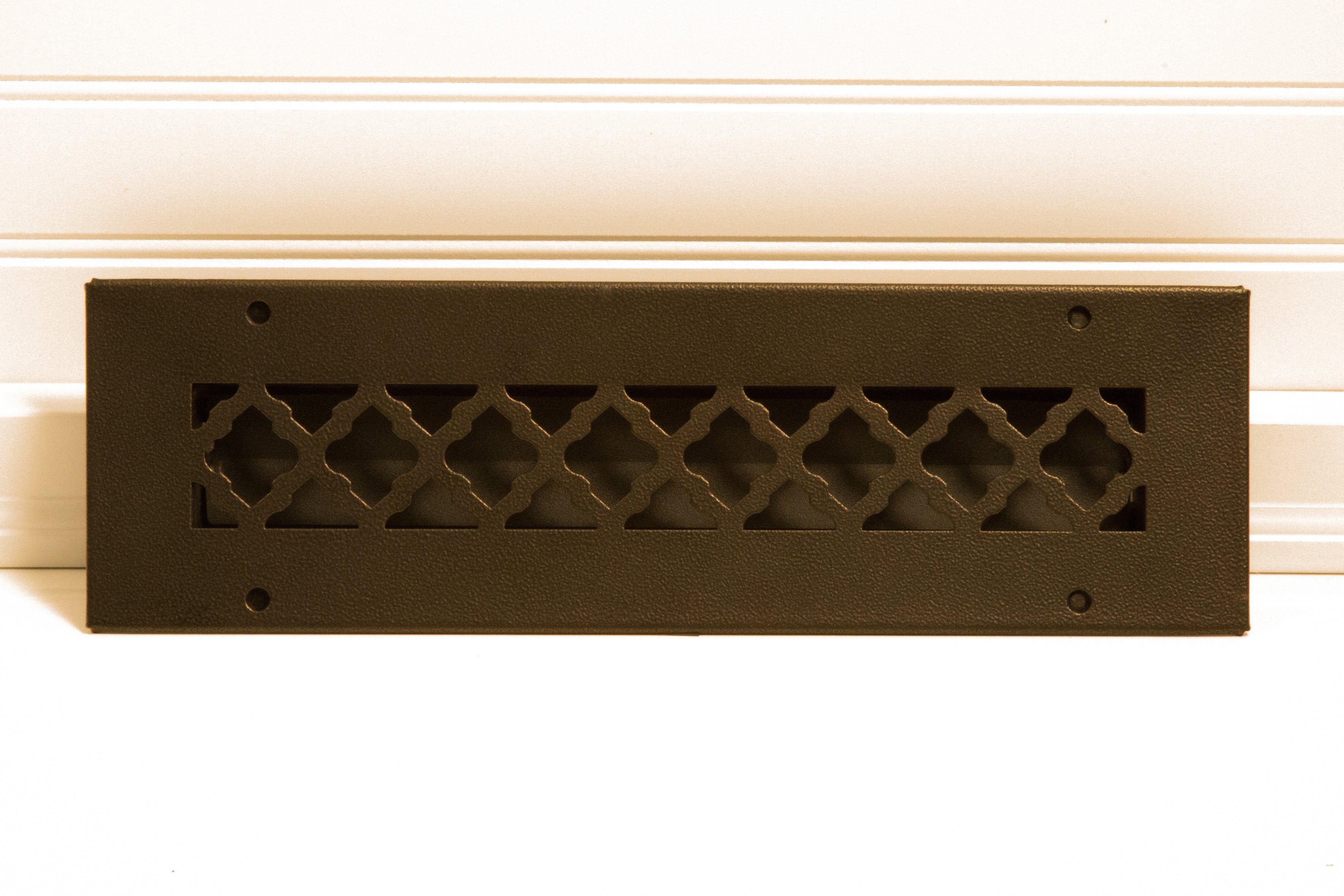

The STEELCRAFT BTU12X2.25SORBH is a decorative supply vent with a built-in damper, designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with an Oil-Rubbed Bronze powder-coat finish, it delivers both durability and a refined aesthetic. The slotted face design supports consistent airflow distribution while the integrated damper allows basic airflow adjustment at the register. This is a direct-replacement unit sized for a 12 x 2.25 inch duct opening, with an overall finished face size of 14 x 4.25 inches. Licensed HVAC technicians and skilled tradespeople install this register during new construction, system retrofits, or cosmetic remodels.

This supply vent is suited for forced-air heating and cooling systems where a 12 x 2.25 inch duct boot is present in a wall or ceiling surface. Its finished face size of 14 x 4.25 inches overlaps the duct opening to conceal rough edges and provide a clean appearance. The Oil-Rubbed Bronze finish suits interior environments where standard white or chrome registers are not preferred. It is appropriate for residential living spaces, hallways, and commercial spaces with matching trim finishes.

Key Features

• Solid steel construction with Oil-Rubbed Bronze powder-coat finish for long-term durability

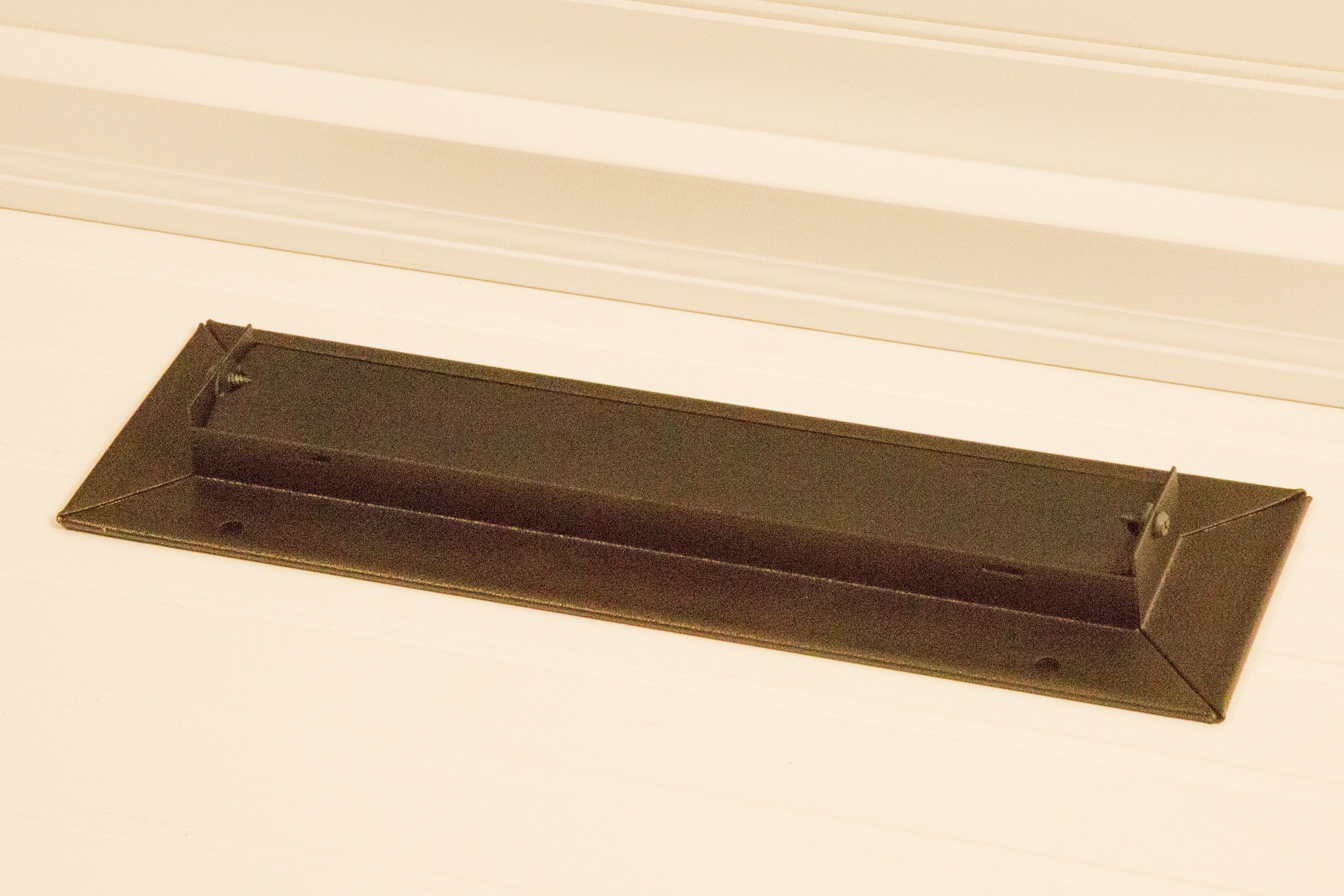

• Integrated damper allows airflow adjustment without a separate damper assembly
• Slotted face design promotes even airflow distribution from the duct supply
• Fits 12 x 2.25 inch duct openings with a 14 x 4.25 inch finished face size for clean overlap
• Suitable for wall and ceiling mounting in new construction or remodel applications

Compatibility

Designed as a direct-replacement supply vent for forced-air HVAC systems with a 12 x 2.25 inch duct boot opening in wall or ceiling surfaces.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified tradesperson. Before installation, shut off the air handler or furnace at the thermostat or disconnect to prevent airflow during fitting. Secure the register to the wall or ceiling surface using the mounting holes provided, ensuring the face plate fully covers the duct opening. Verify damper operation after installation to confirm unrestricted travel before returning the system to service.

Technical Specifications

• Duct Opening Size: 12 x 2.25 inches
• Finished Face Size: 14 x 4.25 inches
• Material: Solid Steel
• Finish: Oil-Rubbed Bronze Powder Coat
• Damper: Integrated
• Mounting Location: Wall or Ceiling
• Package Weight: 3 pounds
• Package Dimensions: 16 x 7 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU12X2.25SORBH
