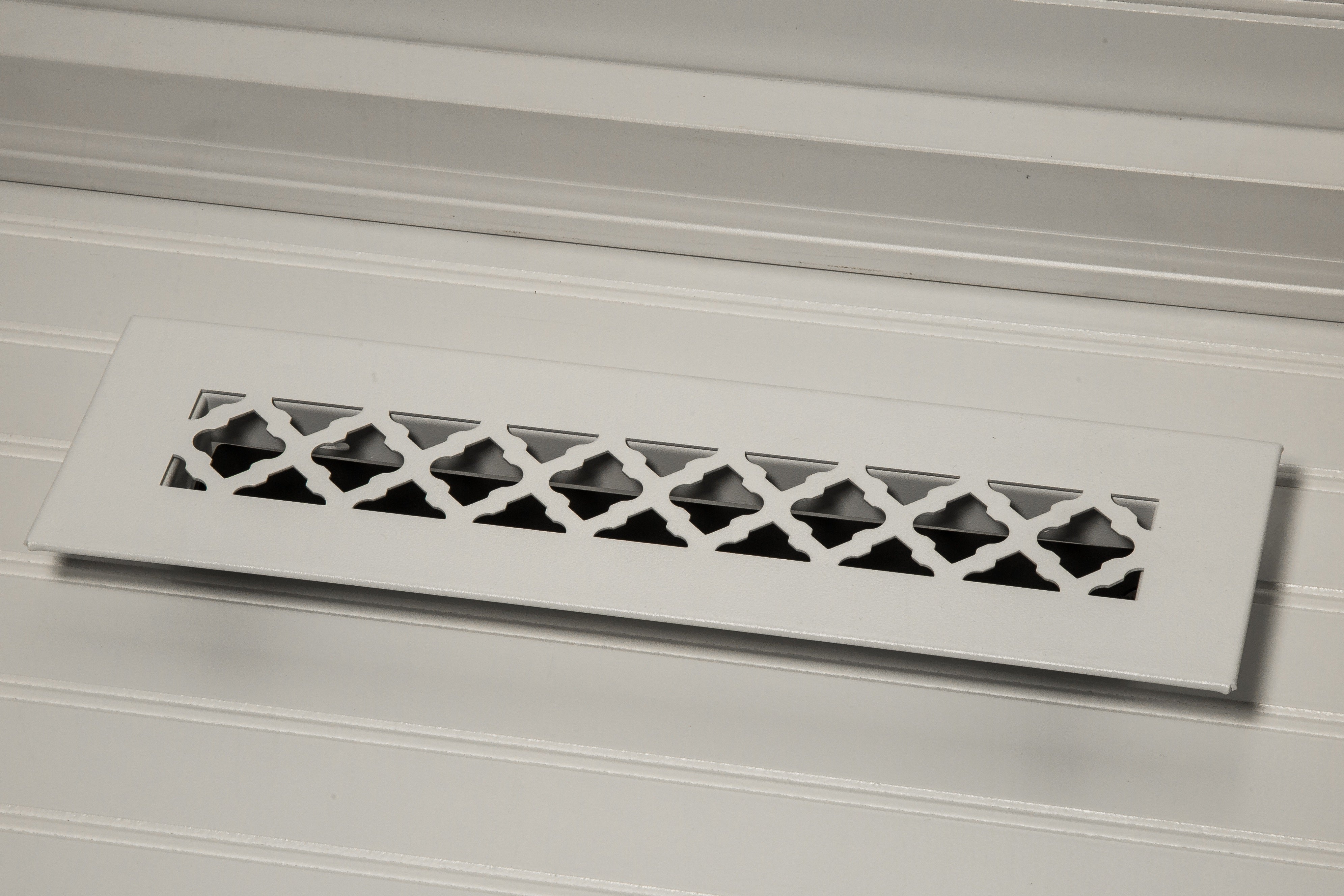

SteelCrest BTU12X2.25RWHN Fixed Return Floor Grille

Product Description

The SteelCrest BTU12X2.25RWHN is a fixed-blade return air grille designed for floor installations in residential HVAC systems. Constructed from solid steel with a white powder-coat finish, it combines long-term durability with a clean, slotted aesthetic suited to new construction and remodel projects. The grille fits a 12 x 2.25 inch duct opening and installs with an overall finished face size of 14 x 4.25 inches, covering the rough opening for a finished look. HVAC technicians and installers use this grille as a direct replacement or first-install component on low-profile floor return applications.

This grille is intended for floor-mounted return air applications in residential forced-air systems. The low-profile 2.25 inch duct width makes it well suited for thin floor cavities and perimeter return runs common in slab-on-grade and platform-frame construction. The fixed-blade design means no moving parts, making it appropriate for return-side use where airflow direction control is not required. It is a practical choice for HVAC installers completing new builds or upgrading worn or damaged floor grilles during service calls or remodels.

Key Features

• Solid steel construction with white powder-coat finish for corrosion resistance and long service life
• Fixed-blade slotted design supports consistent return airflow without mechanical components
• Fits 12 x 2.25 inch duct opening with a finished face size of 14 x 4.25 inches for clean installation appearance
• Direct-replacement sizing speeds up retrofits and remodel installations
• Floor-mount configuration compatible with low-profile perimeter return duct layouts

Compatibility

Designed as a direct-replacement floor return grille for residential forced-air HVAC systems with a 12 x 2.25 inch duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified installer. The HVAC system should be powered down before removing an existing grille or making any duct connections. Ensure the duct opening is clean and free of obstructions before securing the grille. Floor grilles are generally fastened with screws through the face frame into the surrounding floor material; confirm fastener type is appropriate for the floor surface.

Technical Specifications

• Duct Opening Size: 12 x 2.25 inches
• Finished Face Size: 14 x 4.25 inches
• Material: Solid Steel
• Finish: White Powder Coat
• Blade Type: Fixed Slotted
• Mount Type: Floor
• Airflow Function: Return
• Package Weight: 2 pounds
• Package Dimensions: 16 x 7 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU12X2.25RWHN
