SteelCrest BTU12X12SORBH Supply Vent Damper 12x12 Grille

Product Description

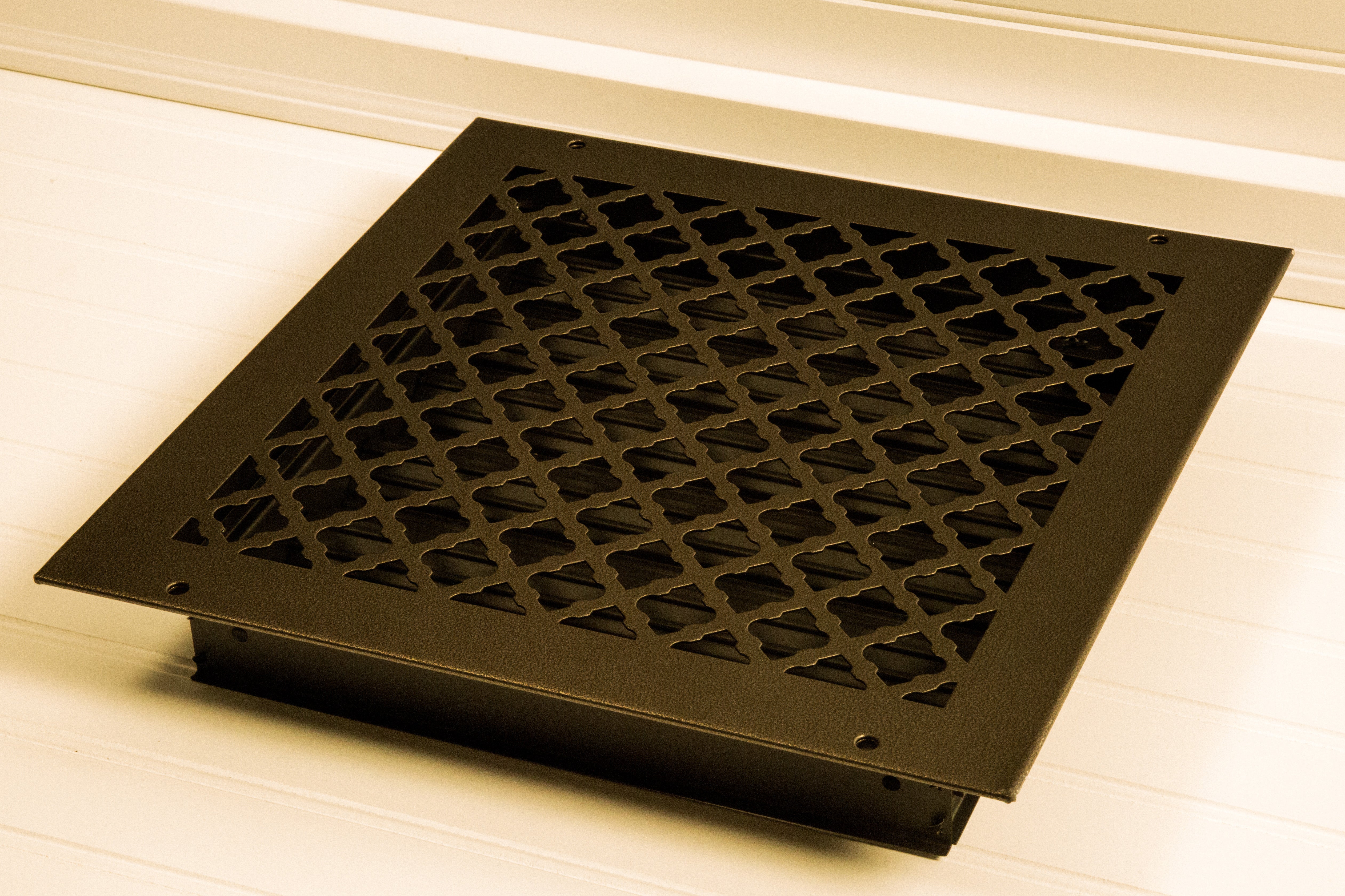

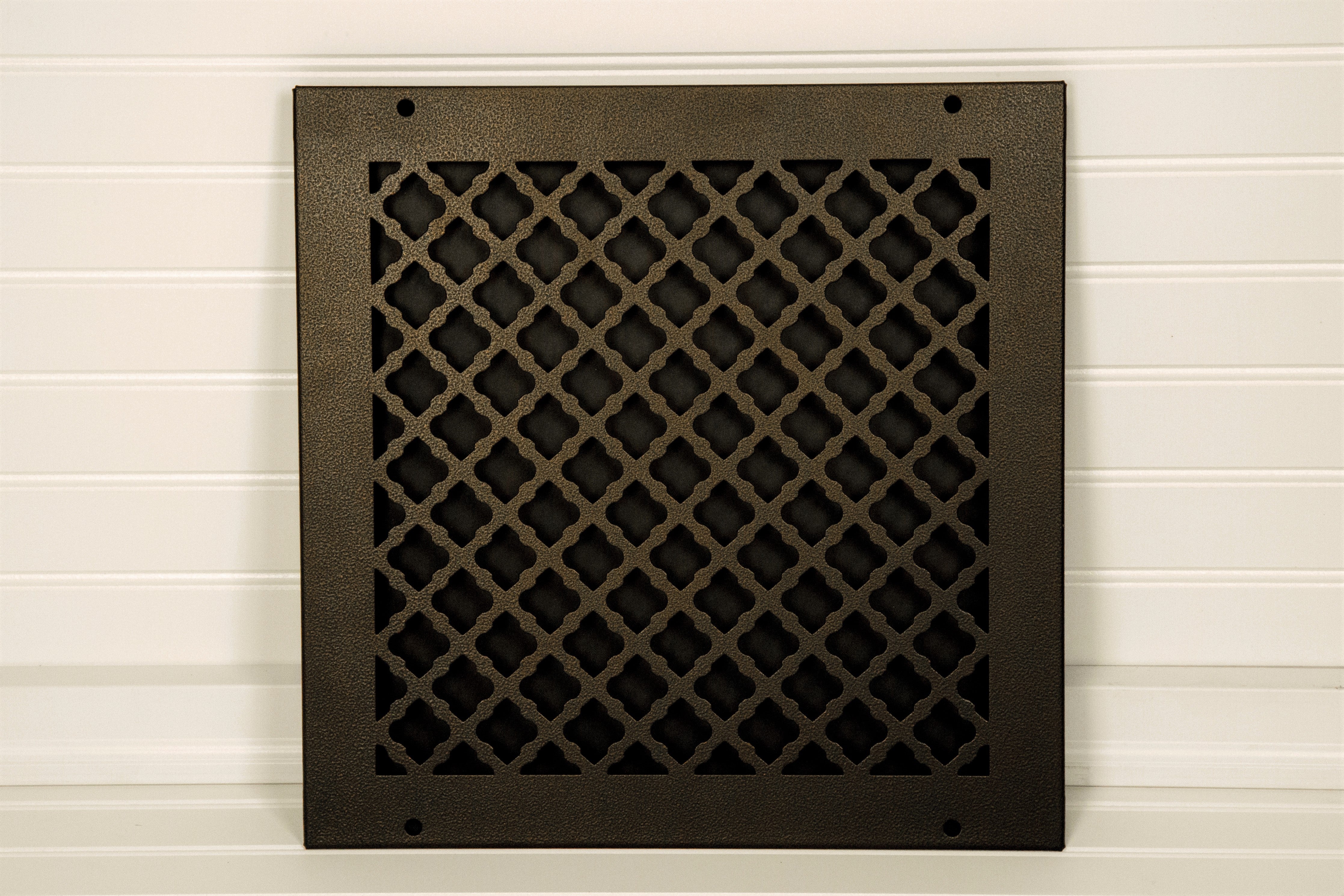

The SteelCrest BTU12X12SORBH is a decorative supply air vent with an integrated damper, designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, this grille fits a 12 x 12 inch duct opening and installs with a finished face size of 14 x 14 inches. The slotted face design supports directed airflow while the built-in damper allows basic volume control at the register level. Licensed HVAC technicians and skilled remodelers install this cover as a direct replacement or as part of new construction duct termination work.

This supply vent is suited for residential forced-air systems in living rooms, bedrooms, hallways, and open-ceiling applications where a refined finish is specified. The oil-rubbed bronze powder-coat finish makes it a common choice in remodel projects where standard white or builder-grade grilles are being upgraded. The 14 x 14 inch overall face covers the rough wall or ceiling opening cleanly around the 12 x 12 inch duct collar, reducing the need for additional trim work.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability

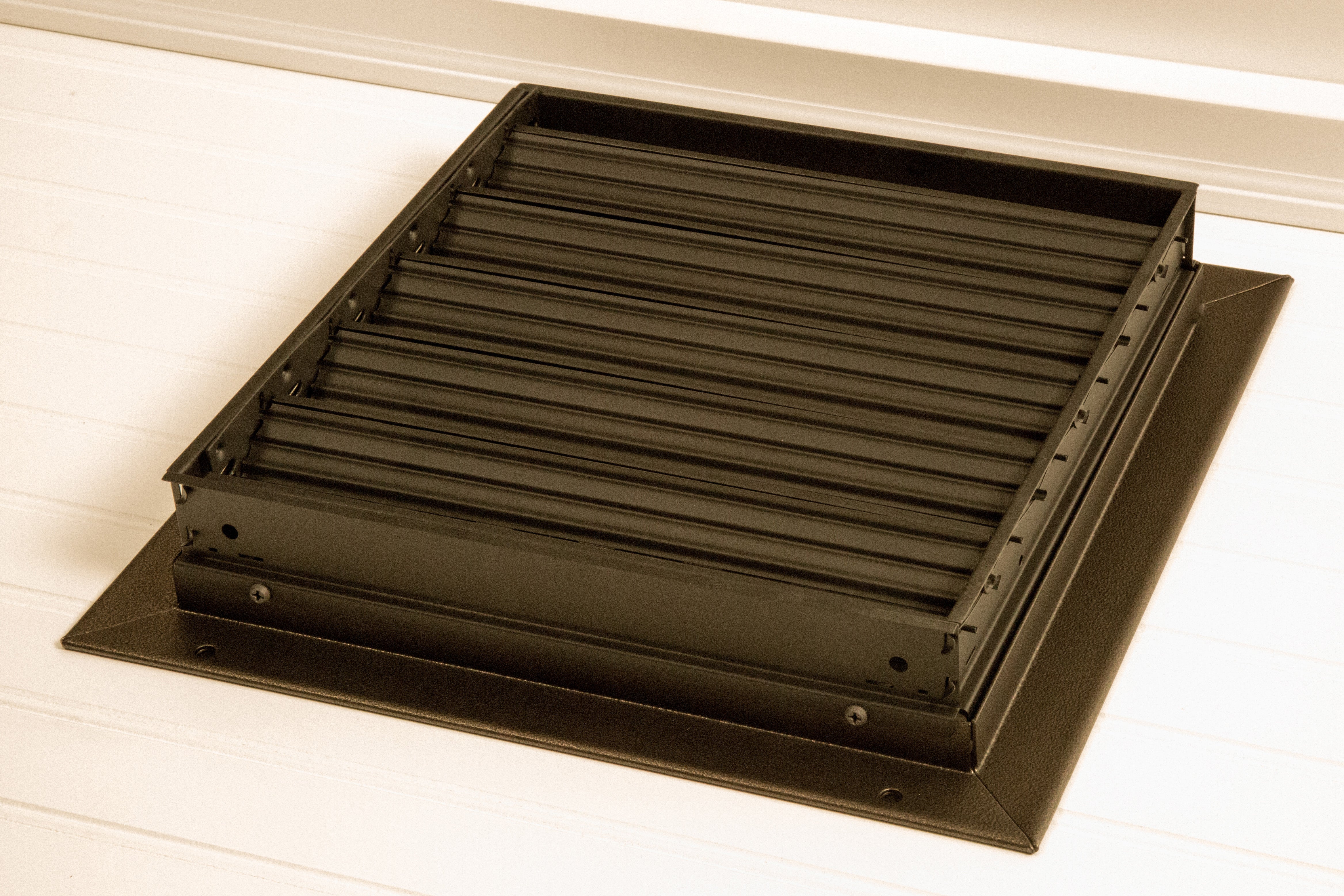

• Integrated damper provides register-level airflow volume control
• Fits 12 x 12 inch duct openings with a 14 x 14 inch finished face size
• Slotted face design directs conditioned air into the space
• Suitable for both wall and ceiling supply vent applications
• Direct-replacement fit simplifies new construction and remodel installs

Compatibility

Designed as a direct-replacement supply vent for residential and light commercial forced-air HVAC systems using a 12 x 12 inch rectangular duct opening in wall or ceiling applications.

Installation Notes

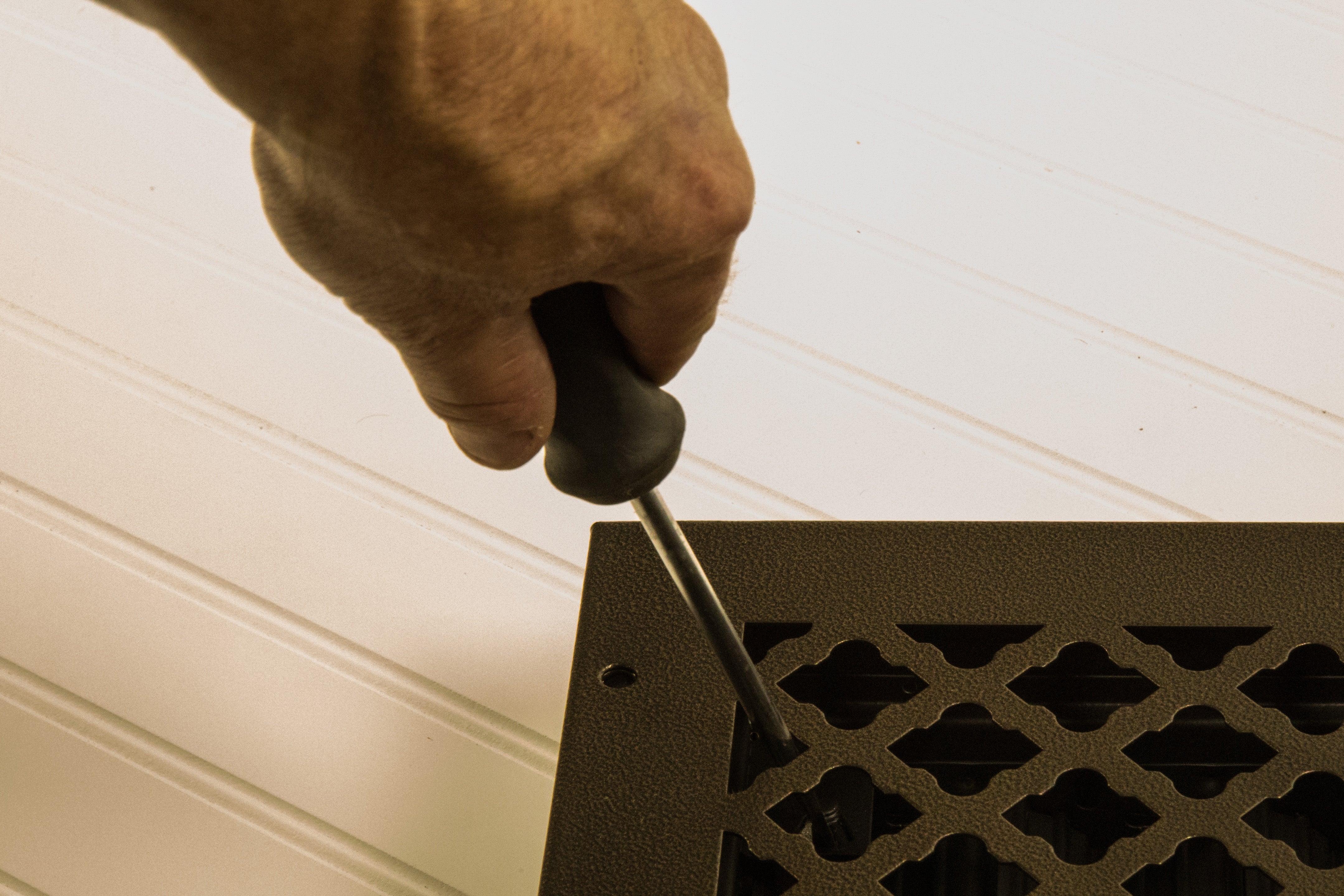

Installation is performed by a licensed HVAC technician or qualified contractor. Turn off the air handler or furnace at the thermostat and disconnect power at the breaker before removing an existing grille or working inside the duct opening. Secure the grille to the wall or ceiling surface using the mounting holes provided and verify the damper blade moves freely before restoring system operation. Follow local mechanical codes for supply register placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 12 x 12 inches
• Finished Face Size: 14 x 14 inches
• Material: Solid steel
• Finish: Oil-rubbed bronze powder coat
• Damper: Included
• Package Weight: 6 pounds
• Package Dimensions: 16 x 16 x 4 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU12X12SORBH
