SteelCrest BTU10X6RWHH Fixed Return Grille 10x6 Duct

Product Description

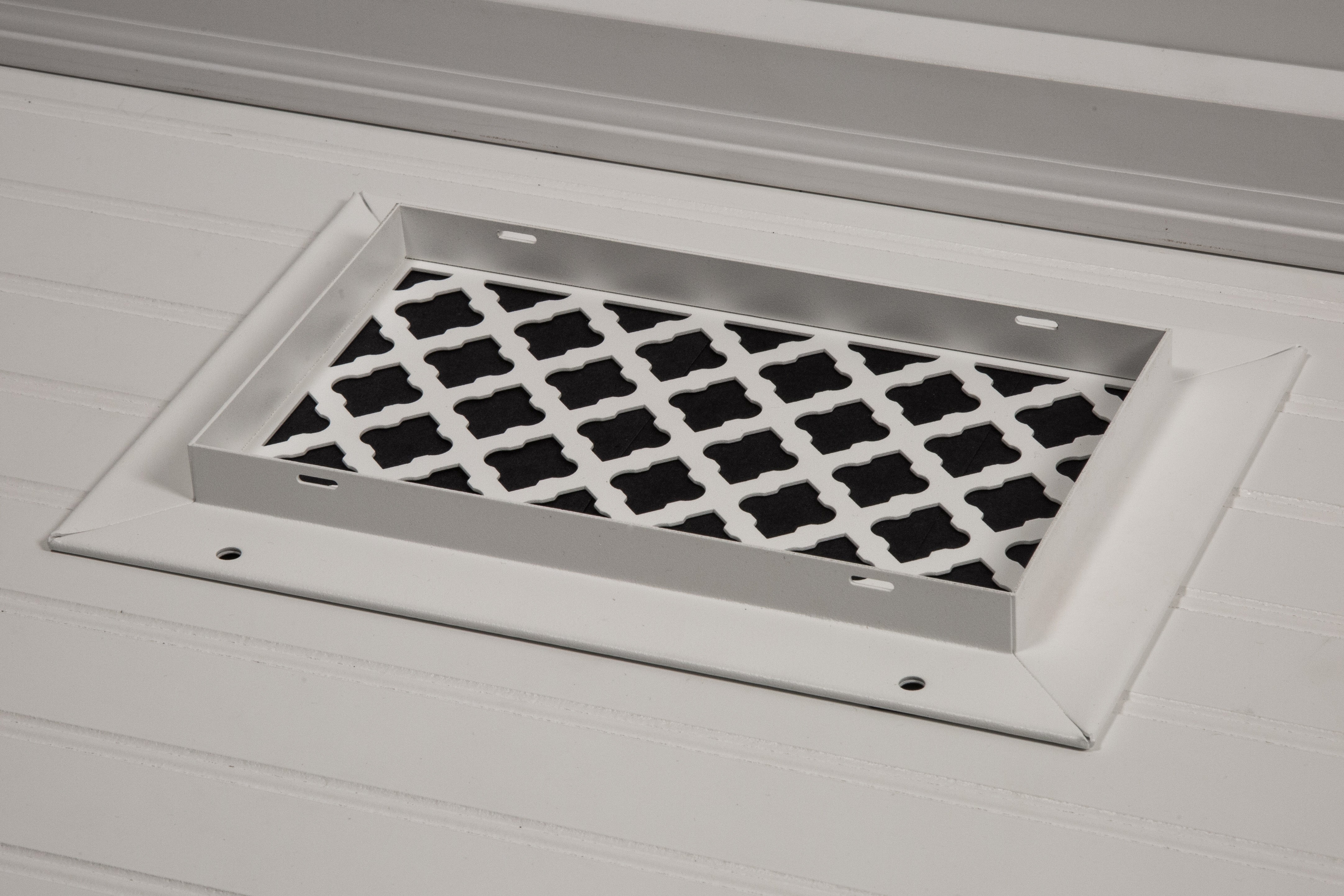

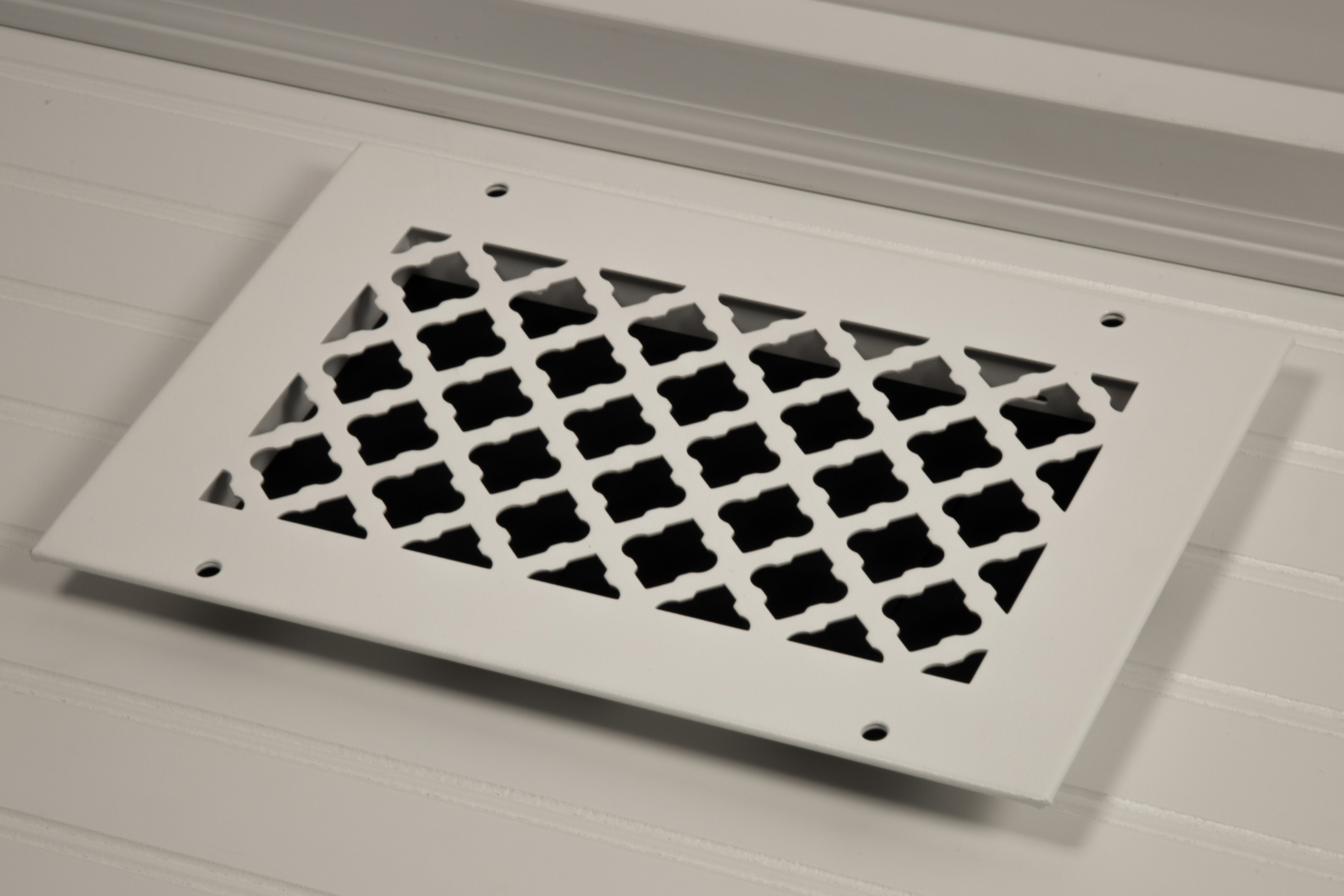

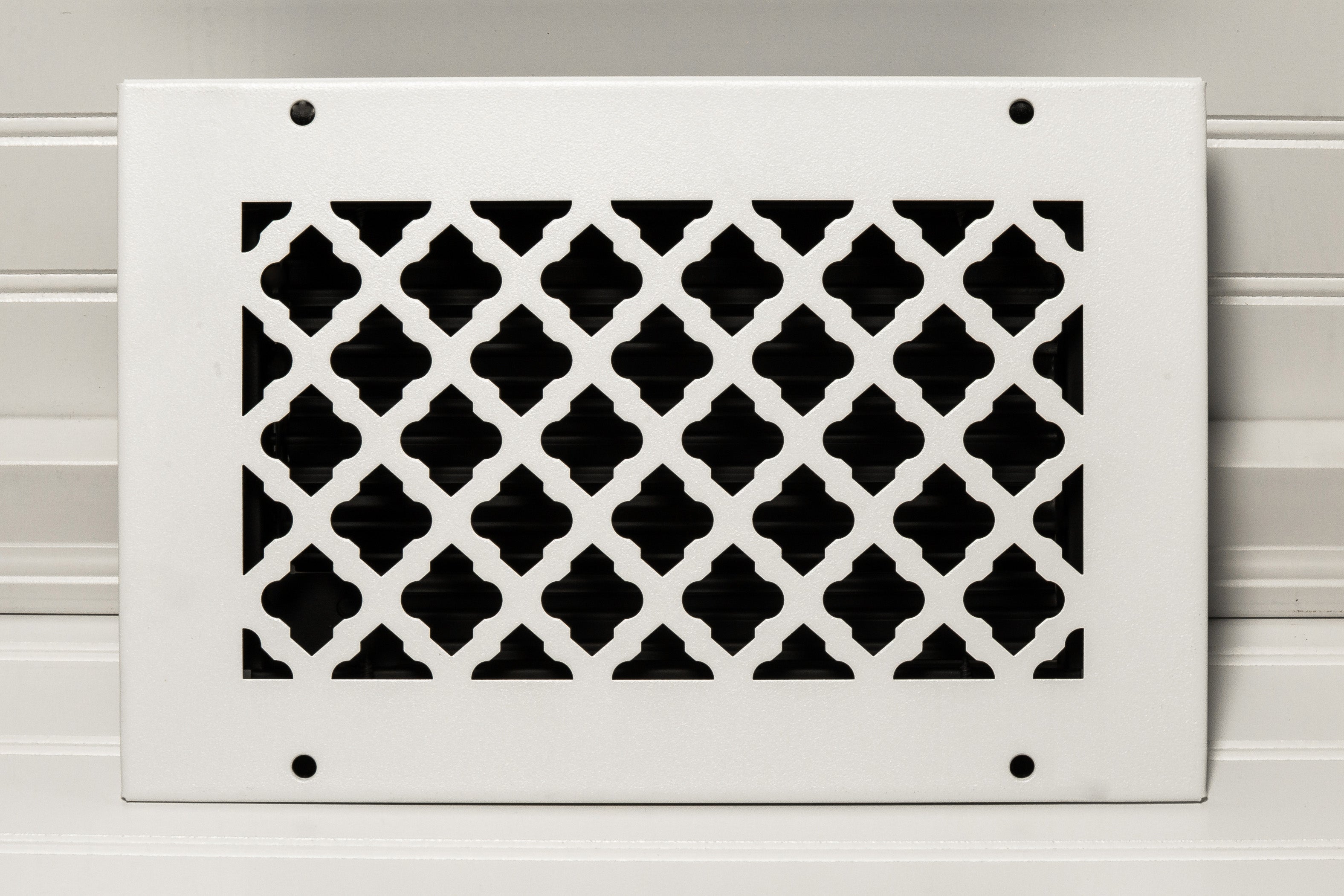

The SteelCrest BTU10X6RWHH is a fixed return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, this slotted-face grille provides a clean, architectural look while supporting consistent return airflow to the air handling system. The grille fits a 10x6 inch duct opening and installs to a finished face size of 12x8 inches, covering the rough opening cleanly without additional trim work. HVAC technicians and contractors install this type of grille as part of new construction rough-in or as a direct replacement during remodel work.

This grille is suited for residential forced-air systems where return air is ducted through standard rectangular openings in drywall, plaster, or finish ceilings. The fixed-blade slotted design makes it appropriate for low-profile return applications where blade adjustability is not required. Its finished dimensions allow it to cover a 10x6 inch duct collar with a 1-inch border on each side, keeping the installation looking complete without custom finishing.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed slotted face supports consistent return airflow without adjustable blades
• Fits 10x6 inch duct opening with a 12x8 inch overall finished face size
• Suitable for wall or ceiling mounting in standard rectangular duct openings
• Direct-replacement sizing simplifies installation in new construction and remodel applications

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial HVAC duct openings measuring 10x6 inches.

Installation Notes

Installation is typically performed by an HVAC technician or finish contractor. Power down the air handling system before removing an existing grille or working near the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the finish material. Do not install over an active supply plenum or restrict the return opening with insulation or framing material behind the grille face.

Technical Specifications

• Duct Opening Size: 10x6 inches
• Overall Finished Face Size: 12x8 inches
• Material: Solid steel
• Finish: White powder coat
• Grille Type: Fixed return, slotted face
• Mounting Application: Wall or ceiling
• Package Weight: 4 pounds
• Package Dimensions: 14 x 11 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X6RWHH
