SteelCrest BTU10X6RORBH Fixed Return Grille 10x6 Oil-rubbed Bronze

Product Description

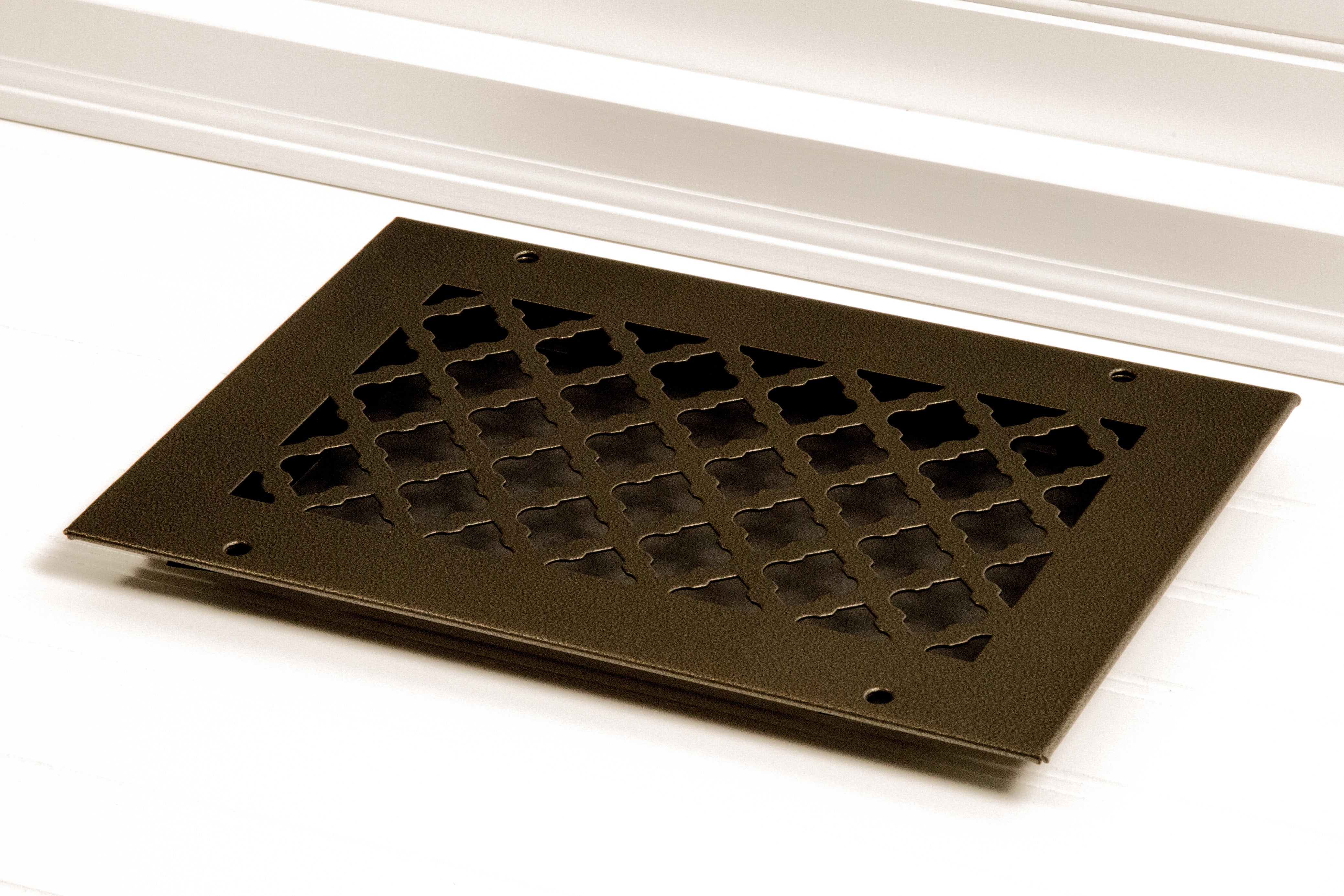

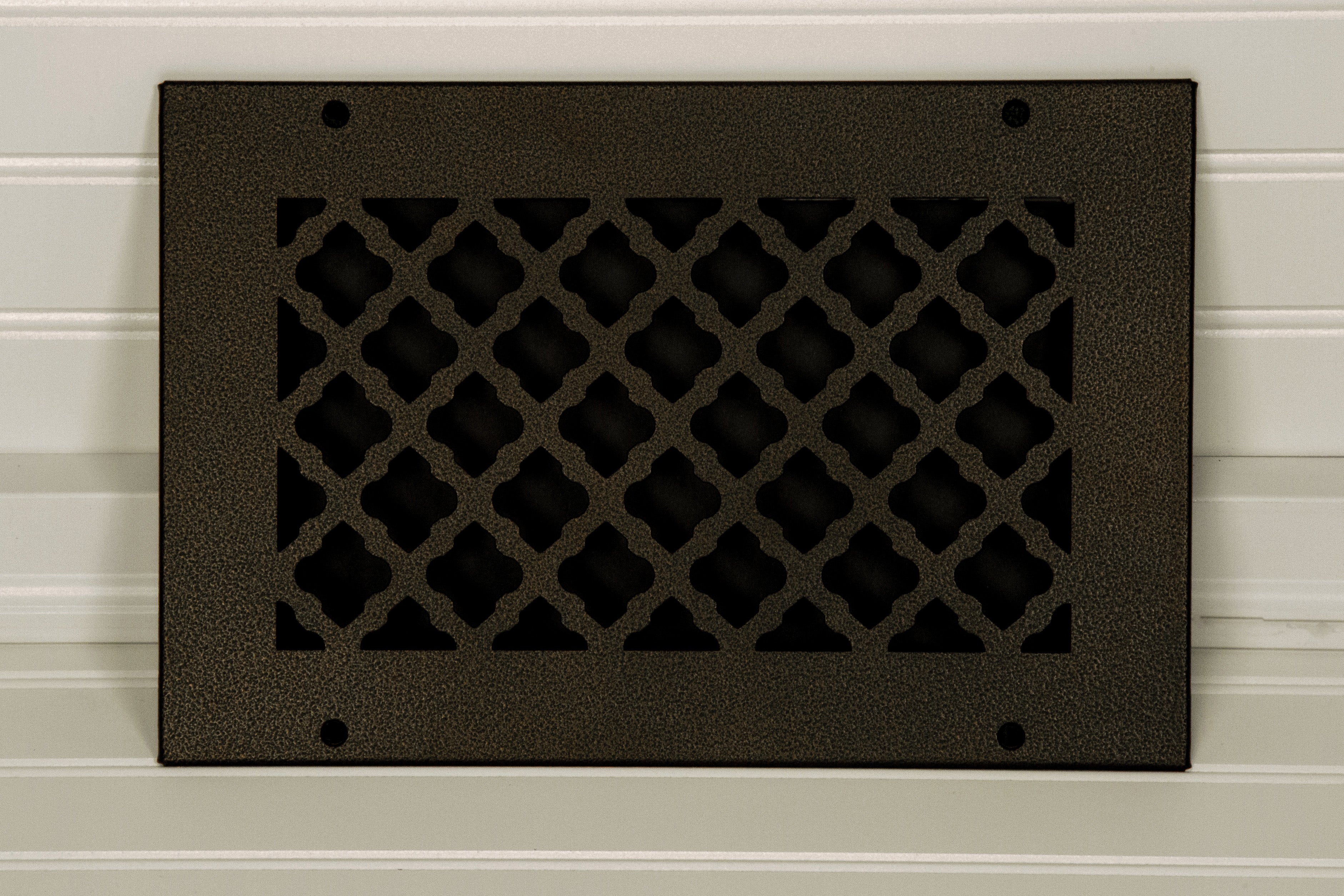

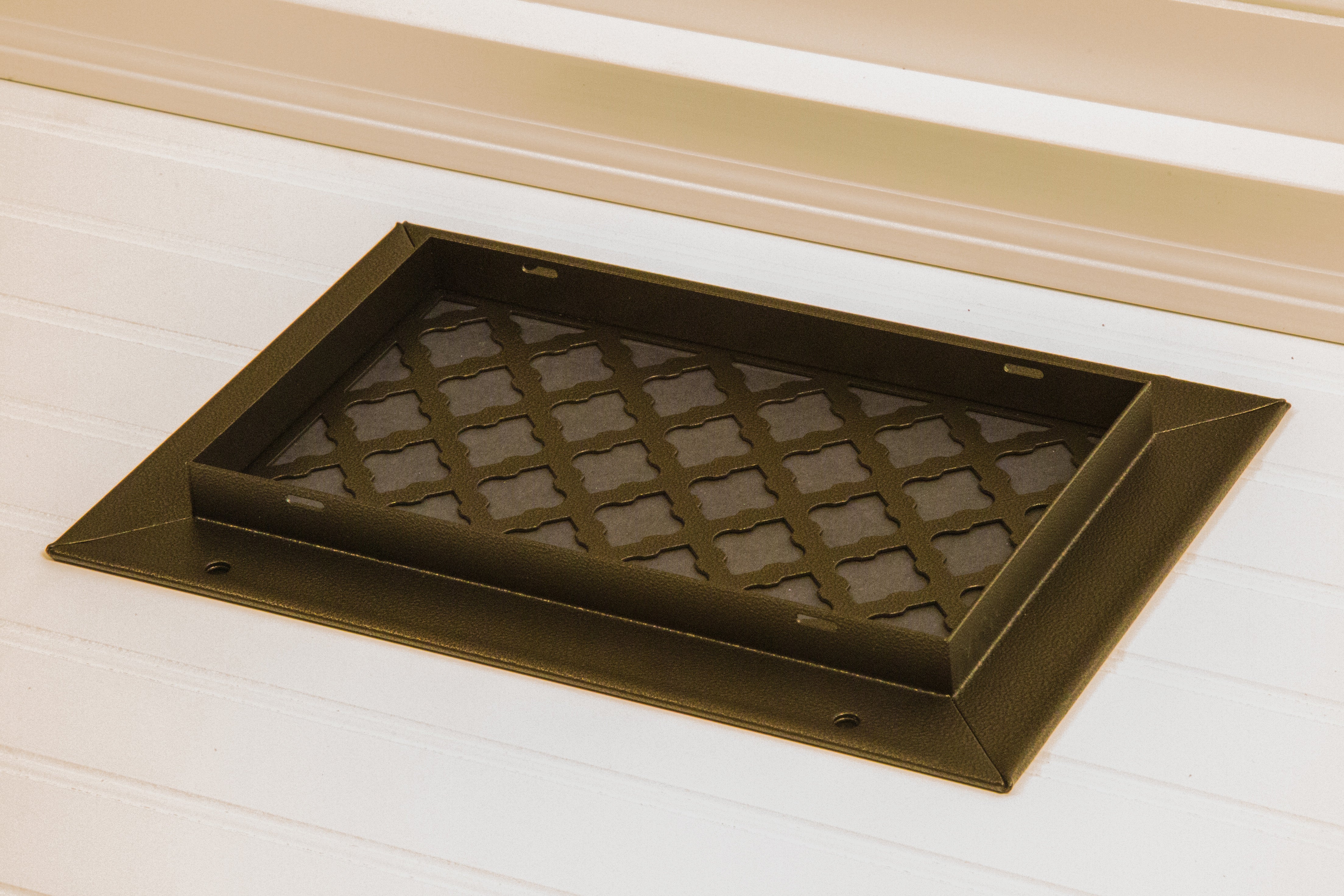

The SteelCrest BTU10X6RORBH is a fixed return air grille constructed from solid steel with an oil-rubbed bronze powder-coat finish. It features a slotted face design and is built for wall or ceiling installation in residential and light commercial HVAC systems. The grille fits a 10x6 inch duct opening and installs with an overall finished face size of 12x8 inches, making it a direct drop-in replacement with no cutting or modification required. Licensed HVAC technicians and finish contractors typically install this grille during new construction, system upgrades, or cosmetic remodels.

This grille is suited for return air applications on forced-air systems where a fixed-blade, non-adjustable face is acceptable. The oil-rubbed bronze finish makes it appropriate for interior spaces where aesthetics matter alongside function, including living areas, hallways, and finished basements. It mounts flush to drywall or ceiling surfaces and accommodates standard duct collar framing for a 10x6 inch duct.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for long-term durability
• Fixed slotted face supports consistent return airflow without adjustable blades
• Fits 10x6 inch duct opening with 12x8 inch overall finished face size
• Suitable for wall or ceiling mounting in return air applications
• Powder-coat finish resists chipping and corrosion in conditioned interior environments
• Direct-replacement sizing for fast installation in new construction or remodel projects

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial forced-air systems with a 10x6 inch return air duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or finish contractor. Power down the air handler or furnace at the disconnect before removing an existing grille or working near the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate. Do not block or restrict the duct opening behind the grille face during installation.

Technical Specifications

• Duct Opening Size: 10x6 inches
• Overall Finished Face Size: 12x8 inches
• Material: Solid steel
• Finish: Oil-rubbed bronze powder coat
• Blade Type: Fixed slotted
• Mount Type: Wall or ceiling
• Package Weight: 4 pounds
• Package Dimensions: 14 x 11 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X6RORBH
