SteelCrest BTU10X4RWHH Fixed Return Grille 10x4

Product Description

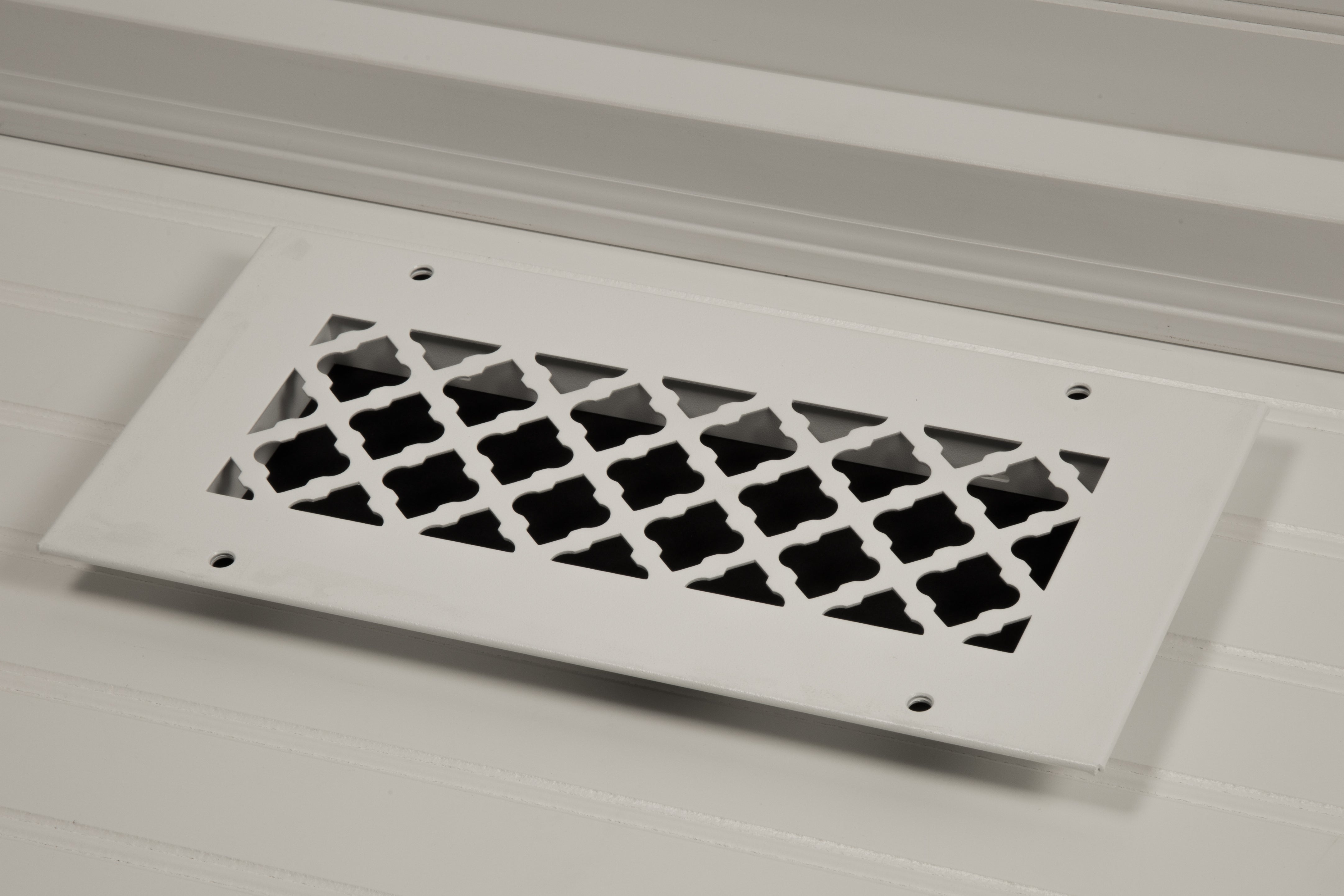

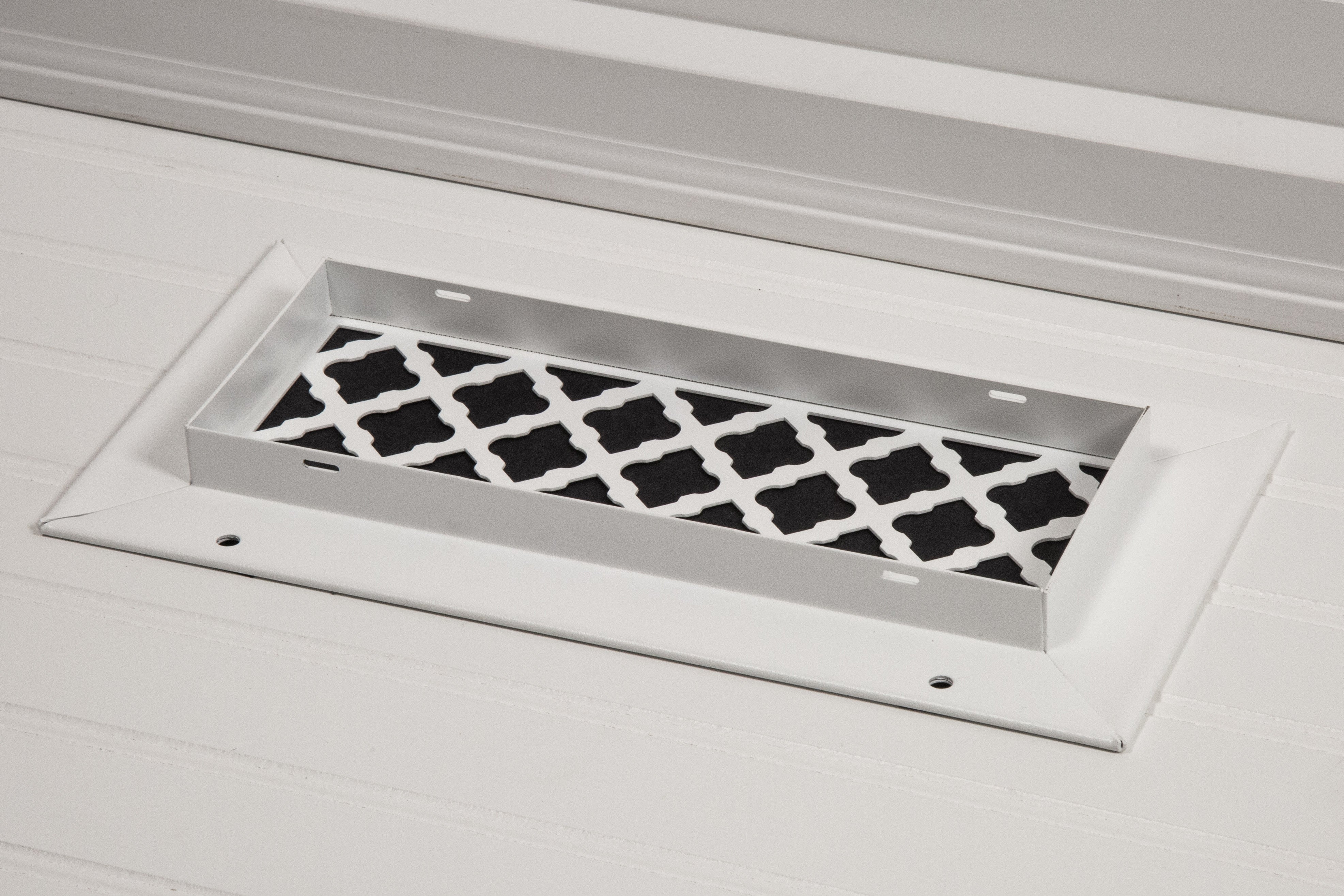

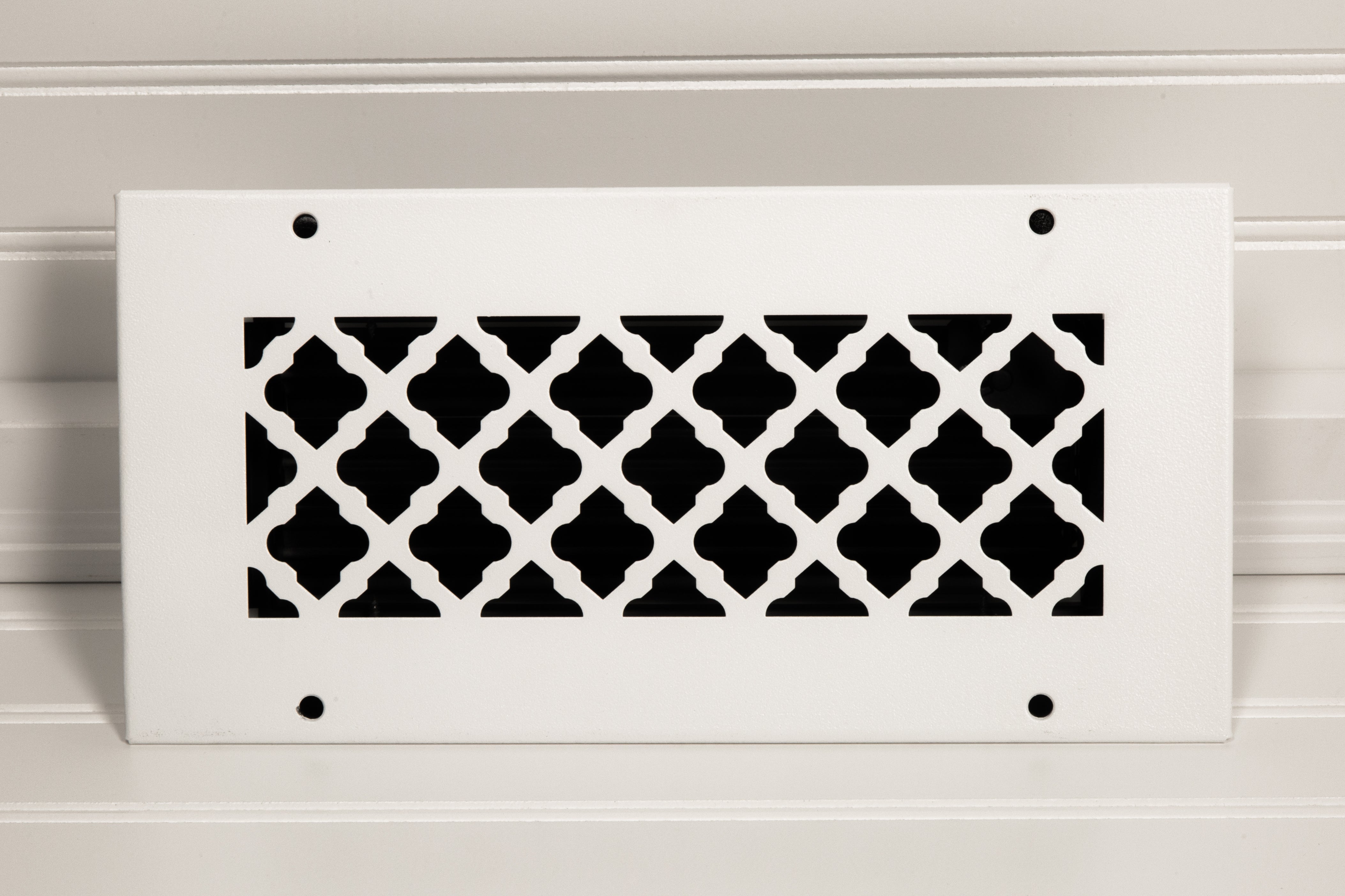

The SteelCrest BTU10X4RWHH is a fixed-blade return air grille designed for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it provides a slotted decorative face that supports consistent return airflow back to the air handler or furnace. The grille fits a 10 x 4 inch duct opening and installs flush against the wall or ceiling surface with an overall finished face size of 12 x 6 inches. Licensed HVAC technicians and finish contractors typically handle installation during new construction or remodel projects where a clean, low-profile return opening is required.

This grille is suited for residential forced-air systems where a fixed return grille is specified at the wall or ceiling. The slotted face pattern integrates with standard interior finishes without drawing attention to the duct opening. Its direct-replacement design makes it a straightforward swap during system retrofits or aesthetic upgrades, eliminating custom sizing or field fabrication. The white powder-coat finish coordinates with most painted drywall and trim work common in residential construction.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed-blade slotted face promotes consistent return airflow
• Fits 10 x 4 inch duct opening with 12 x 6 inch finished face size
• Suitable for wall or ceiling mounting
• Direct-replacement design simplifies new construction and remodel installs

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial forced-air HVAC systems using a 10 x 4 inch duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or finish contractor. Power down the HVAC system at the disconnect or breaker before beginning work. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate, ensuring the duct opening is fully covered by the finished face. Follow applicable local mechanical codes for return air grille placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 10 x 4 inches
• Finished Face Size: 12 x 6 inches
• Material: Solid steel
• Finish: White powder coat
• Blade Type: Fixed slotted
• Mount Type: Wall or ceiling
• Package Weight: 3 pounds
• Package Dimensions: 14 x 8 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X4RWHH
