SteelCrest BTU10X2.25SORBN Floor Supply Vent Damper 10x2.25

Product Description

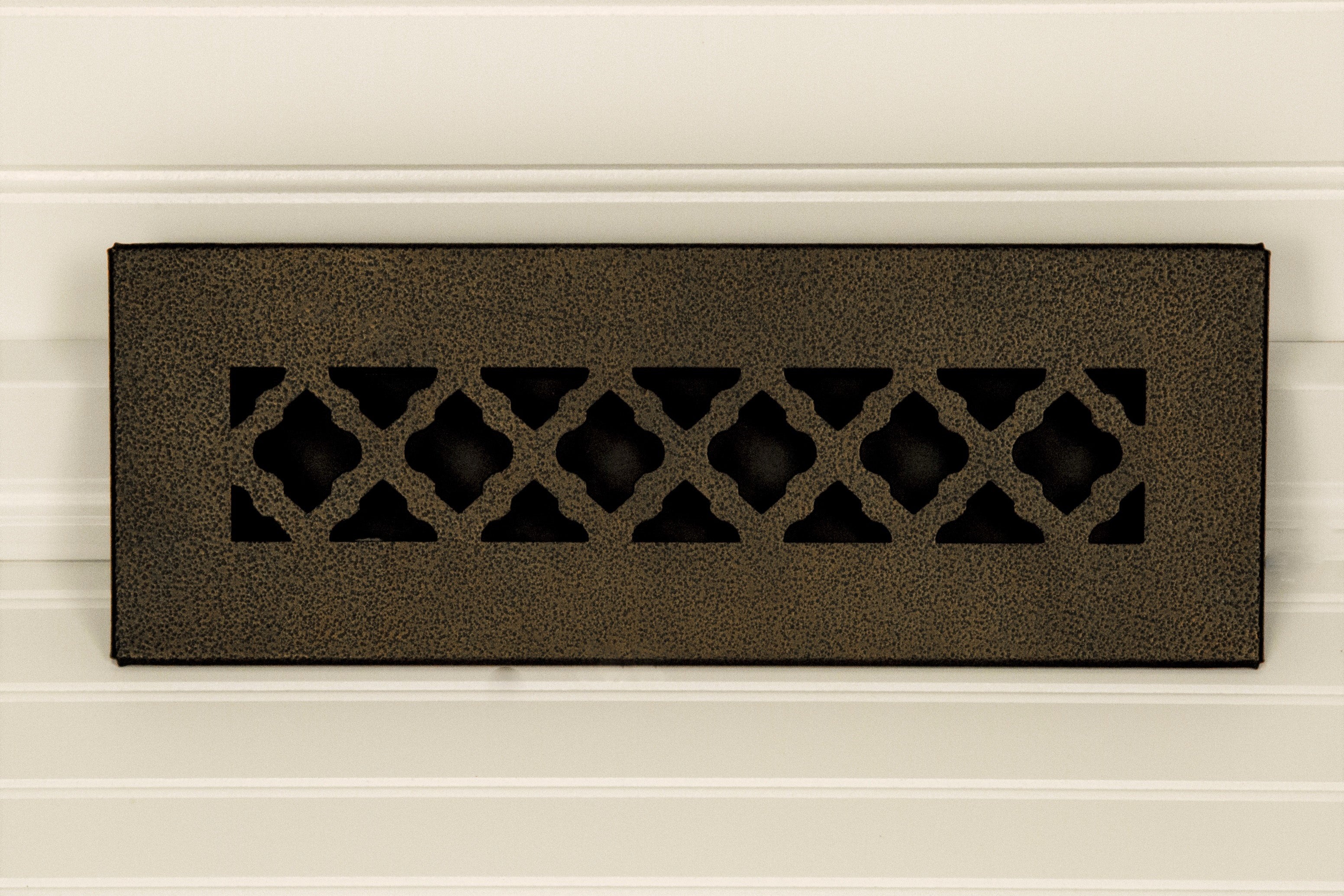

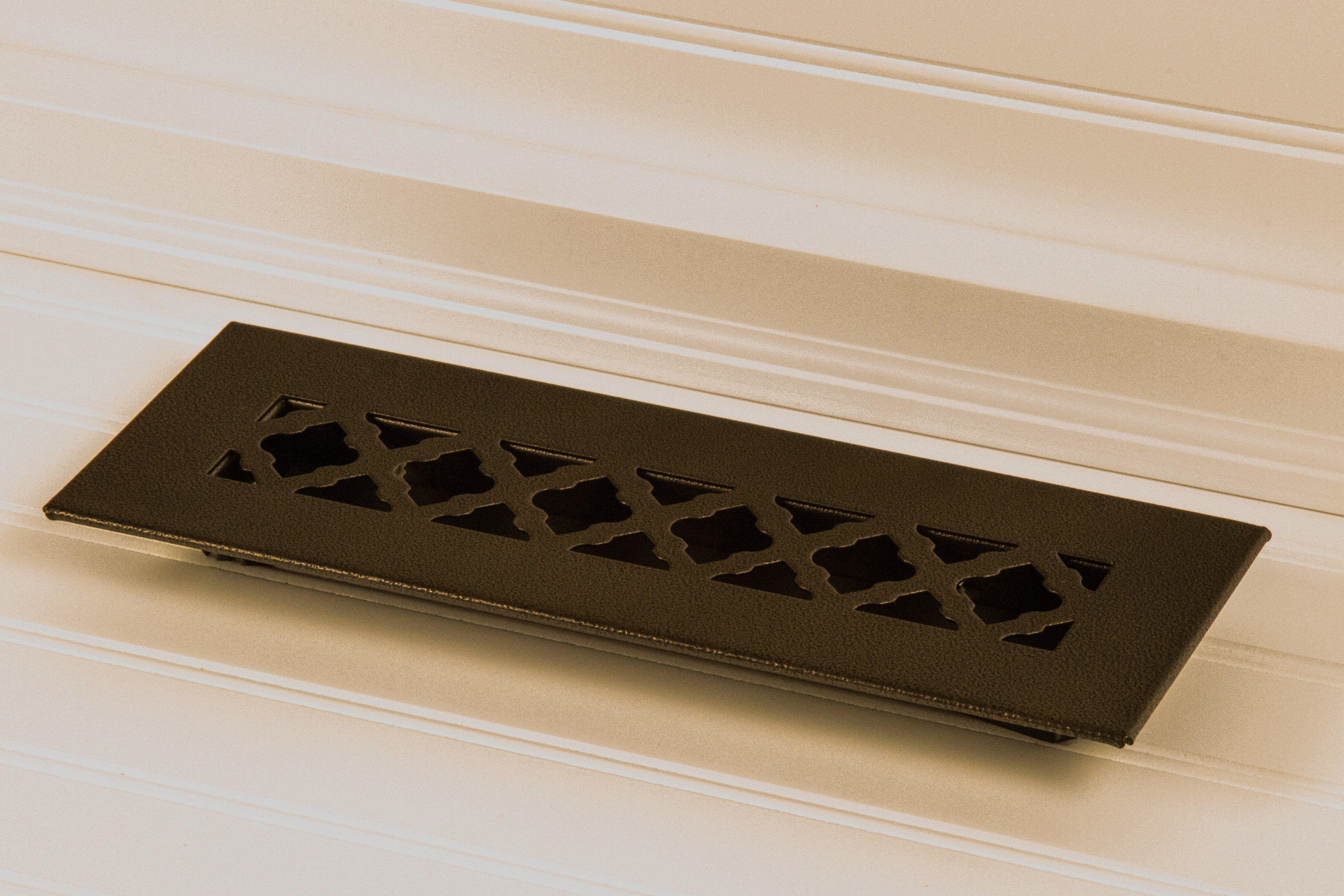

The SteelCrest BTU10X2.25SORBN is a decorative floor supply vent with an adjustable damper, designed for residential and light-commercial forced-air HVAC systems. Constructed from solid steel with an oil-rubbed bronze powder-coat finish, it fits a 10 x 2.25 inch duct opening and installs with an overall finished face size of 12 x 4.25 inches. The slotted face design promotes directed airflow while the integrated damper allows the technician or homeowner to regulate supply air volume at the register level. HVAC installers and remodeling contractors specify this vent for new construction and retrofit applications where a durable, finished-look grille is required at floor level.

This floor register is suited for residential forced-air heating and cooling systems where the supply duct terminates at a floor boot sized for a 10 x 2.25 inch opening. The 12 x 4.25 inch face plate overlaps the subfloor cutout, providing a clean finished appearance without additional trim. Typical install locations include hallways, living areas, and bedrooms in single-family homes and low-rise multi-family construction. The oil-rubbed bronze finish coordinates with period-style and transitional interior hardware.

Key Features

• Solid steel construction with oil-rubbed bronze powder-coat finish for corrosion resistance and durability
• Fits 10 x 2.25 inch duct opening with a 12 x 4.25 inch finished face size

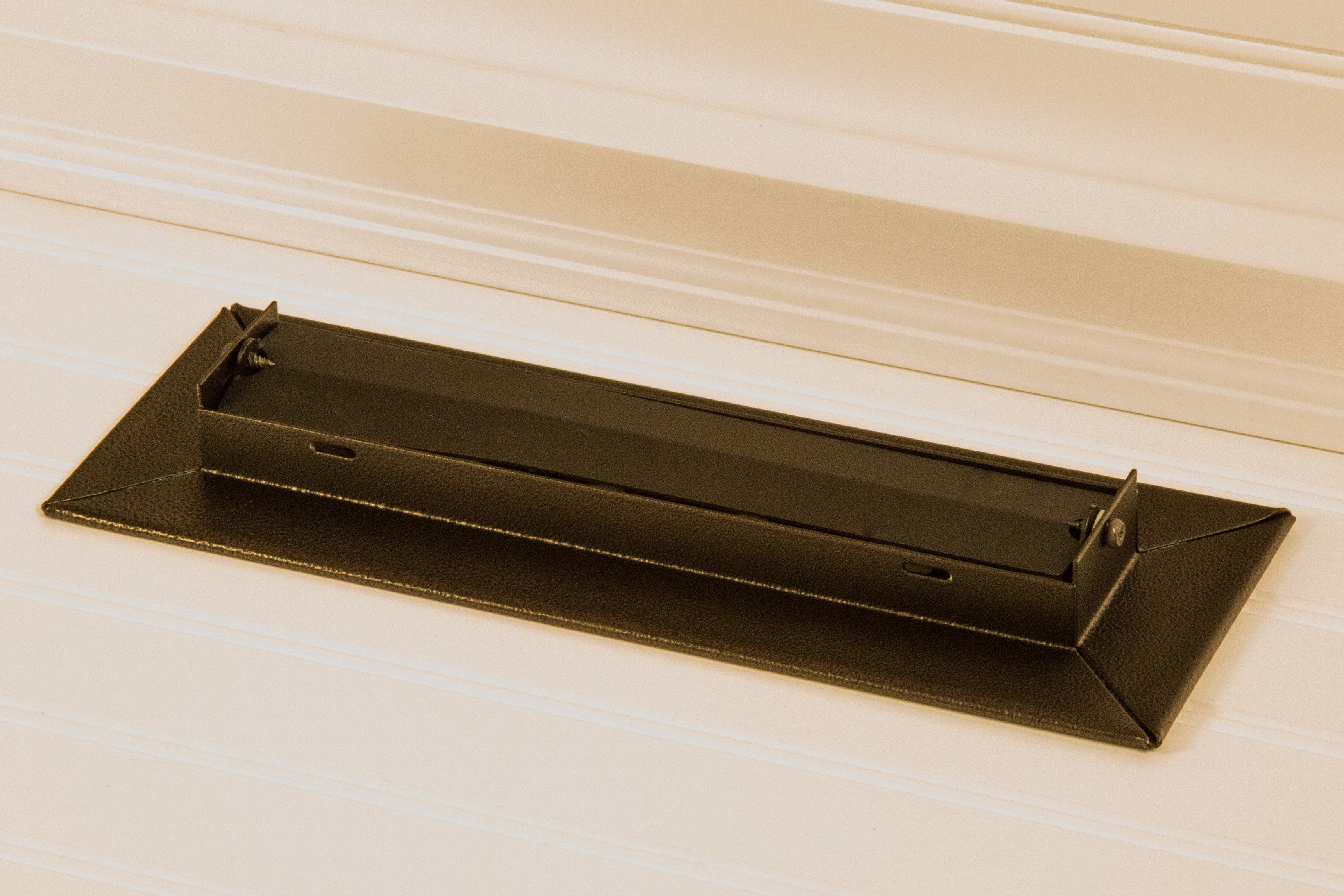

• Integrated damper allows supply airflow adjustment at the register
• Slotted face design directs conditioned air into the occupied space
• Suitable for new construction and direct-replacement remodel applications

Compatibility

Designed as a direct-replacement floor supply vent for forced-air HVAC systems using a 10 x 2.25 inch floor boot or duct opening.

Installation Notes

Installation is typically performed by an HVAC technician or general contractor during rough-in or finish work. Power down the air handler or furnace before working inside an active duct system. Secure the register to the floor using the manufacturer-provided fastener points and verify the damper blade moves freely before completing the installation. Do not seal or obstruct the damper mechanism, as restricted airflow can affect system static pressure balance.

Technical Specifications

• Duct Opening Size: 10 x 2.25 inches
• Finished Face Size: 12 x 4.25 inches
• Material: Solid steel with powder-coat finish
• Finish: Oil-Rubbed Bronze
• Damper: Included
• Package Weight: 3 pounds
• Package Dimensions: 14 x 7 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X2.25SORBN
